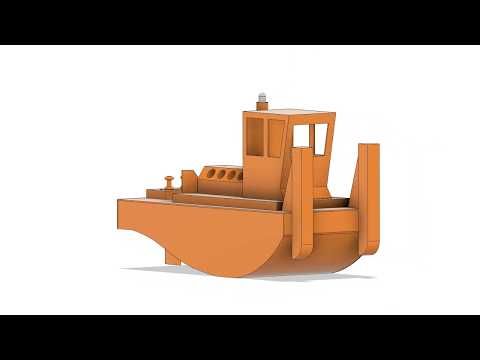

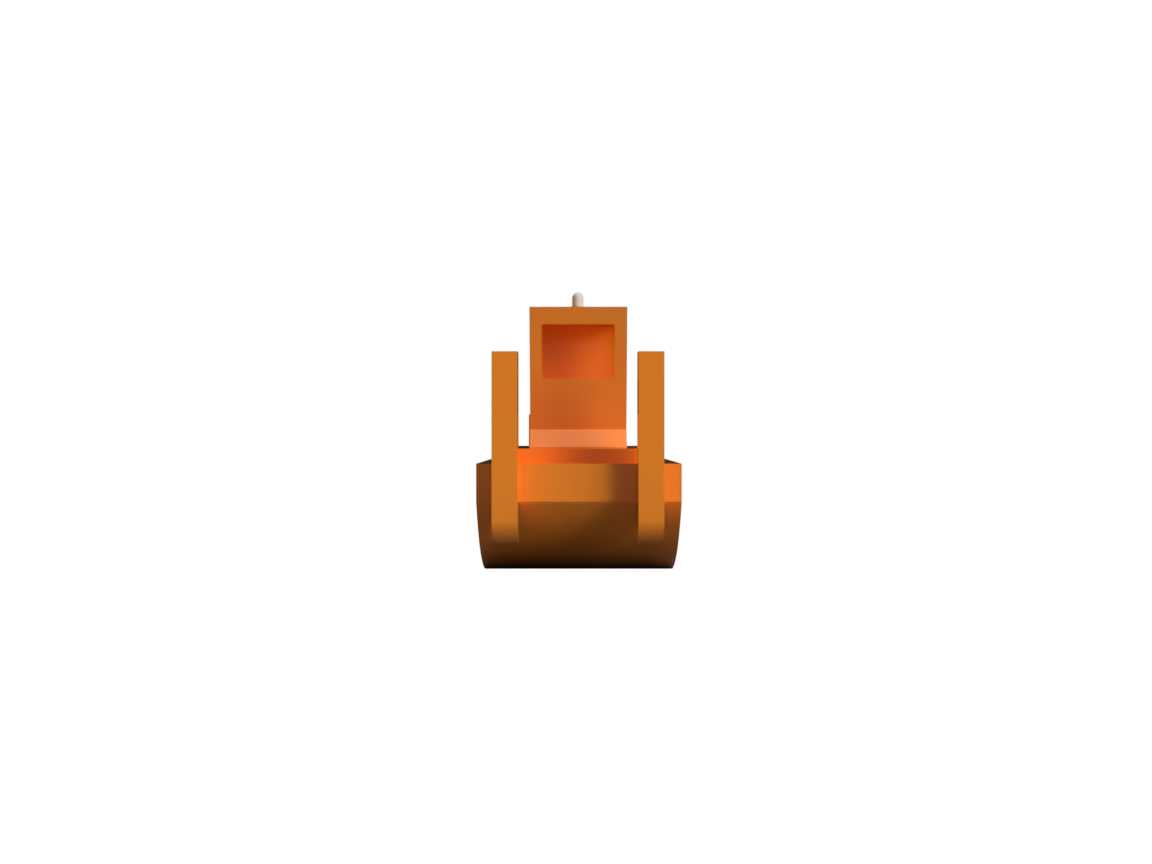

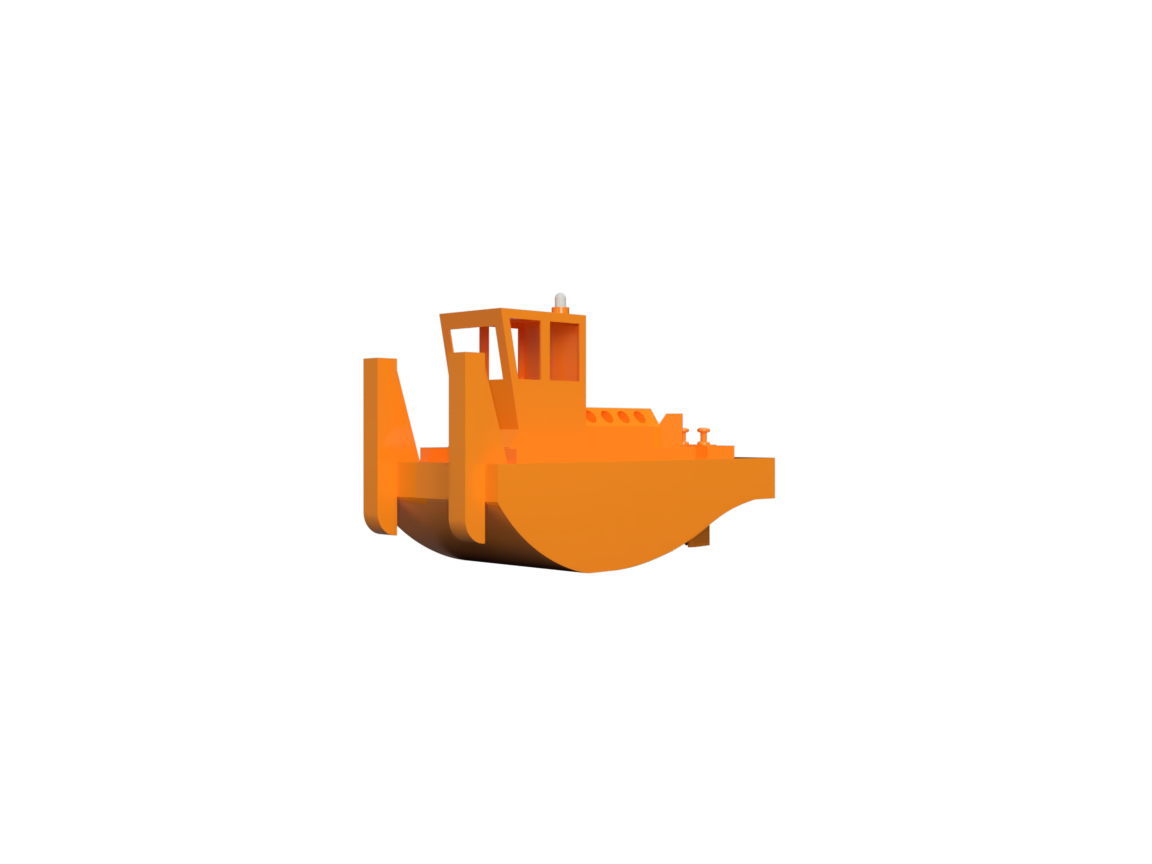

Mini rc Springer tug boat

3D model description

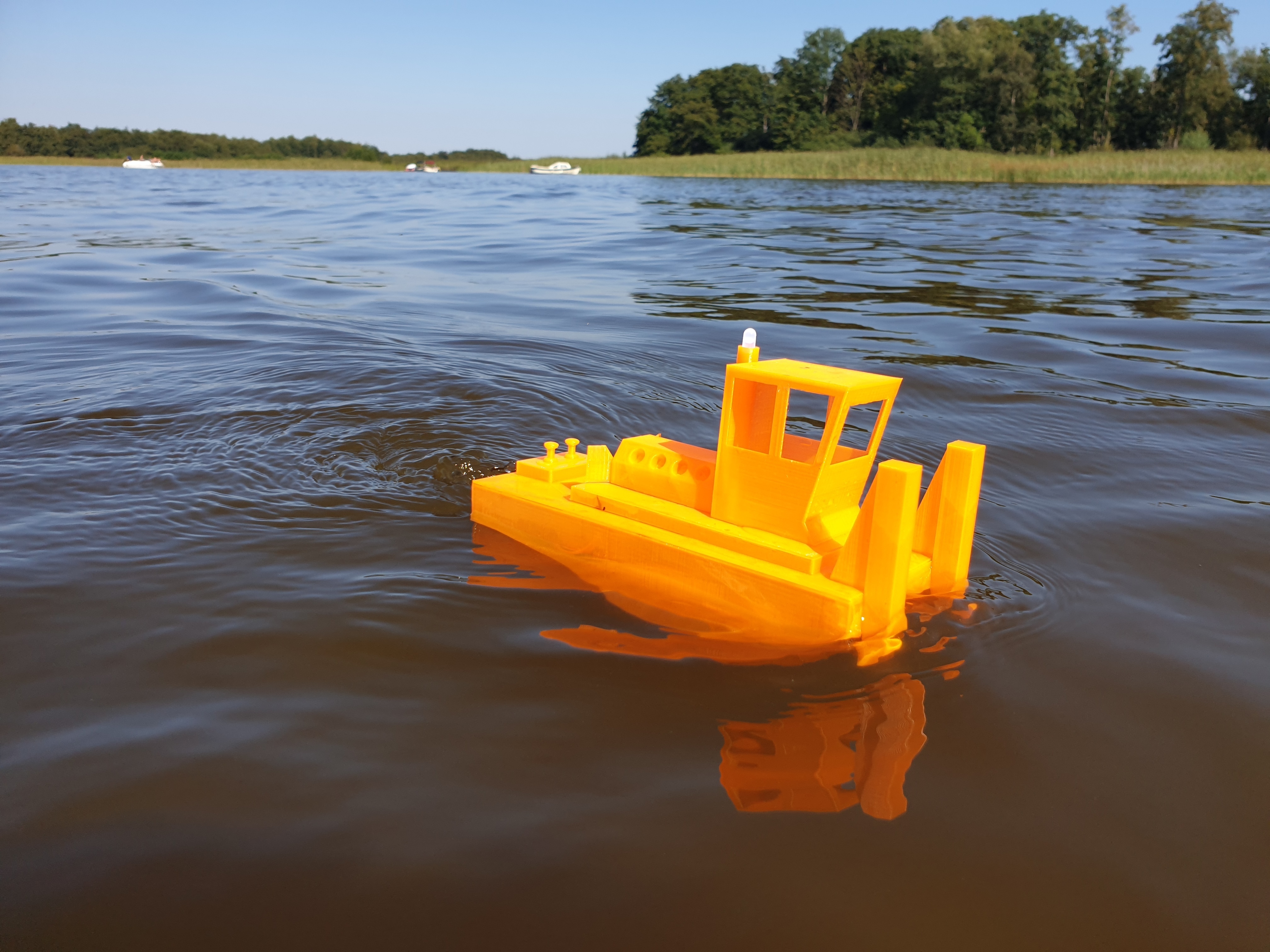

Rc Springer tug
Dimensions: 180 x 81 x 150mm

Links to youtube videos:
Rc Springer tug in action:
https://www.youtube.com/watch?v=3ZmMkz-ZOHg
Rc Springer tug assembly video: https://www.youtube.com/watch?v=sJDGn-gj5Yo

Filament type: Doesn’t matter

With stl’s you will find a .pdf file with assembly instructions.
To see how I printed this design, look at the pictures above.

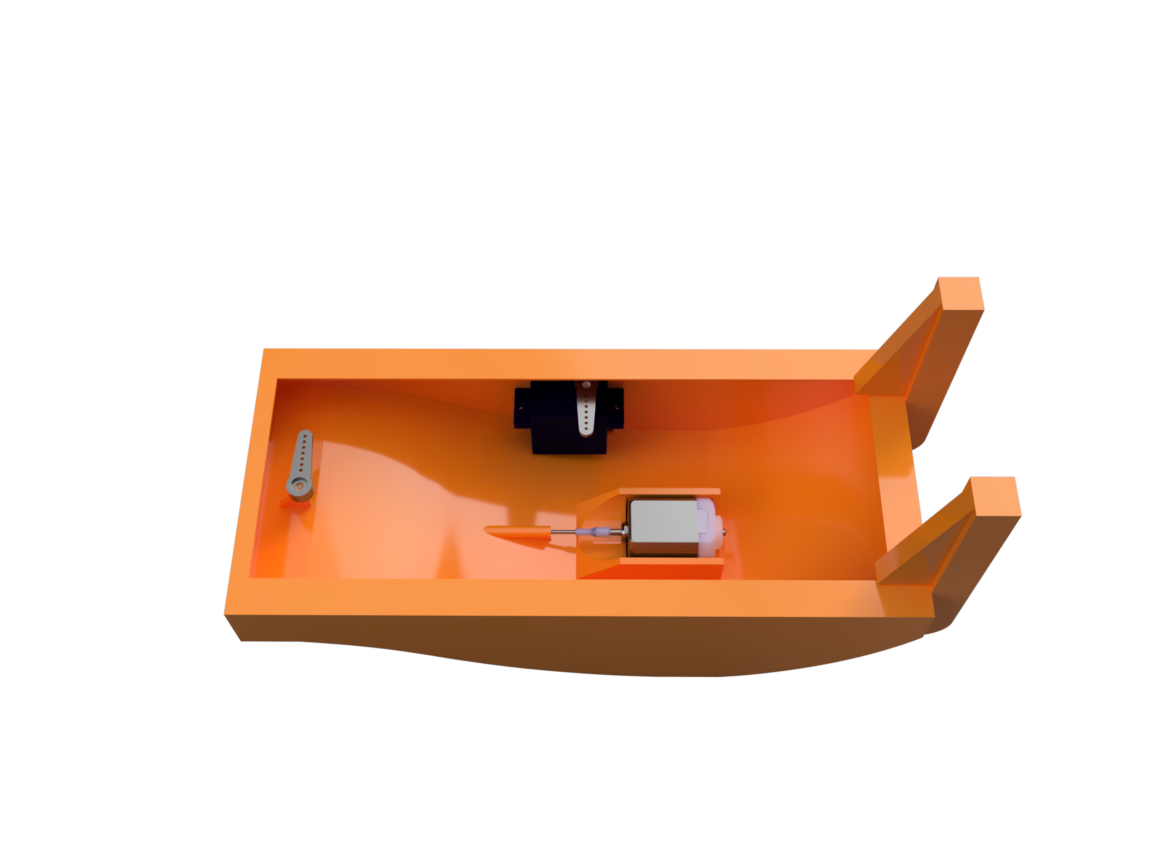

Parts needed:
• 1x printed parts of each stl file. except the push_bumper, you need two of those
• 1x 130 sized brushed dc motor
https://nl.aliexpress.com/item/32998398962.html?spm=a2g0o.productlist.0.0.231a3b2eKgYYBW&algo_pvid=1385fd78-3a61-4537-95c6-cd152a3aad6c&algo_expid=1385fd78-3a61-4537-95c6-cd152a3aad6c-1&btsid=7ef1a9ec-a783-425b-b646-9da26aace56c&ws_ab_test=searchweb0_0,searchweb201602_10,searchweb201603_53

• 1x brushed esc (with BEC to power the receiver)
https://nl.aliexpress.com/item/32904941021.html?spm=a2g0o.productlist.0.0.17a58465siPpCl&algo_pvid=74f56a44-0c85-47dc-a679-42fc3bdb1d2b&algo_expid=74f56a44-0c85-47dc-a679-42fc3bdb1d2b-0&btsid=bf23e2e6-cb5d-483d-bfa5-47a20f5aadb0&ws_ab_test=searchweb0_0,searchweb201602_10,searchweb201603_53

• 1x 2s battery (2s lipo or 2x lion 18650 in series)
https://nl.aliexpress.com/item/4000220047702.html?spm=a2g0o.productlist.0.0.7ccf7201cUQakj&algo_pvid=6d33dc75-3119-4d71-bcc9-2ba6236393d5&algo_expid=6d33dc75-3119-4d71-bcc9-2ba6236393d5-2&btsid=fbc0bcb9-f60c-4aef-b259-1163a49c14db&ws_ab_test=searchweb0_0,searchweb201602_10,searchweb201603_53

• 1x 9g servo
https://nl.aliexpress.com/item/32890069044.html?spm=a2g0o.productlist.0.0.4ec317010HBkbT&algo_pvid=400b8002-02f9-4a6b-a9a1-846cb68f81e1&algo_expid=400b8002-02f9-4a6b-a9a1-846cb68f81e1-0&btsid=fe7b039e-d49c-4898-9d44-9172fcc4dc59&ws_ab_test=searchweb0_0,searchweb201602_10,searchweb201603_53

• 1x receiver and transmitter with a minimum of two channels
https://nl.aliexpress.com/item/32814292187.html?spm=a2g0o.productlist.0.0.6f14482fEGSSul&algo_pvid=c76ede88-6b41-4d00-bc81-7471949006d6&algo_expid=c76ede88-6b41-4d00-bc81-7471949006d6-1&btsid=01ab43b9-d932-42de-82d2-29b6986fbf31&ws_ab_test=searchweb0_0,searchweb201602_10,searchweb201603_53

• 1x glue that sticks to metal and pla
• 1x 15cm long steel rod 1,2mm in diameter
• 1x bendable steel wire that fits through the steering horns
• 1x battery connector (same as battery)

Optional:
• 1x LED (to put on the chimney)
• 1x 3.7g servo (to turn the led on and off)
• 1x resistor (to lower the voltage for the LED)

My youtube channel
https://www.youtube.com/channel/UCGDGWz5gqmt4PYh3lHV3HJg

My Thingiverse account
https://www.thingiverse.com/Jips_technical_stuff/

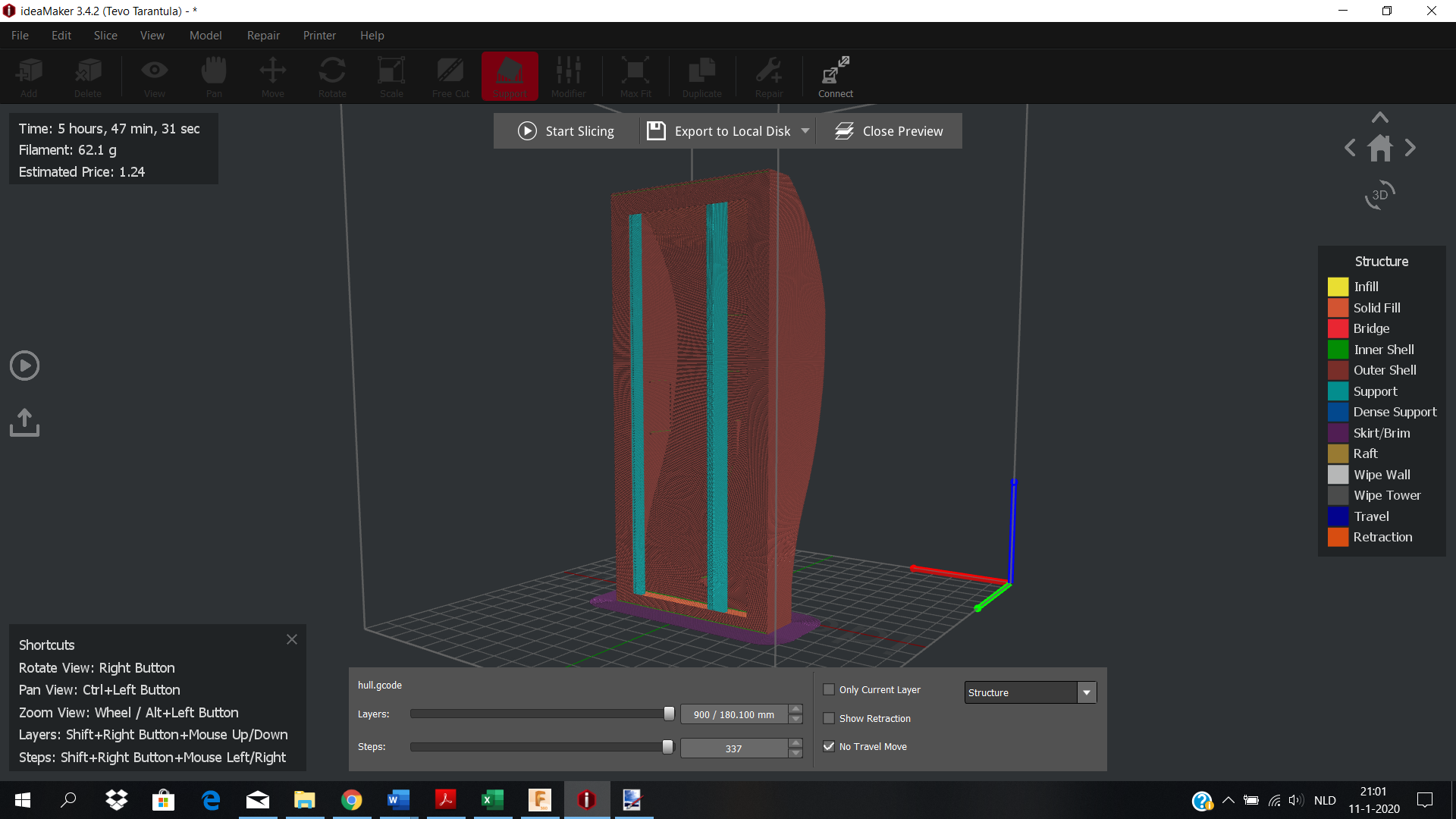

3D printing settings

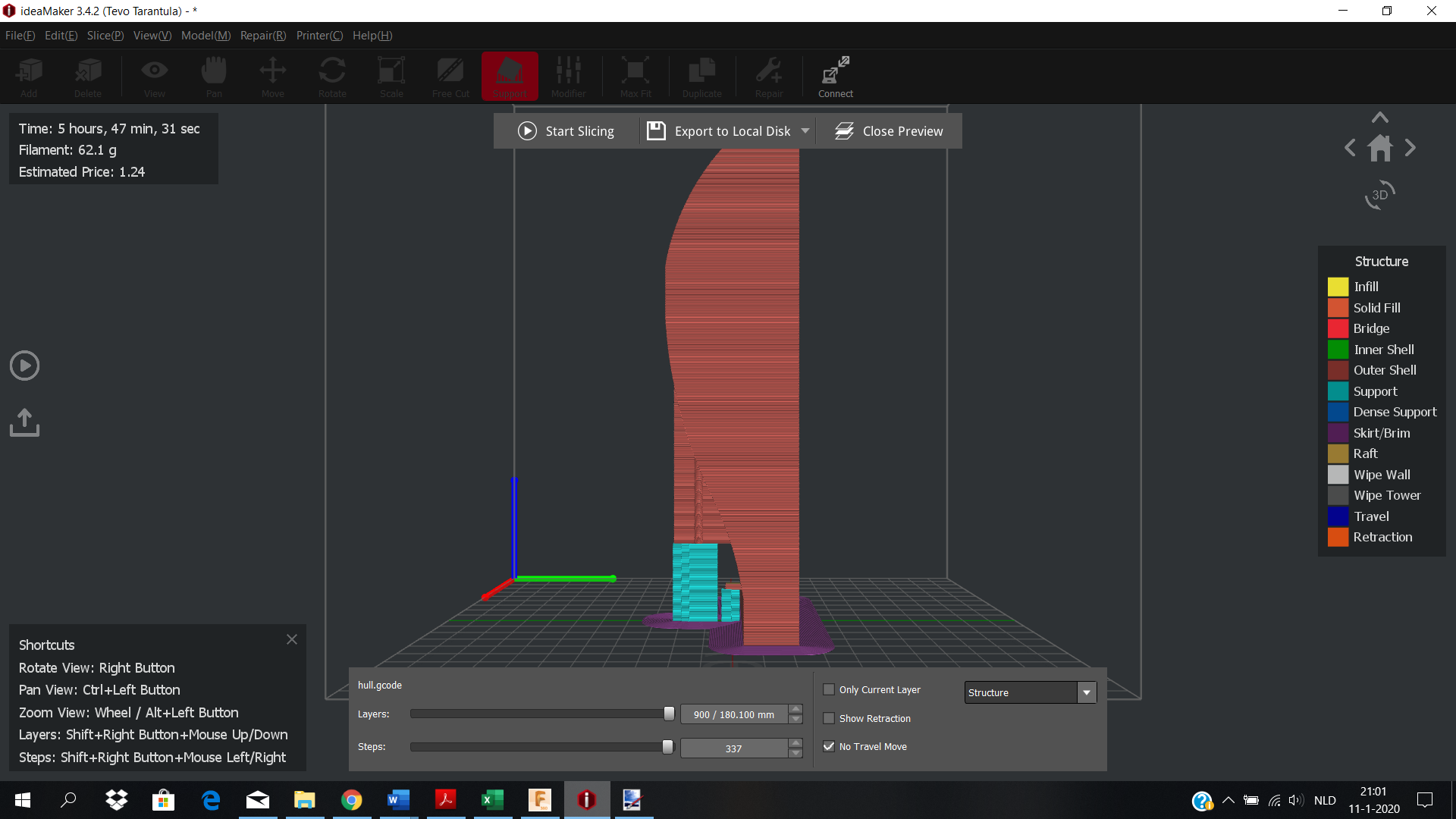

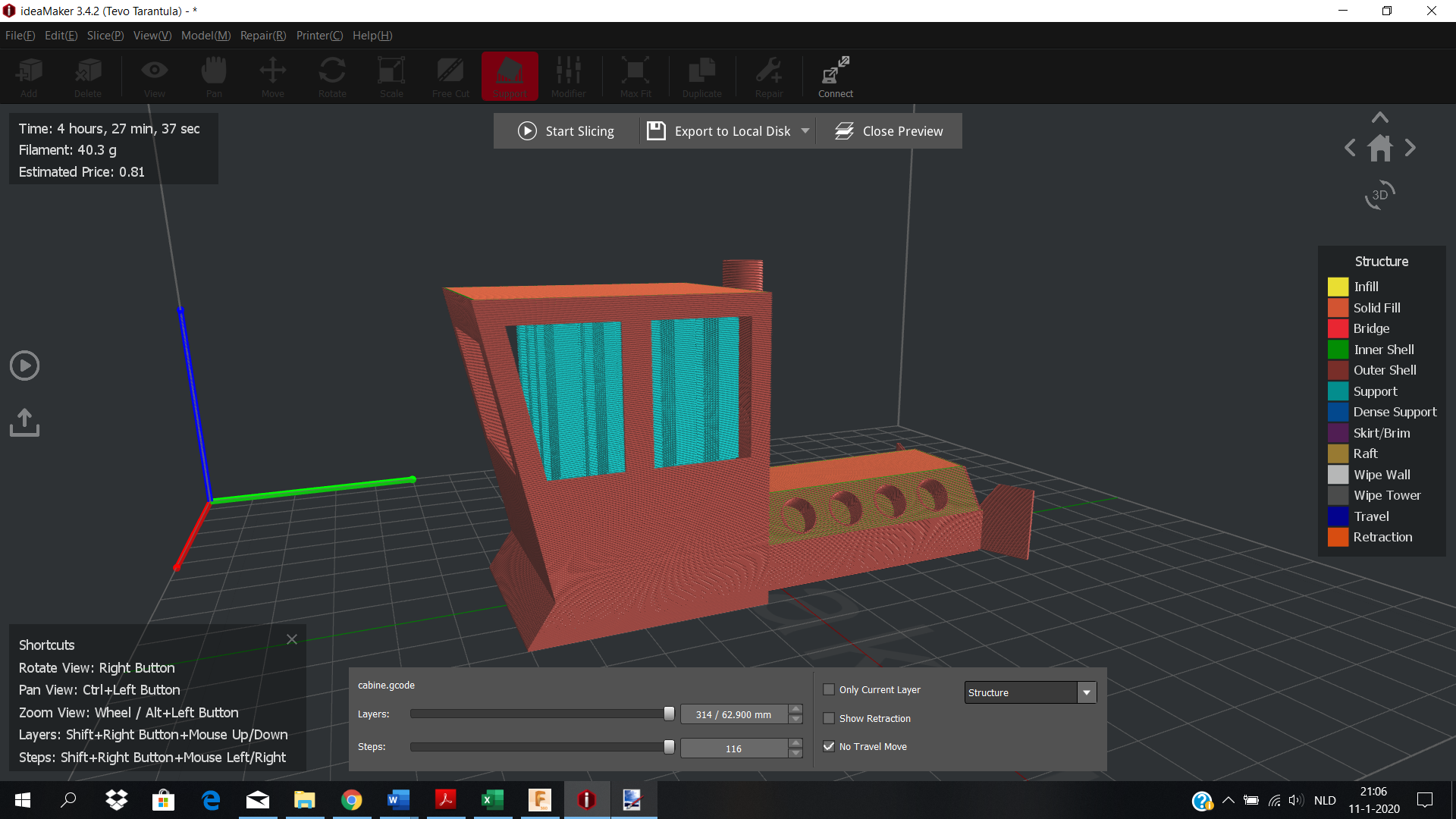

See the pictures

  • 3D model format: PDF and STL
