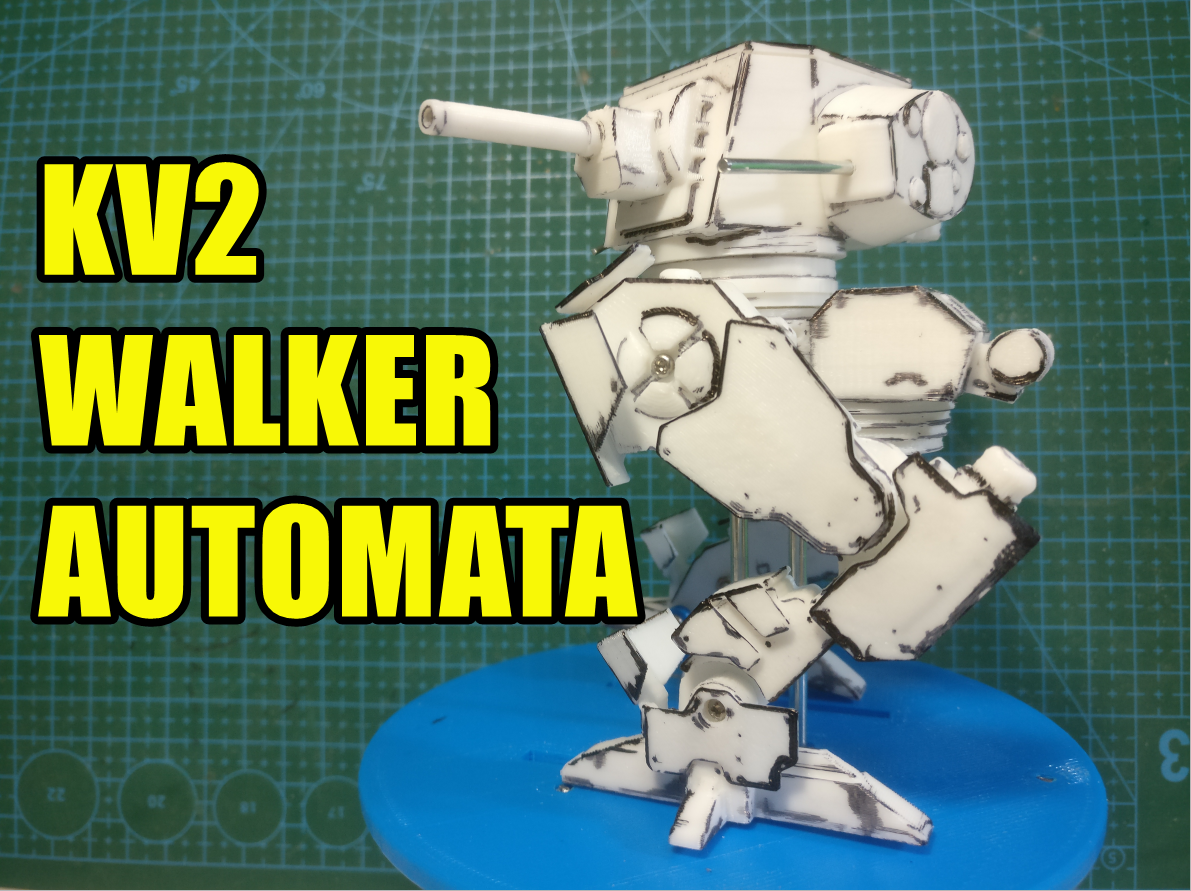

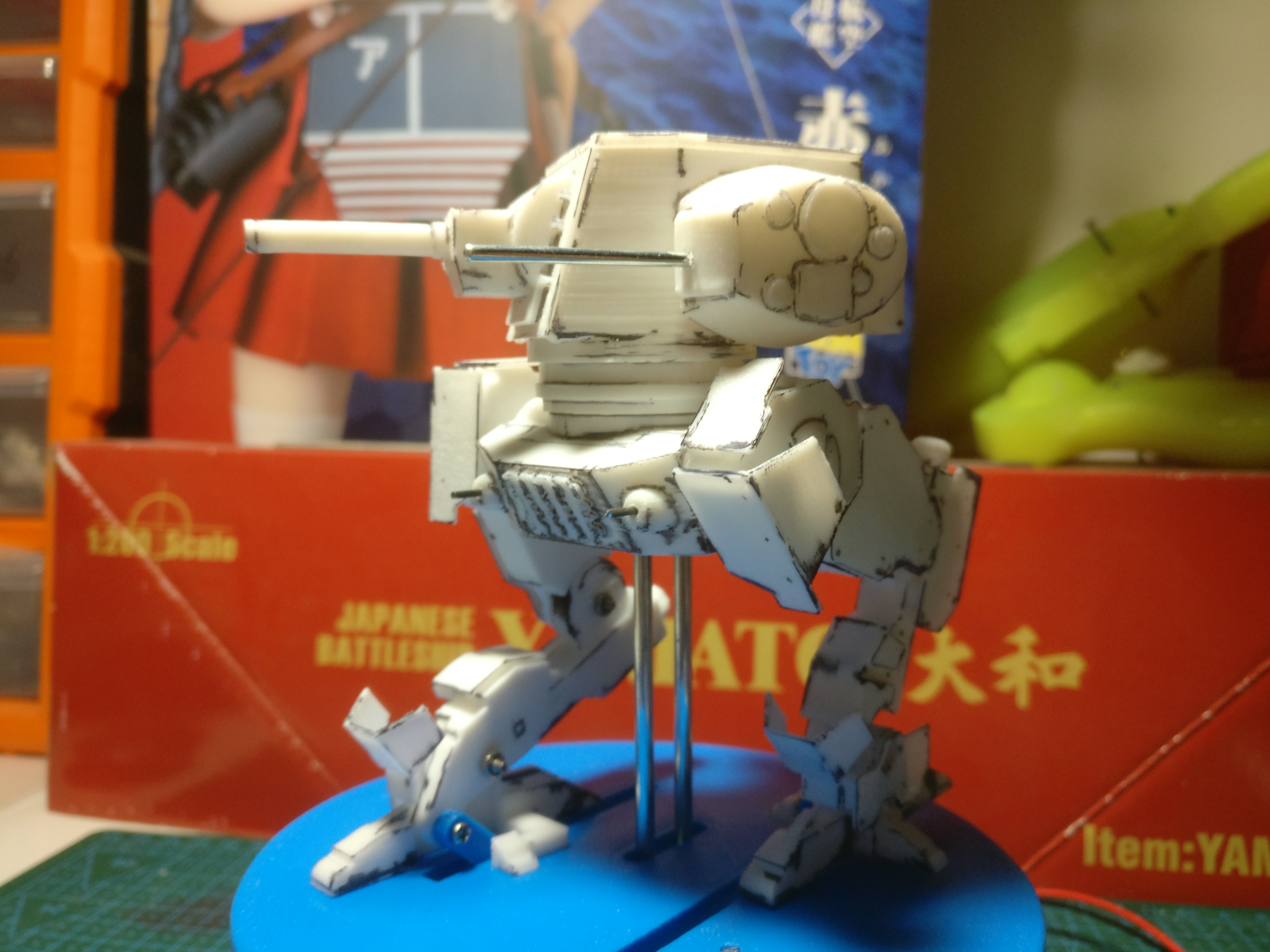

KV2 walker automata 可动kv2步行机
![正面行走GH017416[00_00_13-00_00_23].gif STL file KV2 walker automata 可动kv2步行机・3D printer model to download](https://videos.cults3d.com/Z5SGOVHTWCvhXSMkoDWWwxfKIUA=/113x113/filters:no_upscale():still():format(webp)/https://files.cults3d.com/uploaders/15152119/illustration-file/9c2d7d67-778b-4dde-a417-4e4612d9da43/%E6%AD%A3%E9%9D%A2%E8%A1%8C%E8%B5%B0GH017416%5B00_00_13-00_00_23%5D.gif)
![正面行走GH017416[00_00_13-00_00_23].gif STL file KV2 walker automata 可动kv2步行机・3D printer model to download](https://files.cults3d.com/uploaders/15152119/illustration-file/9c2d7d67-778b-4dde-a417-4e4612d9da43/%E6%AD%A3%E9%9D%A2%E8%A1%8C%E8%B5%B0GH017416%5B00_00_13-00_00_23%5D.gif)
![整体展示GH017435[00_00_00-00_00_08].gif STL file KV2 walker automata 可动kv2步行机・3D printer model to download](https://files.cults3d.com/uploaders/15152119/illustration-file/1864e723-45ed-45e2-9705-db01754a69c7/%E6%95%B4%E4%BD%93%E5%B1%95%E7%A4%BAGH017435%5B00_00_00-00_00_08%5D.gif)
/https://preview3d-images.cults3d.com/variants/ql901wn2zqria30mh4pfno9vguza/cbbb7afd8a0ec9560f7f7940881f98c31dcb04582a03efcc135070de65821be8)
/https://preview3d-images.cults3d.com/variants/d8ircsl3ztvdrjnoj2prixz6t7lb/cbbb7afd8a0ec9560f7f7940881f98c31dcb04582a03efcc135070de65821be8)
/https://preview3d-images.cults3d.com/variants/3td98d0c7zmjhljwma925awg1g3i/cbbb7afd8a0ec9560f7f7940881f98c31dcb04582a03efcc135070de65821be8)
/https://preview3d-images.cults3d.com/variants/qeoian0gza5m3h7s2uwa5bnbjwhs/cbbb7afd8a0ec9560f7f7940881f98c31dcb04582a03efcc135070de65821be8)
/https://preview3d-images.cults3d.com/variants/4ujg17q0x4b7gtftjheu97v8bnyp/cbbb7afd8a0ec9560f7f7940881f98c31dcb04582a03efcc135070de65821be8)
/https://preview3d-images.cults3d.com/variants/kywybqaniy7s887cdg2yp4yytdq4/cbbb7afd8a0ec9560f7f7940881f98c31dcb04582a03efcc135070de65821be8)
/https://preview3d-images.cults3d.com/variants/6rydmqyoaoamv8hjn8jr548h3tkt/cbbb7afd8a0ec9560f7f7940881f98c31dcb04582a03efcc135070de65821be8)
/https://preview3d-images.cults3d.com/variants/djoppck6jbki9m9zk5mxa976ctwv/cbbb7afd8a0ec9560f7f7940881f98c31dcb04582a03efcc135070de65821be8)
/https://preview3d-images.cults3d.com/variants/pvxrar6xodr59zxkk04u6hbh02fe/cbbb7afd8a0ec9560f7f7940881f98c31dcb04582a03efcc135070de65821be8)
/https://preview3d-images.cults3d.com/variants/w2p9f36kic5lhtcgbvqtbf8pw3j8/cbbb7afd8a0ec9560f7f7940881f98c31dcb04582a03efcc135070de65821be8)
/https://preview3d-images.cults3d.com/variants/qr7x8bbo3czie8pbwjleatn4qo17/cbbb7afd8a0ec9560f7f7940881f98c31dcb04582a03efcc135070de65821be8)
/https://preview3d-images.cults3d.com/variants/lsiazcx7vw3ogrru0o1okghgnum8/cbbb7afd8a0ec9560f7f7940881f98c31dcb04582a03efcc135070de65821be8)
/https://preview3d-images.cults3d.com/variants/cs8bhb1d73jf0floxu9ie7w73ejw/cbbb7afd8a0ec9560f7f7940881f98c31dcb04582a03efcc135070de65821be8)
/https://preview3d-images.cults3d.com/variants/jzrcn50yjingqswggf6jkvkih3n1/cbbb7afd8a0ec9560f7f7940881f98c31dcb04582a03efcc135070de65821be8)
/https://preview3d-images.cults3d.com/variants/7jdthm4mfbfzzaojq5h625yqdoob/cbbb7afd8a0ec9560f7f7940881f98c31dcb04582a03efcc135070de65821be8)
/https://preview3d-images.cults3d.com/variants/xu39aep1xatyq8v04pd07vqcx9nk/cbbb7afd8a0ec9560f7f7940881f98c31dcb04582a03efcc135070de65821be8)
/https://preview3d-images.cults3d.com/variants/j47r5ew8aqgaalgfedb5b9ffxokp/cbbb7afd8a0ec9560f7f7940881f98c31dcb04582a03efcc135070de65821be8)
/https://preview3d-images.cults3d.com/variants/a9rl37kx2ct4buiiu8b33k278vb4/cbbb7afd8a0ec9560f7f7940881f98c31dcb04582a03efcc135070de65821be8)
/https://preview3d-images.cults3d.com/variants/q23pssbsbq6js19bafpx6zthu679/cbbb7afd8a0ec9560f7f7940881f98c31dcb04582a03efcc135070de65821be8)
/https://preview3d-images.cults3d.com/variants/k27rmxn8tbg6v5zlnv47a59xhto8/cbbb7afd8a0ec9560f7f7940881f98c31dcb04582a03efcc135070de65821be8)
/https://preview3d-images.cults3d.com/variants/9gotbl9svcr83jiu980gc4cza3r2/cbbb7afd8a0ec9560f7f7940881f98c31dcb04582a03efcc135070de65821be8)
/https://preview3d-images.cults3d.com/variants/dmamnytzdpvxsc1yhhuqnjixji0g/cbbb7afd8a0ec9560f7f7940881f98c31dcb04582a03efcc135070de65821be8)
/https://preview3d-images.cults3d.com/variants/x0tssqm5mb5cbc671eovl1mttfxw/cbbb7afd8a0ec9560f7f7940881f98c31dcb04582a03efcc135070de65821be8)
/https://preview3d-images.cults3d.com/variants/y53vojafuj35dahxwt9xjrf6niye/cbbb7afd8a0ec9560f7f7940881f98c31dcb04582a03efcc135070de65821be8)
/https://preview3d-images.cults3d.com/variants/e8nti35pjy67z5nb6onmwyqmo1t5/cbbb7afd8a0ec9560f7f7940881f98c31dcb04582a03efcc135070de65821be8)
/https://preview3d-images.cults3d.com/variants/r90b4k83ezggmewa6bs4xty7aoxd/cbbb7afd8a0ec9560f7f7940881f98c31dcb04582a03efcc135070de65821be8)
/https://preview3d-images.cults3d.com/variants/e8uahh5215nbkwuedxa8ol79qe0m/cbbb7afd8a0ec9560f7f7940881f98c31dcb04582a03efcc135070de65821be8)
/https://preview3d-images.cults3d.com/variants/nujf4oq3p8es9f6r9muja7udo8ne/cbbb7afd8a0ec9560f7f7940881f98c31dcb04582a03efcc135070de65821be8)
/https://preview3d-images.cults3d.com/variants/w2sew8ri30jvbmuo9u9md2b4m2th/cbbb7afd8a0ec9560f7f7940881f98c31dcb04582a03efcc135070de65821be8)
/https://preview3d-images.cults3d.com/variants/753fekxd5oalsqr2ph54woy4095z/cbbb7afd8a0ec9560f7f7940881f98c31dcb04582a03efcc135070de65821be8)
/https://preview3d-images.cults3d.com/variants/bwgr1sc66yyg6d5b9ecm8tf376xi/cbbb7afd8a0ec9560f7f7940881f98c31dcb04582a03efcc135070de65821be8)
/https://preview3d-images.cults3d.com/variants/rscbpss048xr3vqh0sh3czyq0dhc/cbbb7afd8a0ec9560f7f7940881f98c31dcb04582a03efcc135070de65821be8)
/https://preview3d-images.cults3d.com/variants/646px59qbzhm1k34nhxtb2mid4go/cbbb7afd8a0ec9560f7f7940881f98c31dcb04582a03efcc135070de65821be8)
/https://preview3d-images.cults3d.com/variants/4aacuhvbt30zm61wl5cxn6oucwzo/cbbb7afd8a0ec9560f7f7940881f98c31dcb04582a03efcc135070de65821be8)
/https://preview3d-images.cults3d.com/variants/lrfzwzz8lga02rkgt2o34c9qp9o2/cbbb7afd8a0ec9560f7f7940881f98c31dcb04582a03efcc135070de65821be8)
/https://preview3d-images.cults3d.com/variants/w86ob19dx1y51iomxkdsy188z8va/cbbb7afd8a0ec9560f7f7940881f98c31dcb04582a03efcc135070de65821be8)
/https://preview3d-images.cults3d.com/variants/ddtg78lv1n60yl2ou1xi6ysorb9c/cbbb7afd8a0ec9560f7f7940881f98c31dcb04582a03efcc135070de65821be8)
/https://preview3d-images.cults3d.com/variants/utz51nbwsplmwroxpvf3ixxj7nb4/cbbb7afd8a0ec9560f7f7940881f98c31dcb04582a03efcc135070de65821be8)
/https://preview3d-images.cults3d.com/variants/27ys1a5k9jrcnyazl17w0e00lm96/cbbb7afd8a0ec9560f7f7940881f98c31dcb04582a03efcc135070de65821be8)
/https://preview3d-images.cults3d.com/variants/zrxqdfbe2c1un686s2ei5mxnc3y0/cbbb7afd8a0ec9560f7f7940881f98c31dcb04582a03efcc135070de65821be8)
/https://preview3d-images.cults3d.com/variants/3ia6be4g71q8fqmrzpe8efd8xapf/cbbb7afd8a0ec9560f7f7940881f98c31dcb04582a03efcc135070de65821be8)
/https://preview3d-images.cults3d.com/variants/h3okx00t09ineizie9crha13mbgs/cbbb7afd8a0ec9560f7f7940881f98c31dcb04582a03efcc135070de65821be8)
/https://preview3d-images.cults3d.com/variants/0ys32m7z7gcv3lwhdsbqiue0b8kd/cbbb7afd8a0ec9560f7f7940881f98c31dcb04582a03efcc135070de65821be8)
/https://preview3d-images.cults3d.com/variants/hk24tarcgklir3s3842a3ko59igd/cbbb7afd8a0ec9560f7f7940881f98c31dcb04582a03efcc135070de65821be8)
/https://preview3d-images.cults3d.com/variants/d9c9wnrzzi4awnytv2clot81xw48/cbbb7afd8a0ec9560f7f7940881f98c31dcb04582a03efcc135070de65821be8)
/https://preview3d-images.cults3d.com/variants/qz8a8xyrwc318wivahr6p046w2xb/cbbb7afd8a0ec9560f7f7940881f98c31dcb04582a03efcc135070de65821be8)
/https://preview3d-images.cults3d.com/variants/sgzaazouavpv8freadm88mb4ay86/cbbb7afd8a0ec9560f7f7940881f98c31dcb04582a03efcc135070de65821be8)
/https://preview3d-images.cults3d.com/variants/fskb9lnvsgu5t88zq8x7zbl4p2xy/cbbb7afd8a0ec9560f7f7940881f98c31dcb04582a03efcc135070de65821be8)
/https://preview3d-images.cults3d.com/variants/rgfj9fnwc62l0zouytwryx66rrub/cbbb7afd8a0ec9560f7f7940881f98c31dcb04582a03efcc135070de65821be8)
?
Creation quality:
5.0/5
(3 votevotes)
Evaluation of members on the printability, utility, level of detail, etc.
Your rating:
0/5
- 8k views
- 77 likes
- 19 downloads
- <span class="text--light">0</span> comments
- <span class="text--light">0</span> makes
Designer
3D model description
https://www.youtube.com/watch?v=AP51x1SS944
https://www.bilibili.com/video/BV1py4y1i7QX
灵感来自：TonyFlow76
Explorer, a LEGO automaton
https://www.youtube.com/watch?v=koI61ZxzB3k
我非常喜欢二足步行机，所以看到这个视频就想到了战争雷霆中的kv2~
制作这个作品需要一些3mm轴，比如支撑原型桌面的三根60mm轴，支撑身体的两根120、130mm轴，以及安装齿轮的33mm轴。
还需要螺栓m3x8 3个，m3x30 1个， m3x40 1个。m2x20 16个（具体长度请根据情况截断）
以及n20减速电机一个。
你可以参考这个视频来安装：https://www.youtube.com/watch?v=AP51x1SS944
https://www.youtube.com/watch?v=AP51x1SS944
Inspired by：TonyFlow76
Explorer, a LEGO automaton
https://www.youtube.com/watch?v=koI61ZxzB3k
I really like 2legged walkers, So when I saw this video, I thought of Kv2 in Warthunder~
To make this work, you need
three 60x3mm shafts supporting the desktop,
two 120x3mm and 130mm shafts supporting the body,
33x3mm shafts installing gears.
three m3x8 bolts,
one m3x30 bolt ，
one m3x40 bolt ，
Sixteen M2x20 bolts(please cut the specific length according to the situation)
And a N20 reduction motor.
3D printing settings
It's easy to print, use PLA，just follow your usual settings
you can follow this：https://www.youtube.com/watch?v=AP51x1SS944
3D printer file information
-
3D design format: STL Folder details Close
- Seat Ring down.STL
- Seat Ring up.STL
- Support seat.STL
- Table board.STL
- ankle armor L.STL
- ankle armor R.STL
- barrel.STL
- big linkage.STL
- body.STL
- cam bar.STL
- cam shim.STL
- cam.STL
- crank.STL
- foot L.STL
- foot R.STL
- foot armor L.STL
- foot armor R.STL
- foot armor.STL
- gear M1X14.STL
- gear M1X28 alter.STL
- gear M1X28.STL
- little turret seat Ring.STL
- main frame.STL
- main turret.STL
- mantlet inner.STL
- mantlet.STL
- motor gear M1X10.STL
- oil can seat.STL
- oil can.STL
- radiator.STL
- shin L.STL
- shin R.STL
- shin armor.STL
- small linkage.STL
- thigh armor1.STL
- thigh armor2.STL
- thigh armor3 L.STL
- thigh armor3 R.STL
- tigh L.STL
- tigh R.STL
- track.STL
- turret L.STL
- turret R.STL
- turret cap.STL
- wave crank.STL
- wave linkage1.STL
- wave linkage2.STL
- wave linkage3.STL
- wave linkage4.STL
- Publication date: 2021-03-01 at 08:13
