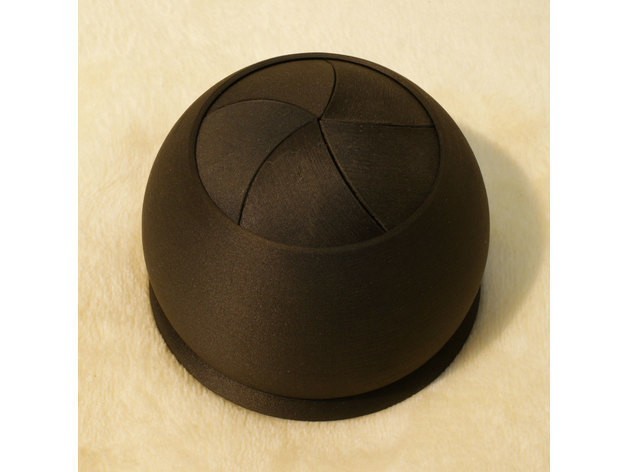

Iris Box

?
Creation's quality: 5.0/5 (2 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 9.3k views
  • 56 likes
  • 937 downloads

3D model description

This is a remix of "Preassembled Iris Box" by emmett. This may be good challenge that how you understand 3D printing.
Since original model was not so fine and I wanted to know how the parts are linked, I reconstructed it in CINEMA 4D.
http://www.11moon.com/m200/Iris_Box/Iris_Box_1.mp4
http://www.11moon.com/m200/Iris_Box/Iris_Box_2.mp4

https://youtu.be/Wuf8cLwLiXw


3D printing settings

Printer:

m200 (hand made)

Rafts:

No

Supports:

No

Resolution:

width 0.34 mm, thickness 0.17 mm

Infill:

30%

Notes:
Print conditions.

Printer name: hand made, m200
Slicer: Simplify3D
Firmware: Repetier

Filament: 3DXTech CFR-PETG
Nozzle: 0.3mm stainless
Print width: 0.34mm
Layer height: 0.17mm
Injection ratio: lower
Retraction length: 0.75mm

Layers: top 5, bottom 4, side 3
Infill: 30%
Skirt: 5 turns, 0.5mm gap
Support: none
Raft: none

Temprature: 260 C

Speed: 1800mm/min, 80% at outline, infill, support, 25% in small areas
Jerk: 15
Acceleration: 1600mm/sec^2

Print size: 75% of original
Print time: 12 hours

3D printer file information

  • 3D design format: STL Folder details Close
    • NS_Iris_Box_fuji4.stl
    • NS_Iris_Box_fuji4_8.stl

    Learn more about the formats

  • Publication date: 2018/04/16 at 12:17

License

CC BY

Creator

Issue with this design? Report a problem

Best sellers of the category Game


Add a comment

One comment

i dont think the files are complete. are there only 2 parts? the circular box and 1 of the 5 doors that i have to print 5 times
