HTEK Steering Wheel H001

Download STL HTEK Steering Wheel H001, HTEK_Simulator_EngineeringDownload STL HTEK Steering Wheel H001, HTEK_Simulator_EngineeringDownload STL HTEK Steering Wheel H001, HTEK_Simulator_EngineeringDownload STL HTEK Steering Wheel H001, HTEK_Simulator_EngineeringDownload STL HTEK Steering Wheel H001, HTEK_Simulator_EngineeringDownload STL HTEK Steering Wheel H001, HTEK_Simulator_EngineeringDownload STL HTEK Steering Wheel H001, HTEK_Simulator_Engineering

Did you 3D print this model?

3D model description

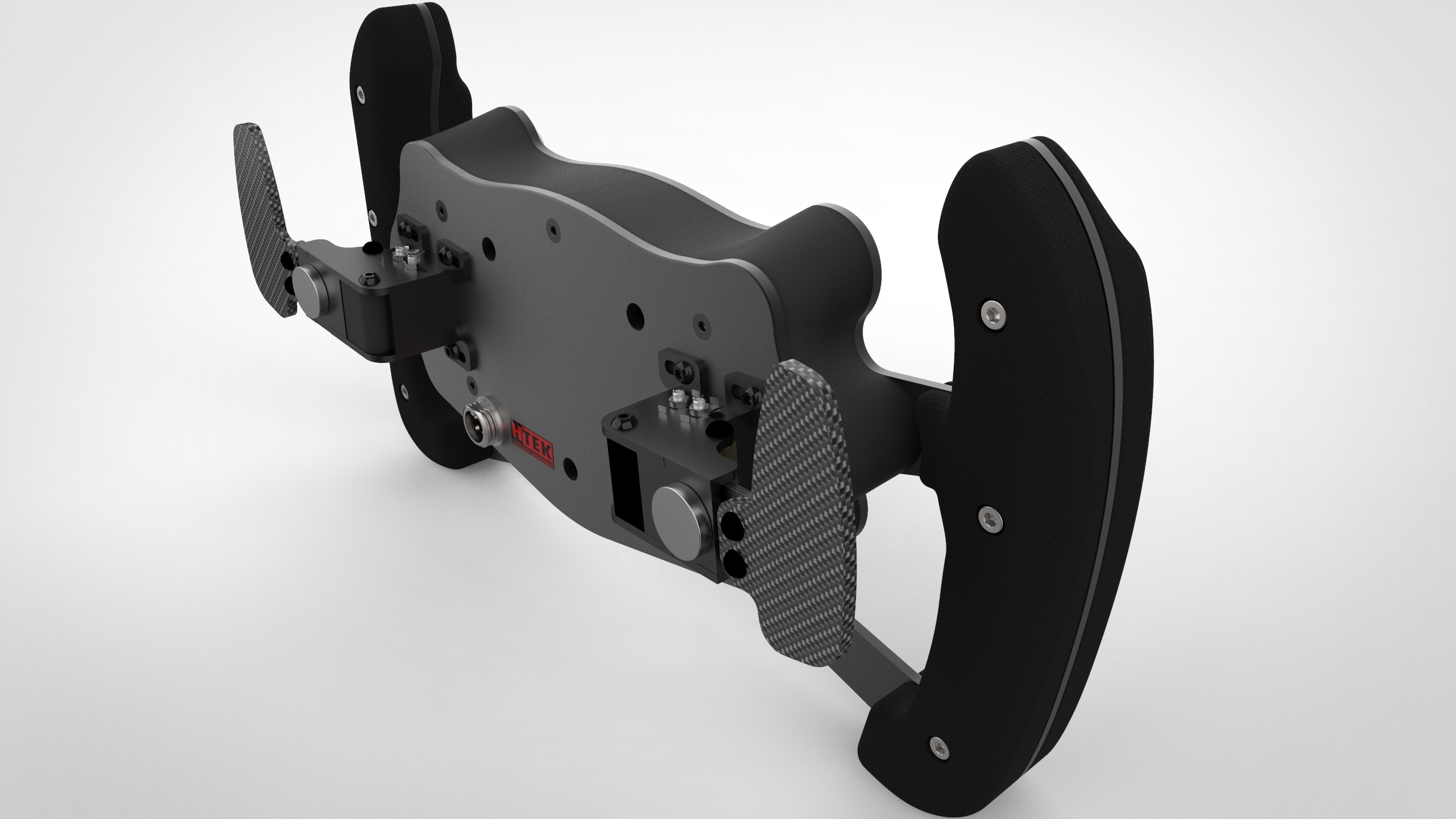

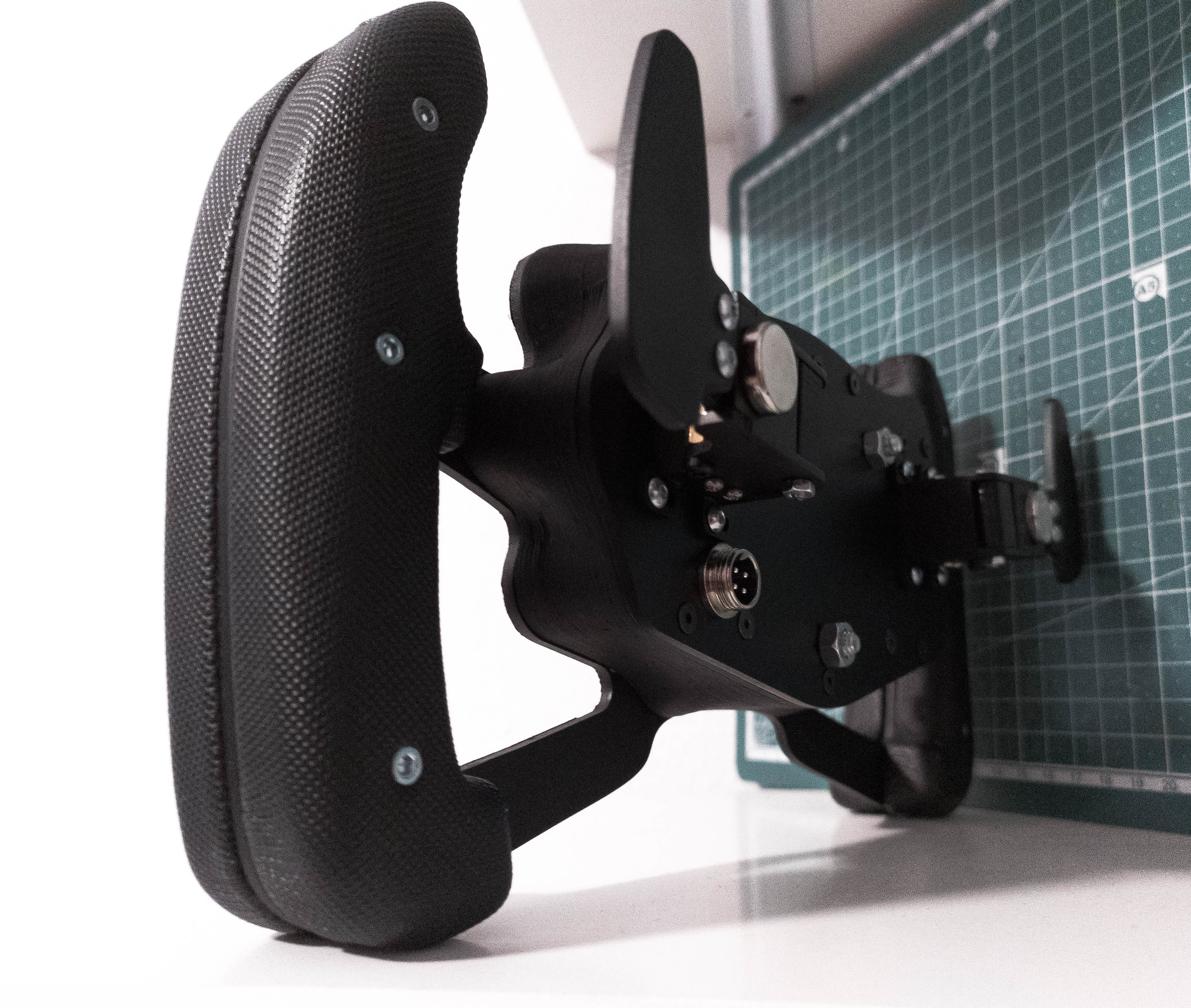

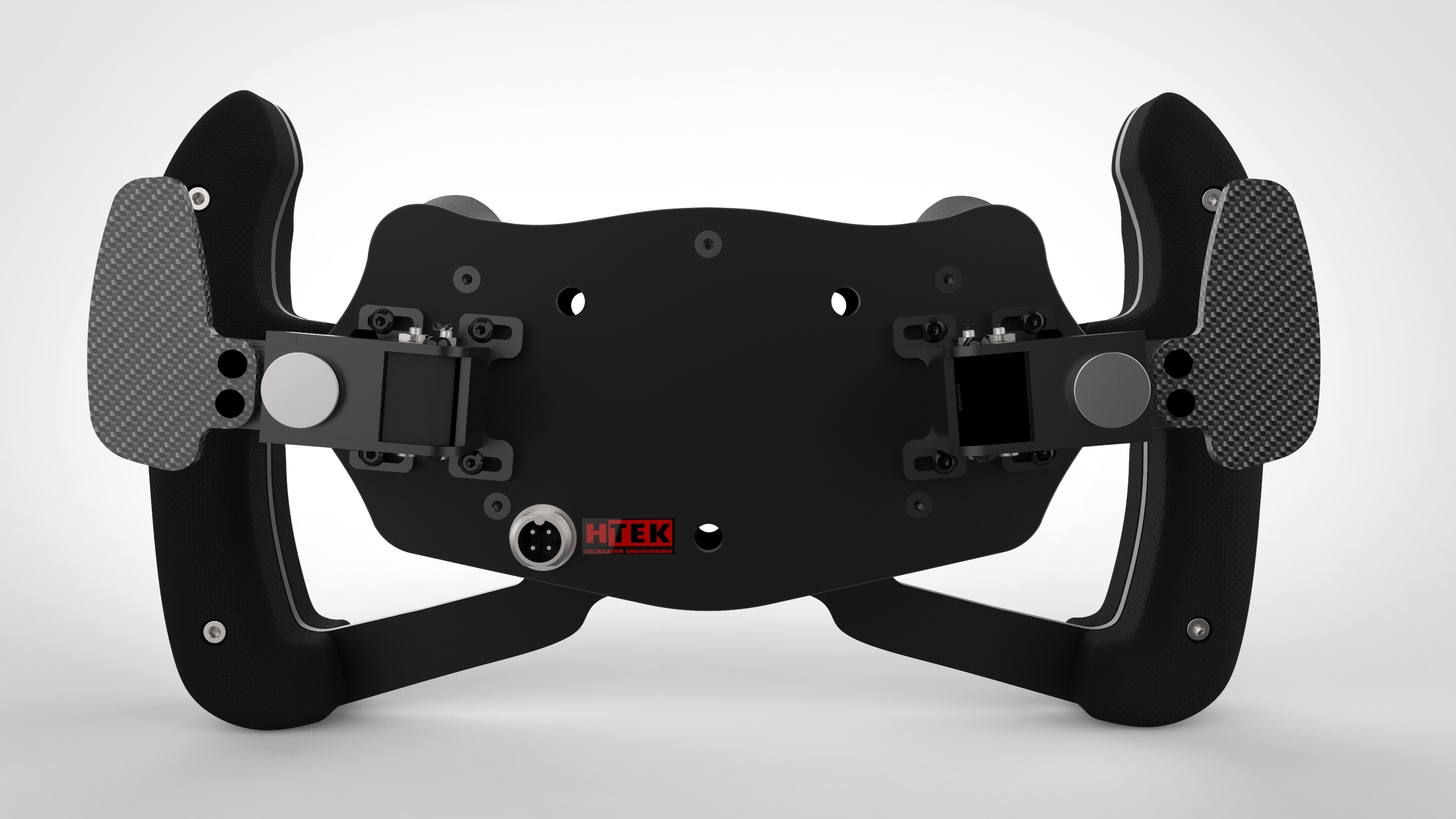

HTEK H001 Steering wheel by HTEK Simulator Engineering.

The wheel is very compact with a 270 mm diameter, so you can react very quickly with it.
The wheel has 12 push buttons, but you can add holes for rotary encoders or for other buttons.

The paddle shifters are HTEK Paddle Shifters, which you can download from my designs.

The package contains 5 printable parts, and 2 .dxf files to cut the base and the rear part from aluminium or carbon fiber. (3 mm sheet)

Required parts:
M3x25 bolts (6pcs)
https://www.aliexpress.com/item/32968483467.html?spm=a2g0o.productlist.0.0.575b5793woZk2z&algo_pvid=09ab487e-6f7b-452e-871c-6810ea95d996&algo_expid=09ab487e-6f7b-452e-871c-6810ea95d996-2&btsid=fe46da28-2e45-4f66-b135-de753cf0b3c7&ws_ab_test=searchweb0_0,searchweb201602_10,searchweb201603_53

M3x10 bolts (20pcs)
https://www.aliexpress.com/item/4000173341865.html?spm=a2g0o.productlist.0.0.7f49321bDcY7oX&algo_pvid=42a0a4f5-9d46-4449-892b-82e5fcaf775d&algo_expid=42a0a4f5-9d46-4449-892b-82e5fcaf775d-18&btsid=da04bc59-6c56-4e52-8f50-e127b253ad43&ws_ab_test=searchweb0_0,searchweb201602_10,searchweb201603_53

M6x45 bolts (3pcs)
https://www.aliexpress.com/item/4000173341865.html?spm=a2g0o.productlist.0.0.7f49321bDcY7oX&algo_pvid=42a0a4f5-9d46-4449-892b-82e5fcaf775d&algo_expid=42a0a4f5-9d46-4449-892b-82e5fcaf775d-18&btsid=da04bc59-6c56-4e52-8f50-e127b253ad43&ws_ab_test=searchweb0_0,searchweb201602_10,searchweb201603_53

M3x25mm spacers (5pcs)
https://www.aliexpress.com/item/32884587589.html?spm=a2g0o.productlist.0.0.7f49321bDcY7oX&algo_pvid=42a0a4f5-9d46-4449-892b-82e5fcaf775d&algo_expid=42a0a4f5-9d46-4449-892b-82e5fcaf775d-34&btsid=da04bc59-6c56-4e52-8f50-e127b253ad43&ws_ab_test=searchweb0_0,searchweb201602_10,searchweb201603_53

Push buttons (12pcs)
https://www.aliexpress.com/item/32692164728.html?spm=a2g0s.9042311.0.0.371f4c4dSPEQpJ

USB encoder(1pc)
https://www.aliexpress.com/item/32850150270.html?spm=a2g0s.9042311.0.0.371f4c4dSPEQpJ

GX12 connector(1pc)
https://www.aliexpress.com/item/33032206608.html?spm=a2g0s.9042311.0.0.371f4c4dSPEQpJ

You can use any suede for the grips.

FOR PERSONAL USE ONLY - NON COMMERCIAL - NOT FOR RESALE

COPYRIGHT HTEK Simulator Engineering - ALL RIGHTS RESERVED

You cannot sell the digital model, a derivative or adaptation of the model, nor can you sell prints of the model.

3D printing settings

Nozzle 0.4 Layer 0.2 - 0.12 Infill 75% - 100%.
