Gunblade con mecanismo de tambor

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 1k views
  • 8 likes
  • 7 downloads

3D model description

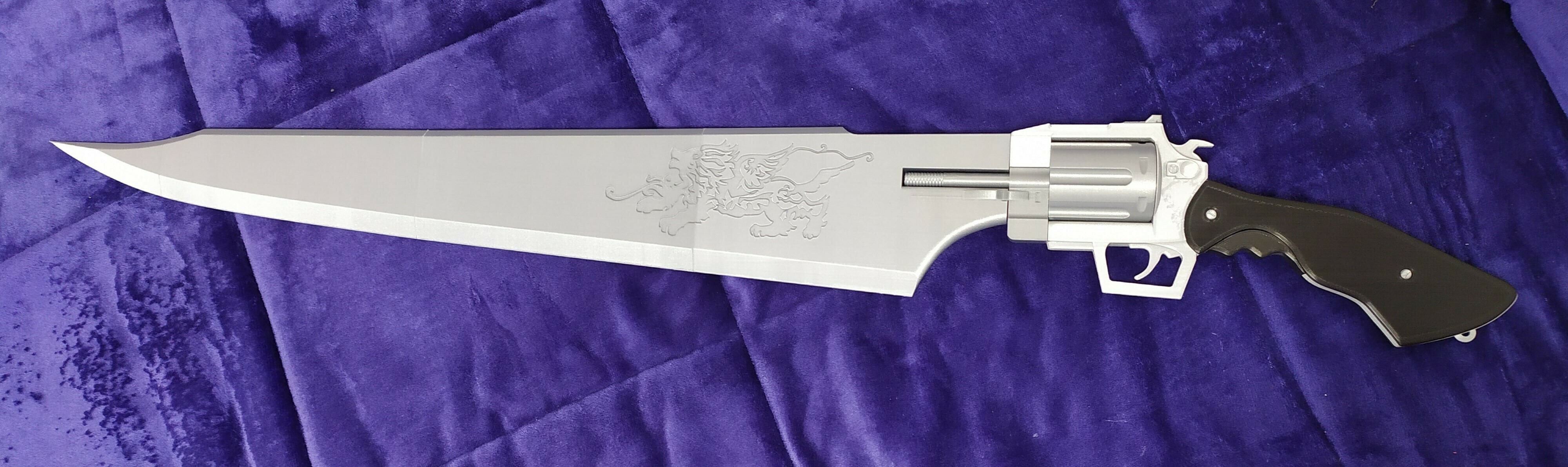

Desde que jugué en 1999 al Final fantasy VIII, siempre he querido una Gunblade, pero las replicas eran muy caras.

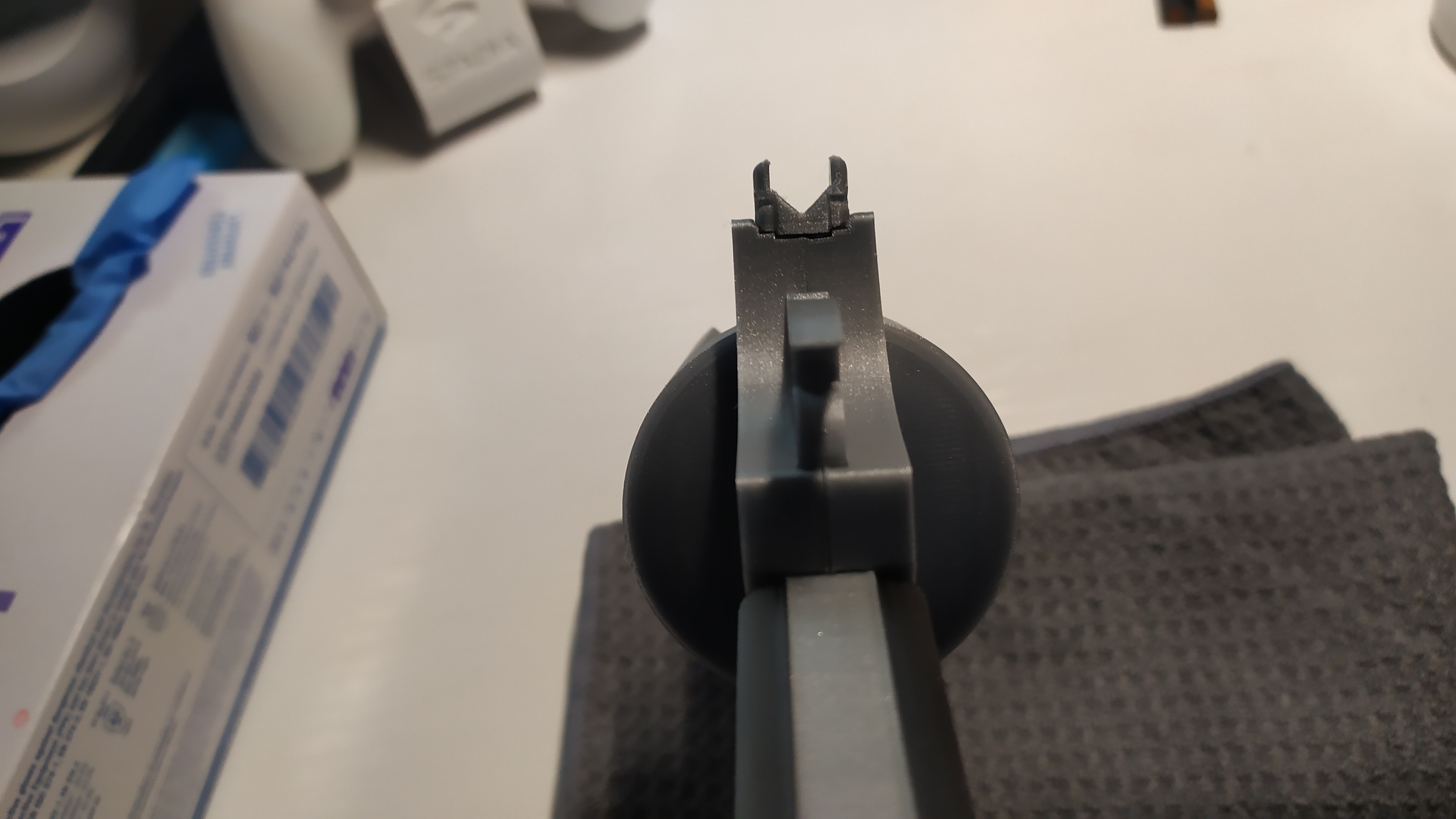

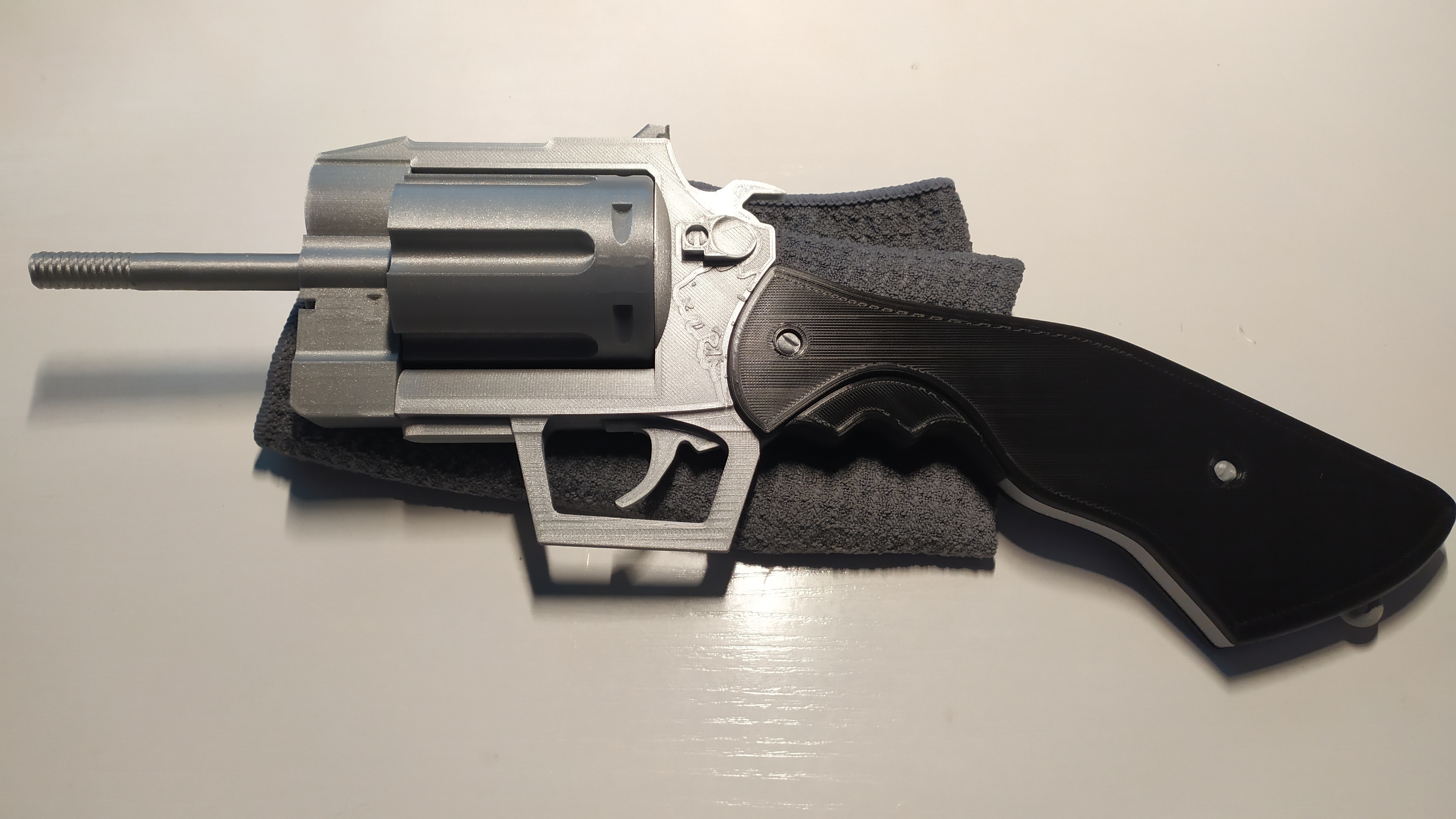

Ahora que tengo una impresora estaba decidido a imprimir una, pero no encontré ninguna que tuviera el mecanismo de tambor, que girara y pudiera colocar balas.
no se si es que no lo hay o no supe encontrarlo. Así que diseñe mi propia versión.
es necesario? pues no, pero mola un montón!!

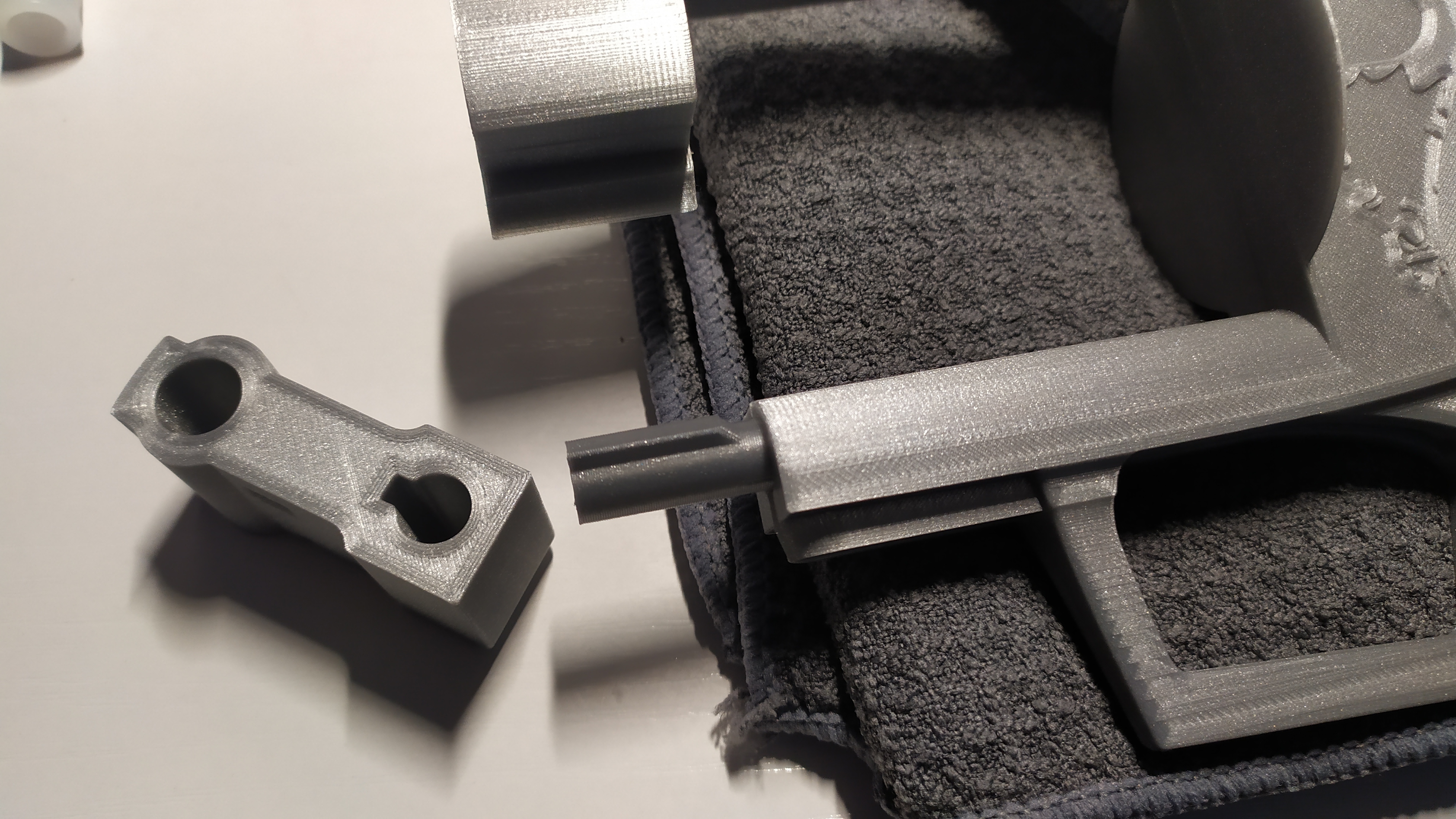

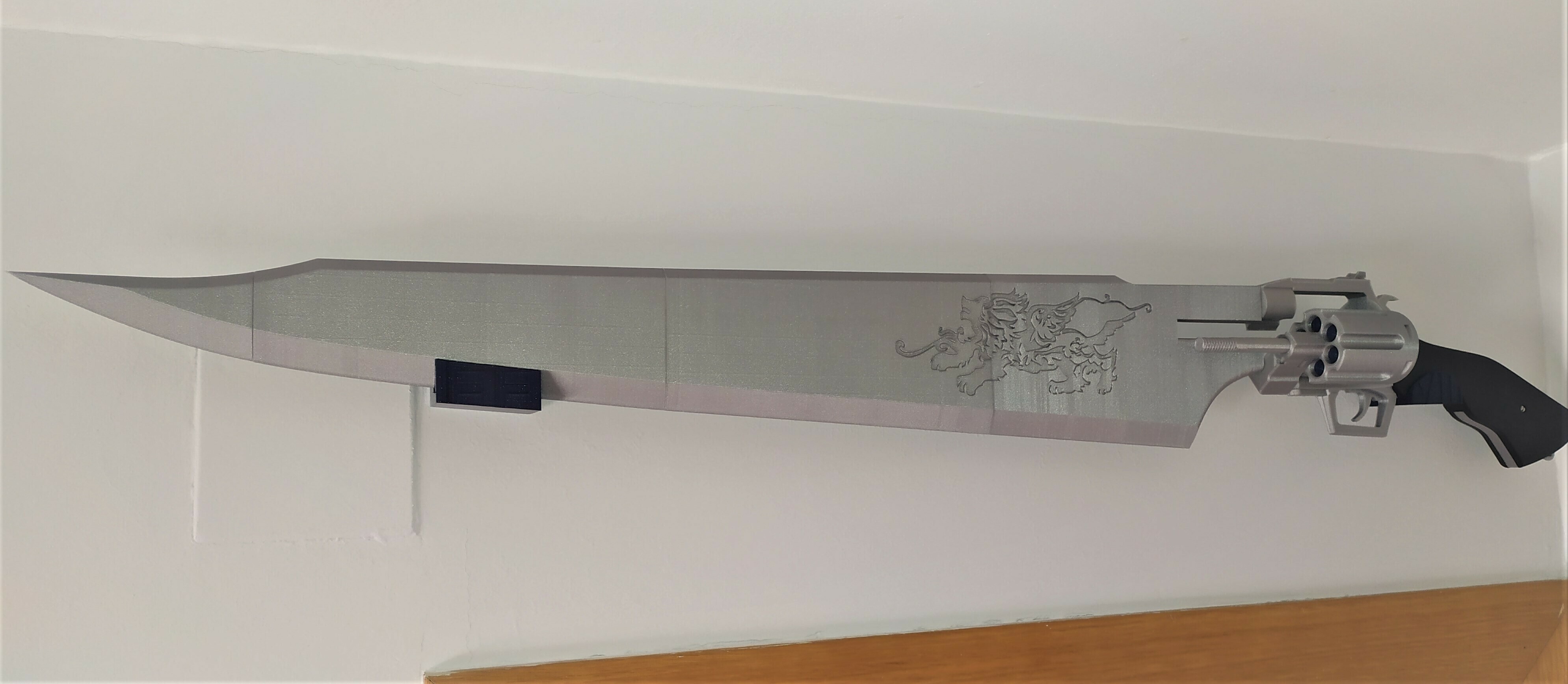

claramente la Gunblade es exclusivamente de exposición, ya que al tener el mecanismo móvil la hoja solo se sujeta al cuerpo mediante una varilla de madera de 8mm.
NO ES UN MODELO PARA JUGAR!! Y SI SE QUIERE USAR DE COSPLAY SE DEBE TENER MUCHO CUIDADO!!

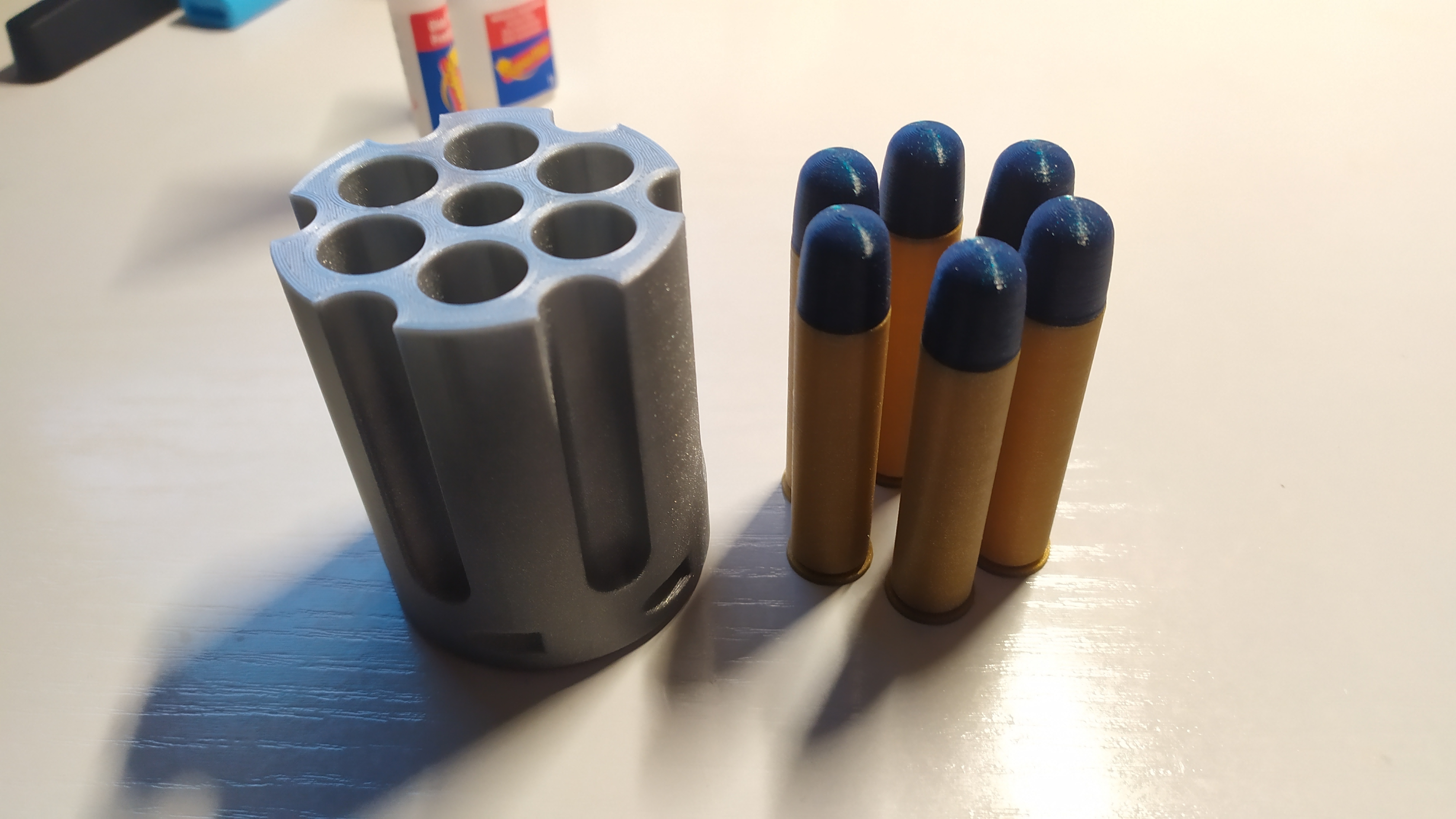

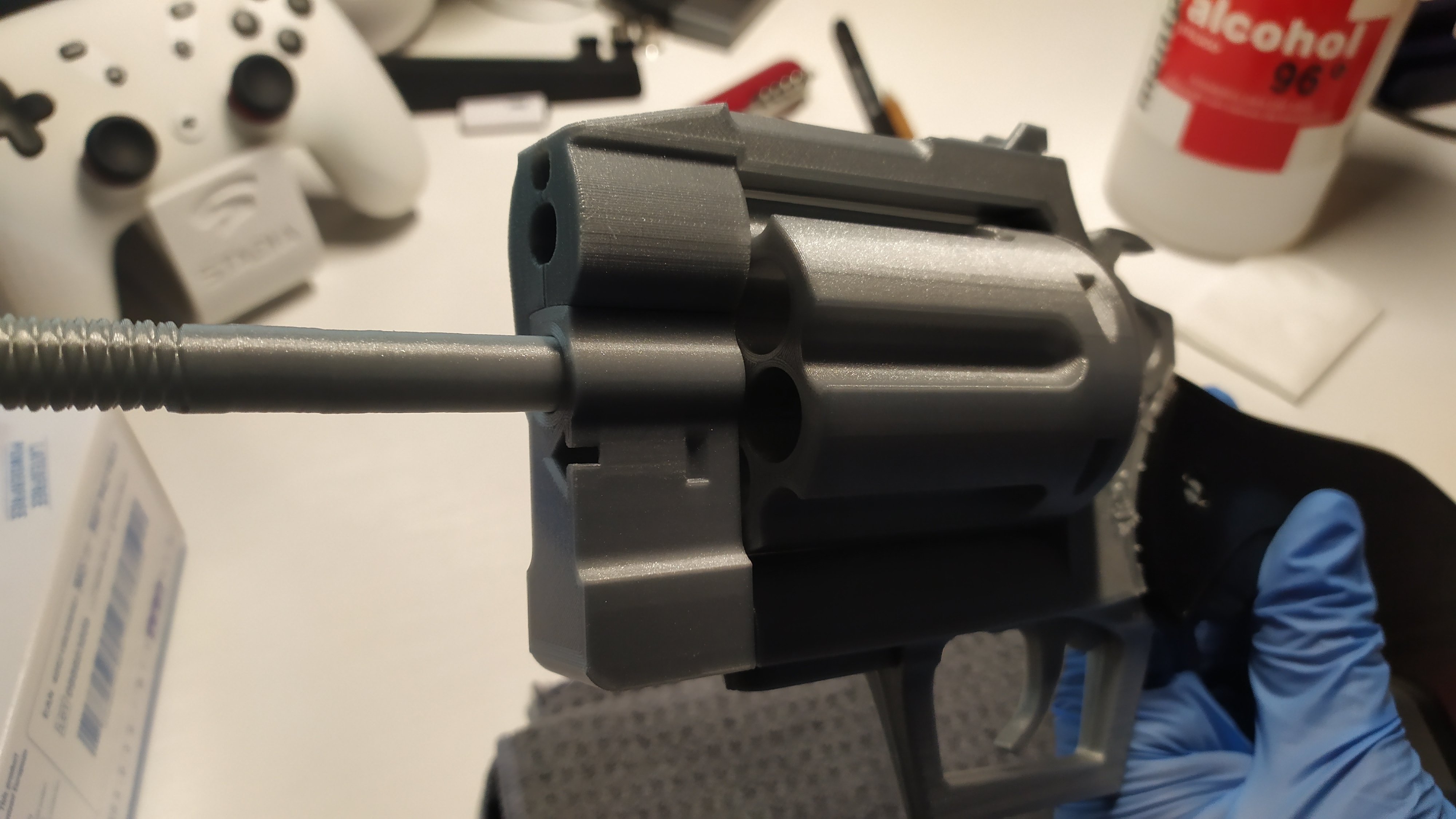

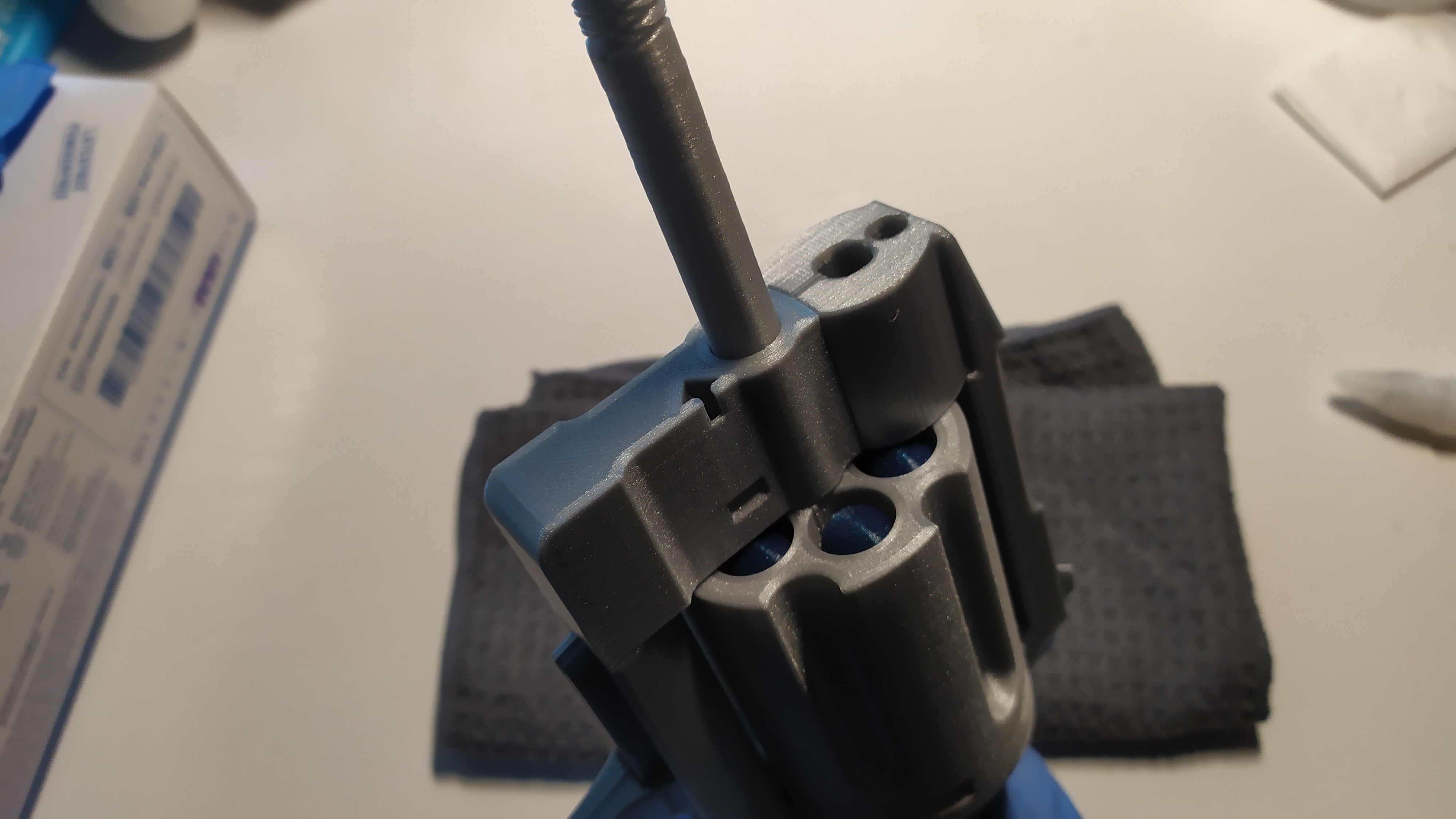

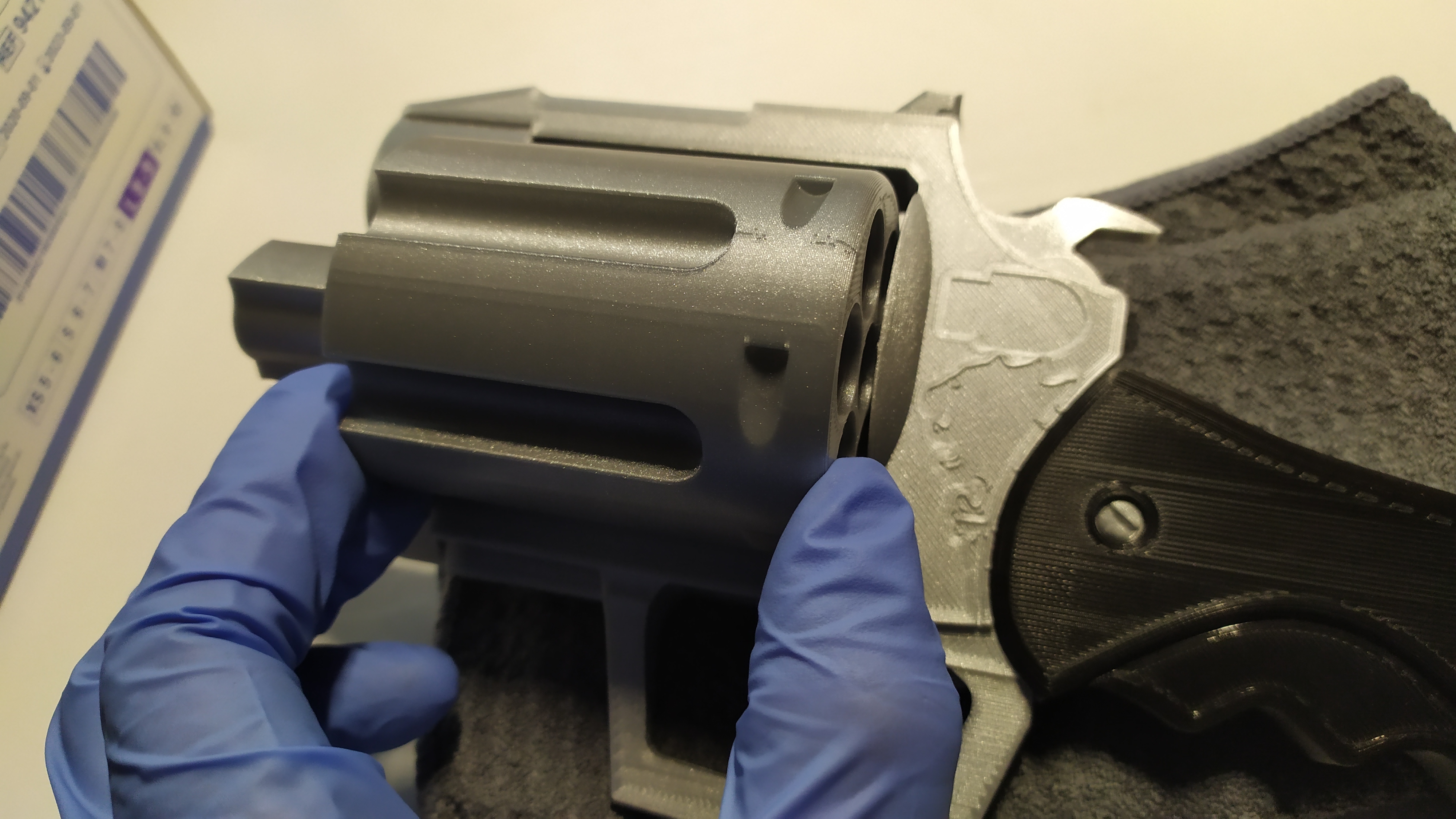

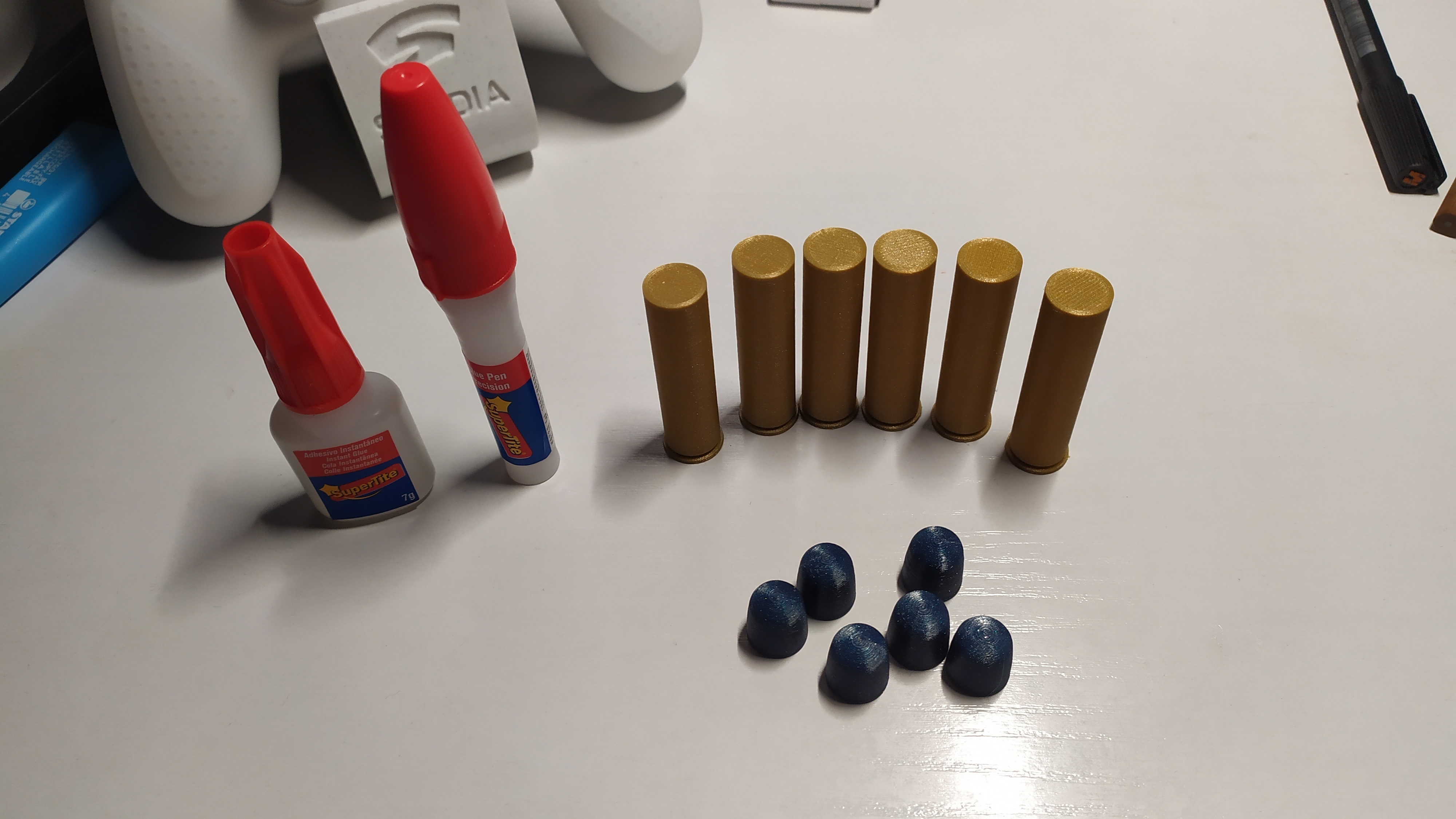

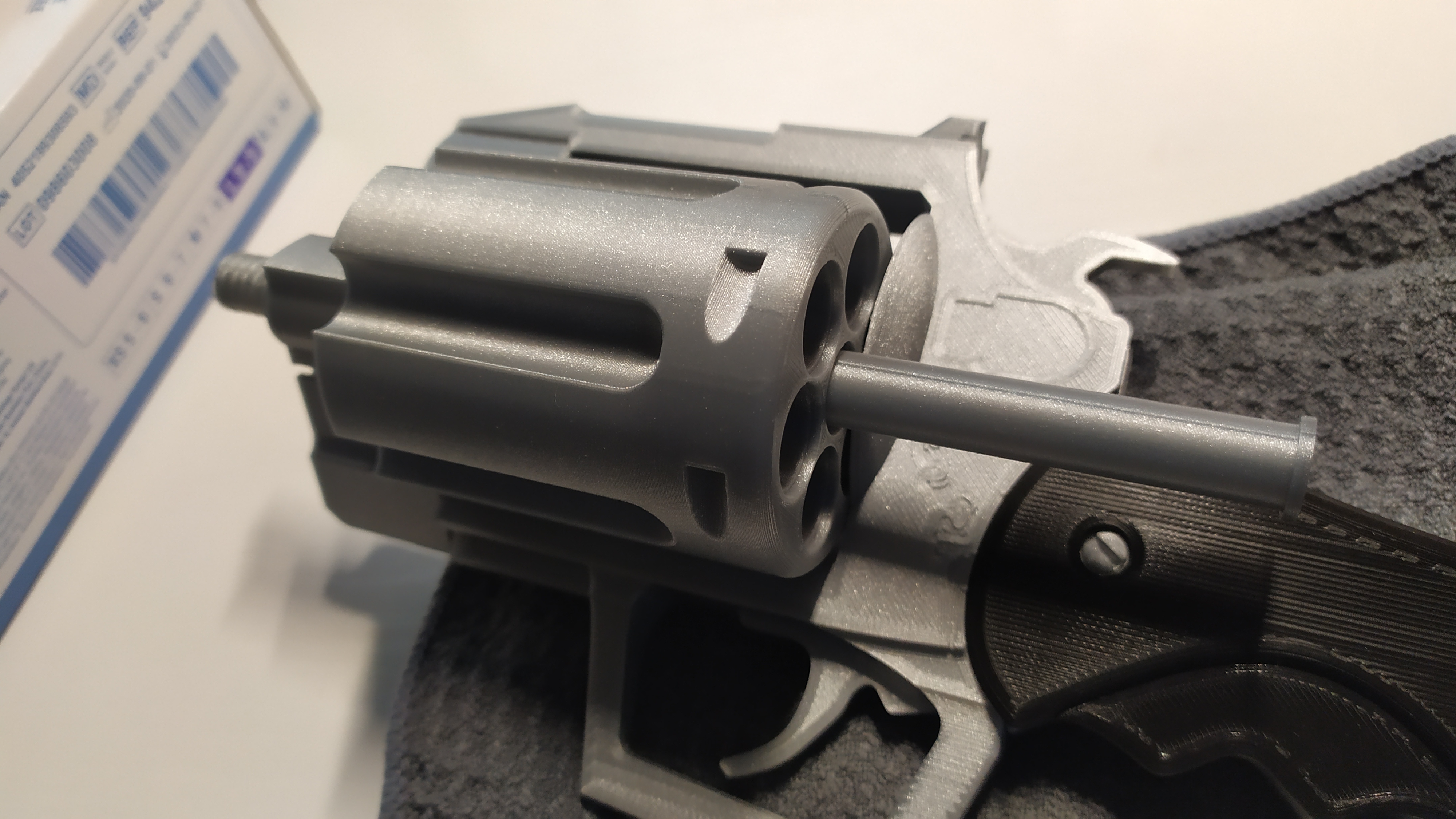

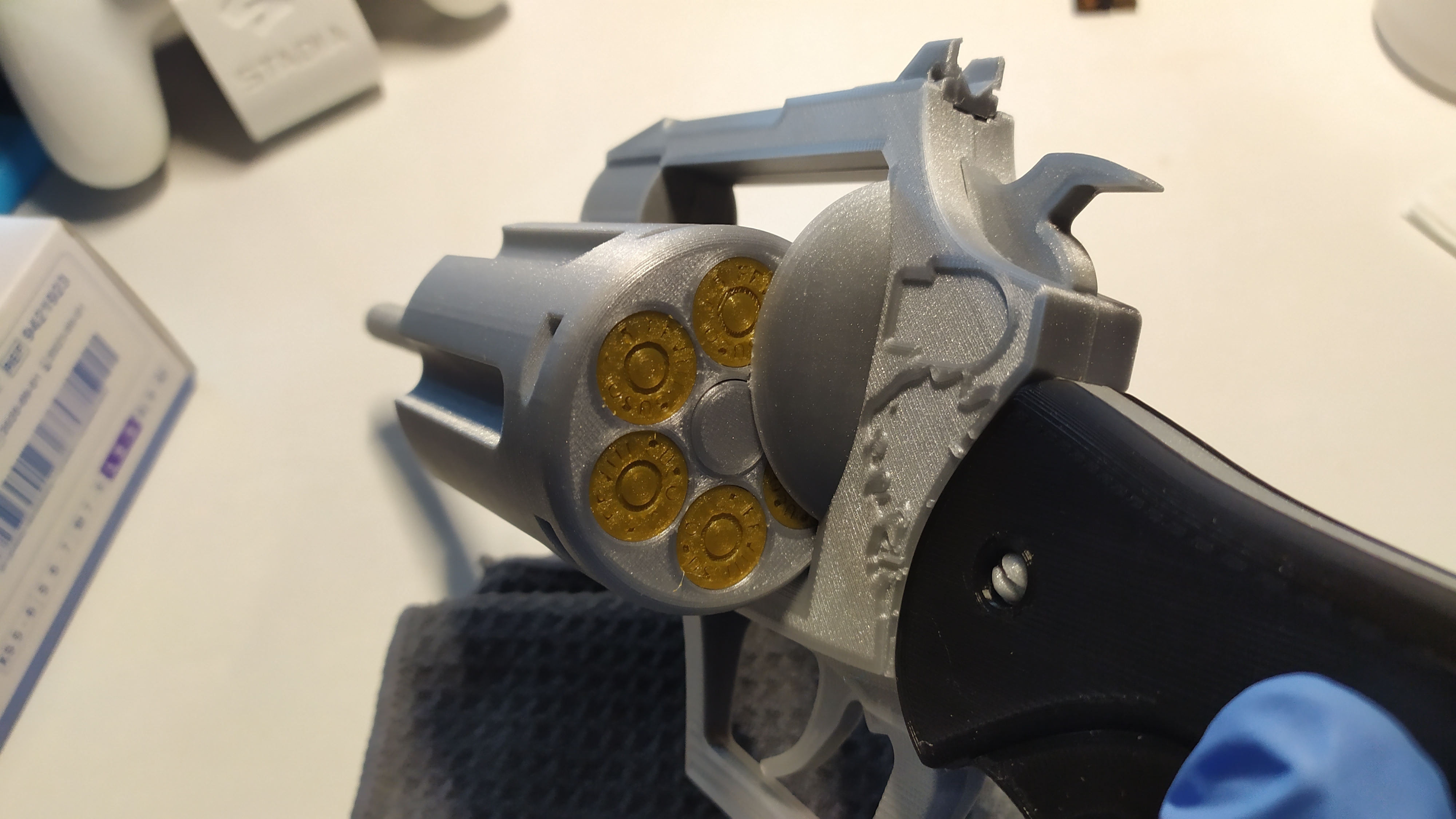

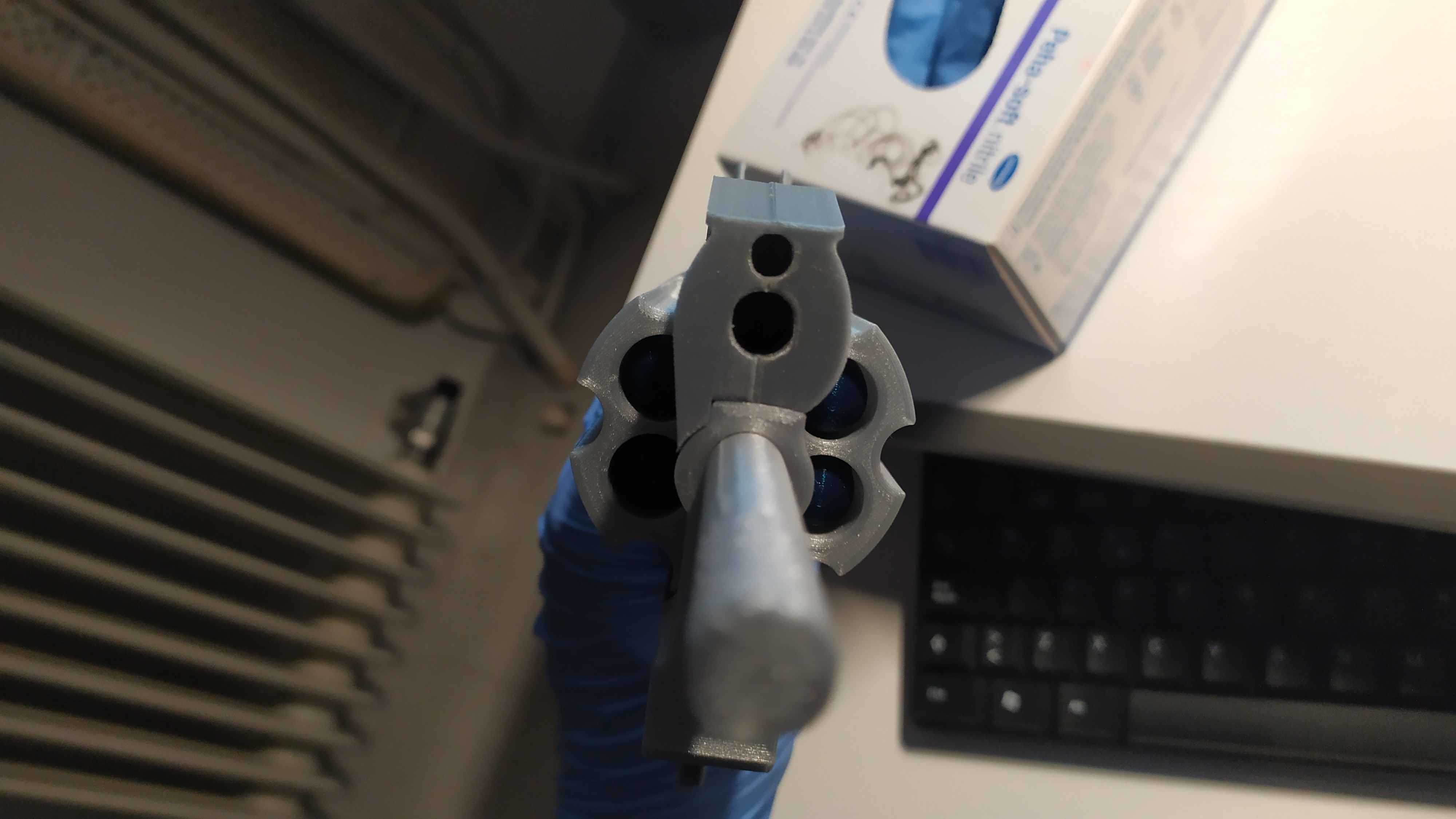

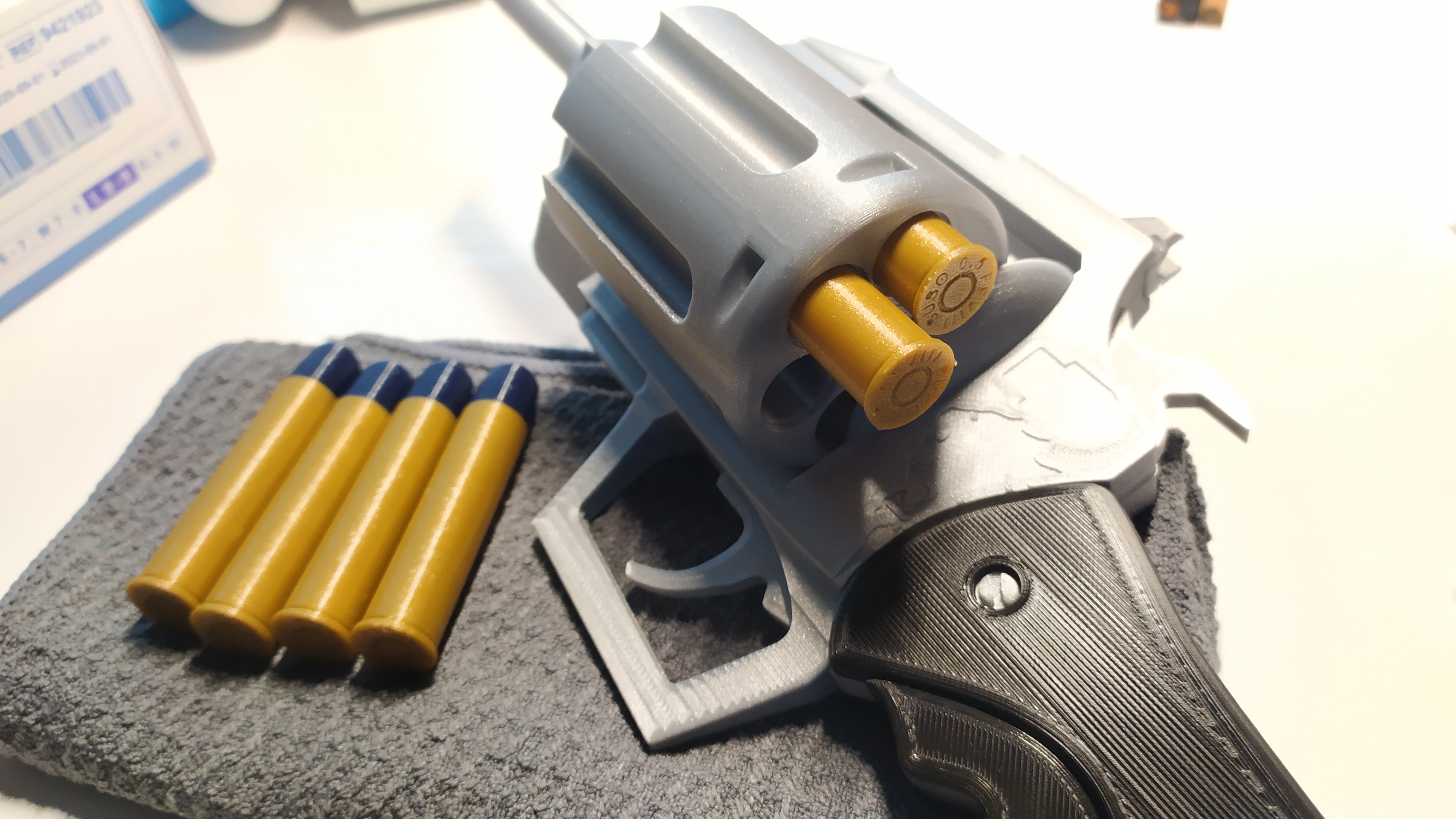

NOTA IMPORTANTE: EL ARTICULO NO TIENE GATILLO Y MARTILLO FUNCIONALES! SOLAMENTE SE PUEDE EXTRAER EL TAMBOR Y GIRARLO PARA INTRODUCIR BALAS!
en un futuro espero poder diseñar todo el conjunto funcional :)

Nota: el amuleto que cuelga de la parte trasera de la Gunblade no esta incluido porque compré el diseño en Cgtrader.com
pero hay archivos gratuitos en Thingiverse :)

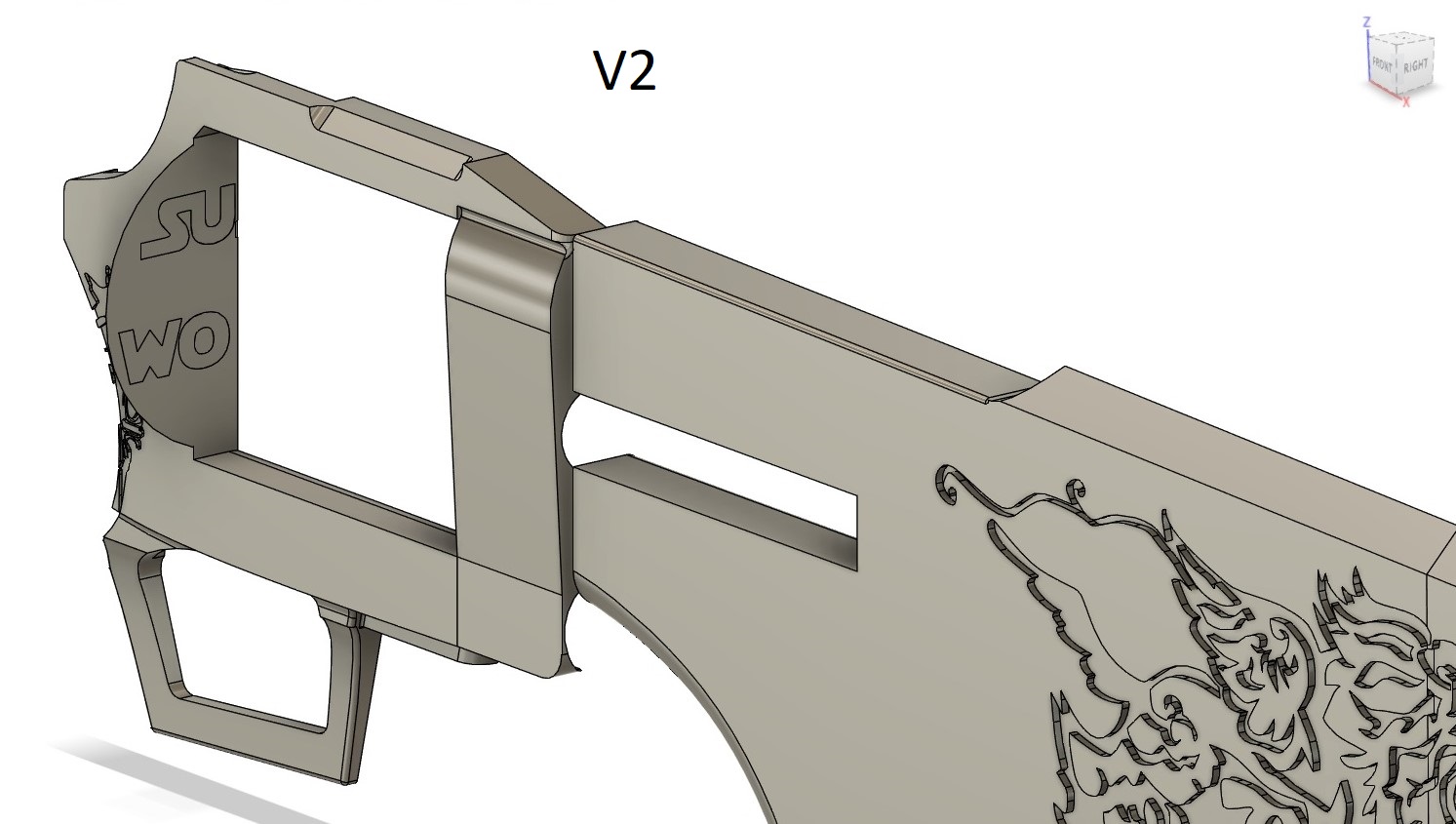

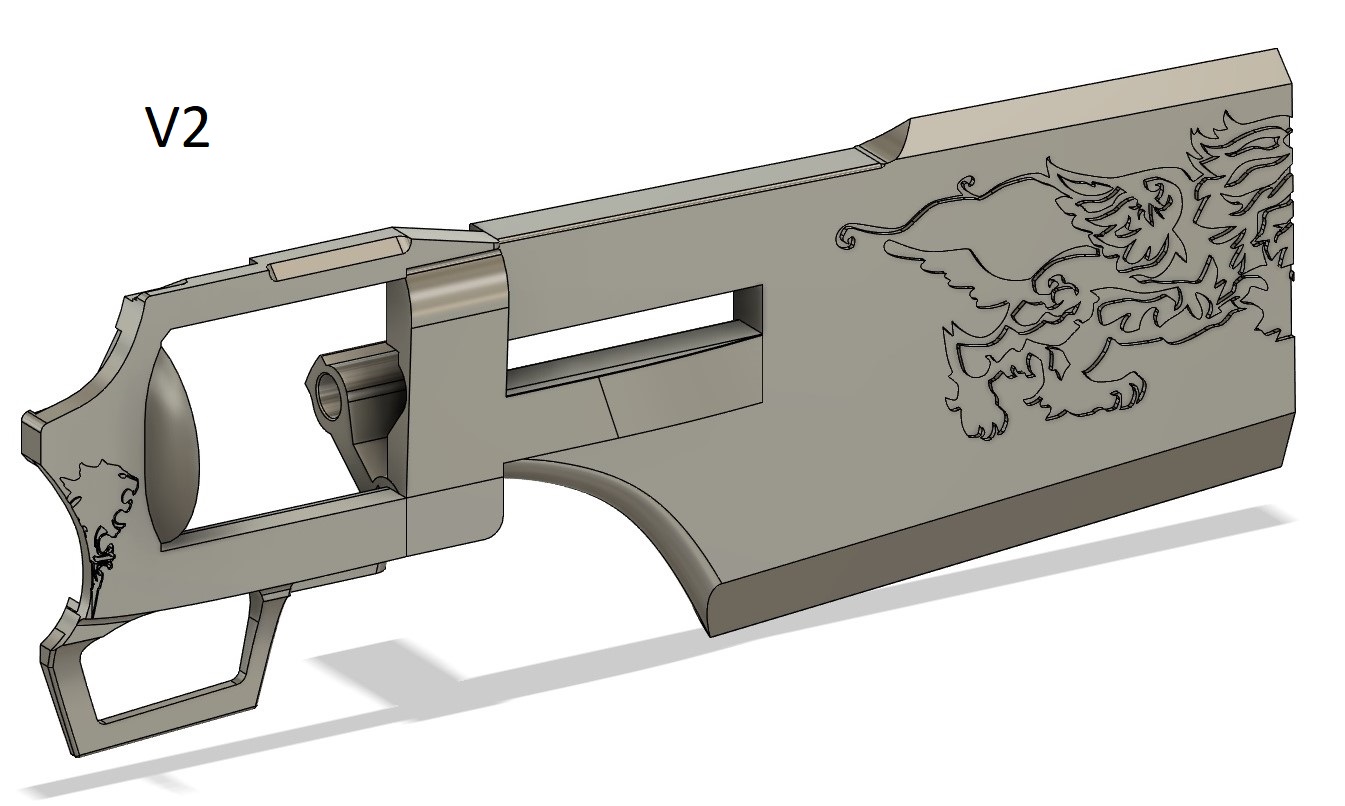

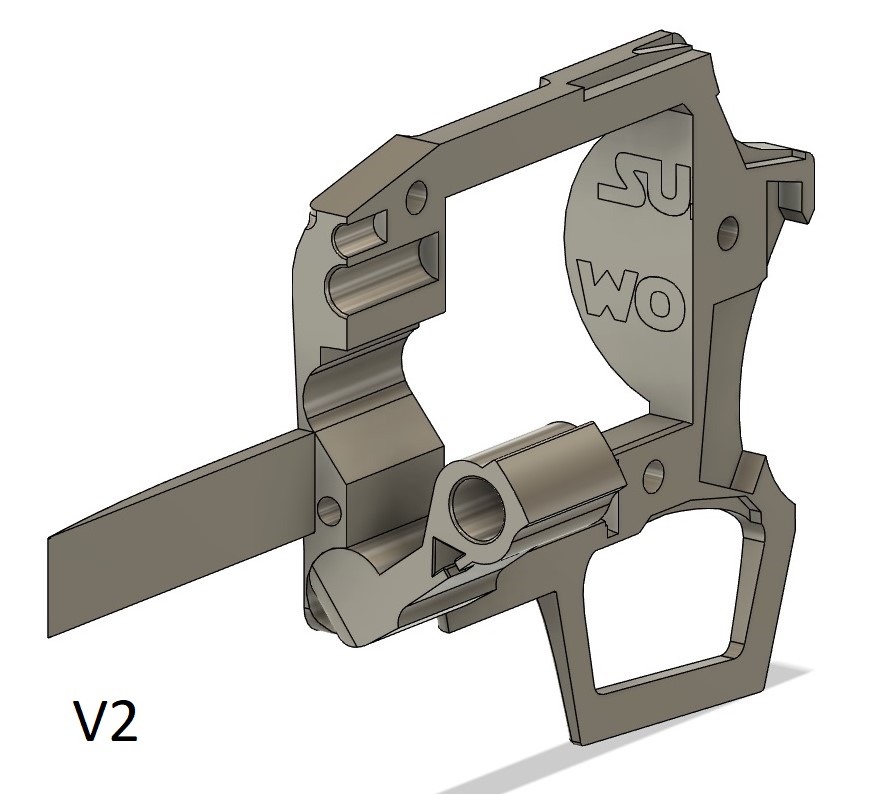

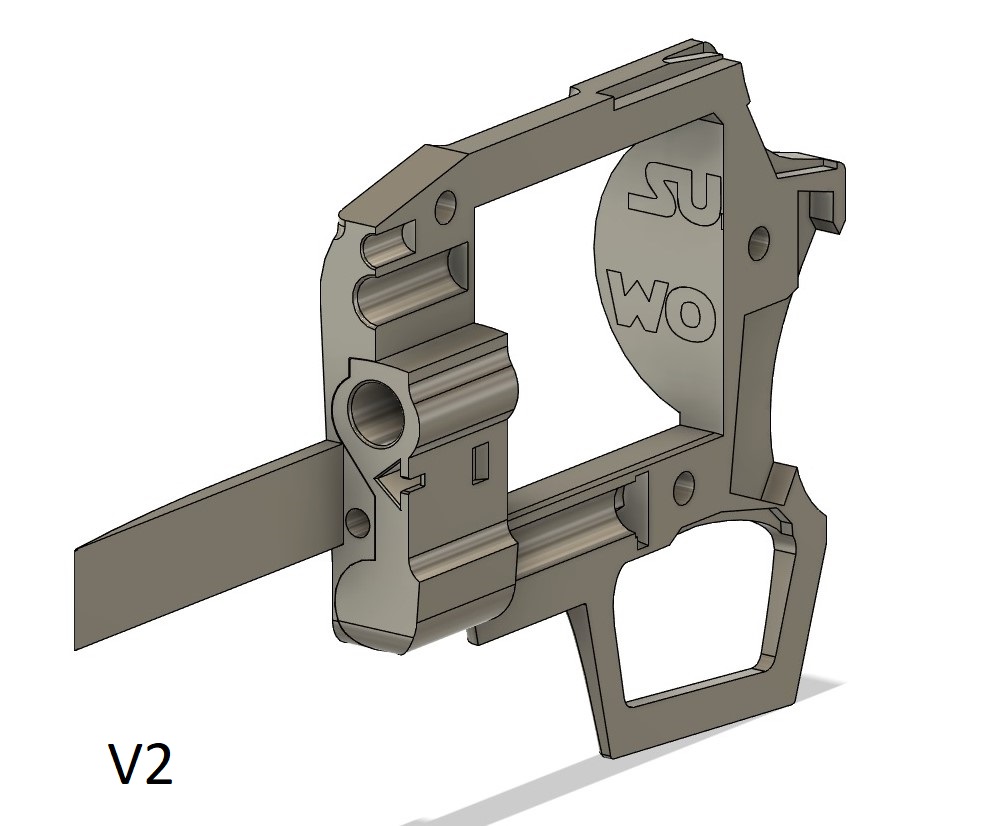

28/5/2021 ACTUALIZACION!!

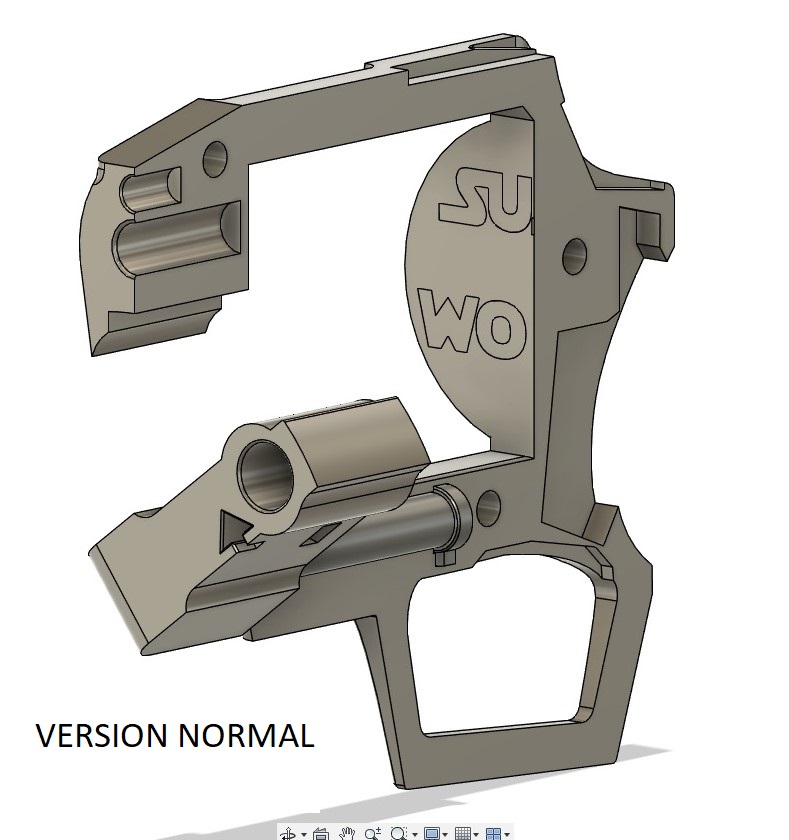

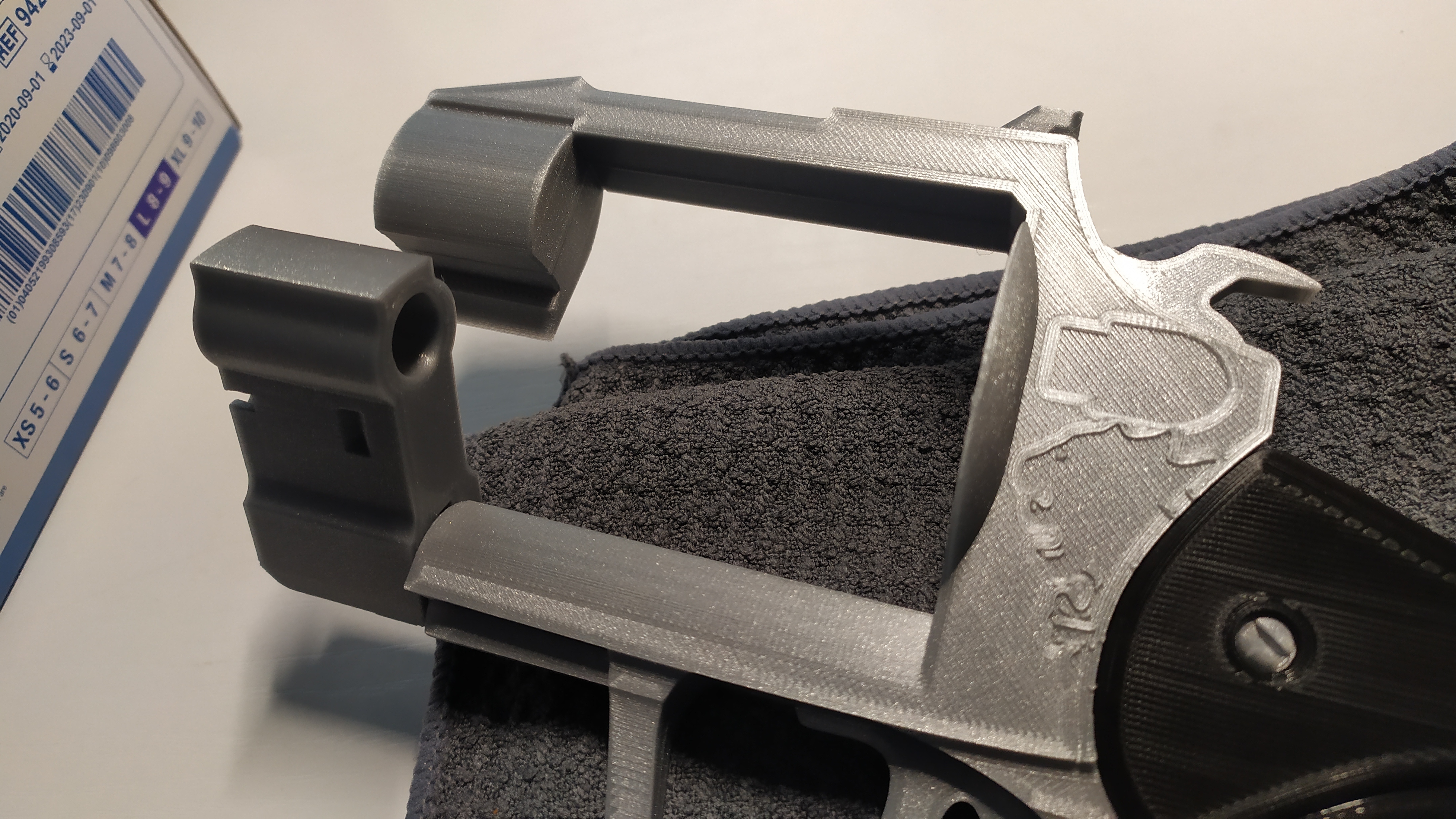

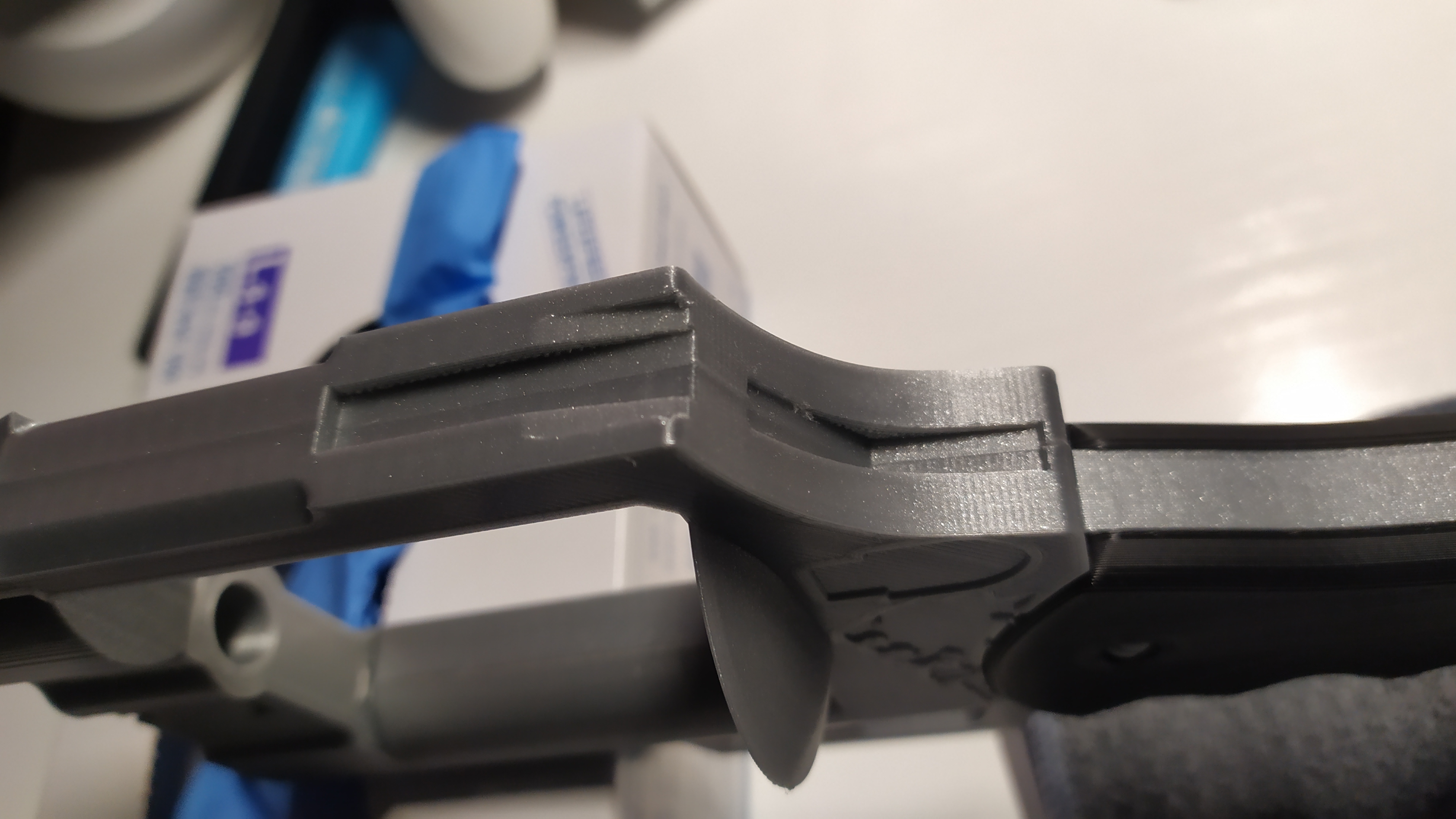

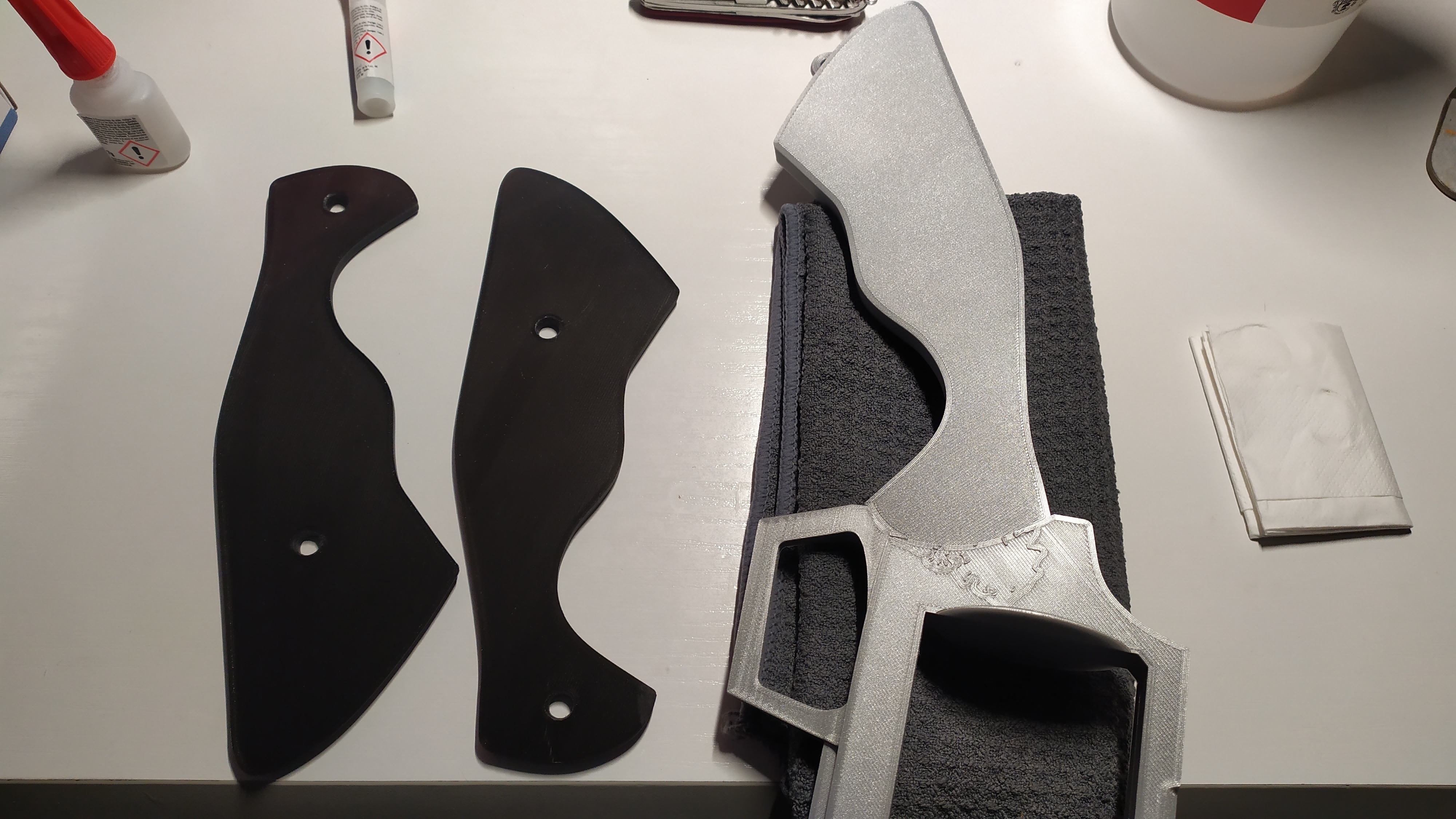

He modificado el cuerpo del revolver para darle mas resistencia al conjunto por si se quiere utilizar la Gunblade para cosplay o por capricho.
los archivos modificados son los que empiezan por V2:

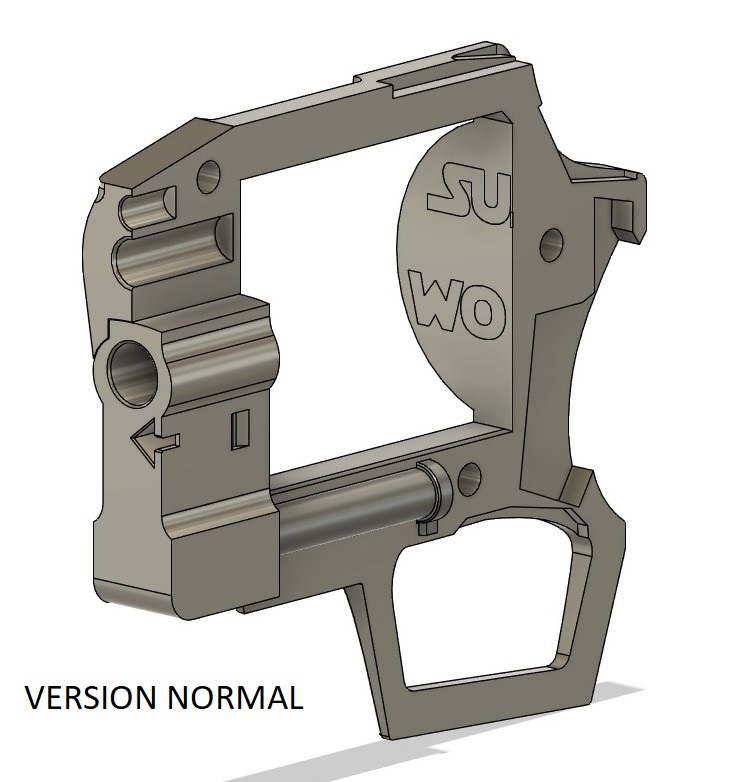

- cuerpo derecho con refuerzo
- cuerpo derecho sin refuerzo
- mecanismo tambor

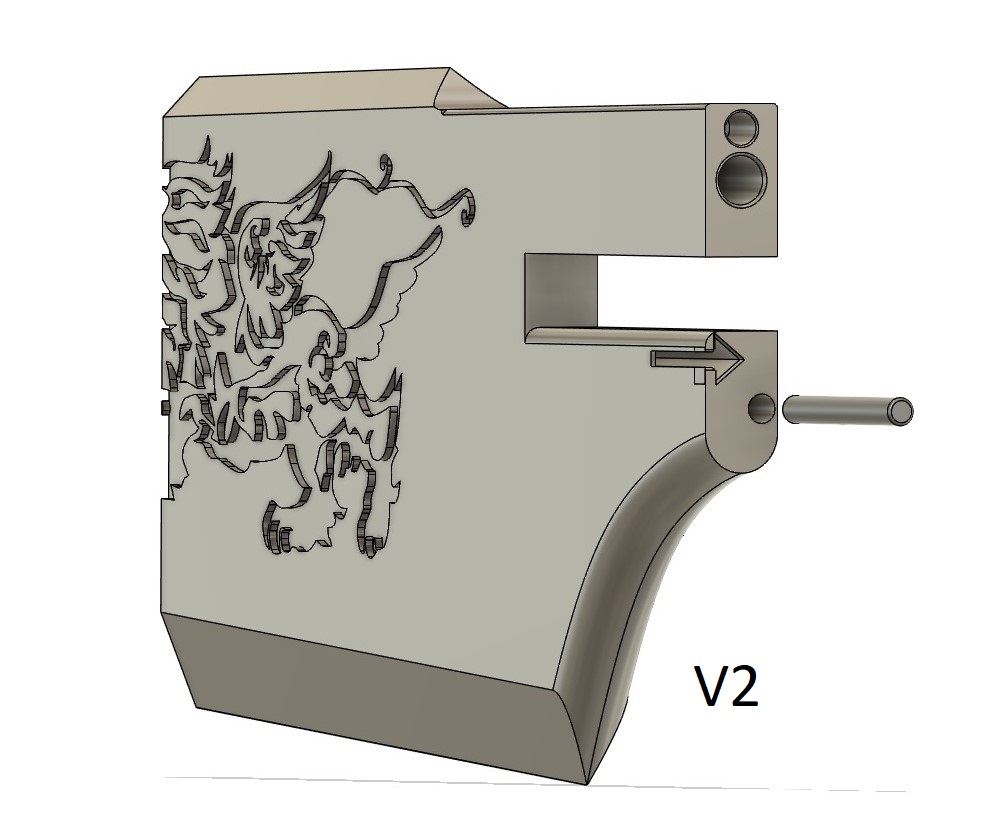

- pasador para unir hoja y cuerpo
- nueva versión de la parte final de la hoja con agujero para el pasador.

NO HE PROBADO DE IMPRIMIR ESTOS NUEVOS ARCHIVOS!
AUN ASI DEBERIAN ENCAJAR BIEN YA QUE SOLO SON PEQUEÑAS MODIFICACIONES DE LOS ORIGINALES.
:)

3D printing settings

es un modelo facil de imprimir y montar!!!!!
Para las partes mas grandes recomiendo altura de capa de 0.2.
Si se quiere dar mas resistencia el cuerpo se puede imprimir al 100% de relleno.
las piezas mas pequeñas recomiendo altura de capa de 0.12 o 0.16.

Los soportes para la pared tienen una holgura de 1mm para poner goma eva de 1mm, aunque es opcional.
todas las piezas deberían poder encajar sin problemas, pero puede que en algunas se deba modificar la expansión horizontal.

  • 3D file format: STL
  • Last update: 2021/05/28 at 19:07
  • Publication date: 2021/05/02 at 21:56

Copyright

©

Tags

Creator

Issue with this design? Report a problem

Best sellers of the category Game


Add a comment

8 comments

Hi! sorry for the delay. I could pass you the files of the design program, but on the condition that you do not publish or put up for sale the new article you make. if you agree we can talk by private mail

Of course not. If I am able to get it to work I plan on giving it back to you. It's your work.

:) give me an email address please

Is there any possibility of getting non stl versions of the file so I can work with them easier?

Thanks! your evaluation is important to me. I hope to make even better pieces over time :)

Well honestly you did a phenomenal job. It really is a great piece.

Of course! you are free to modify it!
I thought about using an already designed revolver as a base and adapting it to look like a gunblade. But I wanted to make my own creation so I did not reach more, although I am satisfied with the result.
I wish you luck and I would appreciate it if you would inform me if you get it :)

Would you care if I remixed the file to allow for this capability? If I am able to I may be able to provide you with the files once I get it finished.

Hi! When I started to design it, it was my intention that everything worked, but my design level is not that high and I did not achieve it, so I settled for that the drum could rotate and put bullets. At the moment I am in other projects and it is not my intention to redesign the gunblade, but I hope to have more experience and to be able to make a version with a fully functional trigger and hammer in the future. Sorry for the inconvenience if you thought everything was functional and you have been disappointed in the article. I am going to modify the statement so that there is no confusion. Greetings!!!

I was wondering if you could do a redesign of this to make the trigger and hammer actuate together and possibly the revolver as well. I am willing to compensate for the redesign. I have already purchased the file but I was wondering if this would be possible. Please tell me what this would cost.
