GHST - Goodson's Hobbies Scaler Trailer

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 4.6k views
  • 19 likes
  • 355 downloads

3D model description

This thing is now printable, there are more accessories to come! Please read description and find links below for the individual sub components.

I hope you like printing the GH Scaler Trailer. I had fun making this design and am happy to provide it for free. If you routinely pay $4 for a coffee or $3 for an energy drink, I ask you to consider donating or tipping me for the hours I have spent working on designing and printing the GHST. Follow me here and on Instagram (@goodsons_hobbies) to keep up with my latest work. I’m open to feedback and ideas, comment or message me I usually respond within a day.

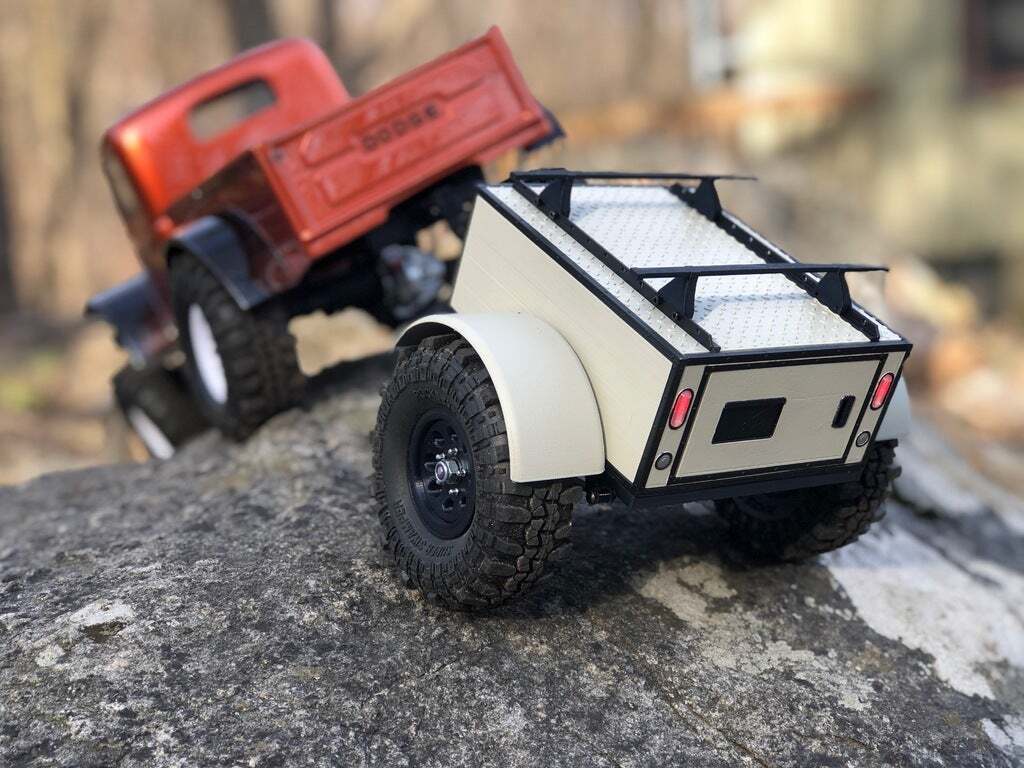

I've been working on modeling and printing this 1:10 scale overland or utility type trailer for RC models. I am calling it the "Goodson's Hobbies Scaler Trailer" or GHST for short. I've been working on this as a fun project that I thought others would be interested in printing for themselves.

I am designing it such that you can make it your own, using alternate parts where you see fit, and skipping or replacing some of the 3d printed components altogether. There will be 3 different 1.9 wheel designs available (so far) if you choose to use my 3d printable wheels. All parts will fit on most common print bed sizes (minimum 220x220mm).

I will create multiple "things" for different options and builds (eg: Frame, utility box, other accessories), but add them all under one collection. Please follow the links below to start printing your GHST!

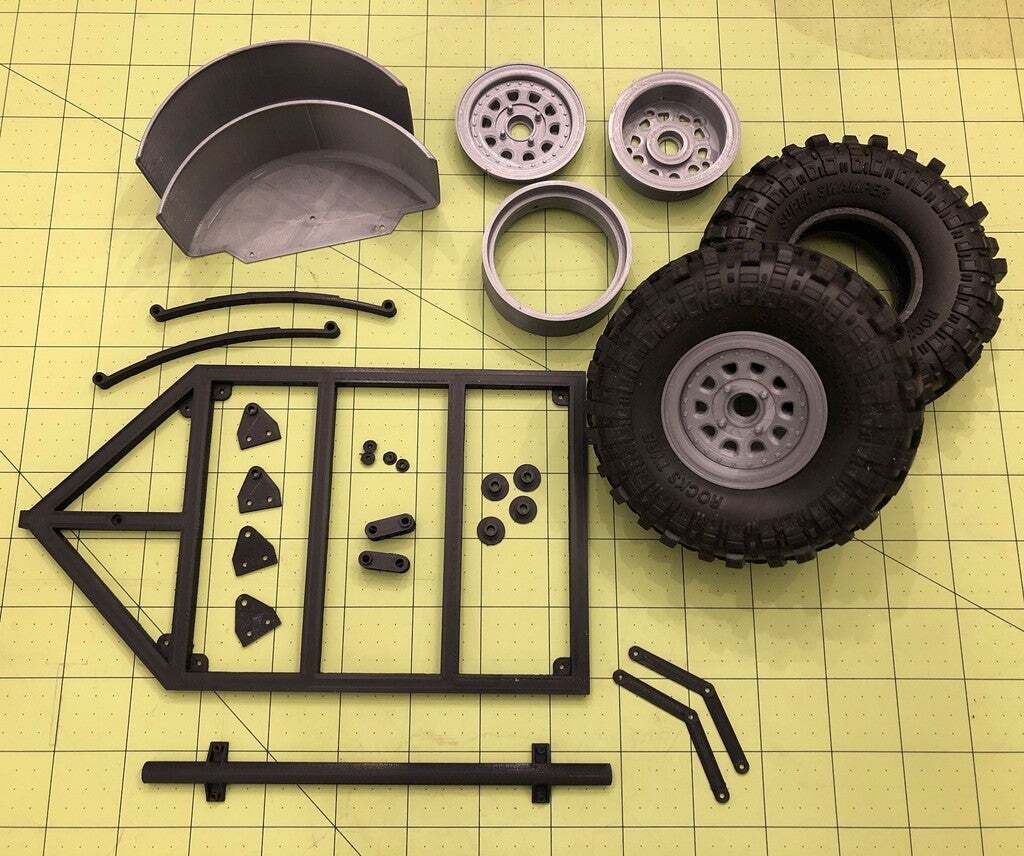

It will require a small amount of hardware to complete, some hardware can be skipped and replaced with glue or holes opened up for a larger size, I am using:
- M3x12 machine screws (button head preferred)
- M3 locking nuts
- M2x8 screws (self tapping preferred)
- M2x5 (self tapping preferred)
- 5x11x4 sealed bearings (for the wheels, common to traxxas vehicles 4 req'd)
- M3 or M5 or #10 threaded rod and 2 lock nuts (

Collection:
https://www.thingiverse.com/Goodsons_Hobbies/collections/ghst-goodsons-hobbies-scaler-trailer

Frame and suspension:
https://www.thingiverse.com/thing:3503700

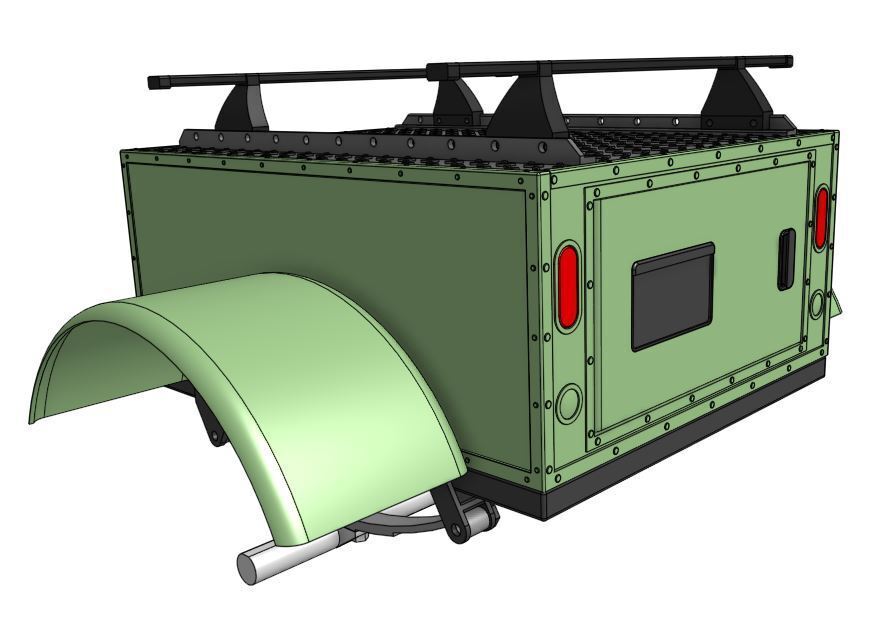

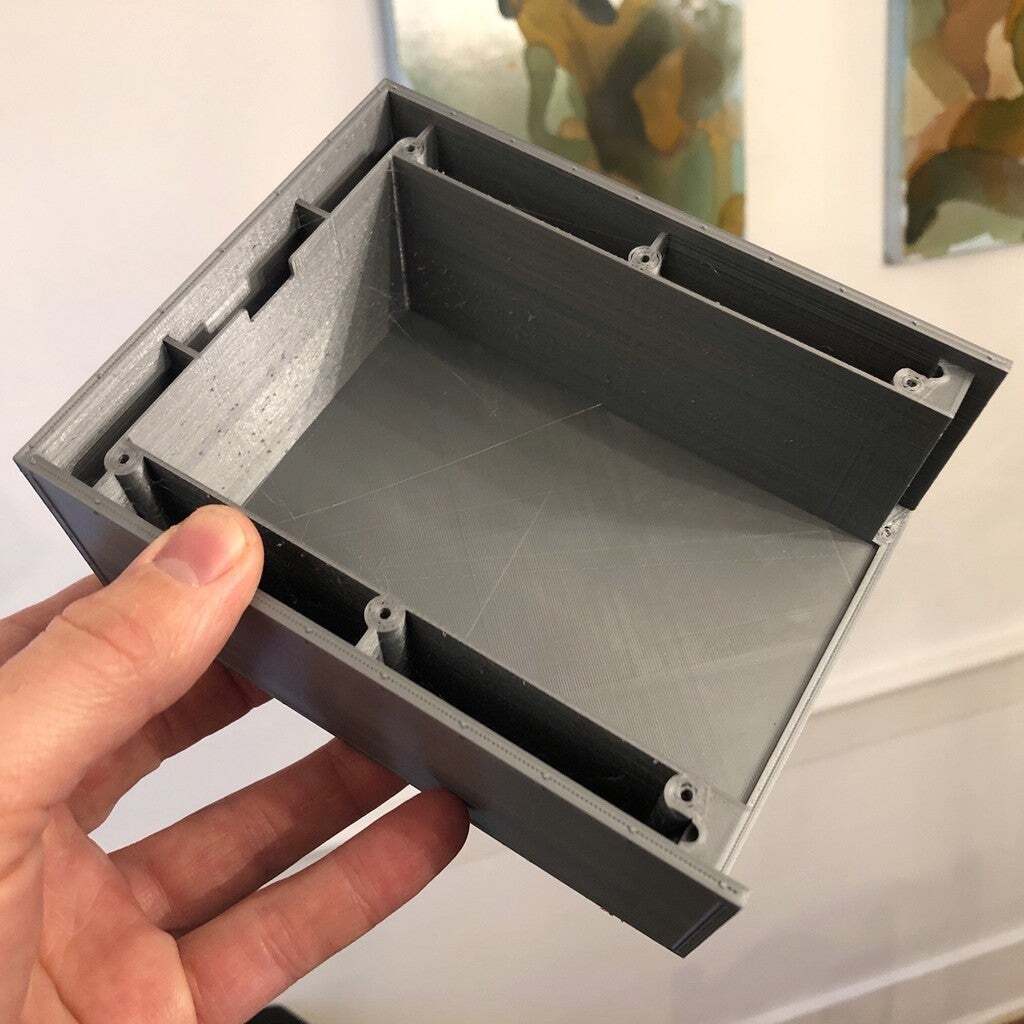

Overland Utility Box:
https://www.thingiverse.com/thing:3516183

Overland Utility Box Alternate Top:
https://www.thingiverse.com/thing:3515709

Round fenders:
https://www.thingiverse.com/thing:3515625

Square fenders:
https://www.thingiverse.com/thing:3515693

Please comment below with any questions or thoughts.

Find me on instagram @goodsons_hobbies

  • 3D file format: STEP and STL
  • Publication date: 2019/08/22 at 15:41

License

CC BY NC
