Geared Commander (100 card) deck box with magnetic latch

?
Creation's quality: 4.9/5 (4 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 13.8k views
  • 74 likes
  • 150 downloads

3D model description

Key Points for May 2020 update:
• Universal dimensions – 75mm depth to fit both single or double sleeved Commander decks.
• Includes double or single magnet door options. I've had a couple of comments that people would like to use a double magnet latch. This file includes both single and double magnet options.

• Description:
This is the .stl file for my deck box for CCG games. I've made it available for people who want to print their own, and because shipping overseas is very expensive. Please be aware that this model is licensed under the Creative Commons - attribution - no derivatives - non commercial licence. Any reselling or reproduction of this model without my consent is forbidden.

This listing is for a 75mm card box, which is large enough to hold a Commander deck with double sleeves. It will hold a deck with the dimensions of 67x93x75mm.

You'll also need two (or four if using the double magnet option) 10mmØ x 3mm magnets for the latch.

• Features

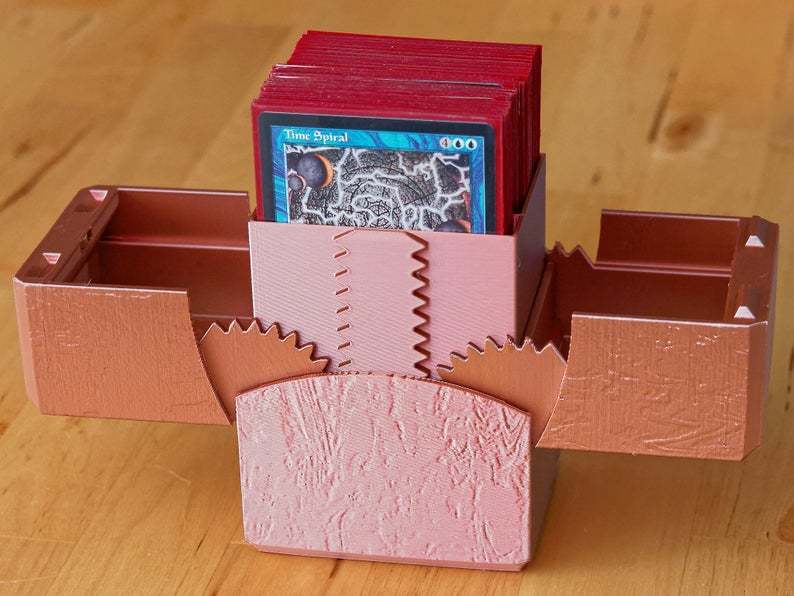

When the box is opened the cards rise up "for easy access", and totally not "because it looks cool". :D
The box locks closed with a magnetic latch. There is also a detent mechanism to lock it in the open position.
If you want a specific pattern on the box let me know. I'll see what I can do.

• Printing details.
0.2mm thick layers or less.
Print cooling on
You must have an accurate printer. This is a simple print, but does require high accuracy.
Update: 15/9/19 I have separated each component into its own file so that you can print them individually.
Update: 2/9/19 Reduced poly count to make slicing easier. All files checked in Meshmixer / PrusaSlicer. Improved aesthetics inside the lid.
Update: May 2020. Increased depth to 75mm for double sleeved decks. Double and single magnet latch options.

• To assemble:
Place the lids in their open position.
Align the lowest gear tooth with the bottom gear teeth of the cart
Place the entire lid and cart combo into the main shell. It should click into place (and that's why having an accurate printer is a requirement).

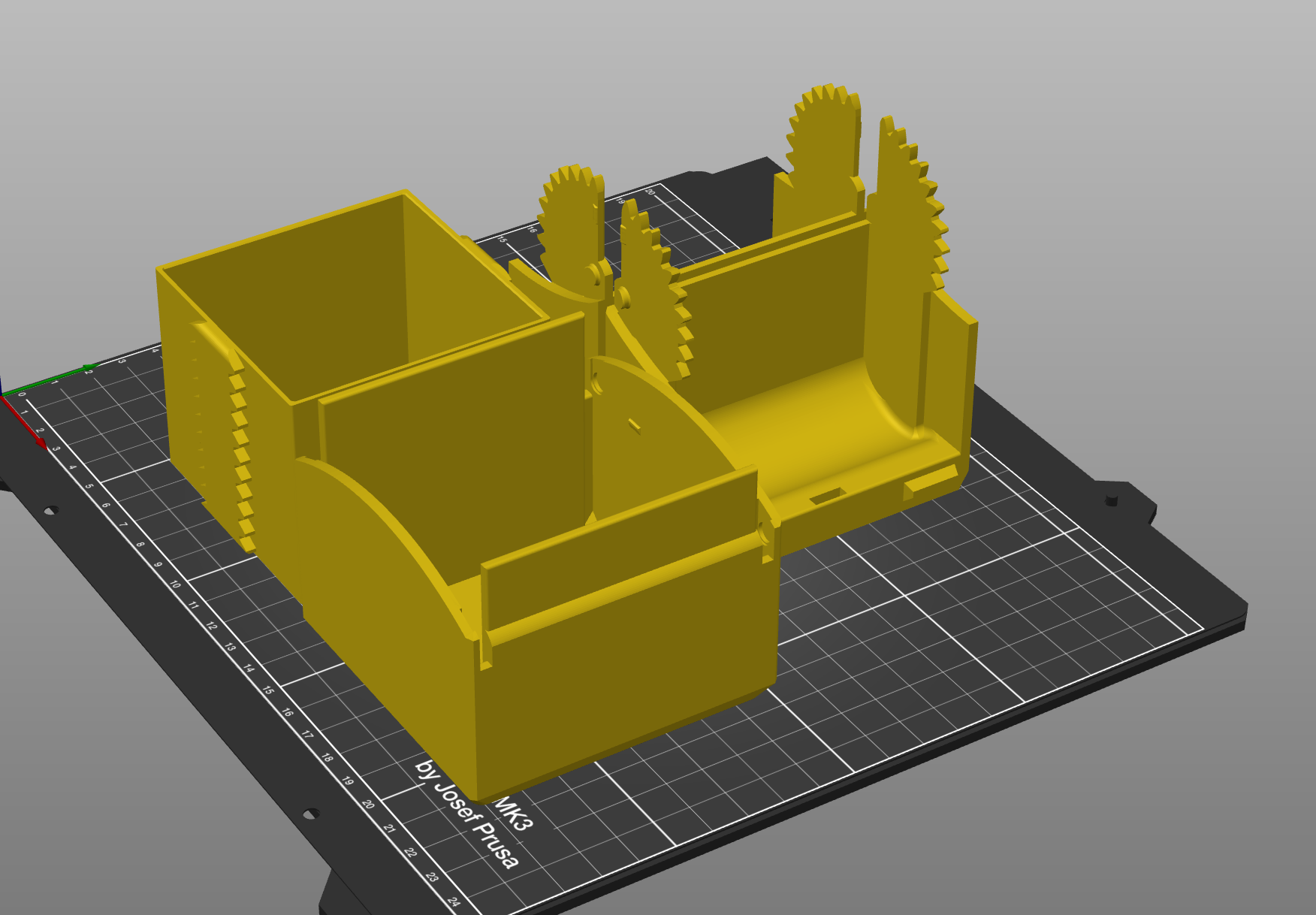

3D printing settings

0.15 layers
No supports required.

3D printer file information

  • 3D design format: STL Folder details Close
    • Base_reduced.stl
    • Cart.stl
    • Lids_single magnet_reduced.stl
    • Lids_two magnets_reduced.stl
  • Last update: 2020/05/24 at 04:36
  • Publication date: 2020/03/09 at 01:51

Copyright

©

Tags

Creator

Issue with this design? Report a problem

Collection associated with this 3D model


Makes created by the community

Best sellers of the category Game


Add a comment

6 comments

Can I have it without the surface texture?

Hi, does it come with a flat surface option, or is it possible to add the color symbol?

I sent you a message through Thingiverse.

Hi CUISSEDEMOUCHE
I'll send you a link shortly.

Hi there,
Is there by any chance to have the same model but with flat surface?
I just bought it and didn't see before that you did a kind of wood effect on the surface.
