Fusion 360 2x2 Lego Block Generator

Creation quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.

3D model description

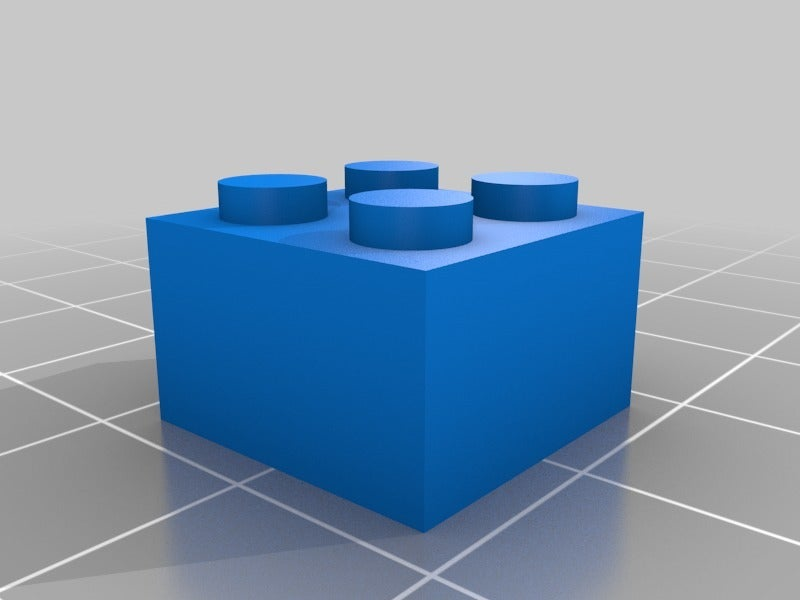

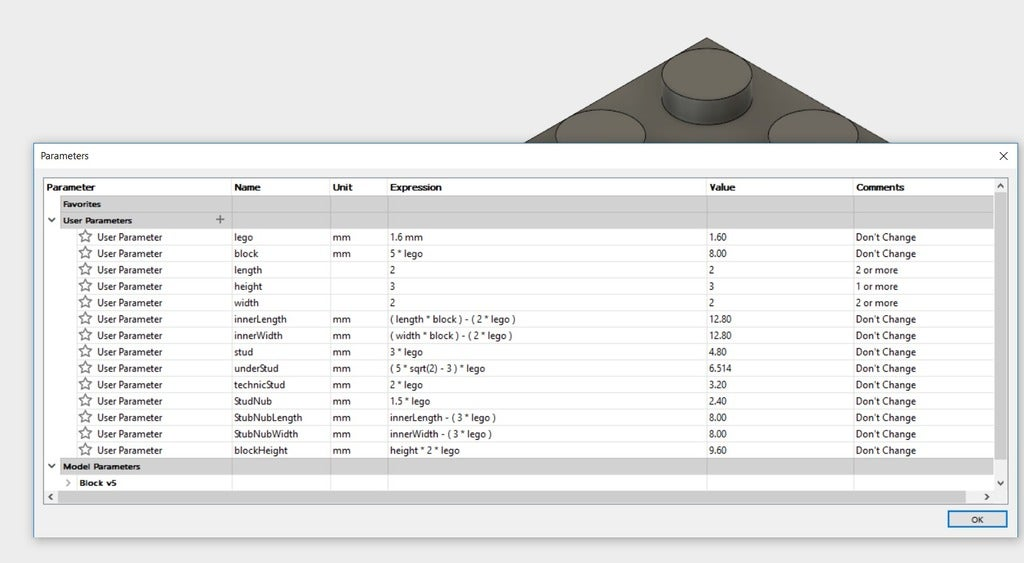

This is a simple 2x2 lego block generator, I will be producing a 1x1 version and a slope version in the future. Once you have loaded the fusion 360 backup, under modify goto parameters and change the length/width/height to suit your needs.

You will need to redo the extrusion plane selection but the heights are done through parameters.

I currently have no Legos so I can't comment on how compatible these are yet.

12/26/2017: Added v6 which includes a chamfer to the studs and the base for better fit and 3d printing.

12/31/2017: Added v7 which includes modifiers to the stud and the base so that a better fit to actual Legos can be made with either chamfers or modifiers.

1/17/2018: Added v8 of the generator, this changes the generation of the center pillar to be more dimensionally sound for 3D printing by subtracting the floating point modulus of the result calculation by 0.4. I have also added expressions for the chamfers, please play around with the latest file!

3D printer file information

  • 3D design format: F3D and STL Folder details Close
    • 2x2.stl
    • Block_v5.f3d
    • Block_v6.f3d
    • Block_v7.f3d
    • Block_v8.f3d

    Learn more about the formats

  • Publication date: 2020-04-02 at 16:41
    Published to Thingiverse on: 2017-12-25 at 19:55





Designs 81
Downloads 4.9k
Followers 64

Long time thingiverse user looking to expand to other platforms, looks like sync worked well. My designs and creations are always free, please let me know if you see someone selling them as they are doing it without my permission.
