FT Arrow Canopy System and Vertical Stabilizers

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 👁 5.6k views
  • 10 likes
  • 146 downloads

3D model description

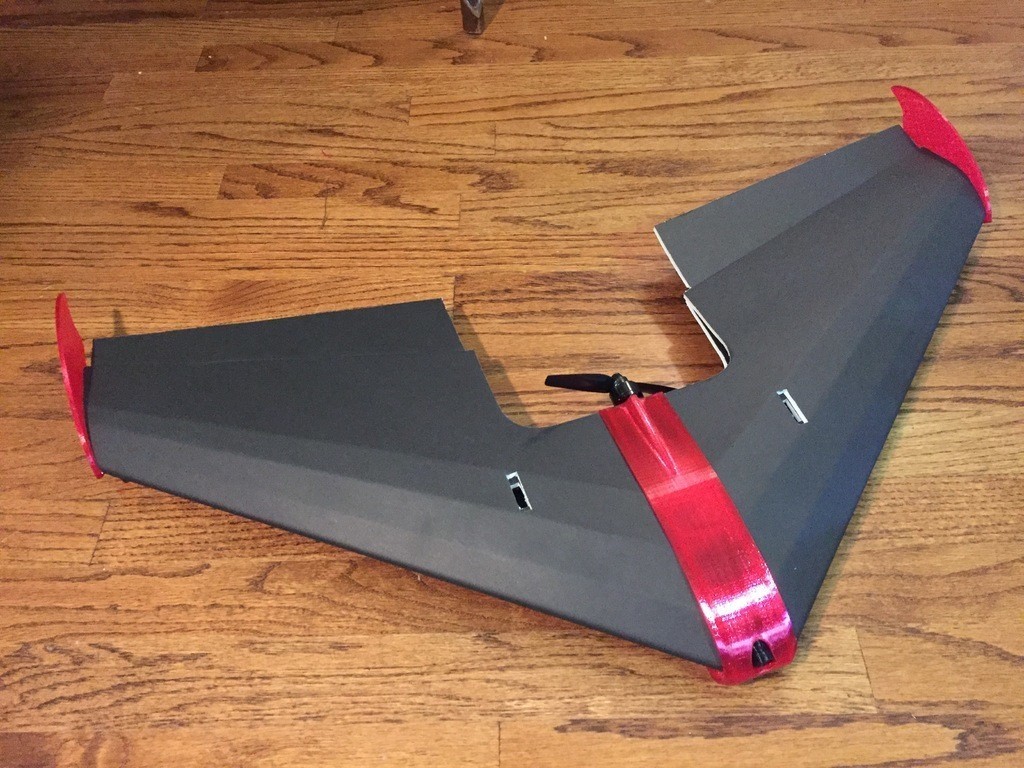

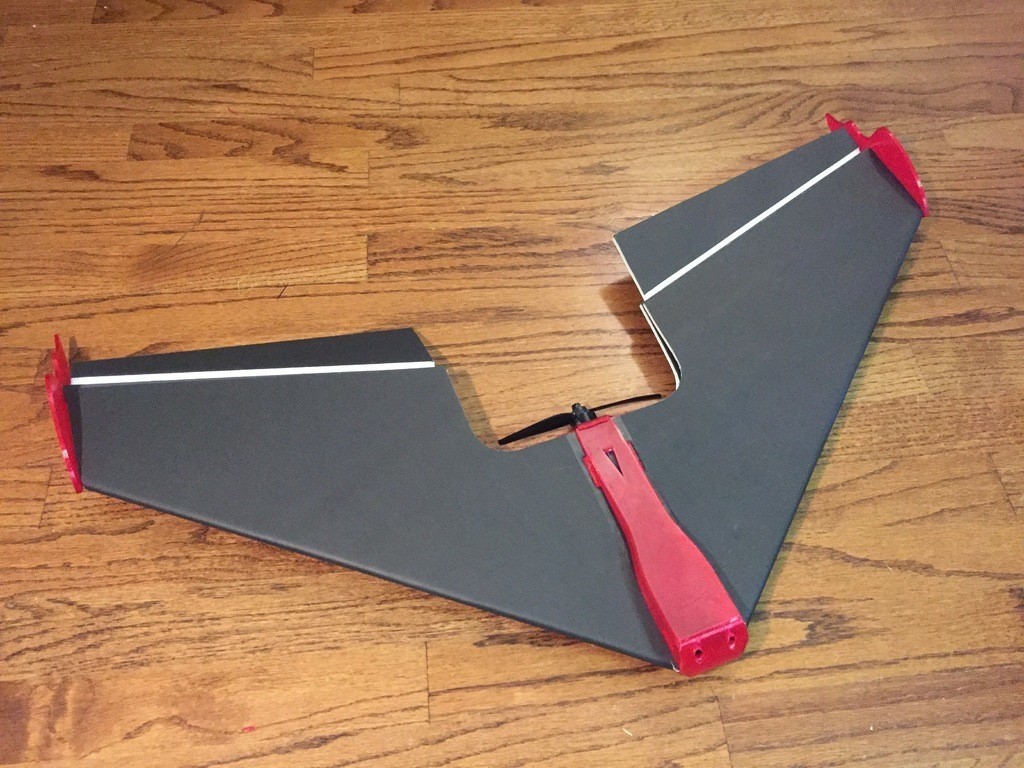

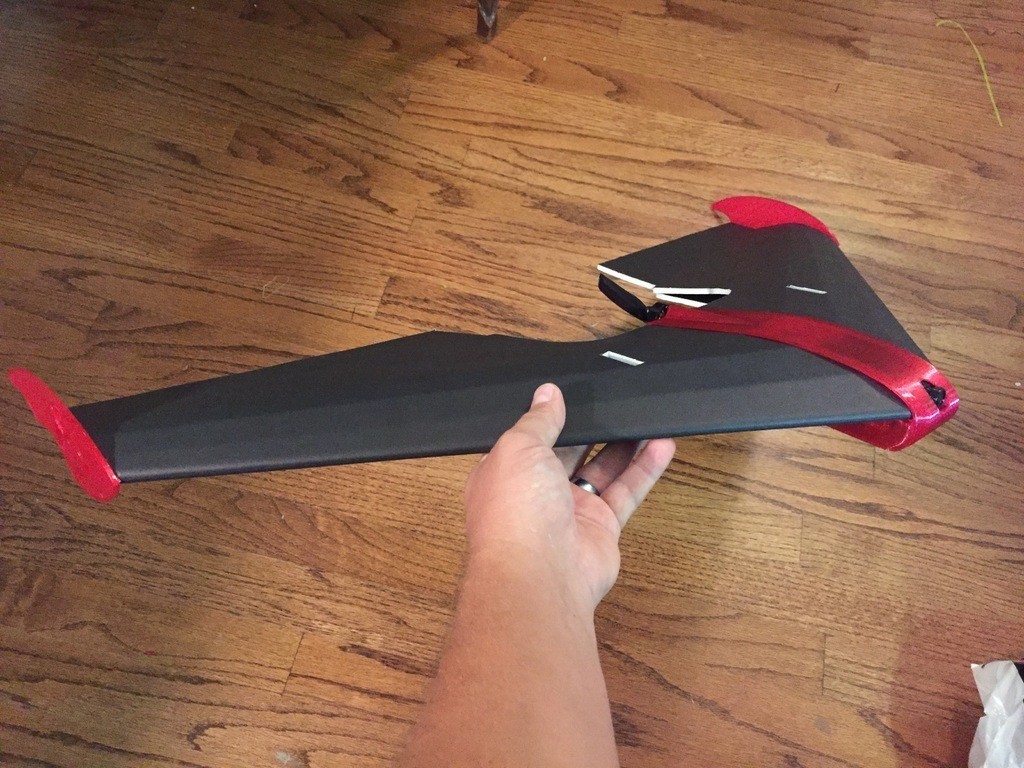

FT Arrow clip on canopy and vertical stabilizers. All printable without supports. Use Petg or better heat withstanding material. *Orient upper canopy on its side, all other parts should be oriented properly as well. The stl’s do not necessarily load in the proper orientation.

FPV mount is designed for RunCam Micro, but should work with other "micro" cameras with similar footprints.

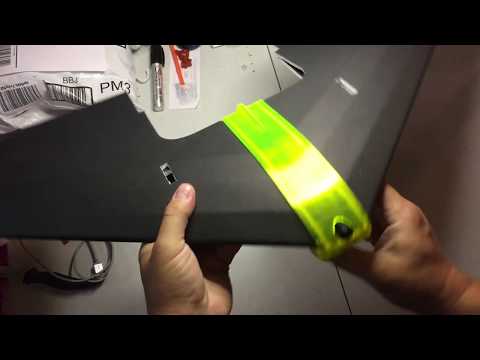

Video of parts:
https://youtu.be/3TBBhgW7e_c

All that's needed to build this plane is some Dollar Tree foam board and some electronics.

The speedbuild kit as well as power packs for this plane are available here:
https://store.flitetest.com/flite-test-mighty-mini-arrow-electric-airplane-kit-737mm-flt-1035/p673699

And the free plans are Here:
https://s3.amazonaws.com/plans.flitetest.com/stonekap/FT%20Mini%20Arrow%20v1.1%20Tiled.pdf

3D printer file information

  • 3D design format: STL Folder details Close

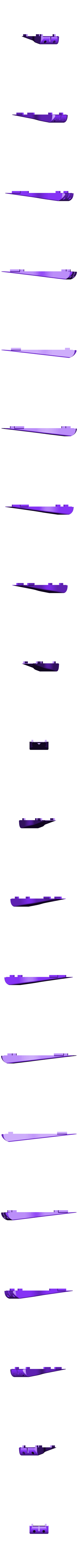

    • Arrow_Btm_stl.STL

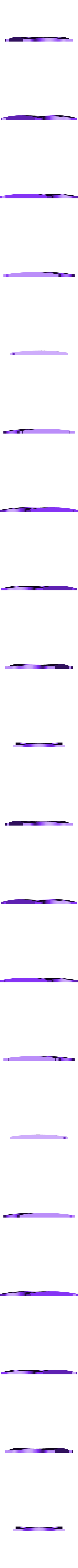

    • Arrow_lid_stl.STL

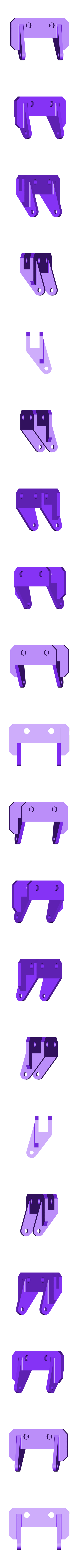

    • Rear_clip_support_stl.STL
    • runcam_micro_camera_mount_stl.STL
    • spar_reinforcer_stl.STL

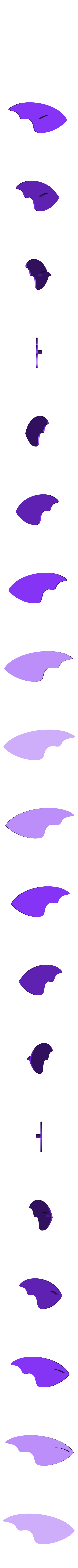

    • vert_stab_DD_blank.STL

    Learn more about the formats

  • Publication date: 2018/08/09 at 14:25

License

CC BY NC

Tags

Creator

Issue with this design? Report a problem

Collection associated with this 3D model


Best sellers of the category Game


Add a comment

3 comments

le support moteur fait partie de la verrière. le moteur se visse directement au baldaquin.

*translation by google

avez vous le stl du support moteur?
