Free Rolling Suspension Arms

?
Creation's quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 446 views
  • 4 downloads

3D model description

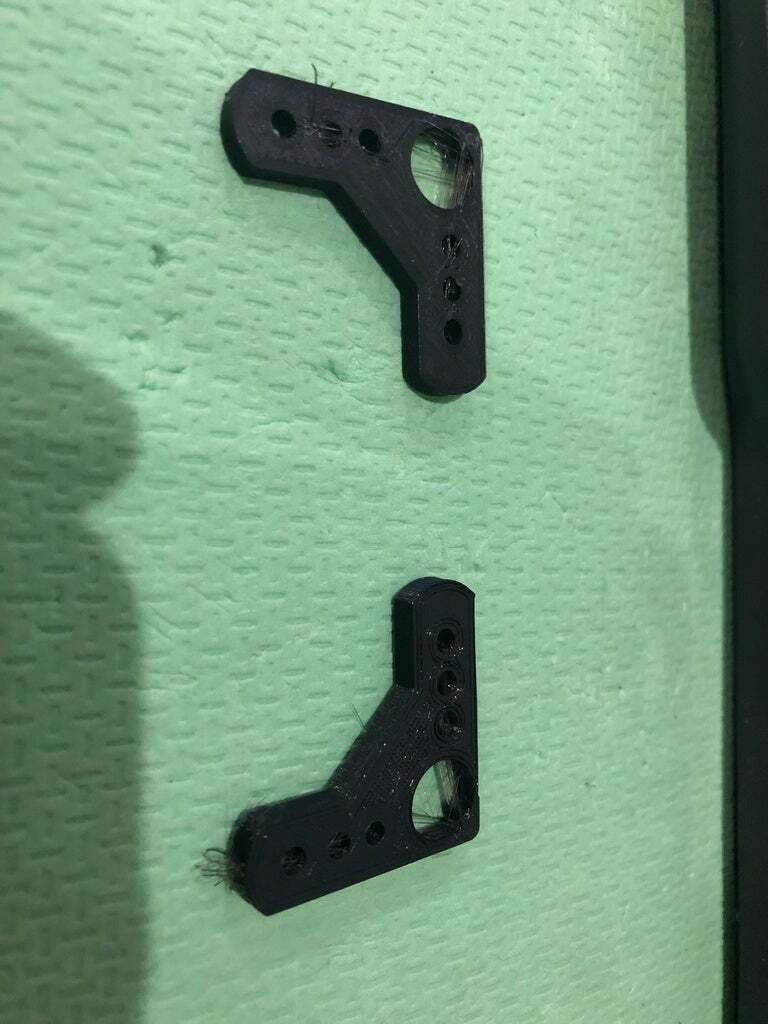

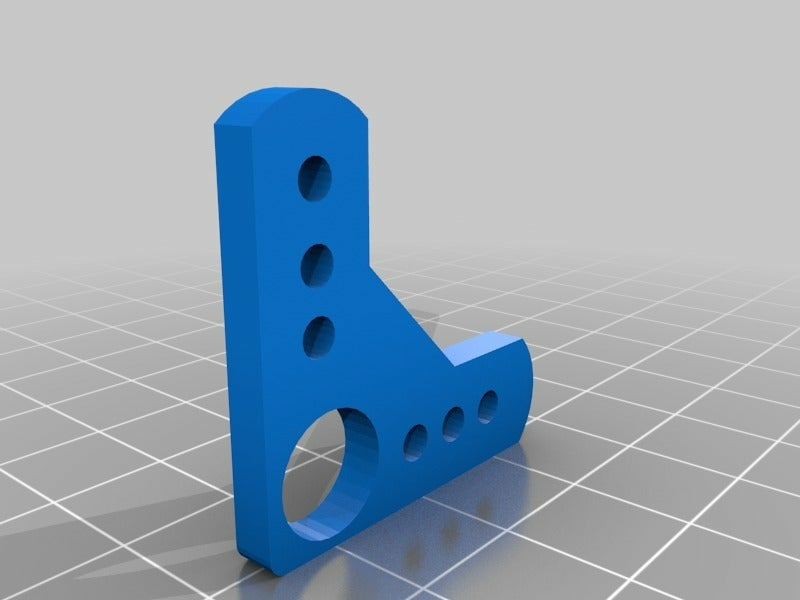

Uses 3/16*3/8 Bearings commonly found in the RC10T3 front wheel bearings. A spacer behind the arms prevents the arms from hitting the upper shock mounting arms. This allows for the rear end to still roll like the front of the Sakura D4 Black Edition does. You will need a spacer in front of the bearing and behind the bearing to sandwich it in. I used old plastic shock bushings that when compressed they end up expanding, locking in the bearing. you will need tie rod length that will allow the upper arms to be horizontal when resting. I will include the links for both of the washers that I customized to make this work.

Inside Washer
https://www.thingiverse.com/thing:3812727

Outside Washer
https://www.thingiverse.com/thing:3812725

Make sure the Arms are both facing the correct way. The holes are not perfect and one side will be longer/shorter than the other. I am still learning Fusion360.

Thanks and let me know how this works for you.


3D printing settings

-

3D printer file information

  • 3D design format: STL Folder details Close
    • Rear_Cantilever_D4_v7.stl

    Learn more about the formats

  • 3D model size: X 32.1 × Y 3.5 × Z 32.1 mm
  • Publication date: 2021/03/12 at 01:17
