FPV racing Diablo 3p V2

?
Creation's quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 👁 923 views
  • 1 like

3D model description

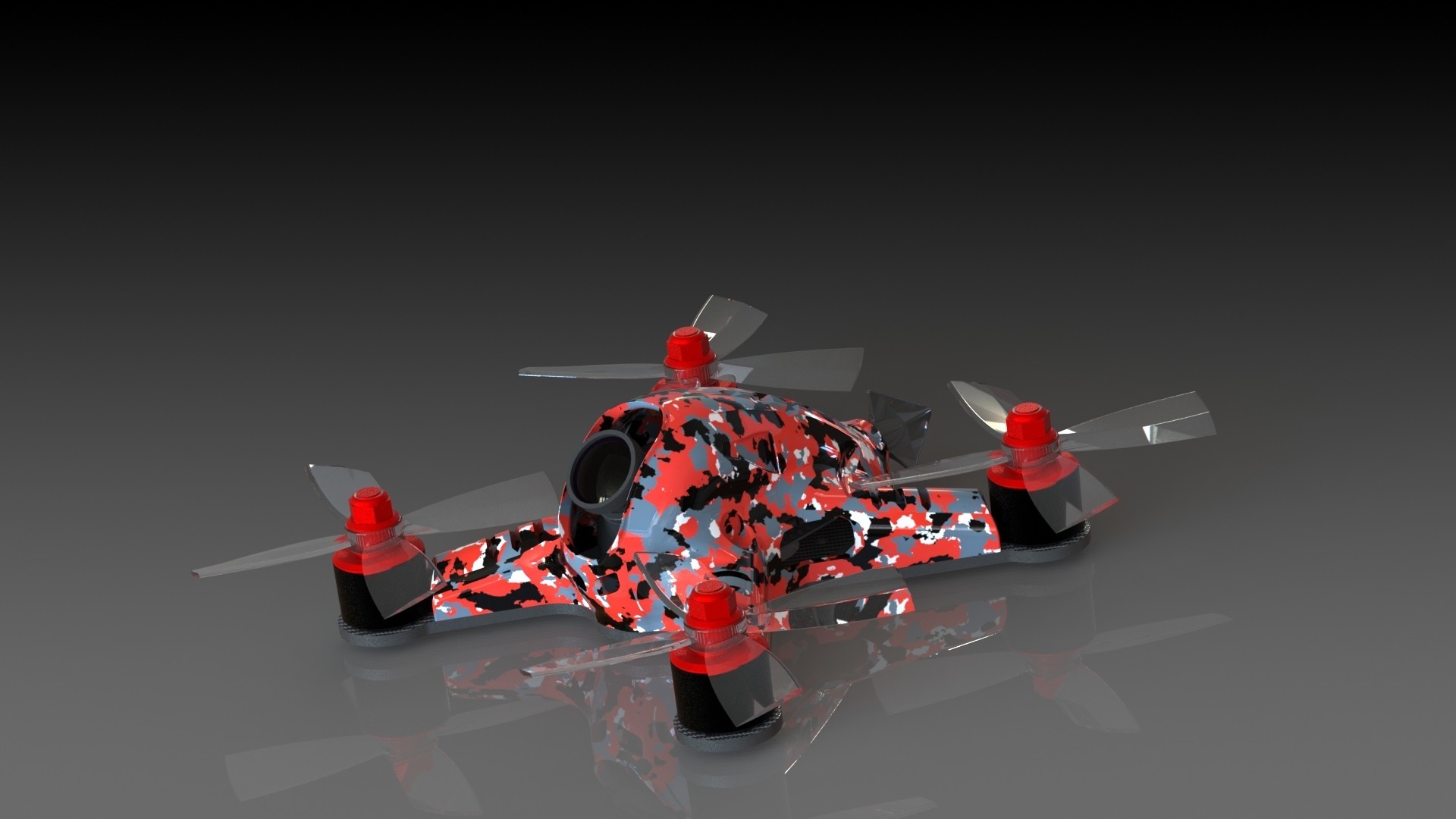

3-inch Diablo racing Diablo FPV chassis, including STL and DXF file for carbon cutting.

Extended X-frame with 135mm centre distance approx. 20g with a 2mm frame.

I've been flying with it for 1 year and a half and I've fixed some problems with the V1: thinner arm to reduce the weight and higher canopy to have a little more space in it.

Chassis planned for a 20x20 HR.

ESC 4 in 1 in 20x20 max 36x36 size

Camera type HS1177 in 2.5mm

In my configuration I have as VTX a tramp with its sensor for the TNR, an RX XSR, a micro minimosd.

The size is really right and I plan to do it again with a vtx tbs Nano, a FC with OSD, a 4in1 esc, an rx R-xsr or XM+

To fix the canopy it is necessary to use M3 screws with plastic thread (in my case titanium screws with plastic thread).

Attention for the assembly it is necessary to have a minimum of experience because I designed the chassis with the strict minimum to reduce to the maximum the weight and the air resistance of the central part.

The châssi is also available on armattan for those who can't have them cut, without margin for me.

Frame 2mm.

https://armattanproductions.com/pages/product_details/9533


3D printing settings

Canopy designed exclusively for Taulman Nylon 645, stronger and lighter than TPU.

If the canopy is printed in TPU it will be too flexible.
