FPV racing Diablo 5p V1

?
Creation's quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 886 views
  • 2 likes
  • 1 download

3D model description

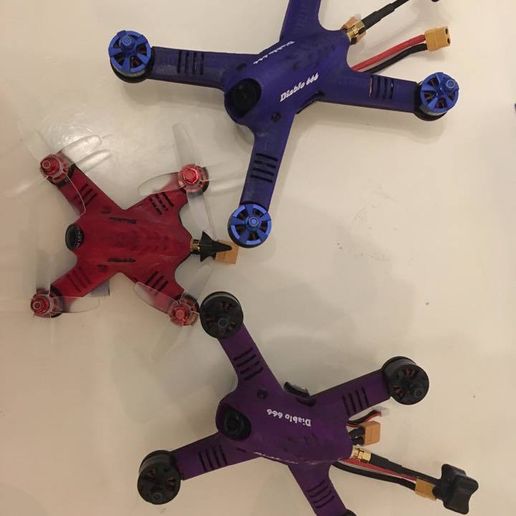

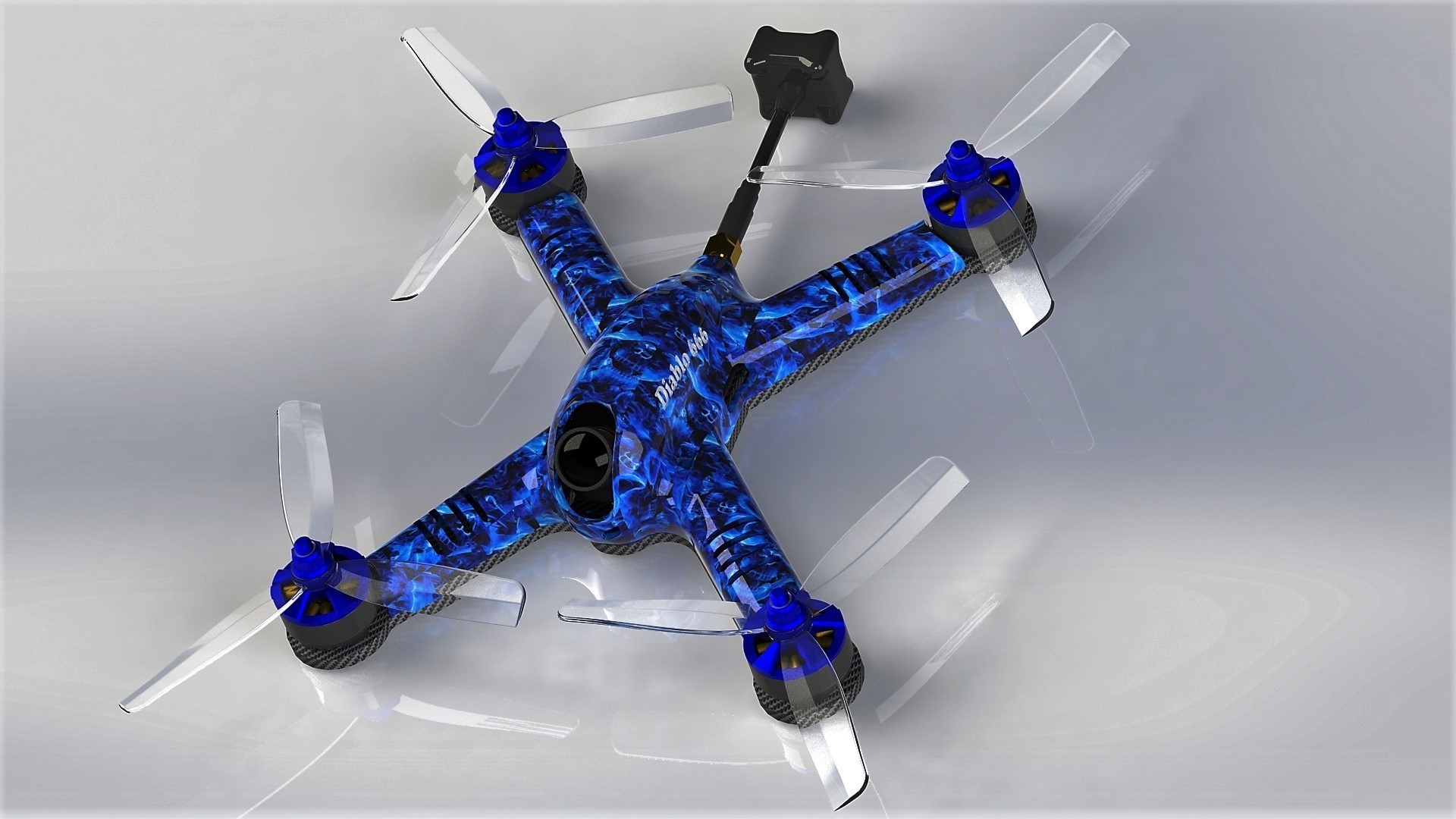

5-inch Diablo racing FPV chassis, including STL and DXF file for carbon cutting.

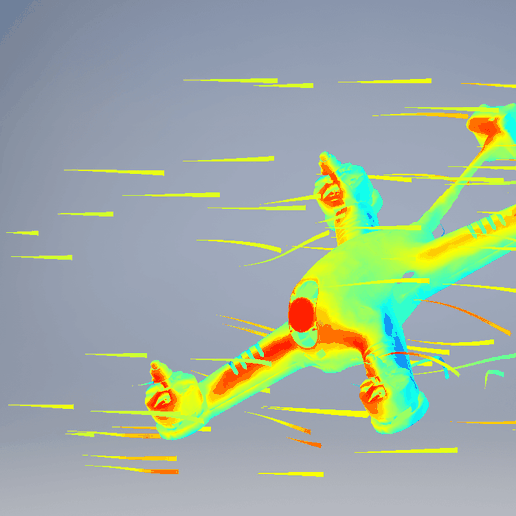

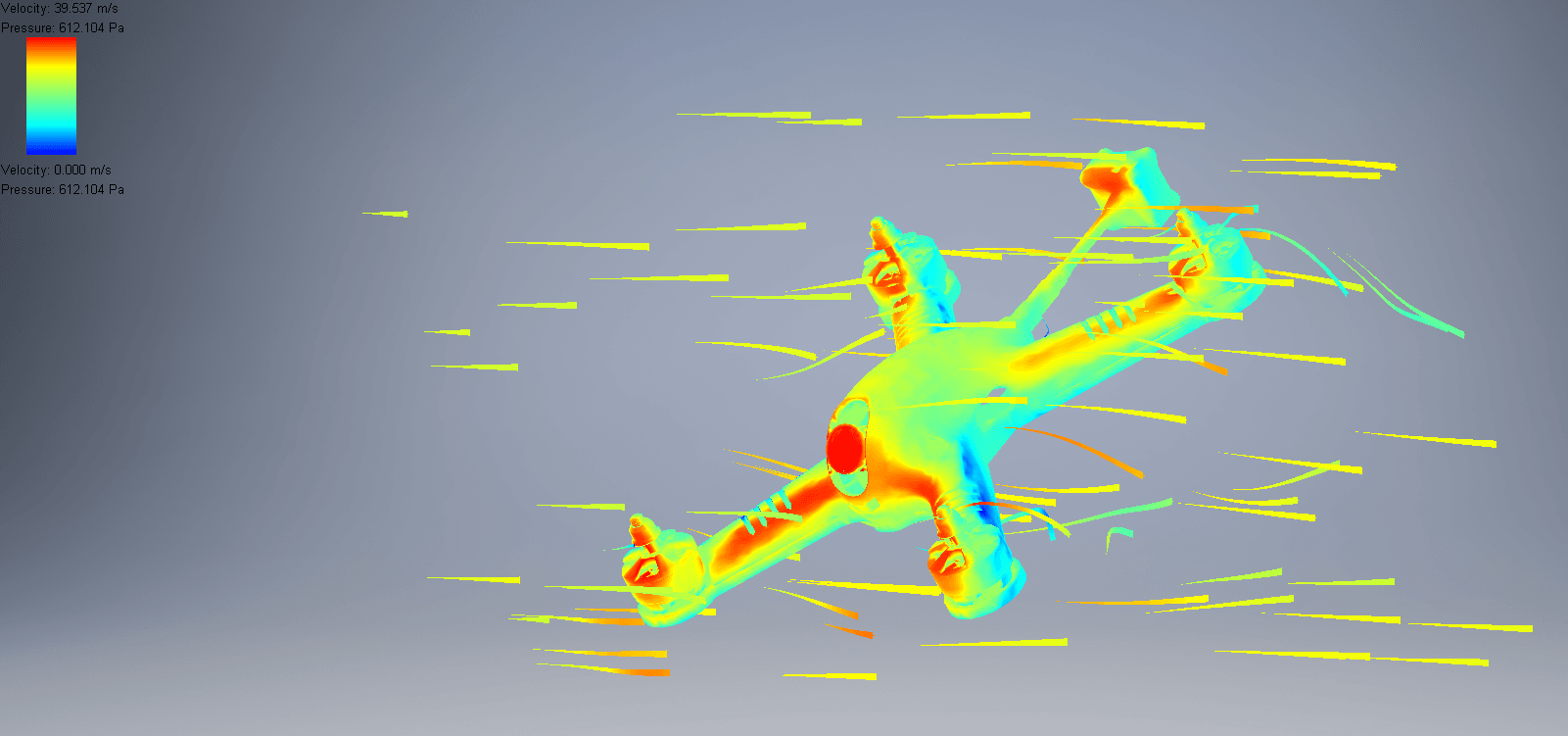

Extended X-frame with 210mm 90g centre distance and 4mm frame.

I have been flying with it for 1 year and a half and I would recommend over time a 3mm lighter and much stronger chassis.

Chassis planned for a FC with integrated PDB (in my case configuration that has more than one year a kombini).

Individual ESC in each arm, max 16mm wide (in my case racestars 30A)

Camera type HS1177 in 2.5mm

In my configuration I have as VTX a tramp with its sensor for the TNR, an RX XSR, a minimosd microphone and a 25V capacitor.

To fix the canopy it is necessary to use M3 screws with plastic thread (in my case titanium screws with plastic thread).

Attention for the assembly it is necessary to have a minimum of experience because I designed the chassis with the strict minimum to reduce to the maximum the weight and the air resistance of the central part.

The frames are also available on armattan for those who can't have them cut, without margin for me.

Frame 3mm.

https://armattanproductions.com/pages/product_details/4272

Frame 4mm

https://armattanproductions.com/pages/product_details/4271

3D printing settings

Canopy designed exclusively for Taulman Nylon 645, stronger and lighter than TPU.

If the canopy is printed in TPU it will be too flexible.
