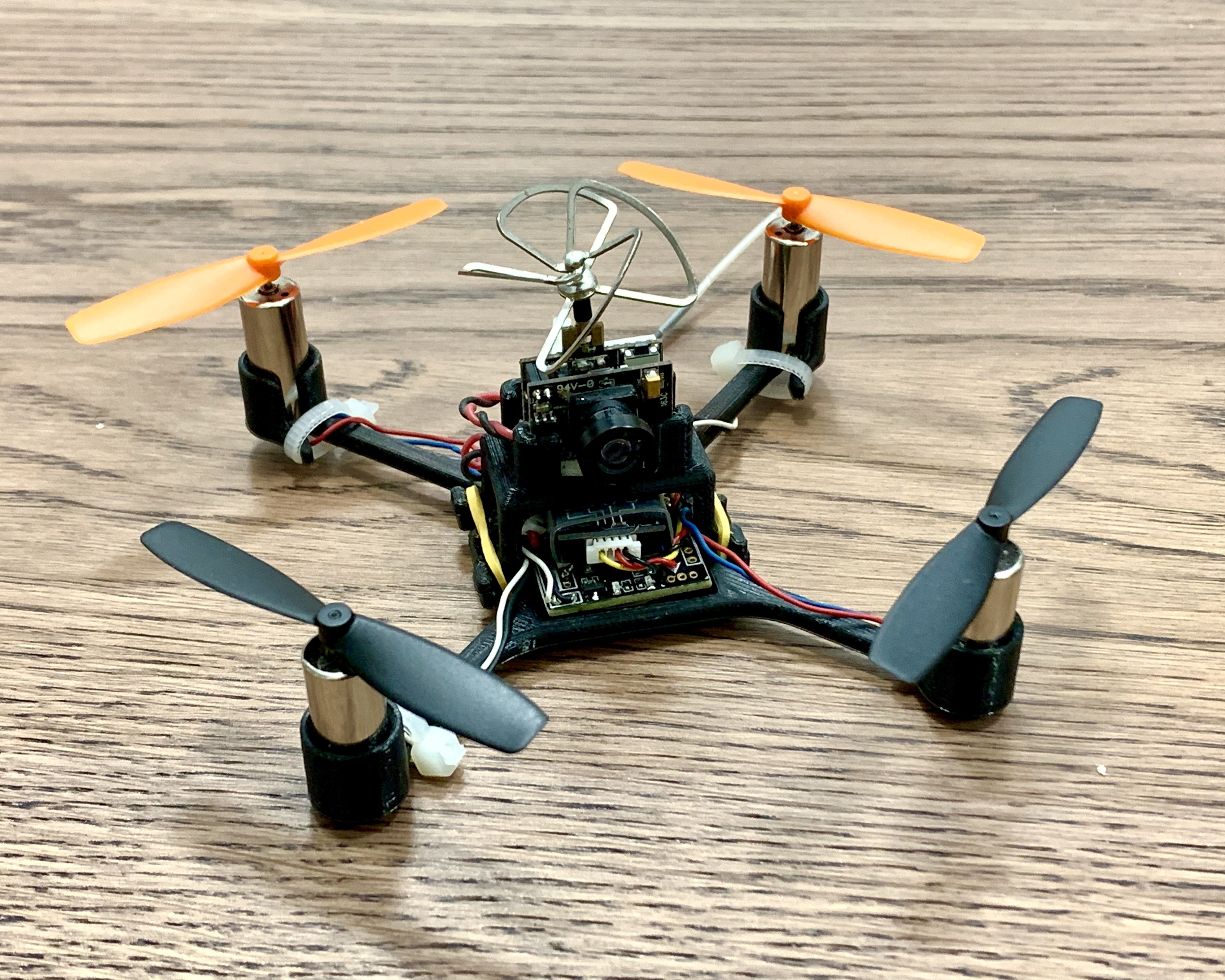

FPV mini quadcopter (90x90 mm)

3D model description

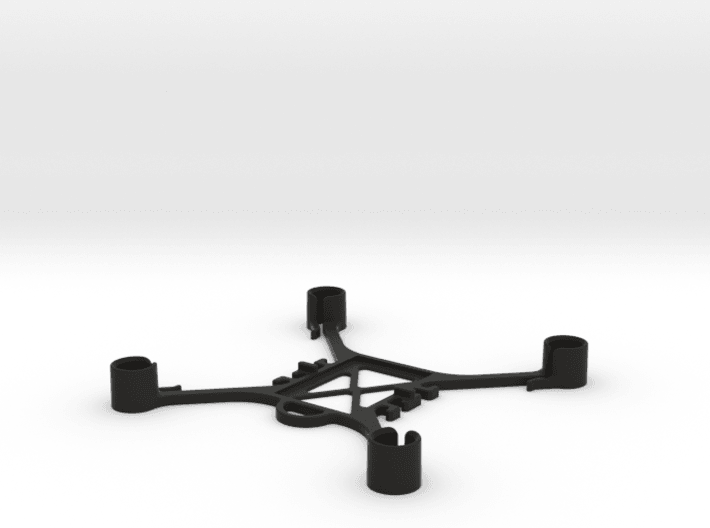

Robust and lightweight frame , perfect for your micro FPV racing drone, easy to assemble and substitute in case of crash (no screws or complex procedure to assemble, only some elastic bands and biadhesive pads).

⬇️You can download the 3d model and print it by yourself in PLA, you can make several frames at low price and don’t care if you crash them!⬇️

You can buy this product made of high grade sintered nylon in our Shapeways shop: https://www.shapeways.com/shops/nabu3d

💡Advantages:

• Lightweight (plastic-only frame).

• No tools needed to assembly/disassembly; only 2 elastic bands for battery/camera retention, and (optional) zip ties.

• Frame can be changed without wires desoldering or disassembly of any component, useful for quick repairs on the field, you can try your most challenging maneuvers without care.

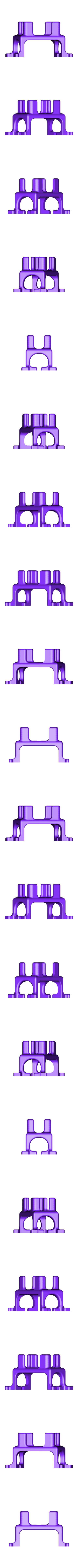

• FPV camera and its support can be easily installed and removed (elastic band fixing).

Parts list:

NOTE: the cheaper alternative is to buy following parts from Bangood, we have done so: https://www.banggood.com/index.php?zf=31718726

If you're more confident with Amazon, below you can find links for same parts (Europe):

BASE VERSION:
•1x Flight controller (F3 EVO Brushed) https://amzn.to/2GMx1Ob

•​4x coreless motors (8520 size): https://amzn.to/2VkGsHD

•4x propellers (2CW - 2CCW) 55 mm: https://amzn.to/2VmkGn1

•Lipo Batteries (2S 7.4V 600 mAh) and USB Charger: https://amzn.to/2Vka3Ry

•1x Radio Controller (Flysky FS-i6 2.4GHz 6CH): https://amzn.to/2T1mgy0

•1x Receiver (FS-A8S 2.4Ghz 8CH Mini Receiver with PPM i-BUS SBUS Output): https://amzn.to/2GLtUG9

​FPV upgrade:

•FPV camera with integrated transmitter (example, check that size fits to support): https://amzn.to/2EjPduV

•FPV goggles with video receiver: https://amzn.to/2Ejm8Qb

If you need more info regarding reccommended configurations and parts feel free to contact us.

Follow us and share your experience on Instagram: nabu_3d

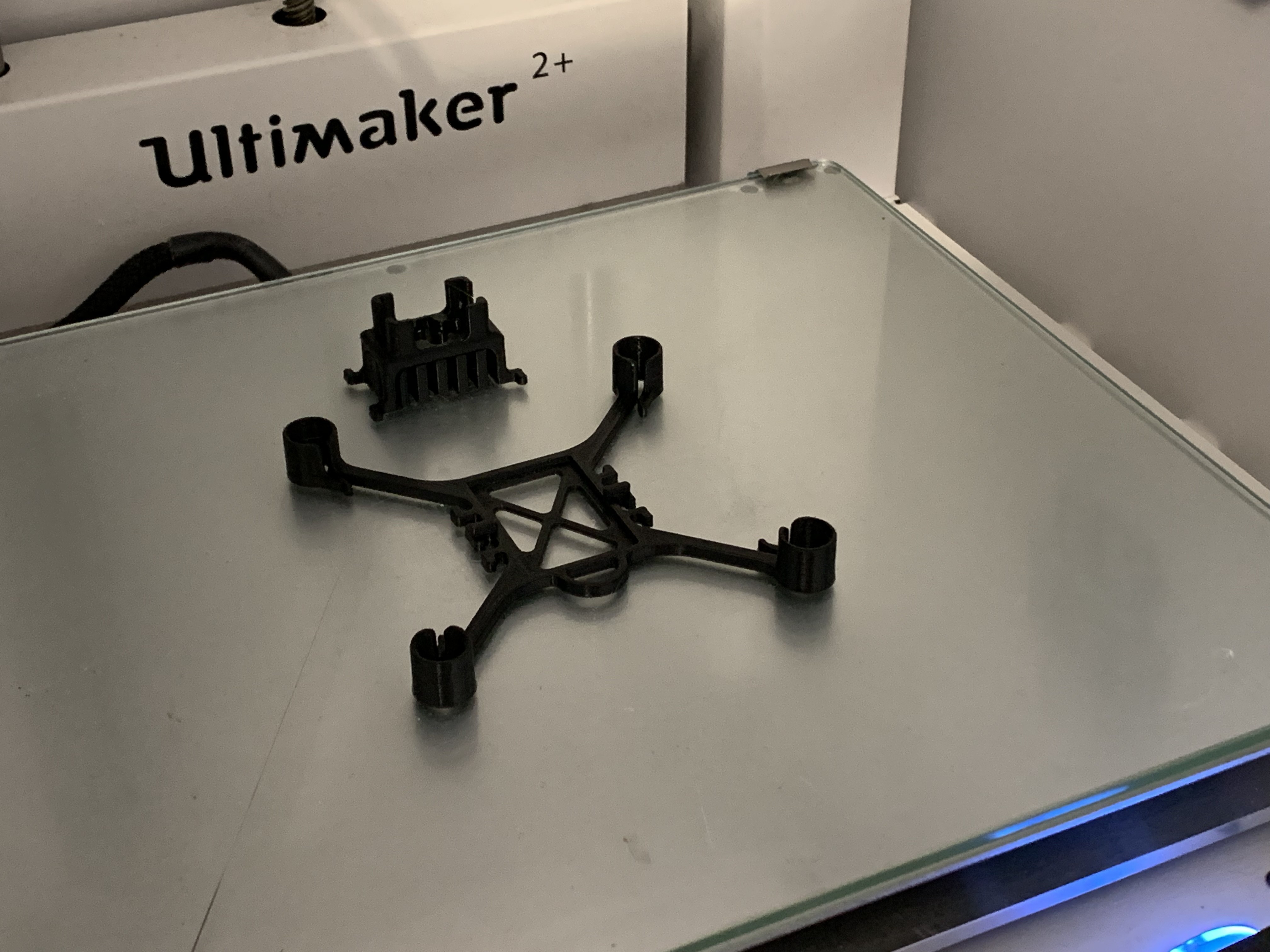

3D printing settings

Material: PLA
Infill: 70 - 100%
Layer height: 0.15 - 0.20 mm
Supports: needed only for FPV camera support

  • 3D model format: STL
