Flying Helicopter Toy - H145

Advertising
?
Creation quality: 5.0/5 (3 votes)
Evaluation of members on the printability, utility, level of detail, etc.

  • 7.7k views
  • 12 likes
  • 352 downloads
  • 1 collection

Licence CC BY-NC
Last update 2017-03-10 at 12:51
Publication date 2017-03-07 at 09:12
Design number 9924
3D design format
STL Folder details Close
  • H145_FRONT.STL
  • H145_GEAR.STL
  • H145_TAIL.STL
  • Helicopter_Blades.stl

Learn more about the formats

3D printer file info

3D model description

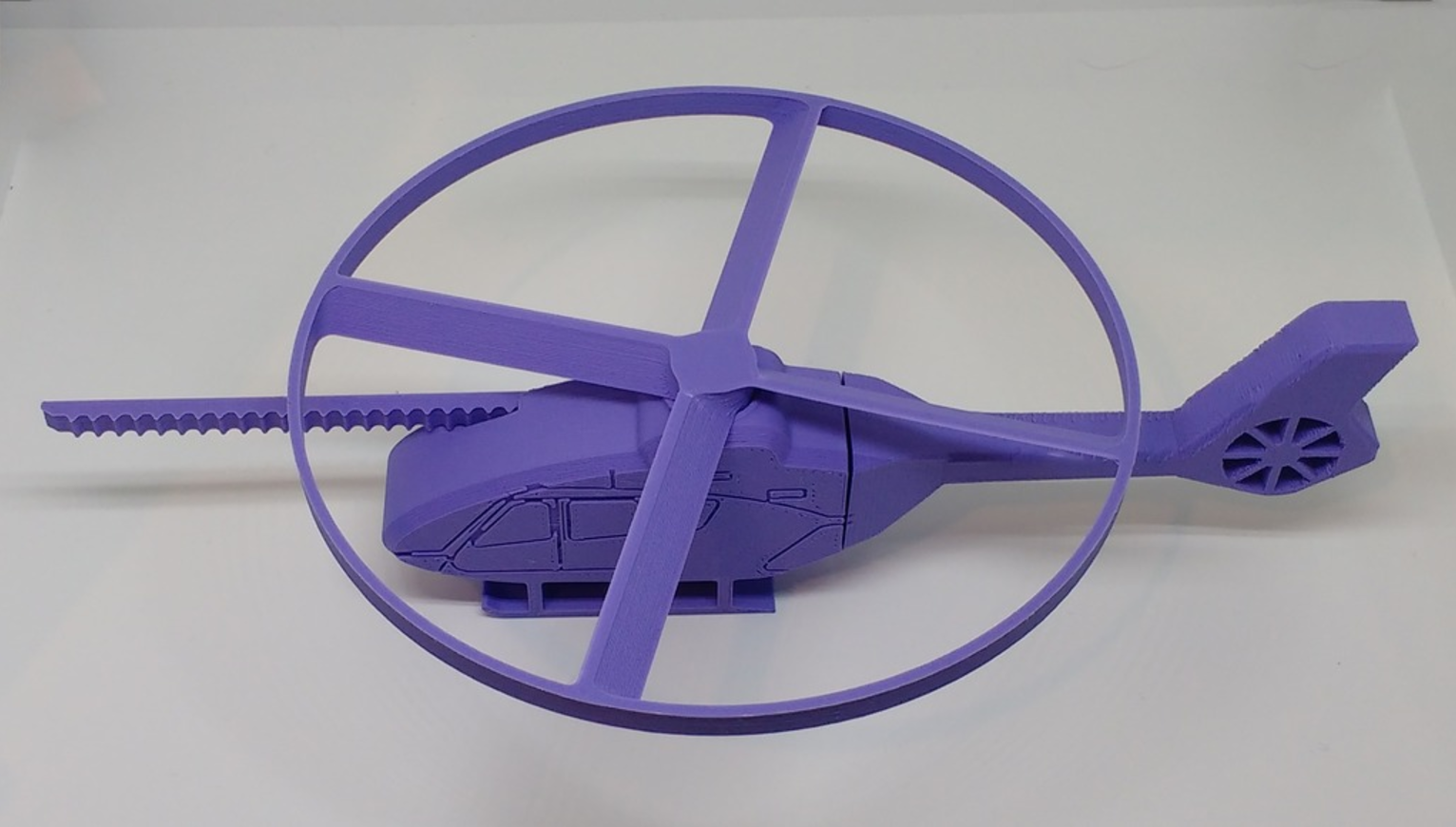

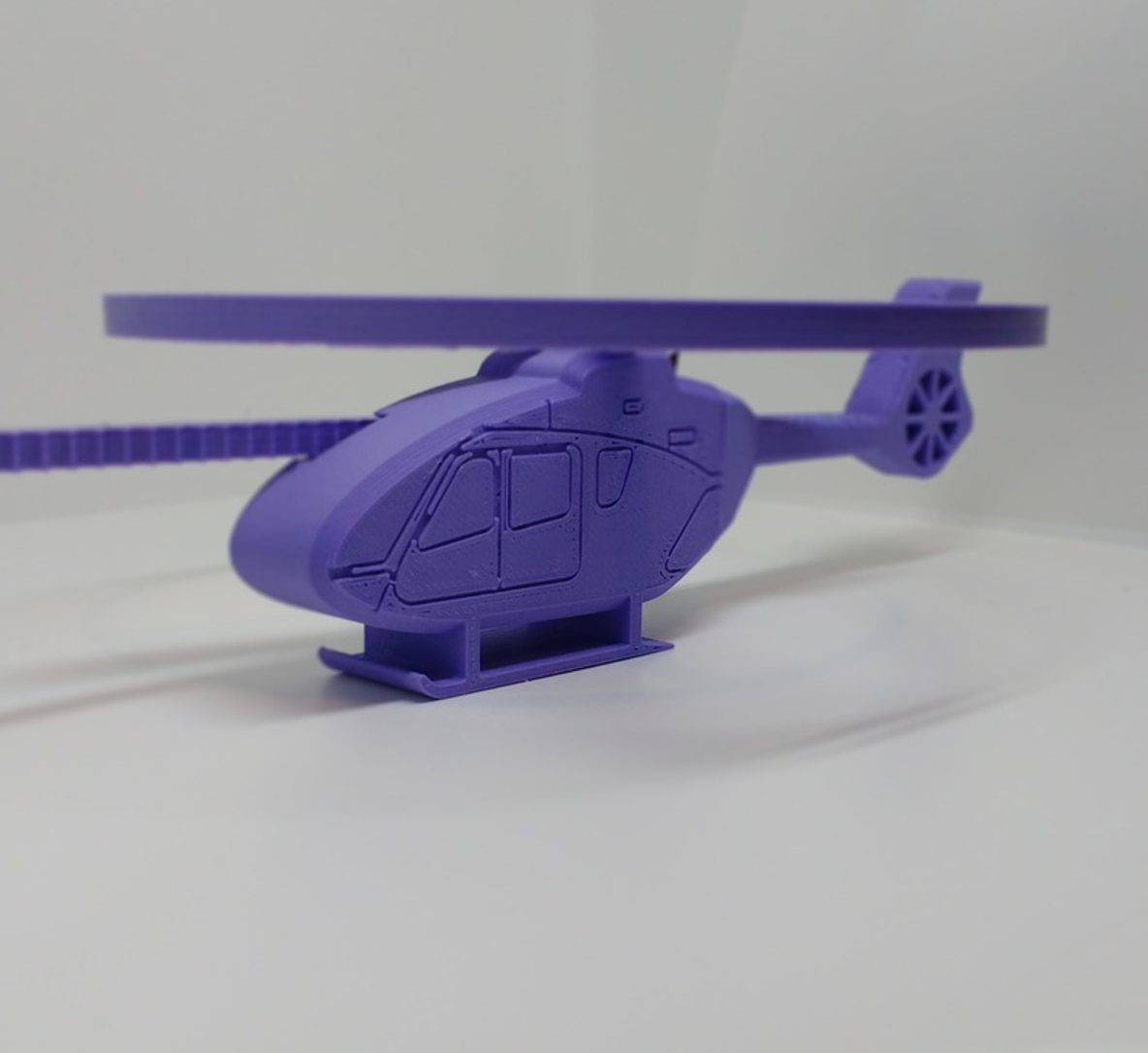

Inspired by 3DBROOKLYN's Toy Helicopter I wanted to create a model based on the H145 that did not require supports.

To Assemble:

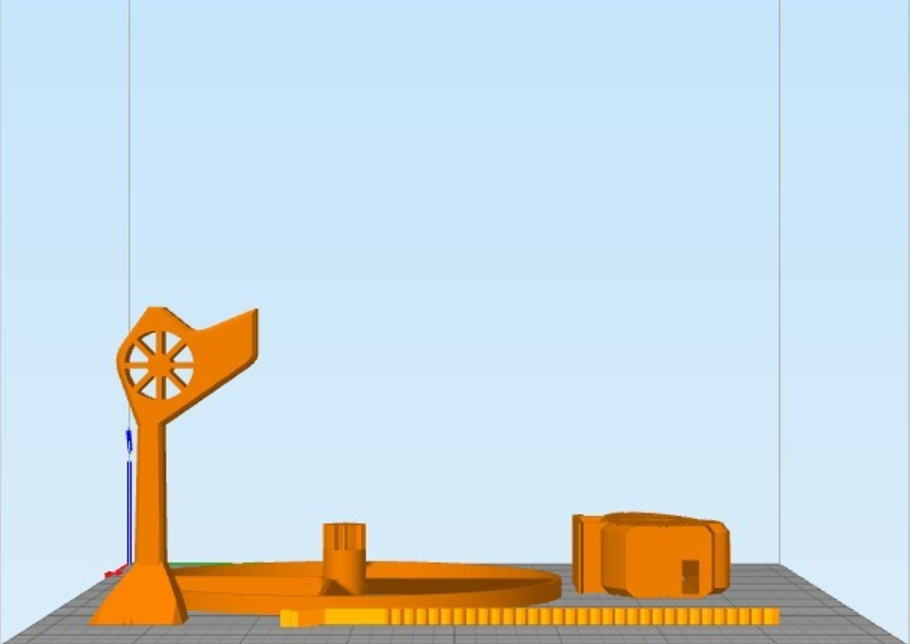

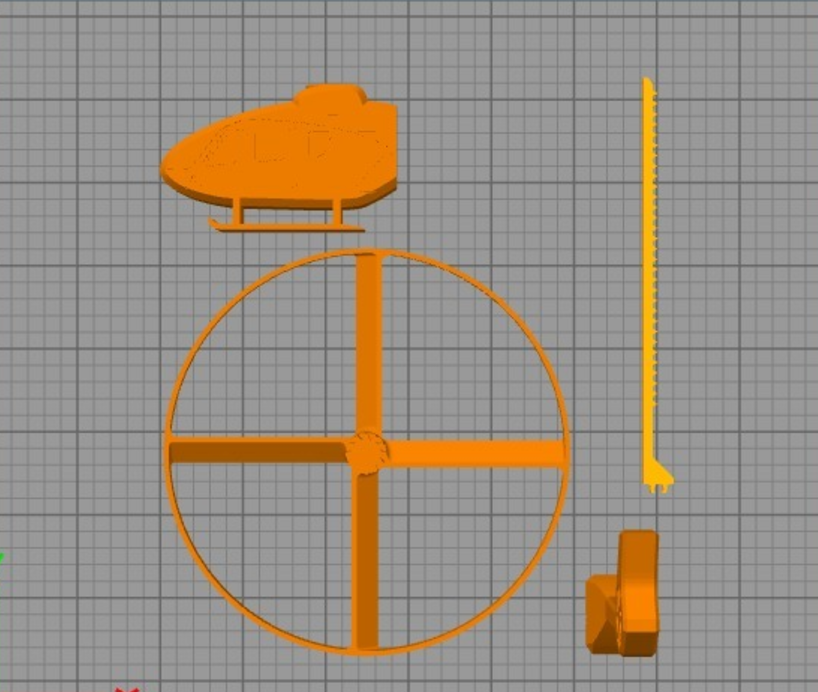

Position the pieces as per the images and 3D print them.
Check orientation of the gear part into the tail part as per the assembly drawing.
Firmly push the gear part into the tail part, you will hear it click when it is engaged.
The main rotor is the same as 3DBROOKLYN's model, so feel free to re-use your existing printed parts.
I put a little bit of vegetable oil on the main rotor shaft to ensure maximum blade speed and flight.

3D printing settings

Printer:
i3 Pusa MK2

Rafts:
No

Supports:
No

Resolution:
0.1 to 0.2mm

Infill:
20%
