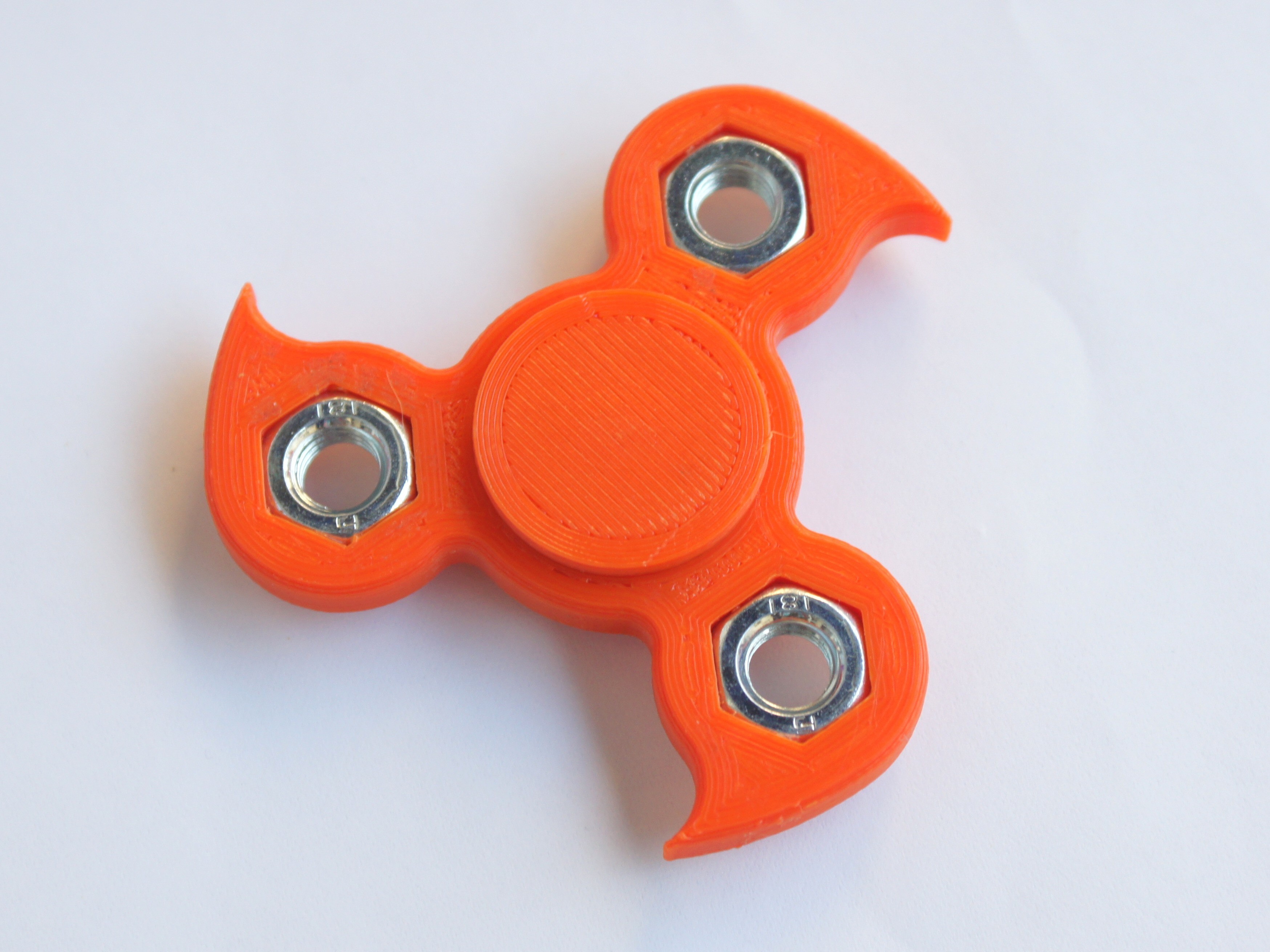

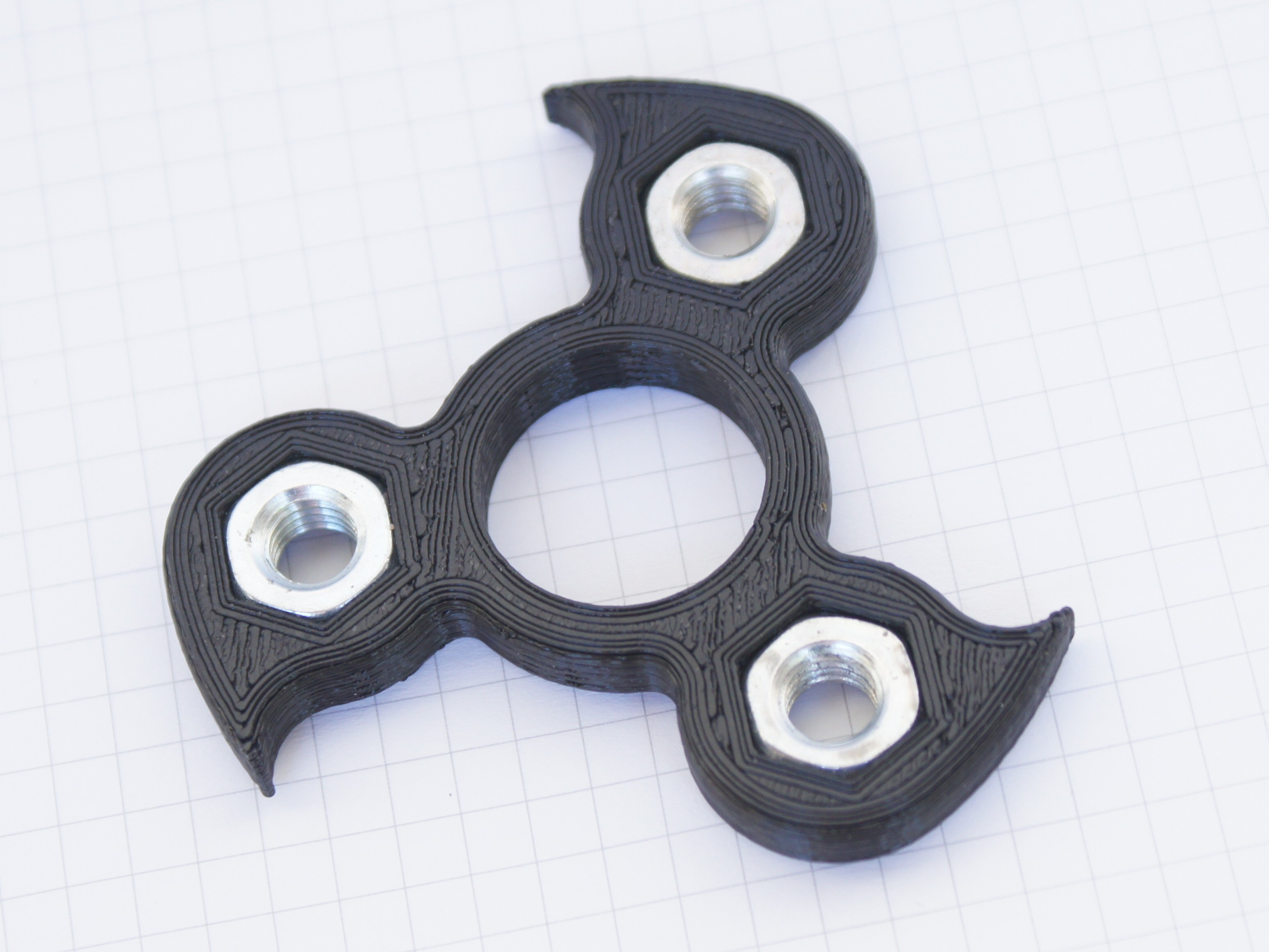

Fidget Spinner with M8 nuts

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 1k views
  • 2 likes
  • 95 downloads

3D model description

I was asked by my young neighbor to make a spinner.
I designed this one to be a little smaller and use M8 nuts to better fit in small hands.
Standard 608 series bearing is used (inner di 8 mm, outer di 22 mm, width 7mm).


3D printing settings

Printer: Print Rite DIY
Rafts: No
Supports: No
Resolution: 0.1 - 0.35
Infill: 20 %

Notes:
Very easy to print.
I add 0.15 mm offset for holes for bearing and nuts.
If you get too big holes I would recommend increase extrusion multiplier for some %.

3D printer file information

  • 3D design format: STL Folder details Close
    • Fidget with M8 nuts.stl
  • Last update: 2017/06/14 at 21:48
  • Publication date: 2017/06/09 at 19:13

License

CC BY NC SA

Tags

Creator

Designs 60
Downloads 5.5k
Sales US$14
Followers 40

I play with electronics, kids toys, replacement parts, puzzles,...

http://bit.ly/MixedGears
