FDM Center Wave Cube

Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.

3D model description

I am the author of this model.

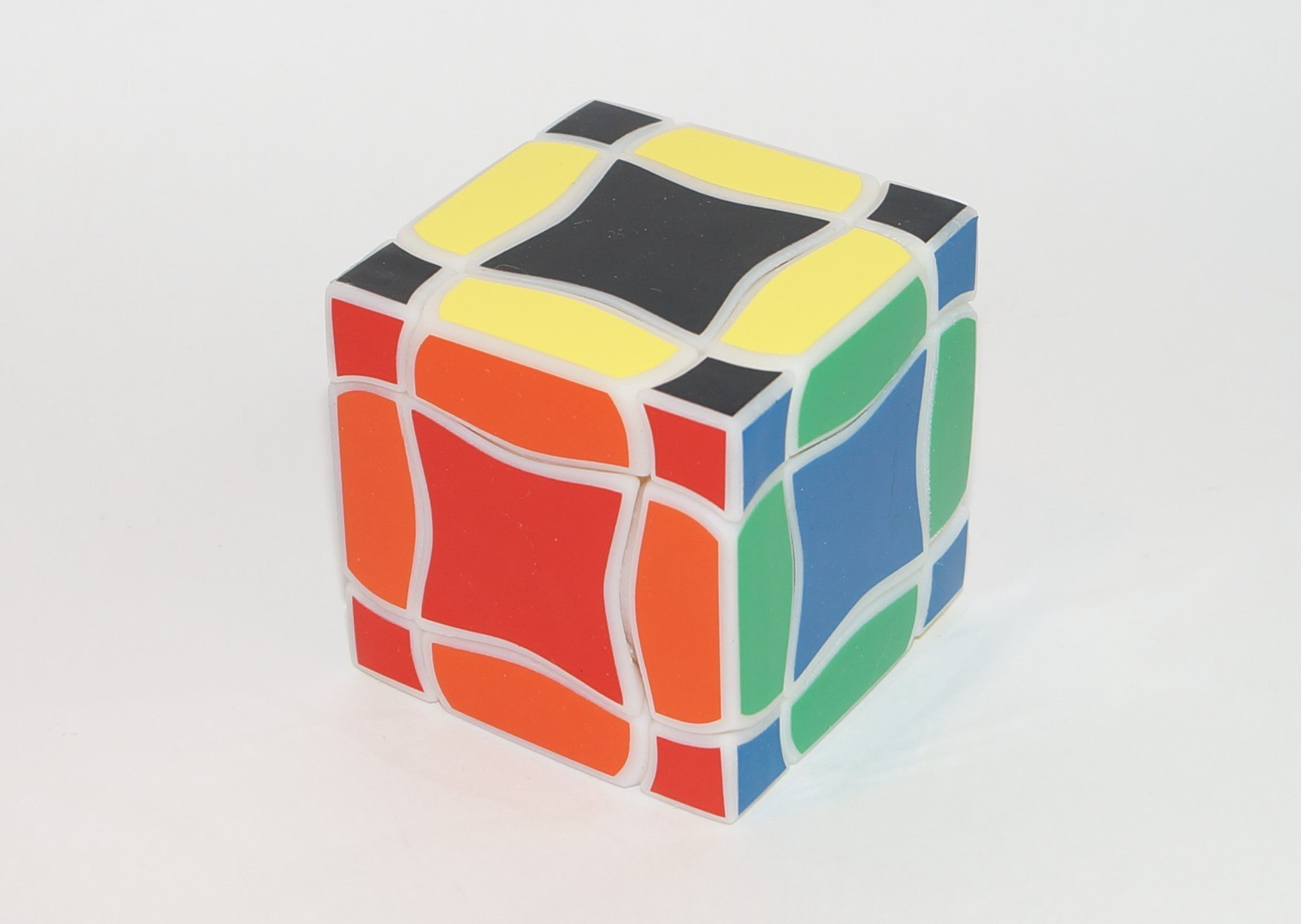

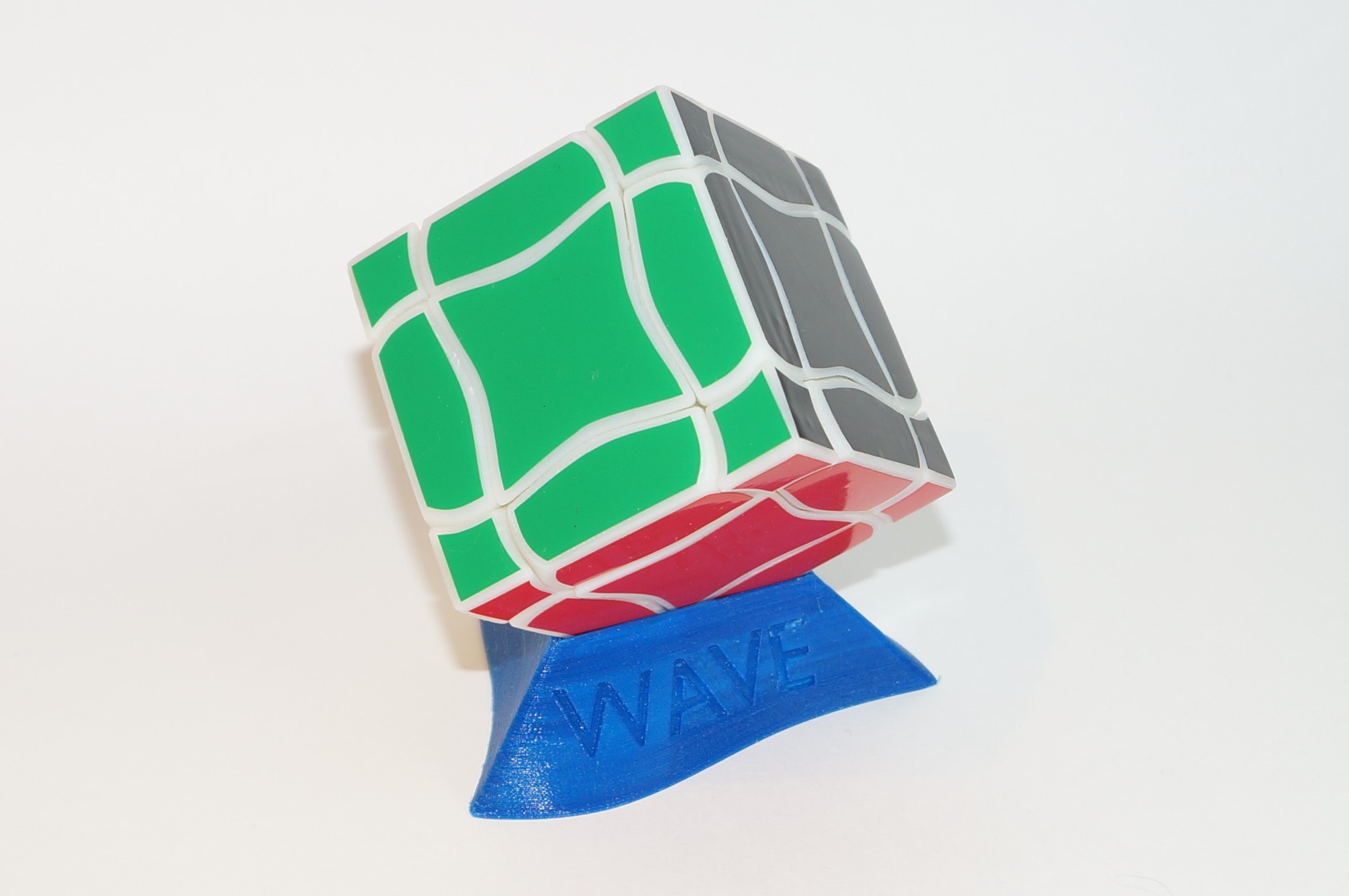

This puzzle is a modification of the classic Rubik's cube.
It differs only in the design of the surface.

3D printing settings

Material - non-colored ABS.
The temperature of the nozzle is 225 degrees.
The temperature of the table is 110 degrees.
The nozzle is 0.3 mm.
The layer is 0.2 mm.
Filling - 50%.
The speed is 60mm / s.
Support - yes.
Processing - sandpaper 1000.
Crossings, screws, springs and washers were bought separately:

3D printer file information

  • 3D design format: STL Folder details Close
    • FDM Center Wave Cube Center Cap X6.STL
    • FDM Center Wave Cube Center X6.STL
    • FDM Center Wave Cube Corner X8.STL
    • FDM Center Wave Cube Cross.STL
    • FDM Center Wave Cube Edge X12.STL
  • Last update: 2021/03/15 at 12:47
  • Publication date: 2017/03/21 at 18:44
