Fallout X-01 Power Armor

?
Creation quality: 5.0/5 (2 votes)
Evaluation of members on the printability, utility, level of detail, etc.

3D model description

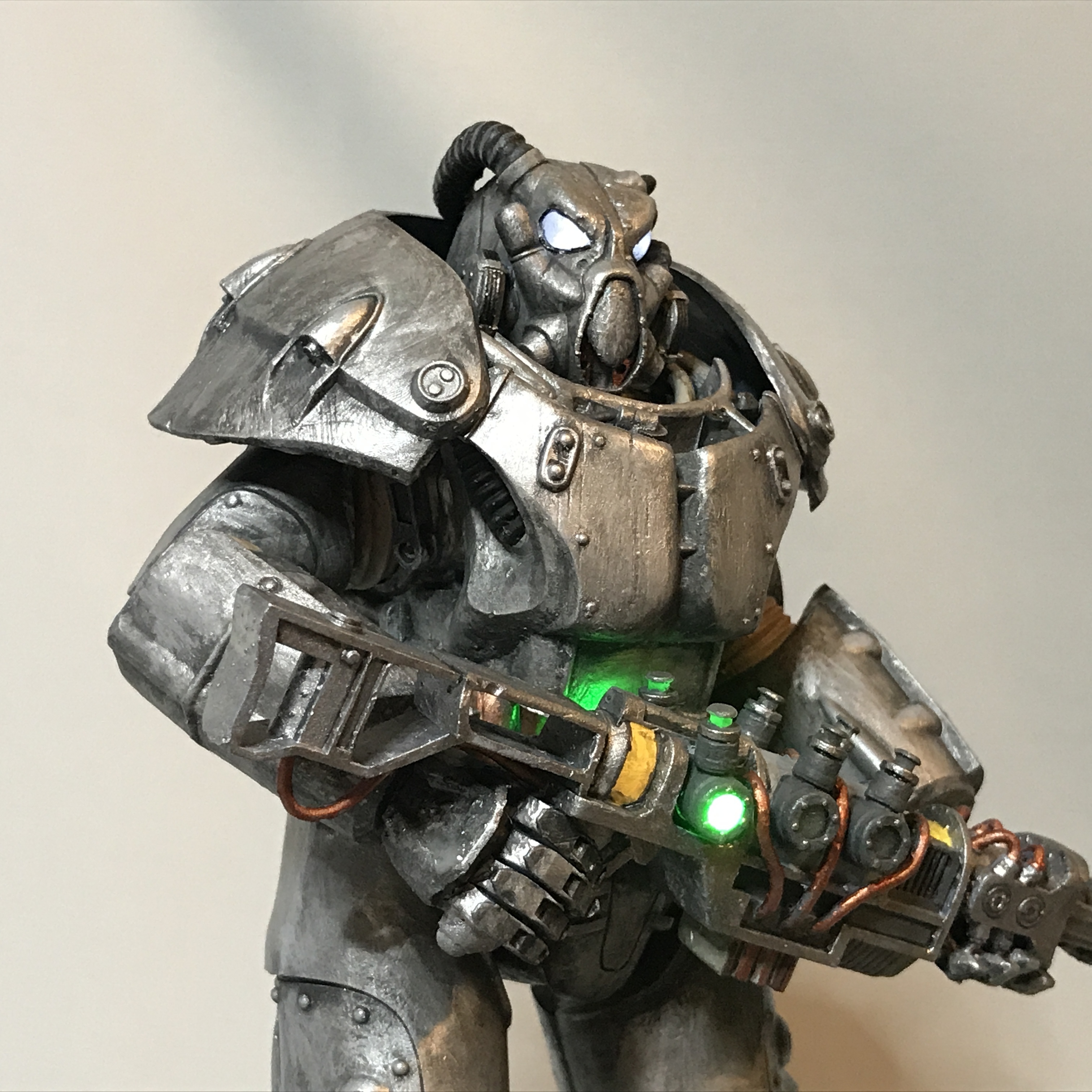

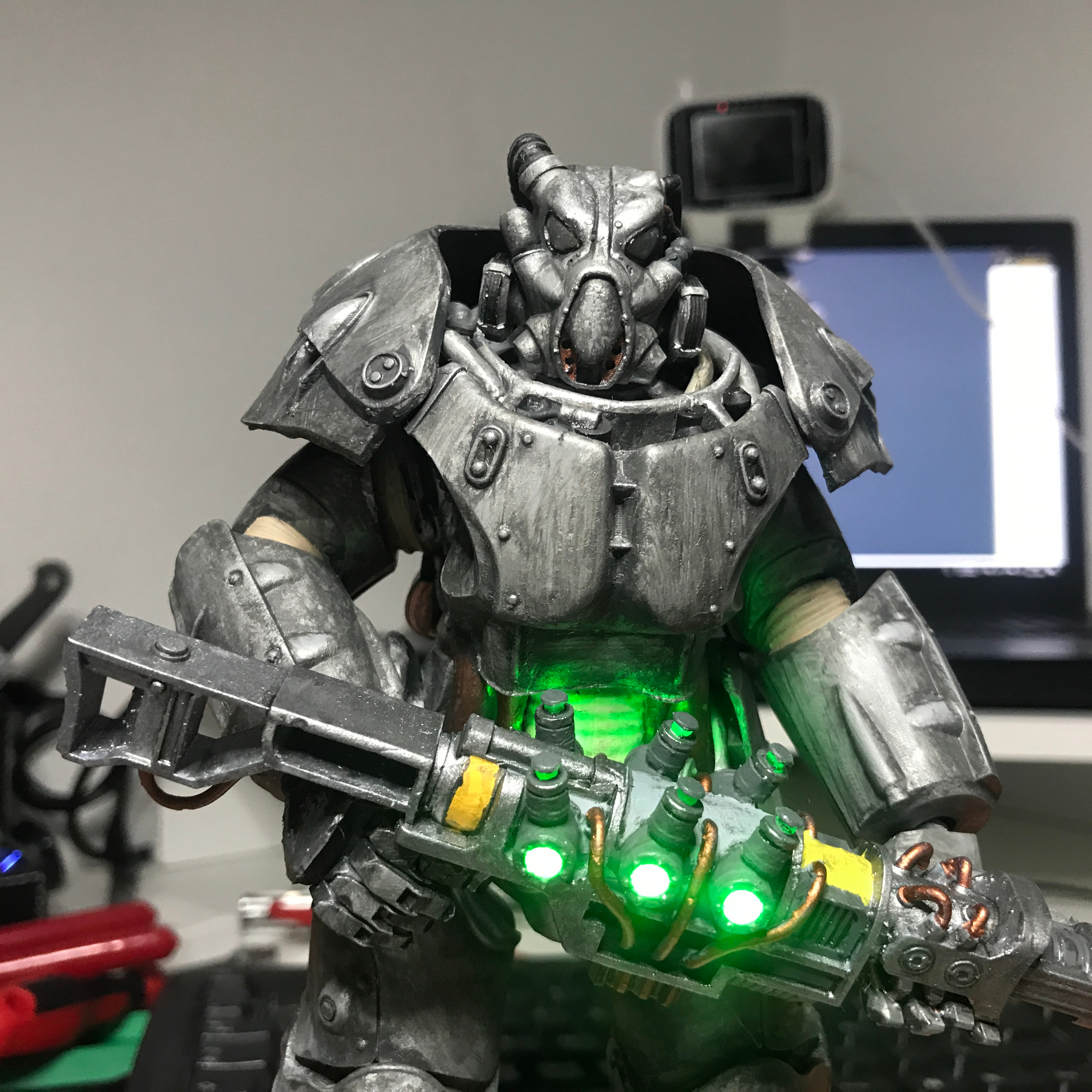

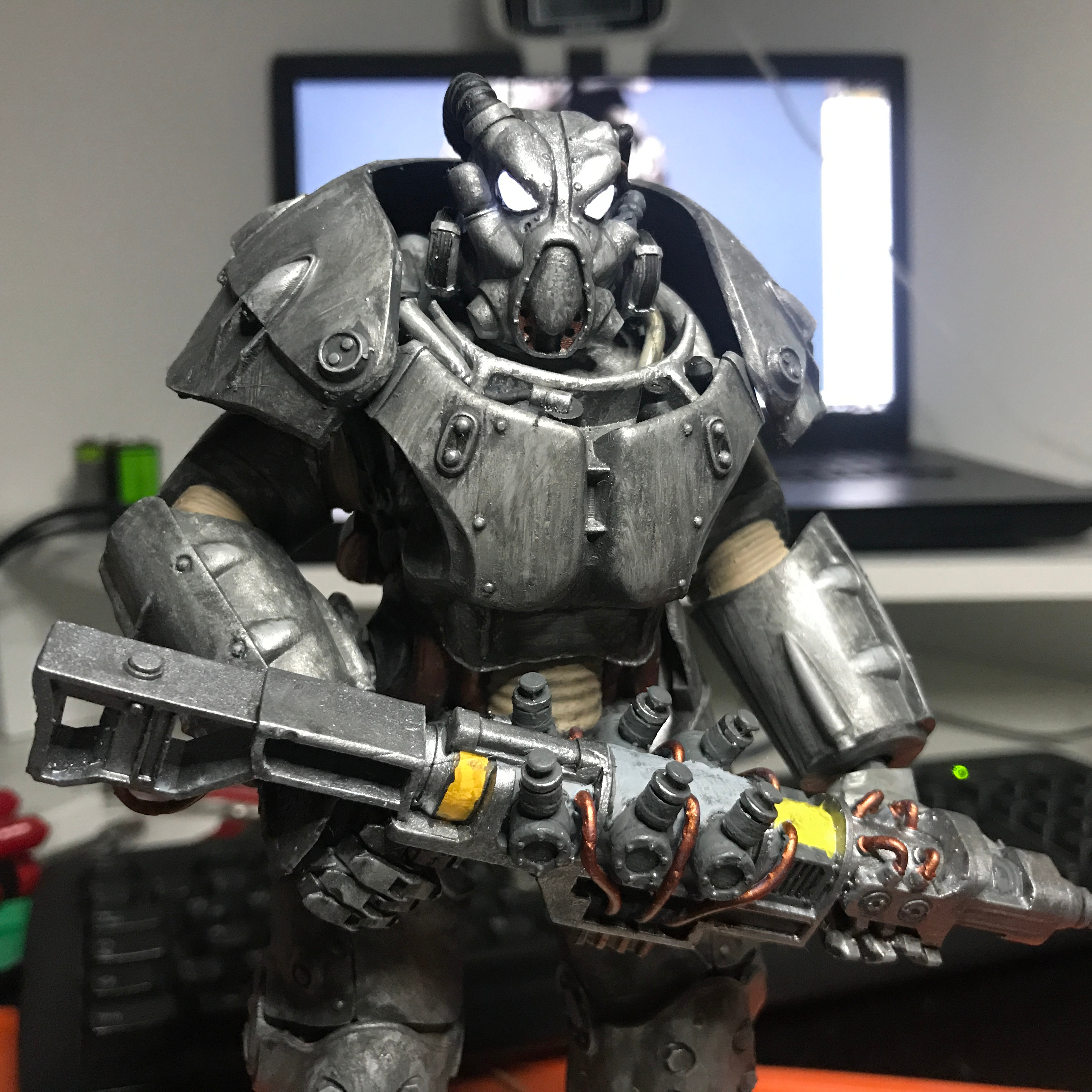

This is the X-01 Armor from Fallout 4 with LED lights.

About 22cm tall -> 1:10 scale

The files fit the Elegoo Mars resin printer, but can be printed on a FDM machine as well!

The Arduino sketch is included in the files.

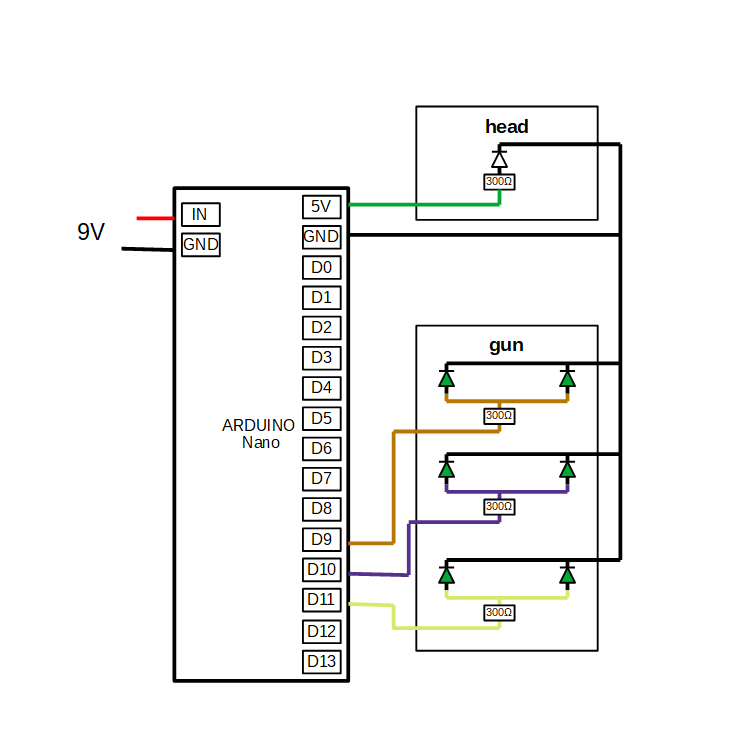

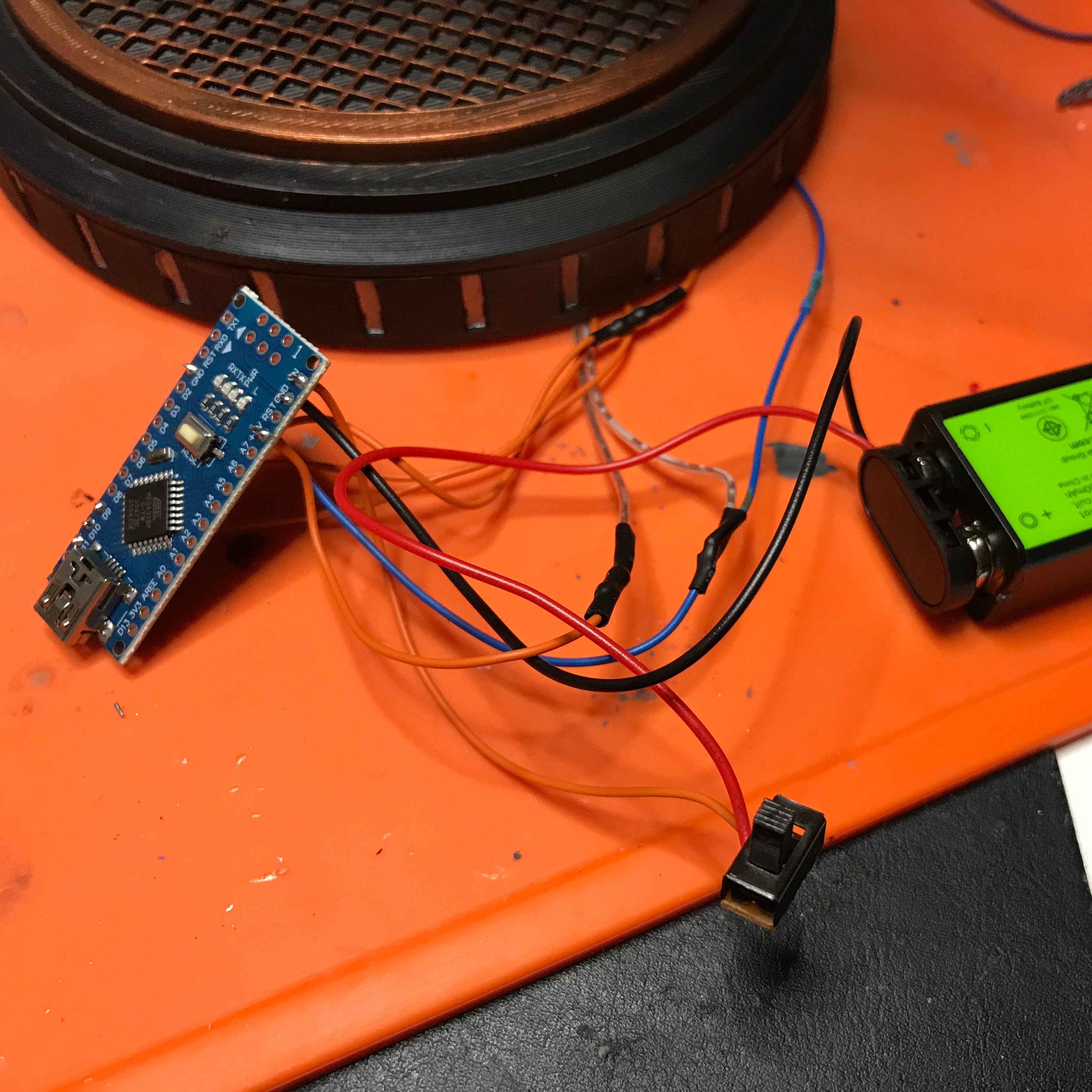

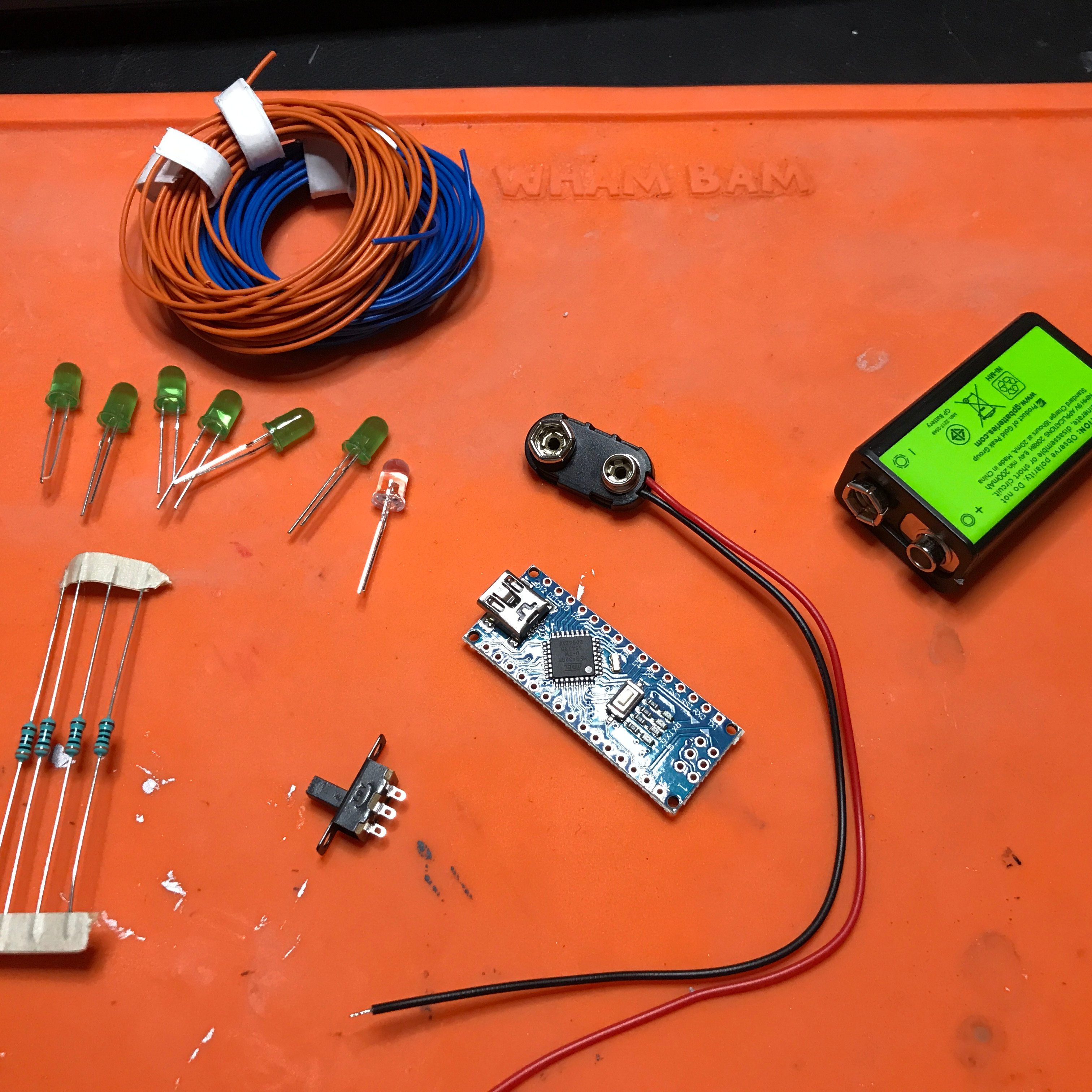

You need:

  • Arduino Nano
  • 4 x 300 Ohm resistor

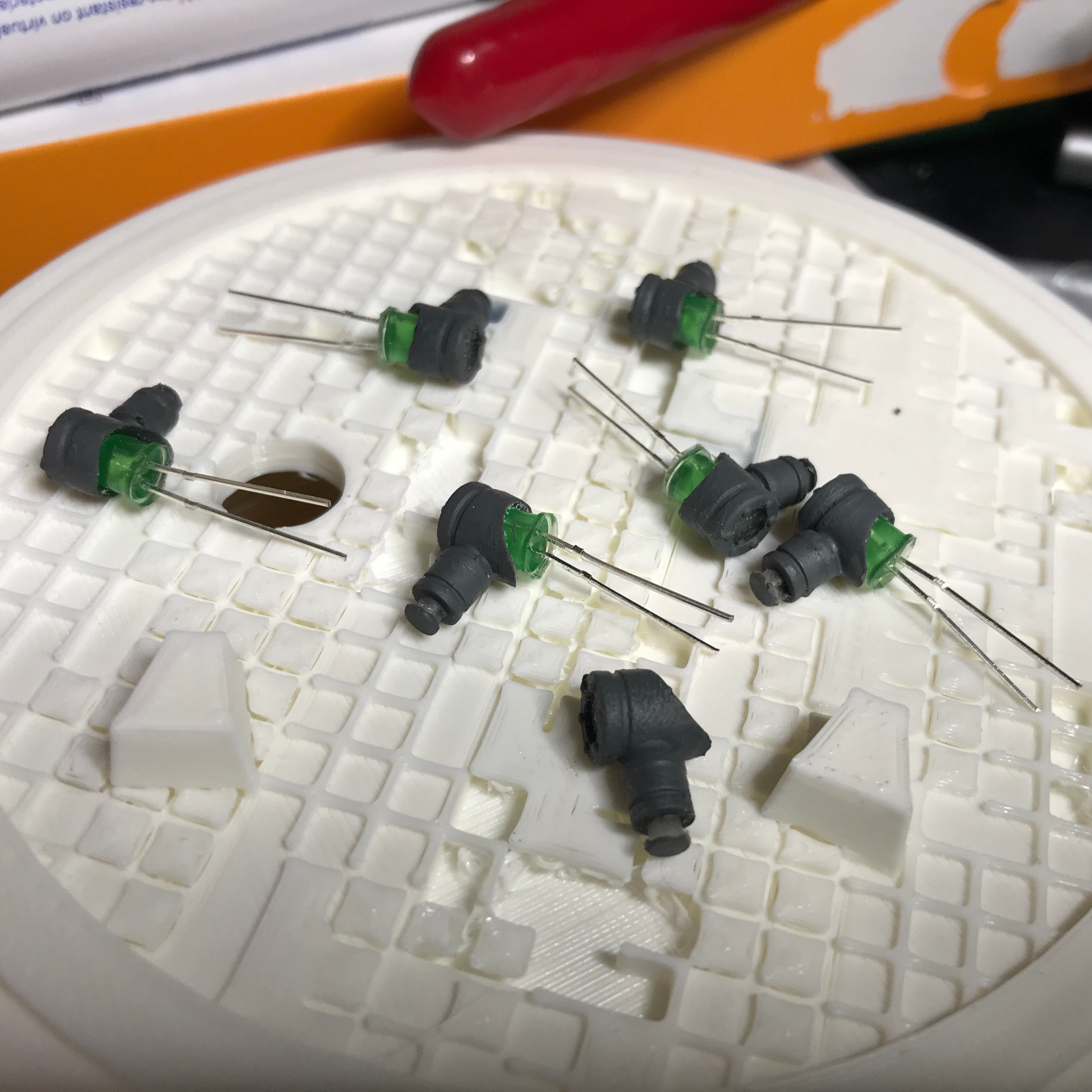

  • 6 x 5mm green LED
  • 1 x 5mm white LED
  • small switch
  • 9V batterie

3D printing settings

0.1mm on a FDM

3D printer file information

  • 3D design format: STL and ZIP Folder details Close
    • 10_valve.stl
    • 11_eyes_trans.stl

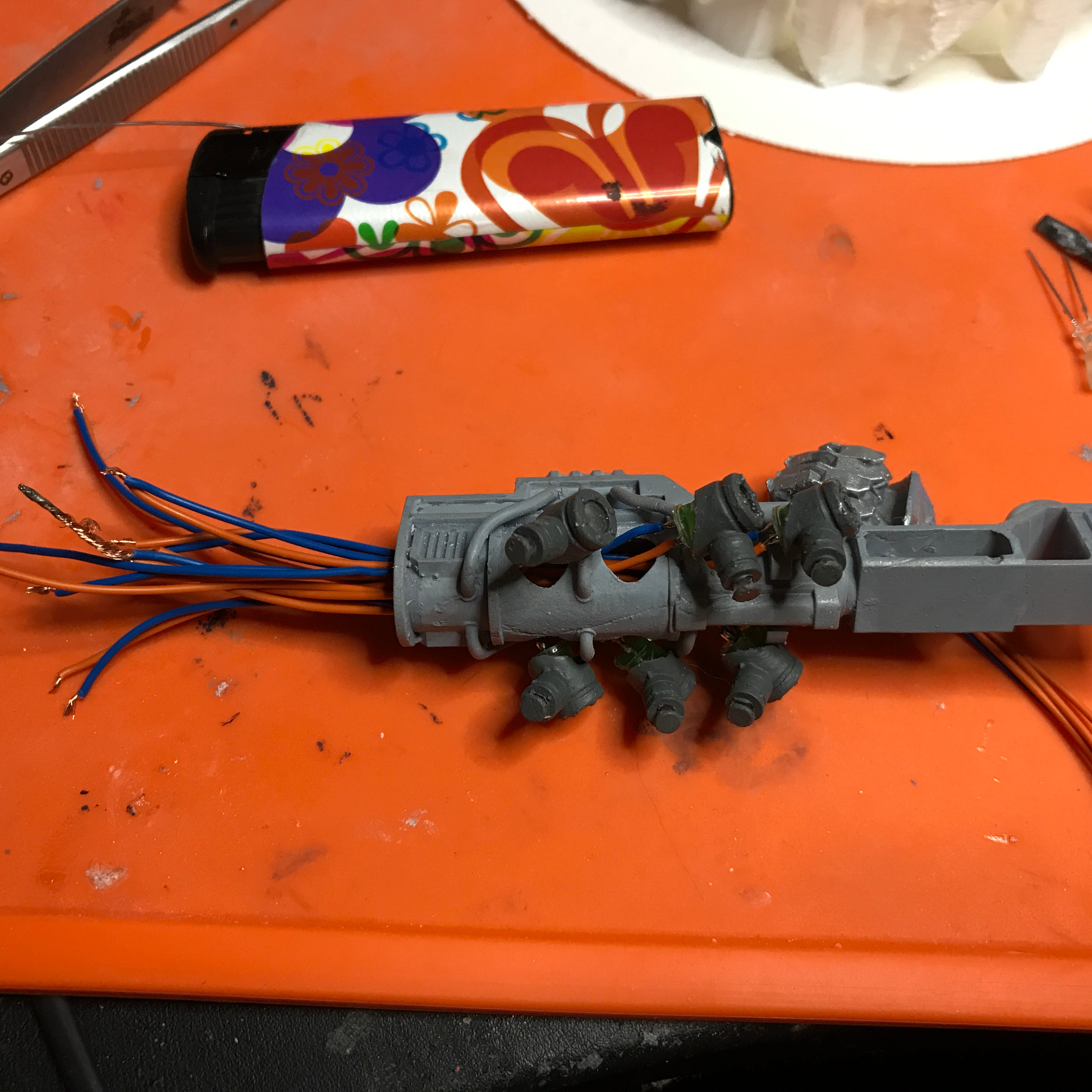

    • 12_gun_light_6x_trans.stl
    • 13_base_lower.stl
    • 14_base_upper.stl
    • 1_torso.stl
    • 2_helmet.stl
    • 3_arm_left.stl
    • 4_arm_right.stl
    • 5_gun_back.stl
    • 6_gun_front.stl
    • 7_leg_left.stl
    • 8_leg_right.stl
    • 9_shield.stl
    • x01_sketch.zip

    Learn more about the formats

  • Publication date: 2020-11-09 at 23:51
