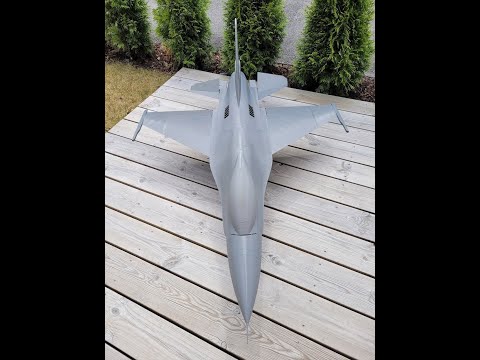

F-16 Fighting Falcon RC 80mm EDF 1200mm V2!

Creation quality: 5.0/5 (6 votes)
Evaluation of members on the printability, utility, level of detail, etc.


3D model description

V2.0 is released!!!!!

Update 15.06.2023
V2.0 includes:
- S6063 wing profile - Much more stable flight characteristics
- Internal air inlet duct has been increased -better airflow to
- Cockpit (needs at least 250 mm height 3D printer). The plug to make the canopy is included. Pilot was found online and scaled to fit.
- Mounting points under the wings for Pylons with armaments
(Pylons and Armaments will be sold seperate on Cult. Notify me if there are specific armaments you would like to have)
-Choose between 9g and 22g servos on wings and elevators for better acro abilities.
-Prepared surface for gyro.
-Details added.

The V2 zip file only contains the files that have been updated. The rest should be reused from V1.

A new video is under construction.

Wingspan: 860mm
Length: 1210mm from exhaust to nose (without pitot)
Print weight: 1,2 kg of PLA+
With 6S - 5000mah and 80mm FMS fan : 2,7 Kg
CG: 90-95mm from the leading edge of the wing root.

Update 22.06.2022: Updated the PDF to include spar length, type and placements.

Update 07.06.2022: Added no landing gear inserts for those who wants to skip landing gear. See photo.

Update 13.05.2022: Wing1 has been split up into wing1-1 and wing1-2 for printers with less printspace than Prusa MK3S. Same print settings as for Wing 1.

See flight video and taxing video here:
Build Video here

Mine is printed with a Prusa MK3S with a bed size of 250 x 210 x 210 mm. Some parts need to be rotated to fit the bed.

The landing struts are homemade and a guide will come soon on those. They are made from standard aluminum pipes, m3 bolts and nuts, some grub screws and springs. Made with a standard drill and dremel tool.

This is a complex plane to print and build. This should not be your first RC plane both to build and to fly. If used for tabletop display only, then its not so hard. A good tuned printer and good bed adhesion is recommended. Some afterwork on a few of the printed parts are necessary. Most parts are printed with 1 perimeter but see the print instruction for details for each part. This guide is not complete yet but it is a work in progress.
Large STL files due to some complex form and high resolution.

If you have any questions, just ask and I will try my best to help.

FMS 80mm EDF -

Servo 9g Metal -

Servo extensions -

Main Retracts -

Nose Retracts -

Servo Connector safety clips -

M3 - 10mm Selftap Screws -50pcs -

1x5mm - 0,5m carbon strip -

10PCS 8x6x500mm Carbon tube -

Neodymium Magnet 10*10*2

PLA+ from SUNLU - 10Kg Pack

Pluss some aluminium tubing, grub screws, m3 nuts and bolt, pushrods.

3D printing settings

See own PDF for printing instructions.

PDF for V2 is coming soon.

3D printer file information

  • Design number: 712327
  • 3D design format: PDF, STL, and ZIP Folder details Close
    • Canopy 1.stl
    • Canopy 2.stl
    • Canopy no-slip bracket.STL
    • Cheater hole bottom.stl
    • Cheater hole top left.stl
    • Cheater hole top right.stl
    • Drag chute.stl
    • Duckt.stl
    • ESC holder.STL
    • Engine bay cover.stl
    • Exhaust.stl
    • F-16 Print and Build instructions.pdf
    • Fuselage 1.stl
    • Fuselage 2 Lower.stl
    • Fuselage 2 lower insert.stl
    • Fuselage 2 upper.stl
    • Fuselage 3.stl
    • Fuselage 4 retracts.stl
    • Fuselage 5.stl
    • Left Aileron.stl
    • Left Wing servo cover.stl
    • Left horizontal stab.stl
    • Left lower fin.stl
    • Left speedbrake.stl
    • Left wing 1-1.stl
    • Left wing 1-2.stl
    • Left wing 1.stl
    • Left wing 2.stl
    • Main landing gear bay insert left.stl
    • Main landing gear bay insert right.stl
    • No landing gear insert L1.stl
    • No landing gear insert L2.stl
    • No landing gear insert R1.stl
    • No landing gear insert R2.stl
    • No nose landing gear insert 1.stl
    • No nose landing gear insert 2.stl
    • Nose Cone.stl
    • Pitot.stl
    • Receiver hatch.stl
    • Right Aileron.stl
    • Right Wing Locking unit.stl
    • Right Wing servo cover.stl
    • Right horizontal Stab.stl
    • Right lower fin.stl
    • Right speedbrake.stl
    • Right wing 1-1.stl
    • Right wing 1-2.stl
    • Right wing 1.stl
    • Right wing 2.stl
    • Rudder_fixed.stl
    • Servo horn rudder.STL
    • Servo horn.STL
    • Servocover Tail Fin.stl
    • Spacer stab.STL
    • Tail fin rudder bottom bracket.stl
    • Tail front.stl
    • Tailfin.stl
    • Top bar tail fin.stl
    • Vers
      • Aileron servohorn v2 - microholes.stl
      • Aileron servohorn v2.stl
      • canopy and Cockpit v2/Canopy plug 1.stl
      • canopy and Cockpit v2/Canopy plug 2.stl
      • canopy and Cockpit v2/Canopy plug centerpin.stl
      • canopy and Cockpit v2/Canopy plug stand.stl
      • canopy and Cockpit v2/Cockpit.STL
      • Cockpit Left side.stl
      • Fuselage 1 v2.stl
      • Fuselage 2 lower insert v2.stl
      • Fuselage 2 lower v2.stl
      • Fuselage 2 upper v2.stl
      • Fuselage 3 v2.stl
      • Fuselage 4 v2.stl
      • Fuselage 5 v2 22g Servo.stl
      • Fuselage 5 v2.stl
      • Left Aileron v2.stl
      • Left speedbrake.stl
      • Left wing 1 v2.stl
      • Left wing 2 v2.stl
      • Left wing Servo bracket v2.stl
      • Left wing Servo cover v2 22g.stl
      • Left wing Servo cover v2 9g.stl
      • Missile holder Left v2.stl
      • Missile holder Right v2.stl
      • Right Aileron v2.stl
      • Right speedbrake.stl
      • Right wing 1 v2.stl
      • Right wing 2 v2.stl
      • Right wing Servo bracket v2.stl
      • Right wing Servo cover v2 22g.stl
      • Right wing Servo cover v2 9g.stl
      • Rudder v2.stl
      • Servocover Tail Fin.stl
      • Tailfin v2.stl
      • Top bar tail fin v2.stl
    • left Wing Locking unit.stl
    • missile holder Right.stl
    • missile holder left.stl
