DJI Ryze Tello GoPro Mount

?
Creation's quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 330 views
  • 4 downloads

3D model description

I have spent many hours searching for a GoPro mount for my Tello but after not being able to find one I decided to design my own.

I based the Tello clip-on design on the 'DJI Tello Ryze SQ11 Top Support' by mistano:

https://www.thingiverse.com/thing:3398606.

And the knob is based on the 'GoPro Knob Mini' by lucibrandus:

https://www.thingiverse.com/thing:537647.

Both of which where redesigned from scratch, an M5 bolt used in the knob will cut its own thread into the print securing tightly into place when the bolt is fully screwed in, do not over tighten.

The mount is a very snug fit with hardly any movement, seems to be very stable but I have yet to fly the drone with a camera attached.

I have also designed a GoPro case for my SQ12 camera which can be found at the link below:

https://www.thingiverse.com/thing:4744780.

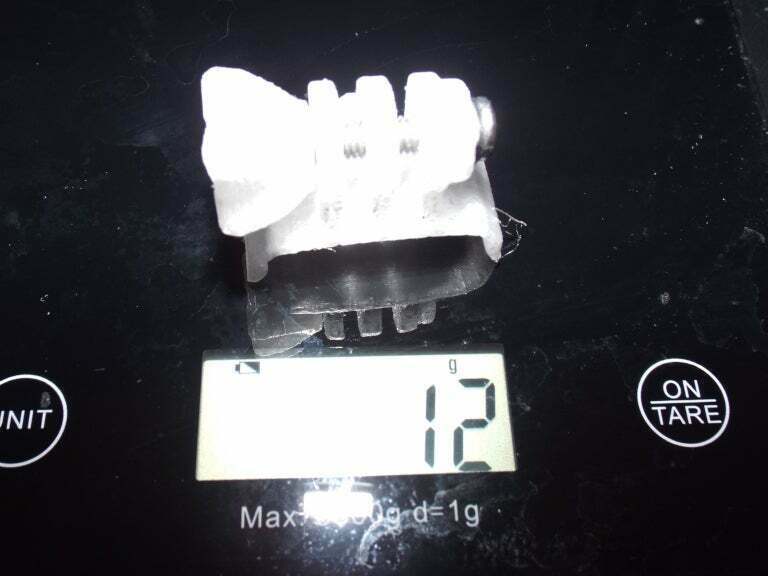

With a 40% infill, a M5x25mm bolt and M5 nyloc nut, the mount weighs 12g when printed in PETG.

Attached are the Fusion 360 design file for anyone to remix.


3D printing settings

-

3D printer file information

  • 3D design format: STL Folder details Close
    • GoProKnobMini.stl
    • TelloGoProMount.stl

    Learn more about the formats

  • Publication date: 2021/04/26 at 02:17

License

CC BY
