DIY PLATE STEERING WHEEL SWD2

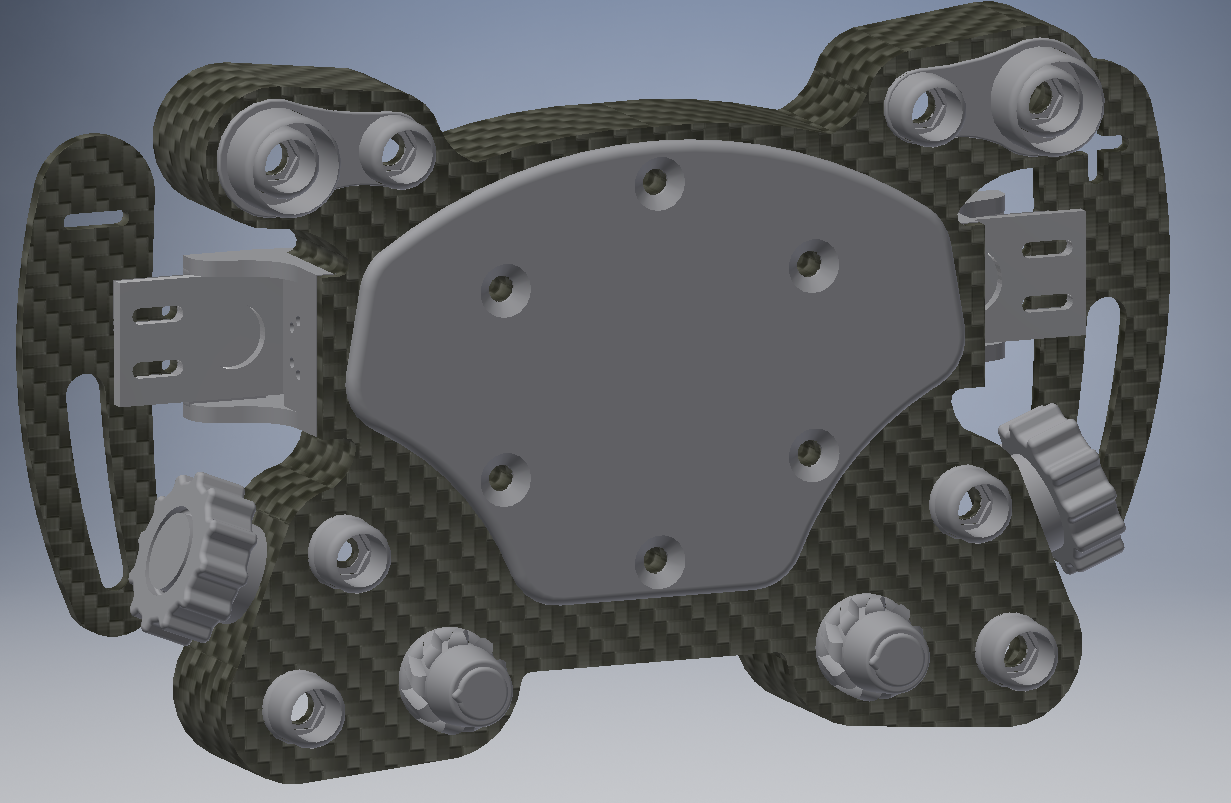

3D model description

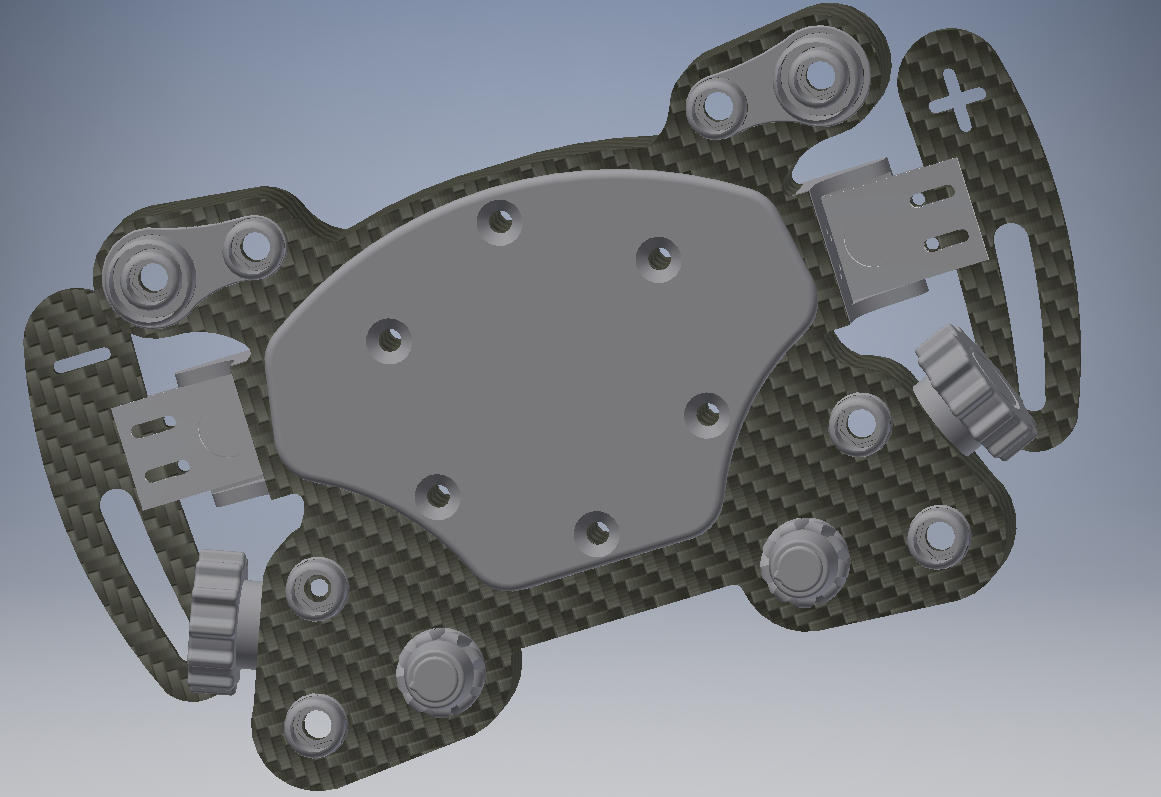

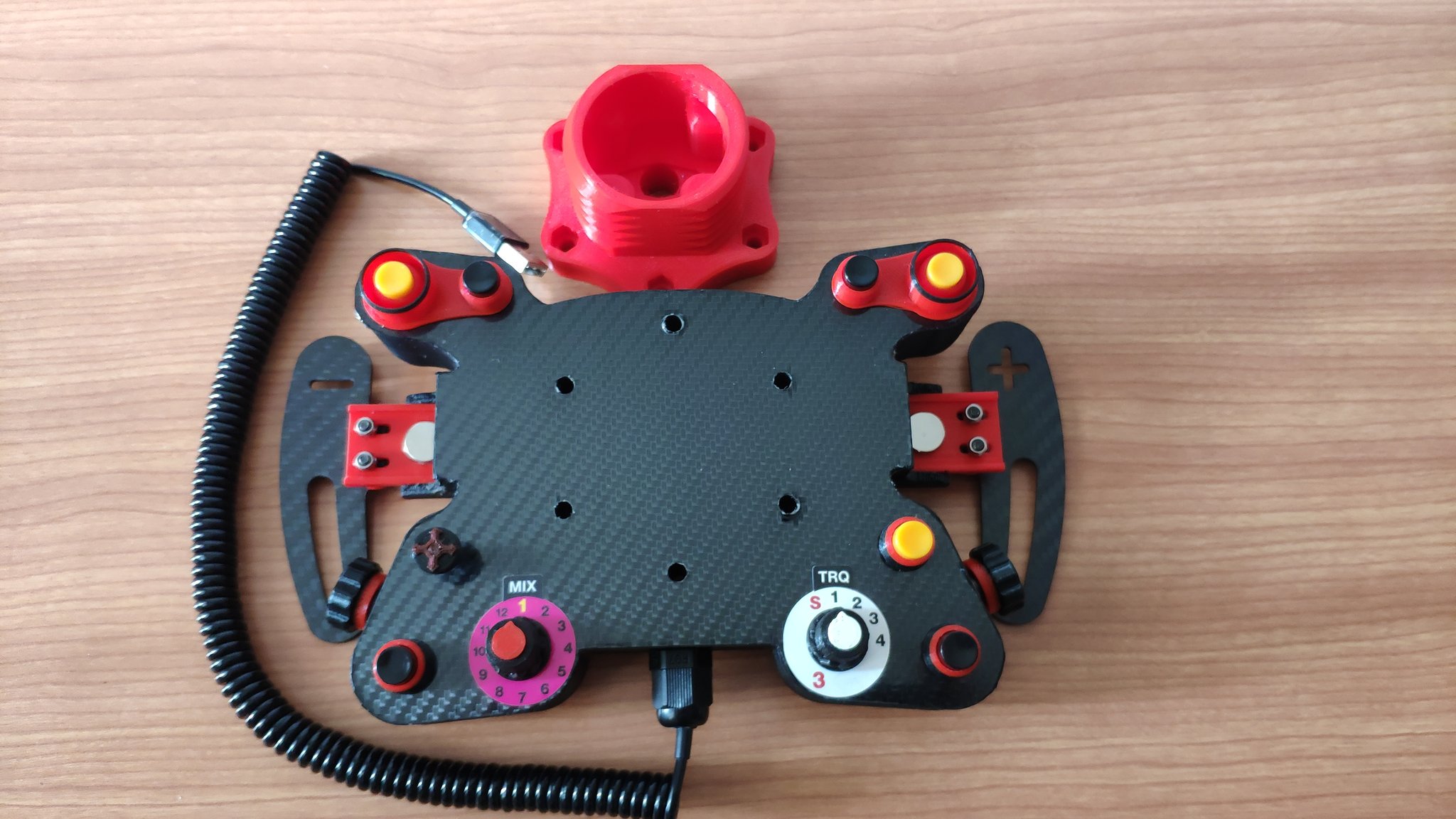

DIY PLATE STEERING WHEEL SWD2 by SimWheel Designs

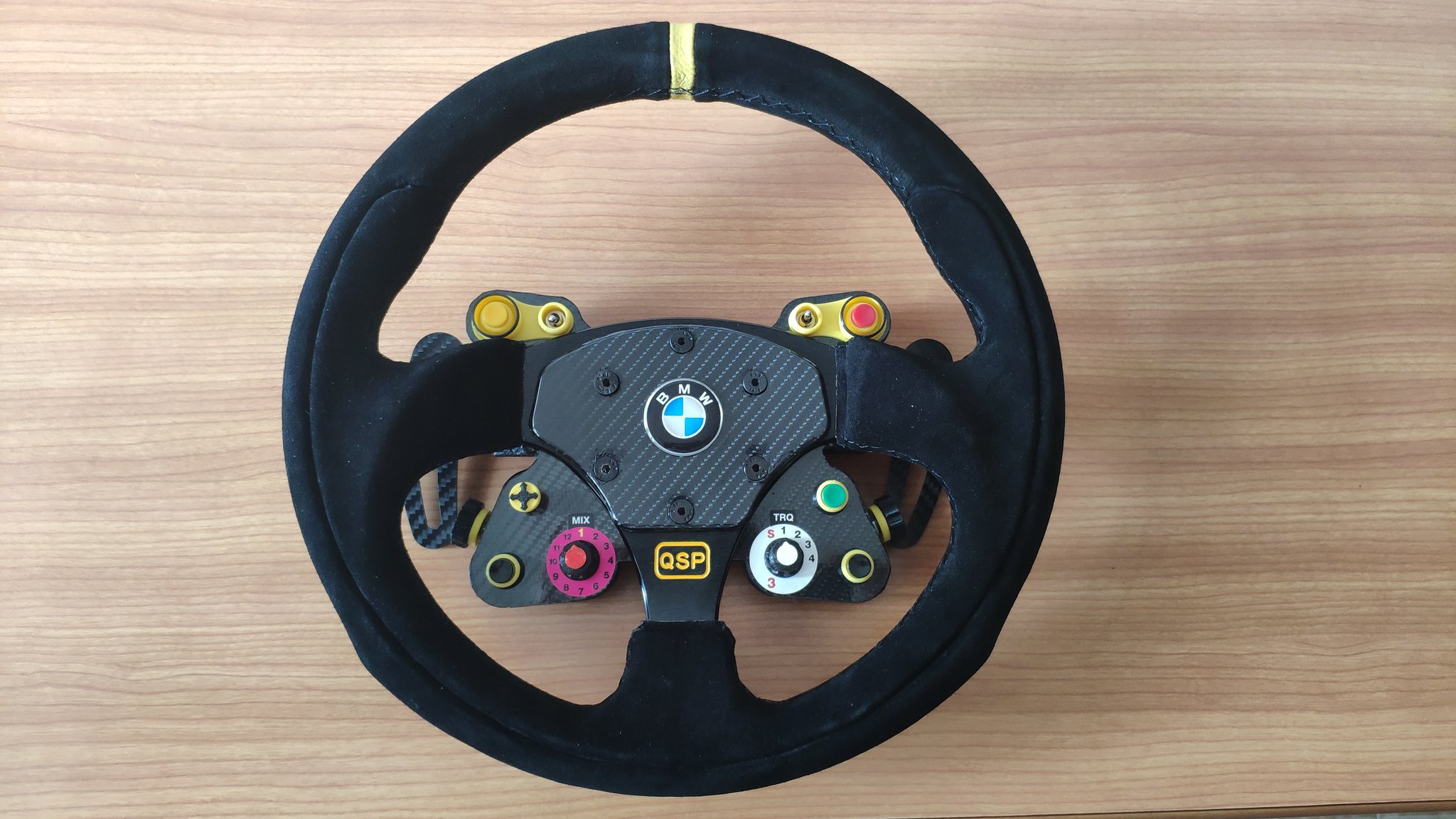

Build your own high quality PLATE STEERING WHEEL for your simulator.

PARTS REQUIRED:

M3x16 Hexagonal Countersunk Flat Head Screws (16)
M3x4 Brass Inserts (16) https://es.aliexpress.com/item/32958273559.html?spm=a2g0s.9042311.0.0.274263c0jpEjAL
Plum handle 20mm rotary encoder coding switch / EC11 (2) encoders https://es.aliexpress.com/item/32872023811.html?spm=a2g0o.productlist.0.0.20e0438e7qyOu2&algo_pvid=09f214eb-995d-46c2-9402-13c525c3a0ab&algo_expid=09f214eb-995d-46c2-9402-13c525c3a0ab-0&btsid=f733aae4-dc2d-41df-8a79-2702e9abb554&ws_ab_test=searchweb0_0,searchweb201602_3,searchweb201603_53
Plum handle 15mm rotary encoder coding switch / EC11 (2) https://www.aliexpress.com/item/32872039030.html?spm=a2g0o.productlist.0.0.71235c94Qp7zWj&algo_pvid=813ddb8a-6ea6-412c-96c9-353f375556dc&algo_expid=813ddb8a-6ea6-412c-96c9-353f375556dc-9&btsid=9f8a0f2a-6539-40d5-91b2-7fad942f8838&ws_ab_test=searchweb0_0,searchweb201602_3,searchweb201603_53
PG7 Black Plastic Waterproof Cable Glands Joints (1) https://www.aliexpress.com/item/32869283574.html?spm=a2g0s.9042311.0.0.274263c057hkKT
6mm Mini Momentary Automatic return Push button switch 250VAC/5 (5 or 7) https://www.aliexpress.com/item/32842544957.html?spm=a2g0s.9042311.0.0.161f63c0nKpLyJ
Toggle Switch Single Pole Double Throw SPDT (MTS103) ON-OFF-ON (2) https://www.aliexpress.com/item/32712692663.html?spm=a2g0o.productlist.0.0.19c62035IHGd2L&algo_pvid=35b2d68d-17f4-4bc6-8a70-1949cadb05f4&algo_expid=35b2d68d-17f4-4bc6-8a70-1949cadb05f4-0&btsid=1ed6956f-19c5-4f8b-9e99-a3e8cef22b9c&ws_ab_test=searchweb0_0,searchweb201602_3,searchweb201603_52
Interruptor Tactil Panel SMD PCB 10x10x9mm (1) https://www.ebay.es/itm/5-Way-6-Terminal-Momentary-Tactile-Switch-SMD-Panel-PCB-10x10x9mm-2-5-10-PCS/162515255996?hash=item25d6aa02bc%3Am%3AmAgz4QIEJRLT37Yvoozlz_A&fbclid=IwAR0XCNB9WQKXhQneWVYNApOKSEu-RxvcqPFYxAOkc9hbeYsUC_8kDFTpSkE
Steering Wheel 320mm https://es.aliexpress.com/item/32971786767.html?spm=a2g0s.8937460.0.0.79f72e0eDOPTMN
Steering Wheel 300mm https://www.qspproducts.nl/en/qss300z3/QS-S300Z3-qsp-products
70mm Quick Release
Electronics Leobodnar or Arduino or STM32

CC - Attribution - Non-Commercial - No Derivatives

You cannot sell the digital model, a derivative or adaptation of the model, nor can you sell prints of the model and design.

FOR PERSONAL USE ONLY - NON COMMERCIAL - NOT FOR RESALE

COPYRIGHT SIMWHEEL DESIGNS - ALL RIGHTS RESERVED

3D printing settings

0.4 Nozzle / 0.2 - 0.18 Layer / 75%+ Infill

  • 3D model format: STL
