DIY BMW M8 GTE (BIG BOY) Steering Wheel

3D model description

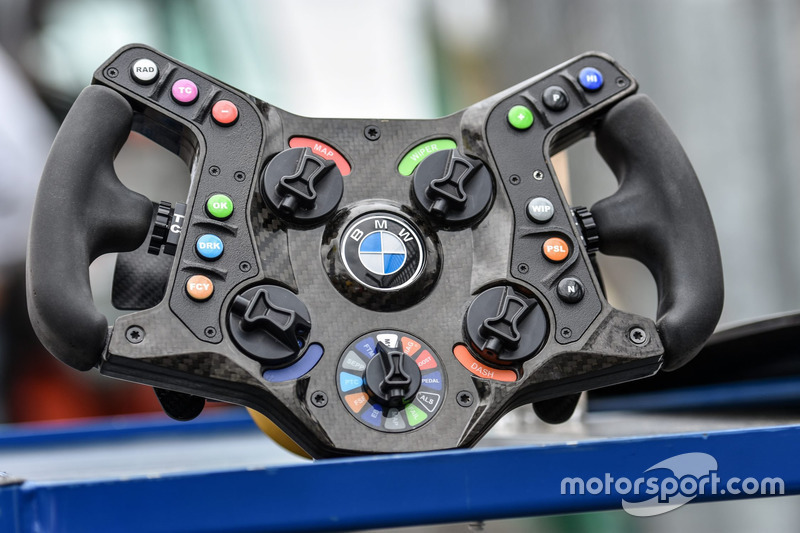

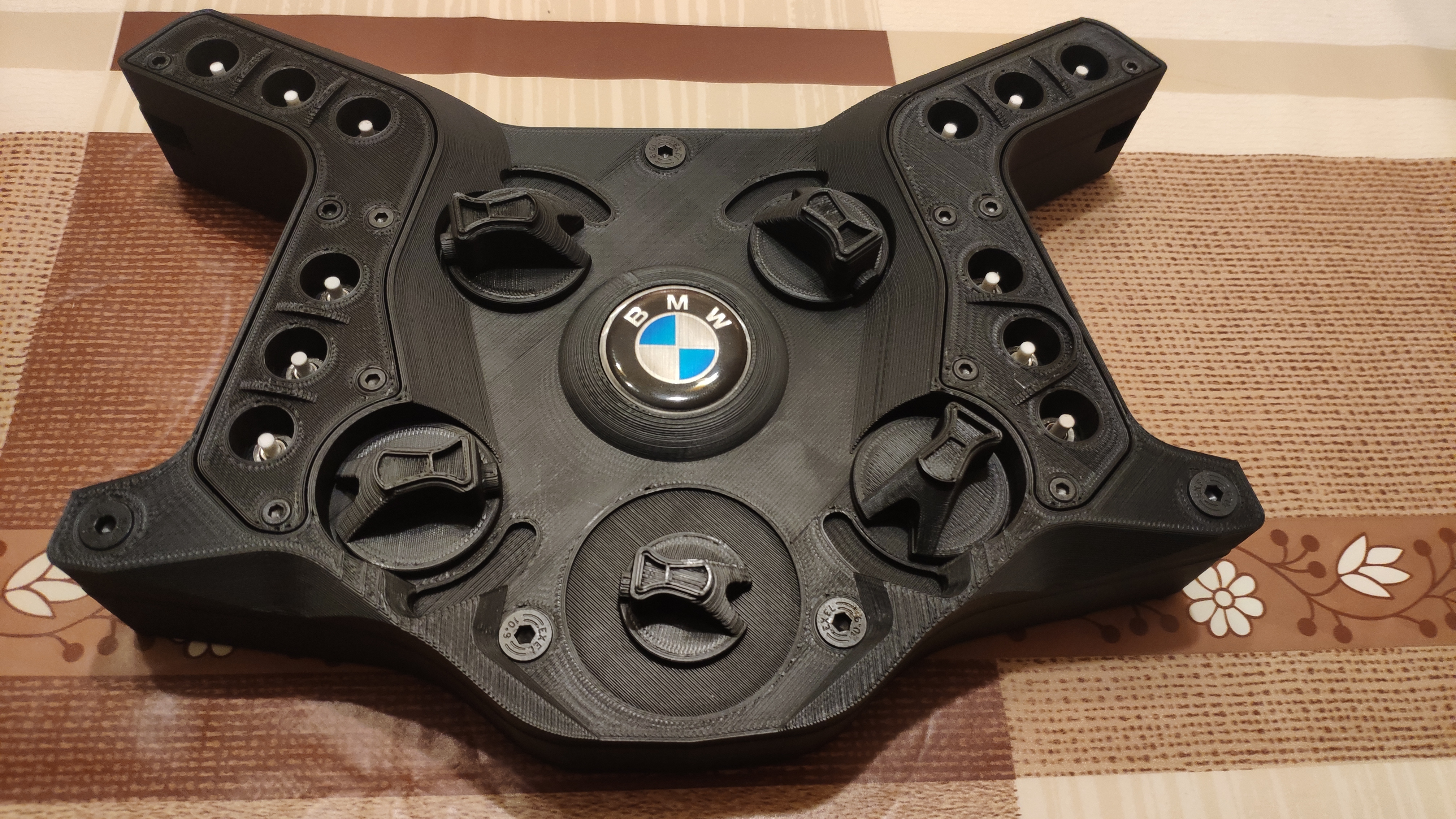

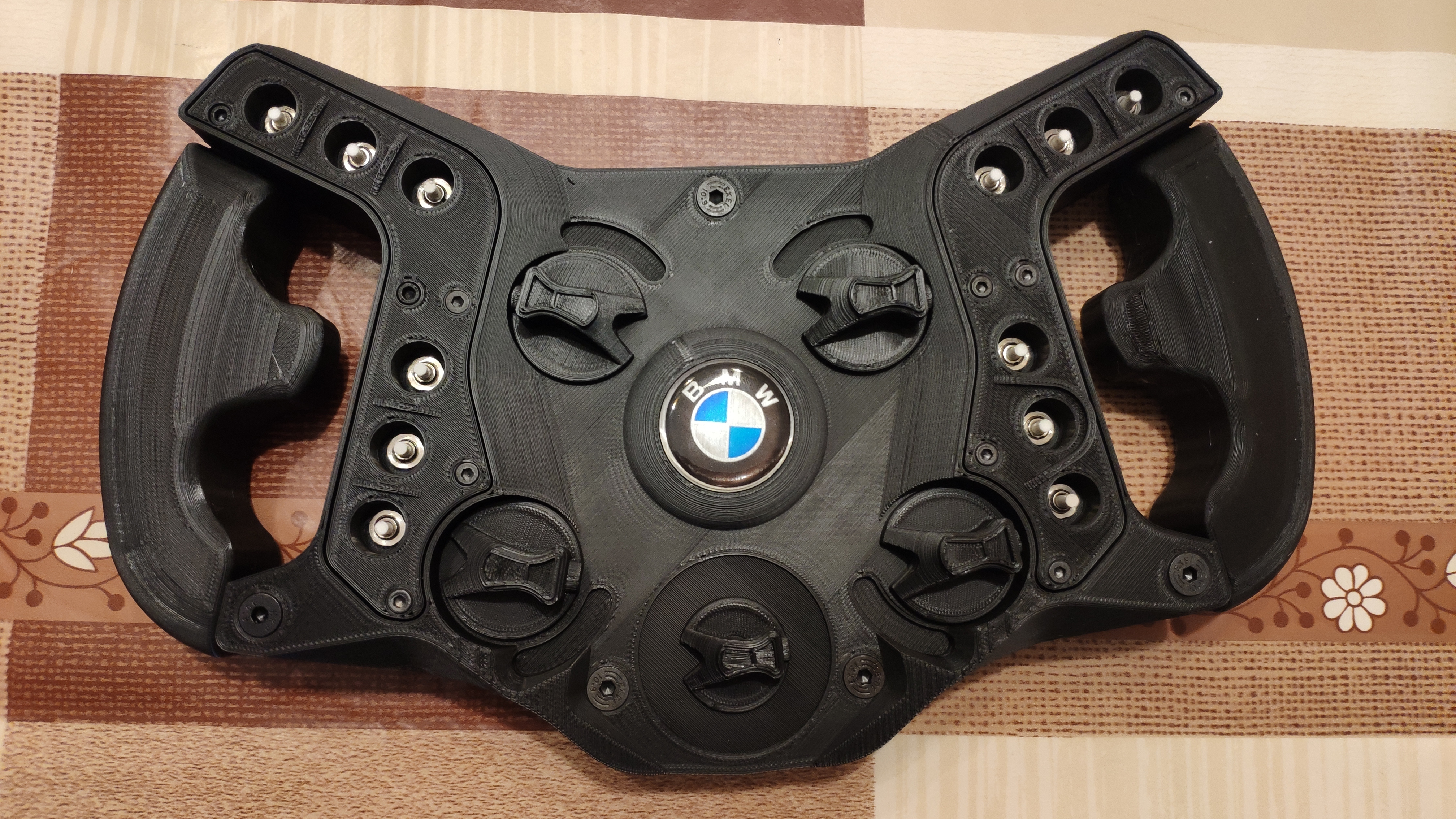

DIY BMW M8 GTE (BIG BOY) Steering Wheel by SimWheel Designs

Build your own high quality BMW M8 GTE steering wheel for your simulator.

300mm long

Not included MAGNETIC PADDLE SHIFTER

You can download https://pinshape.com/items/55468-3d-printed-diy-magnetic-paddle-shifter-swd-simracingOR https://pinshape.com/items/553...

PARTS REQUIRED:

M3x25 Hexagonal Head Screws (10)

M5x20 Hexagonal Countersunk Flat Head Screws (2)

M5x15 Hexagonal Countersunk Flat Head Screws (3)

M3x4 Brass Inserts (10) https://es.aliexpress.com/item/32958273559.html?spm=a2g0s.9042311.0.0.274263c0jpEjAL

M5x5 Brass Inserts (5) https://es.aliexpress.com/item/32958273559.html?spm=a2g0s.9042311.0.0.274263c0jpEjAL

PG7 Black Plastic Waterproof Cable Glands Joints (1) https://www.aliexpress.com/item/32869283574.html?spm=a2g0s.9042311.0.0.274263c057hkKT

6mm Mini Momentary Automatic return Push button switch 250VAC/5 (6) https://www.aliexpress.com/item/32842544957.html?spm=a2g0s.9042311.0.0.161f63c0nKpLyJ

Plum handle 15mm rotary encoder coding switch / EC11 (5) on bottom encoders https://www.aliexpress.com/item/32872039030.html?spm=a2g0o.productlist.0.0.71235c94Qp7zWj&algo_pvid=813ddb8a-6ea6-412c-96c9-353f375556dc&algo_expid=813ddb8a-6ea6-412c-96c9-353f375556dc-9&btsid=9f8a0f2a-6539-40d5-91b2-7fad942f8838&ws_ab_test=searchweb0_0,searchweb201602_3,searchweb201603_53

Plum handle 7.5mm rotary encoder (2) https://www.amazon.es/gp/product/B0197NGH7A/ref=ppx_yo_dt_b_asin_title_o06_s00?ie=UTF8&psc=1

70mm Quick Release

Electronics Leobodnar or Arduino or STM32 for buttons

CC - Attribution - Non-Commercial - No Derivatives

You cannot sell the digital model, a derivative or adaptation of the model, nor can you sell prints of the model and design.

FOR PERSONAL USE ONLY - NON COMMERCIAL - NOT FOR RESALE

COPYRIGHT SIMWHEEL DESIGNS - ALL RIGHTS RESERVED

3D printing settings

0.4 Nozzle / 0.2 - 0.18 Layer / 75%+ Infill

  • 3D model format: STL

Tags

Creator

Designs 25
Downloads 26
Sales US$519
Followers

Copyright

©

Page translated by automatic translation. See the original version.

Best sellers of the category Game

Related contents


Add a comment

4 comments

With an arduino we can only put 5 maximum rotary, the steering wheel has 7.
You can remove the two lateral rotarys and ride only 5. I can share you that sketch

Hi nice proyect ,i have a question ,dont u have the arduino code to controller the wheel? cause here its more cheaper than a leo, thanks!!

hey....great wheel, i bought your files, but there is one question.
Which Leo Bodnar board would you recommend? i want to go with leo bodnar...
