3D model description

After seeing some truly amazing print in place 3D printed items we wanted to design our own!

In a matter of hours you can print an interactive Dino Grabber toy (we named it Grabbosaurus) that works straight from the print bed. We love this design because they are fun to play with and can ignite an interest in mechanical design. We hope you love it too!

We have uploaded two files that you can choose from:

  • dino grabber short [quicker print + smaller print bed]

  • dino grabber long [longer mechanism + larger print bed]

These designs are printed with Silver + Satin Salmon PLA [Real Filament]

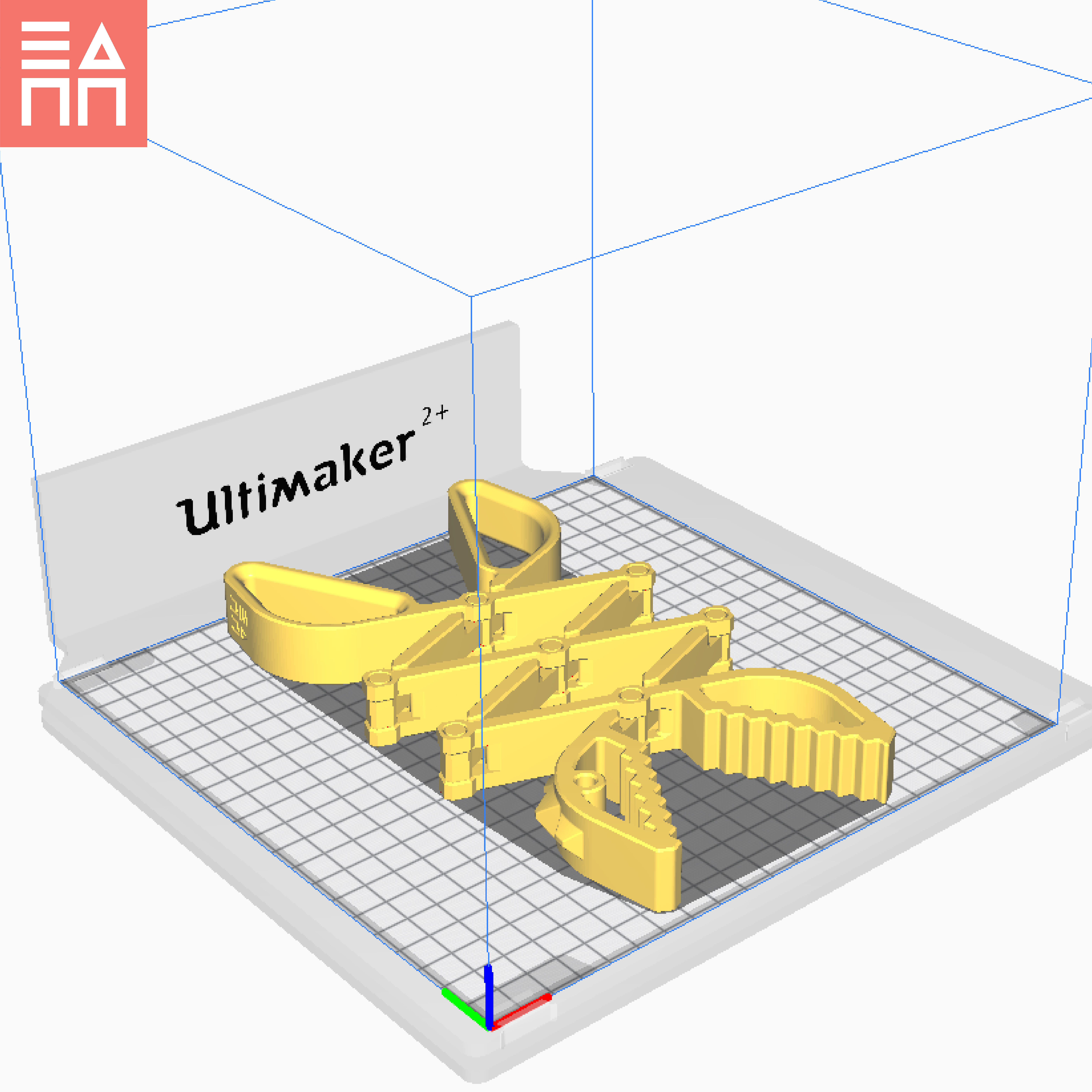

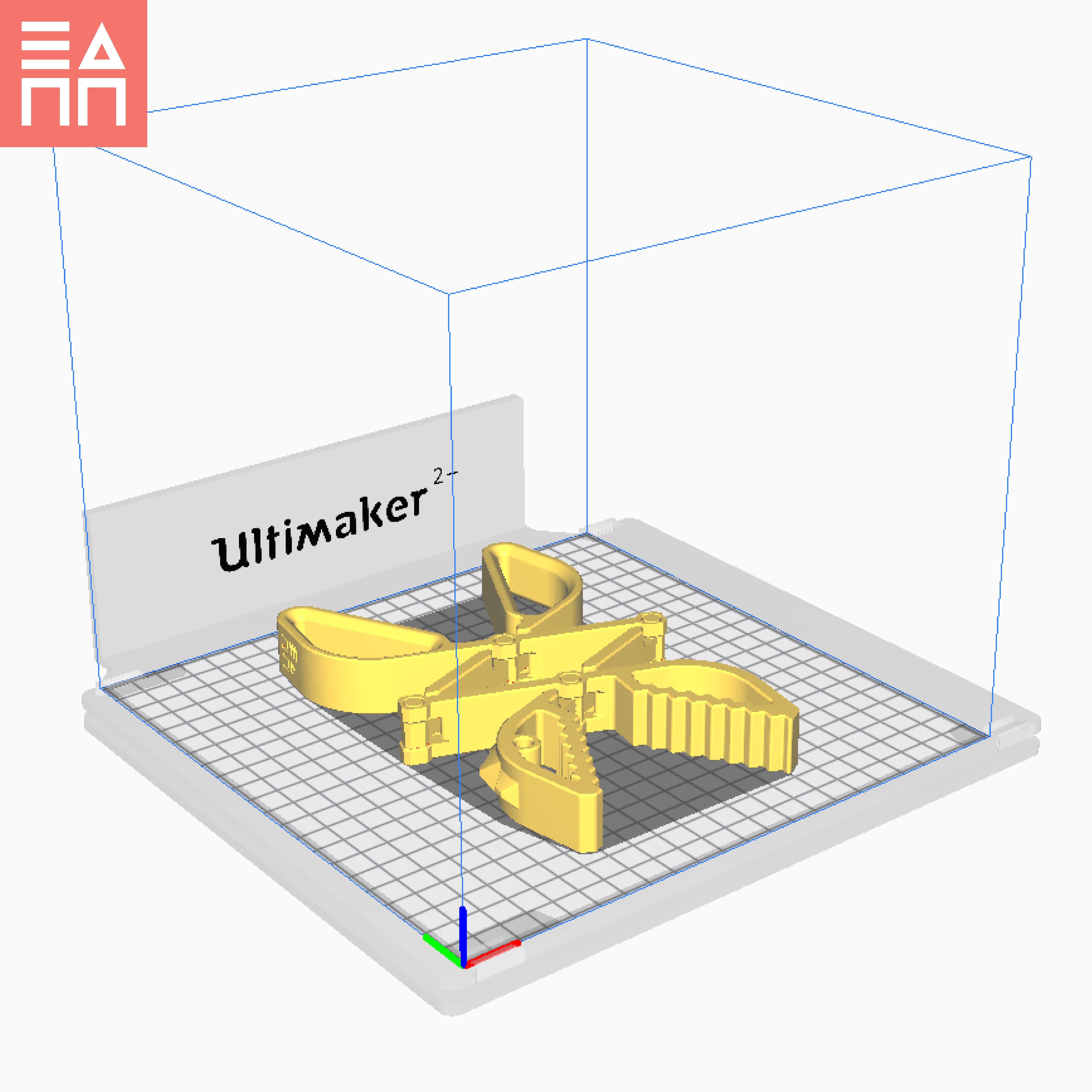

To print this design we used an Ultimaker 2+ 3D printer with a 0.4 mm nozzle.

We would love to see your prints!

Follow us!

F: facebook.com/3dppa

I: @3dprintproject.athens


3D printing settings

Resolution: 0.1mm - 0.2mm [0.2mm Shown]

Wall Thickness: 1.6mm [4 Walls]

Infill: 0%

Support: No [Custom included in STL File]

Brim: No

Raft: No

Speed: 60mm/s [Shown]

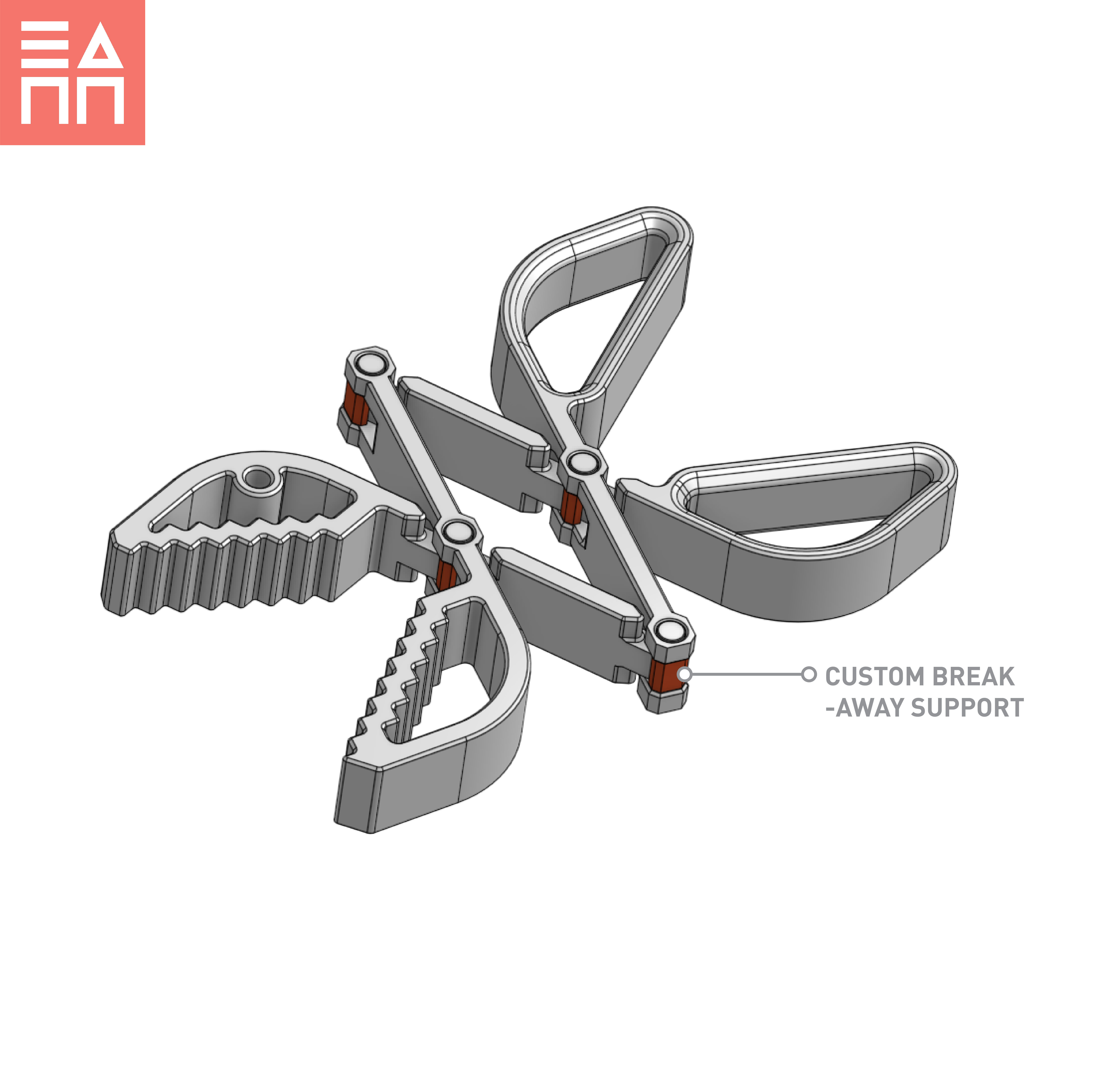

Post processing: Removal of custom support structures [See photos].

Time to Print: 7 Hours 40 Mins [Long], 6 Hours [Short]

Material Quantity: 90g [Long] 71g [Short]

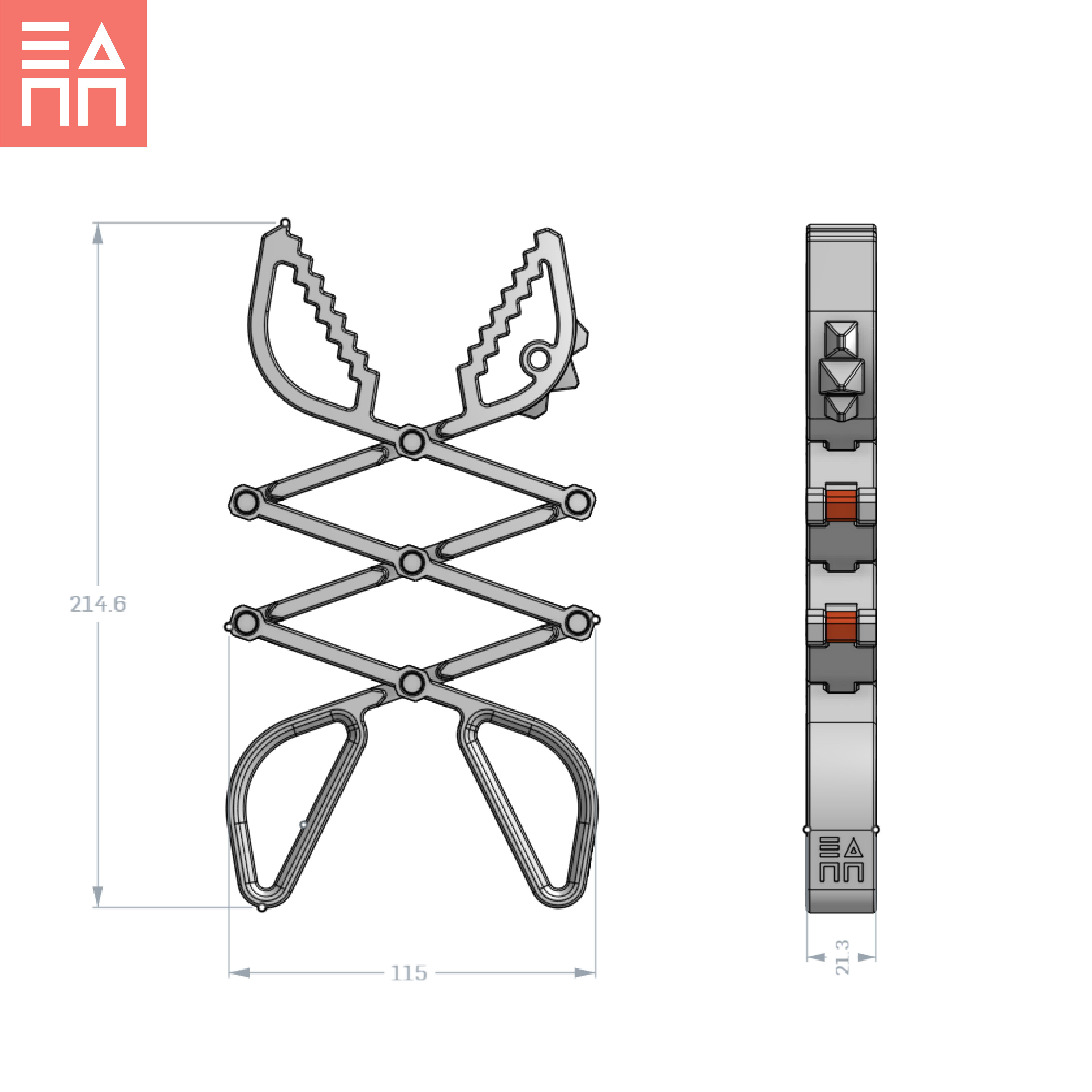

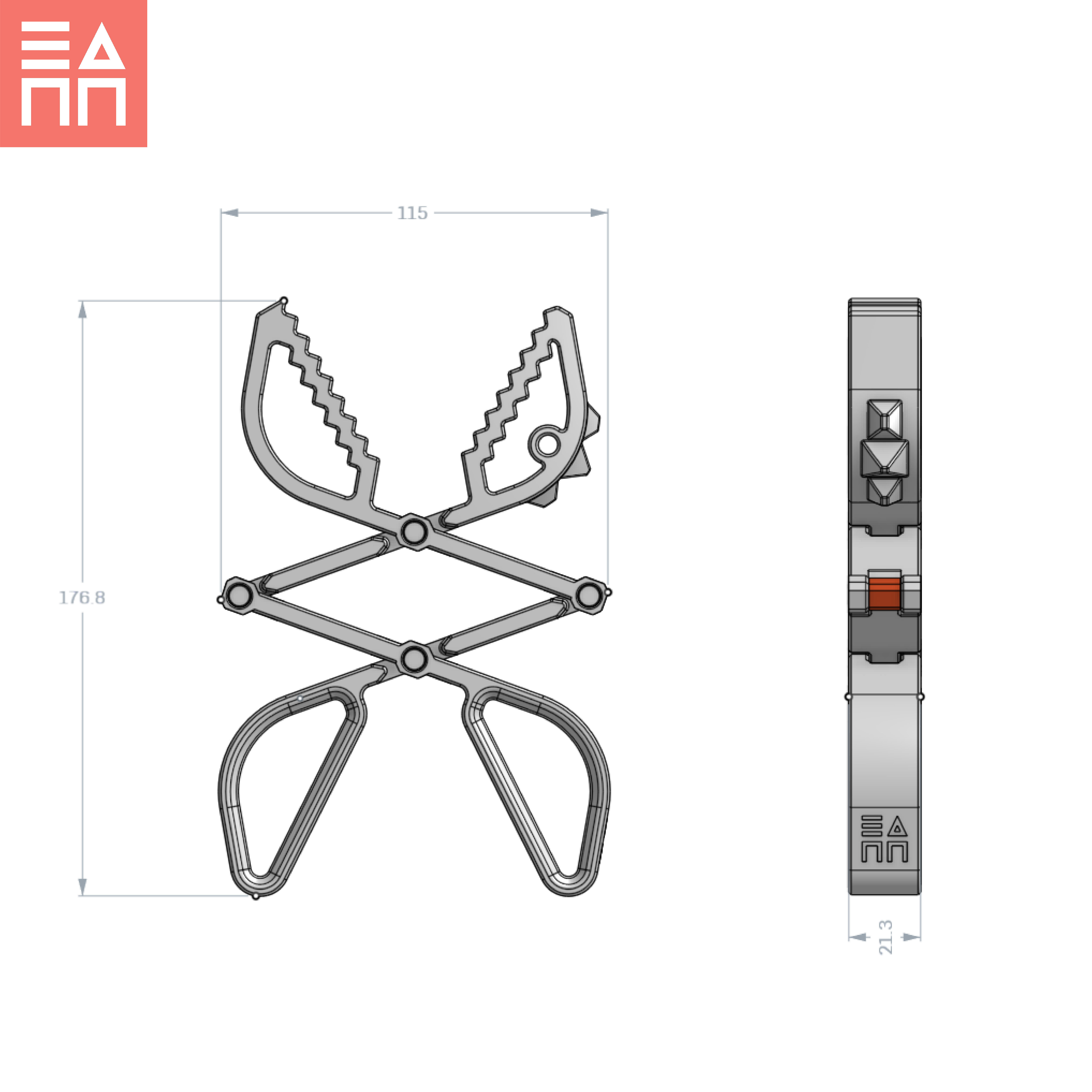

Dimensions: 116.3mm x 116.3mm x 21.34mm

Notes: Check that you have removed all support material and ease the mechanism gently the first time you use it.

3D printer file information

  • 3D design format: STL Folder details Close
    • Dino Grabber Long Mech.stl
    • Dino Grabber Short.stl
  • Last update: 2020/06/12 at 20:53
  • Publication date: 2020/06/07 at 13:14
