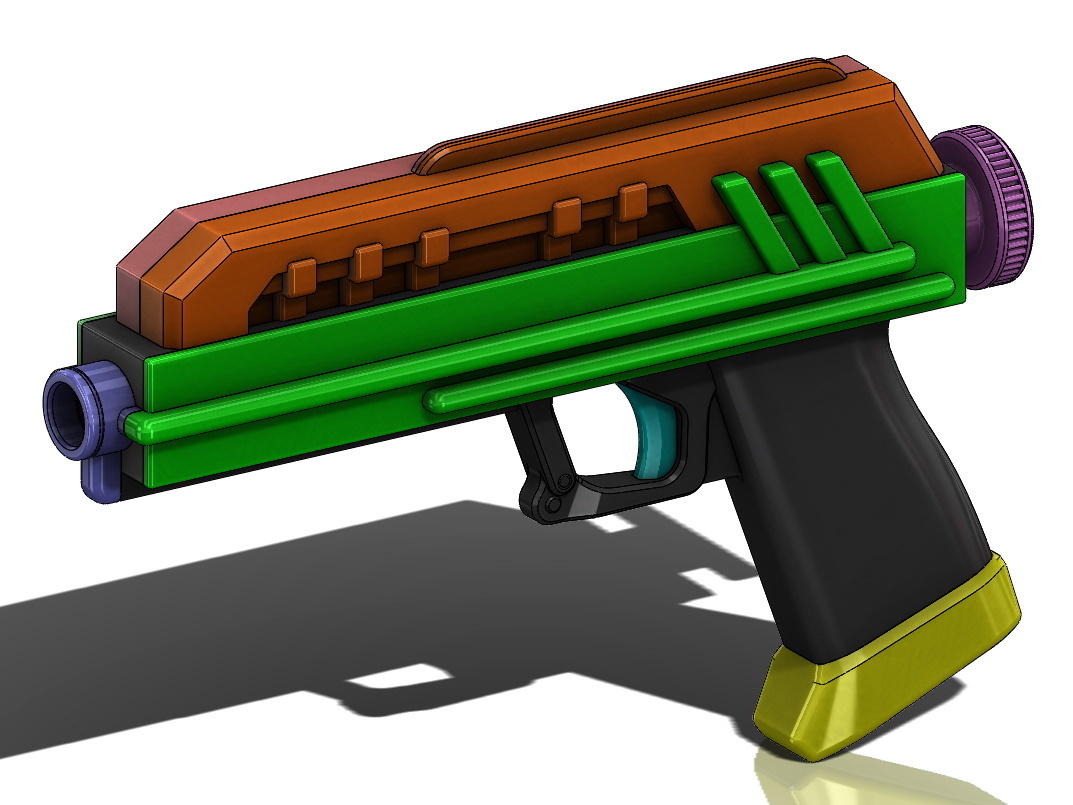

DC-17 Hand Blaster (Movie Realistic)

Full 3D printable edition of the famous Star Wars DC-17 clone's blaster gun!

Full detailed professional prop ideal for your clone trooper cosplays and SW weapons collections!

Designed from many references : Star Wars movies (I, II, III episodes), games, fan arts...

Main Features

• Designed with accuracy (movie realistic version)

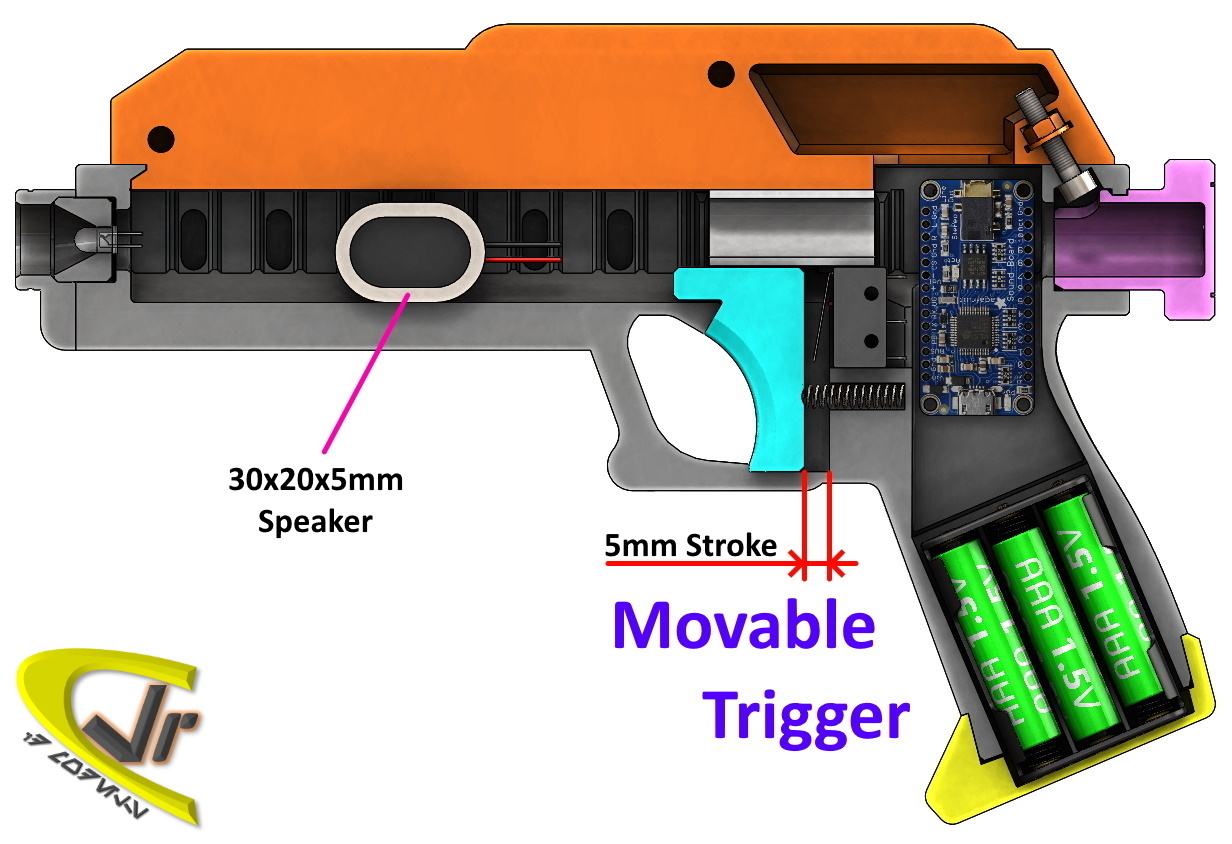

• Movable trigger

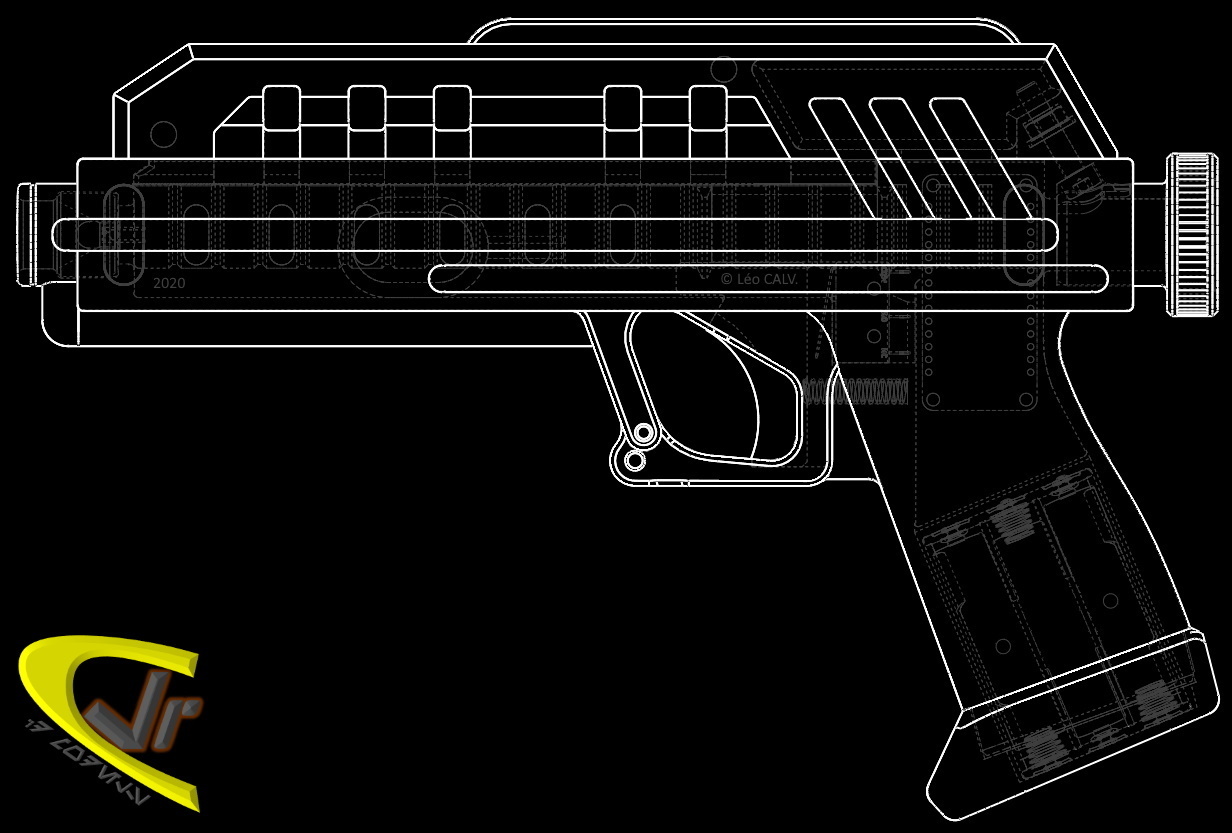

• Free space and patterns to install electronics (LED, SoundBoards...)

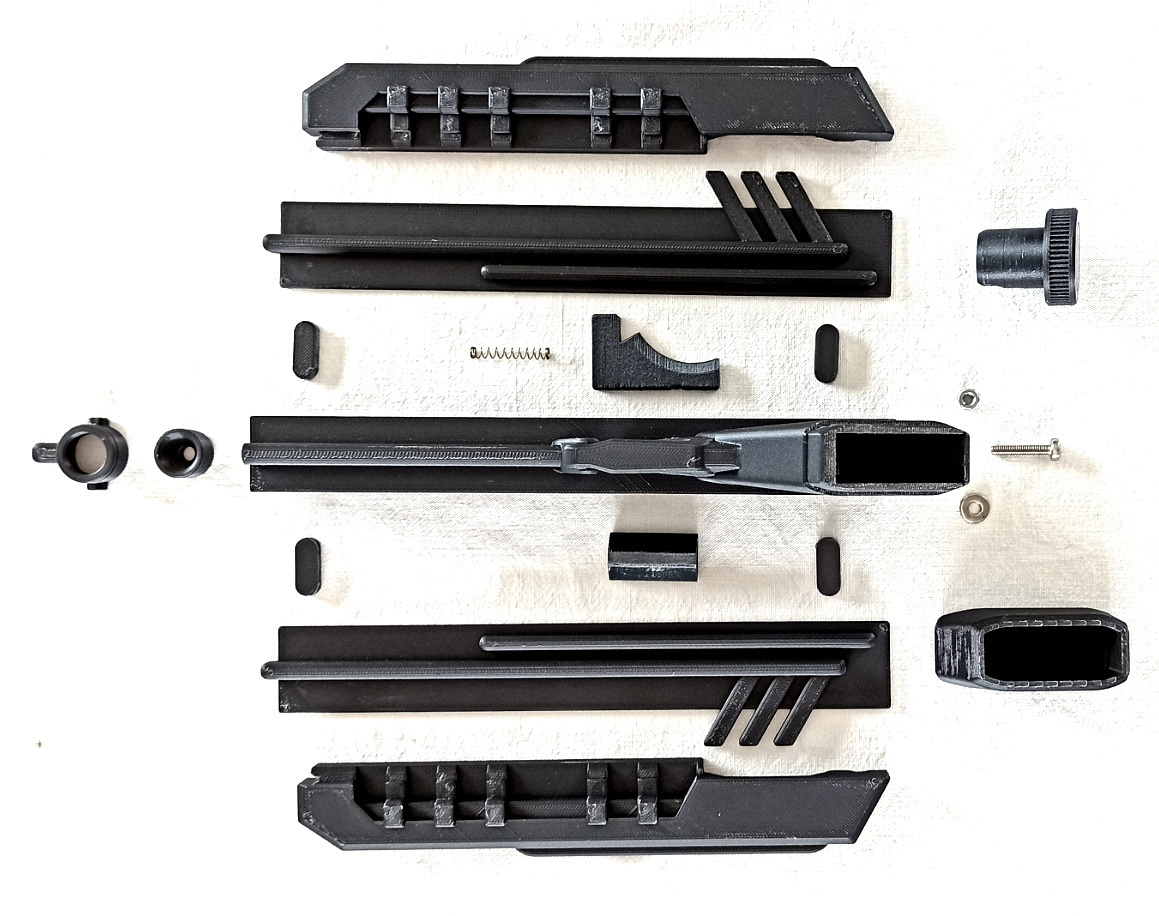

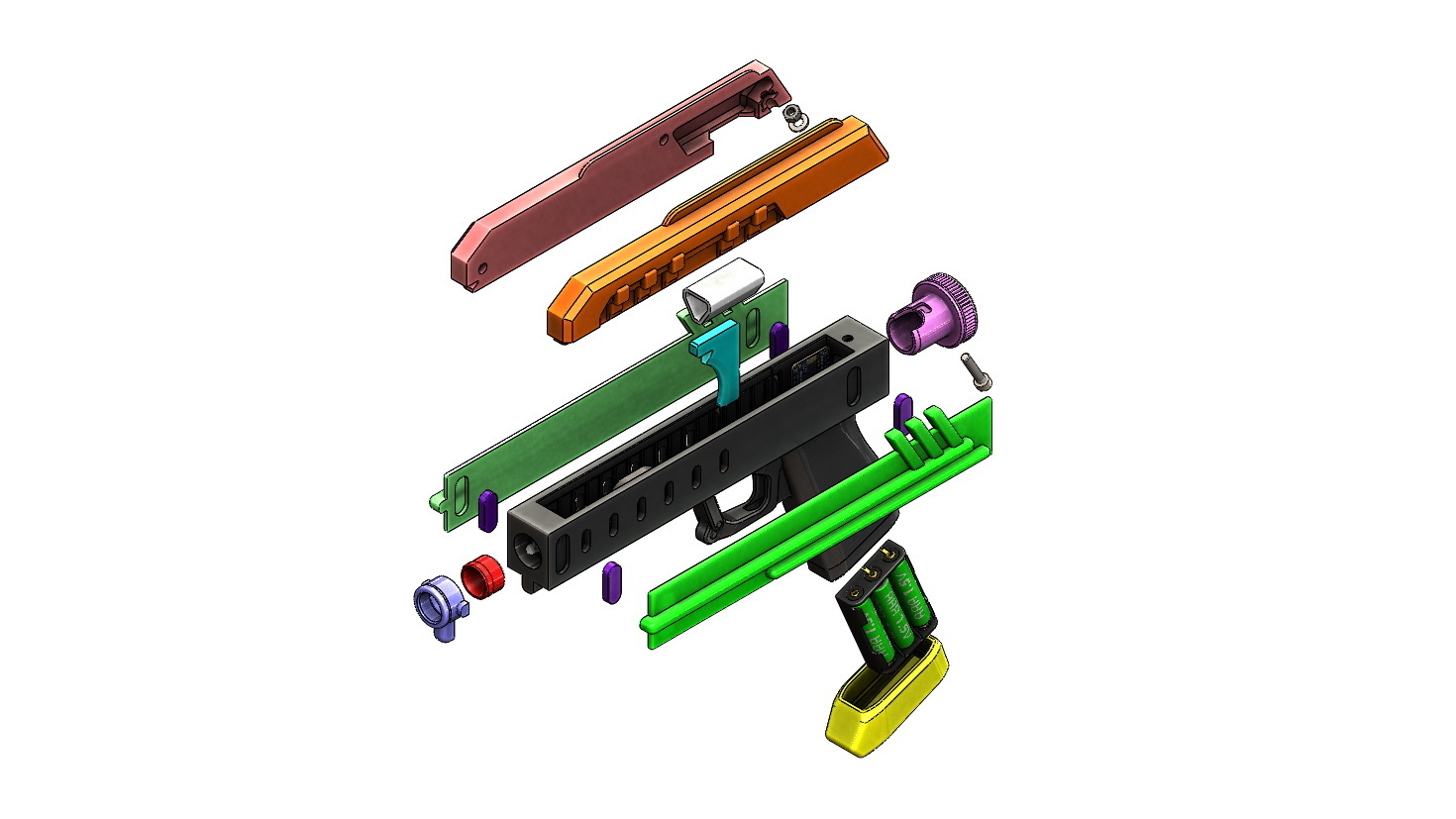

• Smartly cut in 12 parts, to print and assembly it really easily

Specifications

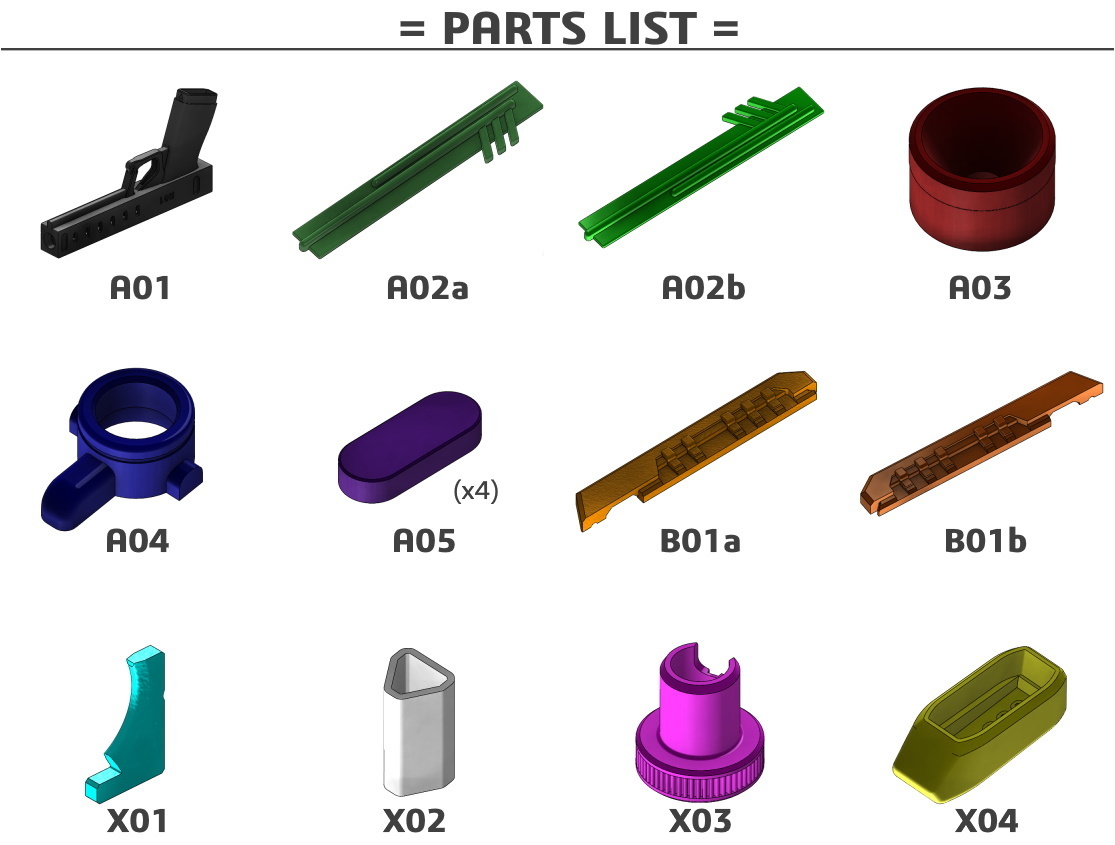

• 12 different printed parts, 15 parts in total

• /!** Largest part dimensions: **222.25 x 118.78 x 25 mm

  Minimum printer building volume needed (x, y, z vertical) : 195 x 140 x 120mm

• Smallest part dimensions : 20.1 x 8 x 3.8 mm

• Complete gun dimensions (when all parts assembled): 239 x 159 x 40 mm

  (= 9.41" x 6.26" x 1.58")

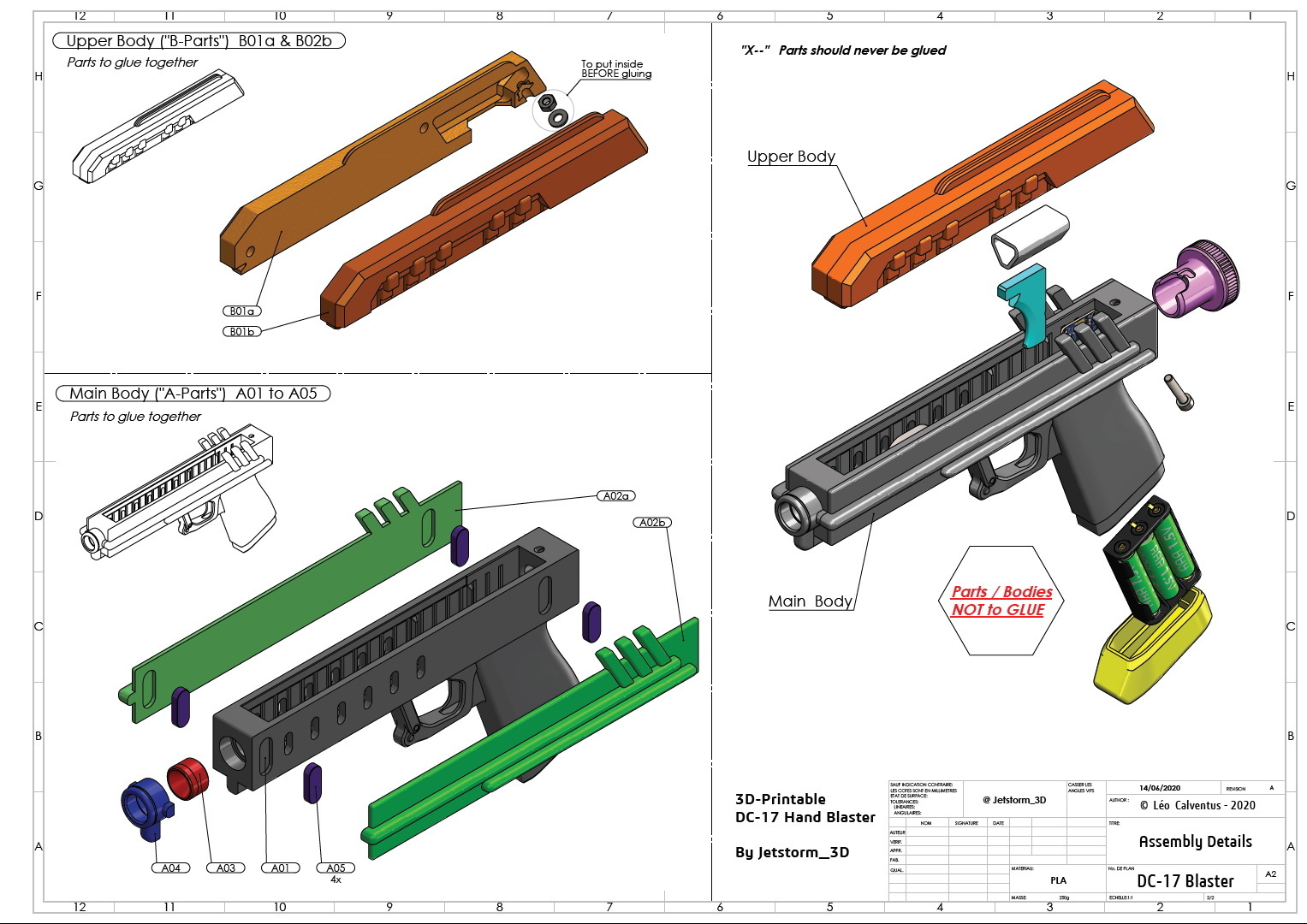

• Upper parts removable (screwed) for electronics access

• All parts can be printed without any support !

  (Except the "A01" part, which need a little support near the trigger guard)

• STL files have been properly oriented and positioned to be ready to print

Find parts detailed specs in downloadable file "Nomenclature.pdf"

Additional Parts Needed

• (Ideally) Ø5mm x 30mm long spring (x1) => for the trigger

• M4x16 (or M4x20) screw + Washer + Nut => To clamp the upper parts

Trigger LED circuit Electronics :

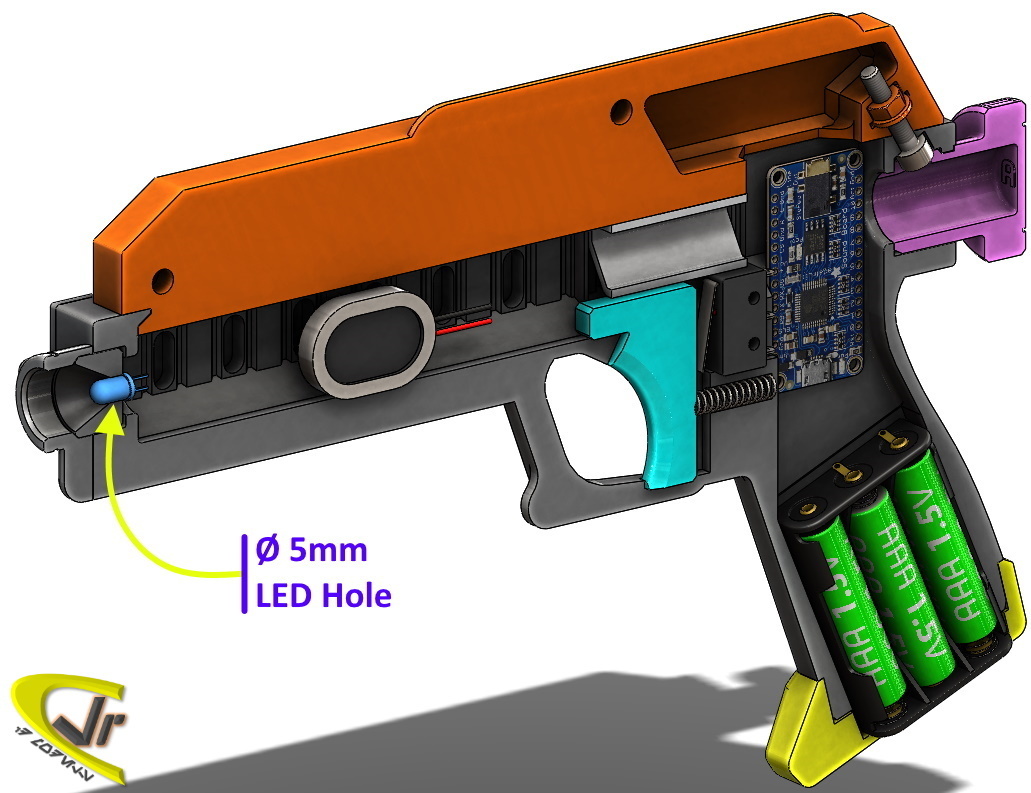

• Ø5mm blue color LED

• Mini Limit Switch (approx. standard 20x10.5x6.5 mm)

• 1,5V "AAA" battery (x3) (total voltage 4,5V)

• 3xAAA battery holder](https://www.amazon.com/dp/B0156U82JY/ref=twister_B013GNBRXG?_encoding=UTF8&psc=1) (Without cover, maximum 54x38x13.5mm ! (2.125 "x1.496 "x0.512")

• 200 Ohm resistor

• ~25cm long wires (2 colors)

• heat-shrinkable sleeves (optional)

Blaster general presentation & assembly](https://youtu.be/8Gcl9BTB1pE)

3D Preview (https://sketchfab.com/3d-models/dc-17-hand-blaster-movie-realistic-8f321ea229164923b12e11b614a3444c)

Thanks a lot for your support !

Enjoy ;)

  Design Version : V_1.5 (Last Build - 2020/06)


  Printable Version : V_2.0

Animated Version

Animated version available here

Recommended print setting for 0.4 nozzle using :

• 3 or 4 Bottom / Top layers

• Cubic Infill 20% (10% min)

• 0.2 to 0.3 layer height

• 2 Perimeters (0.8mm wall thickness) for all parts

  EXCEPT : A05, X01, X02 (3 perimeters)

• Supports are only needed on part A01 (near the trigger guard)

(See 14th picture)
