3D model description

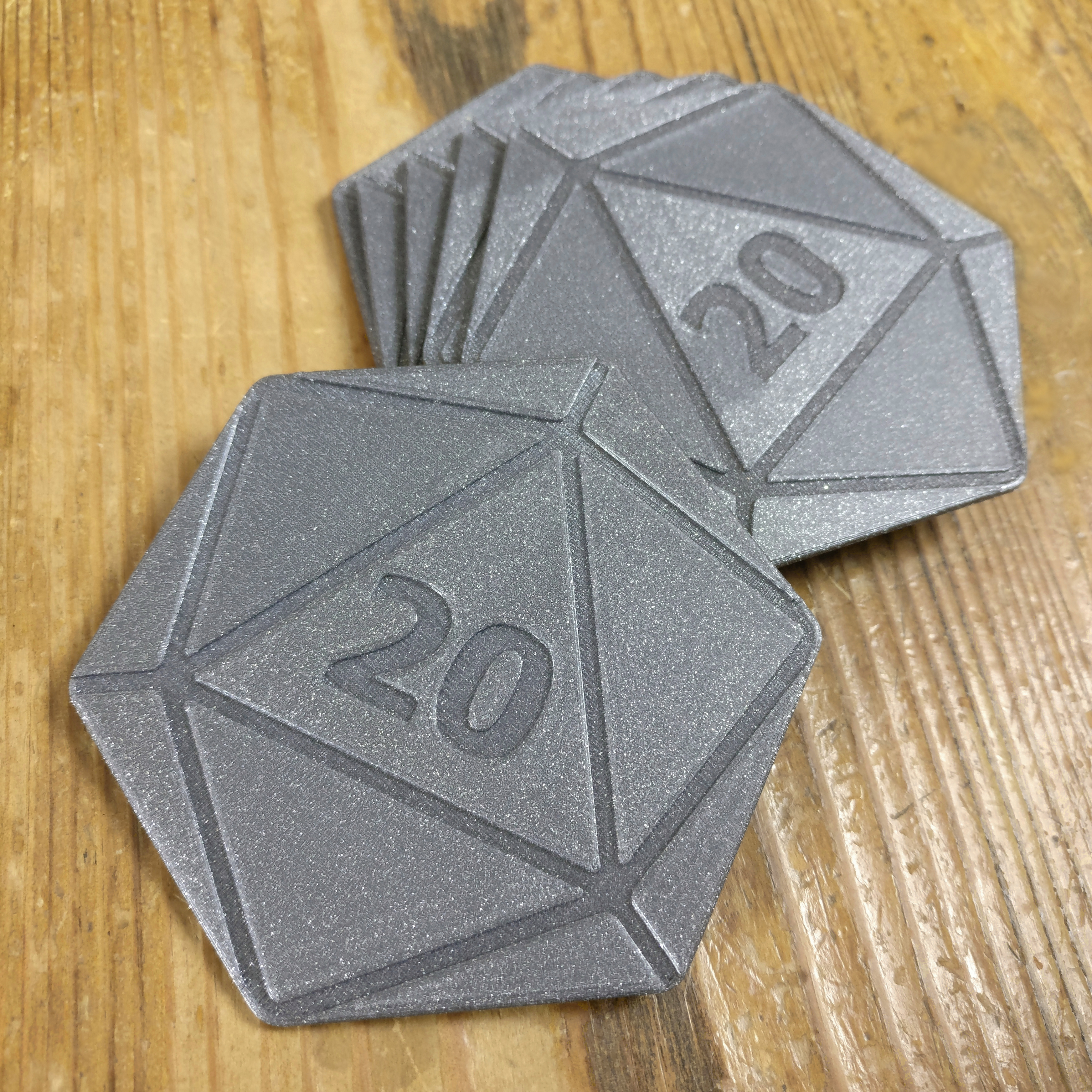

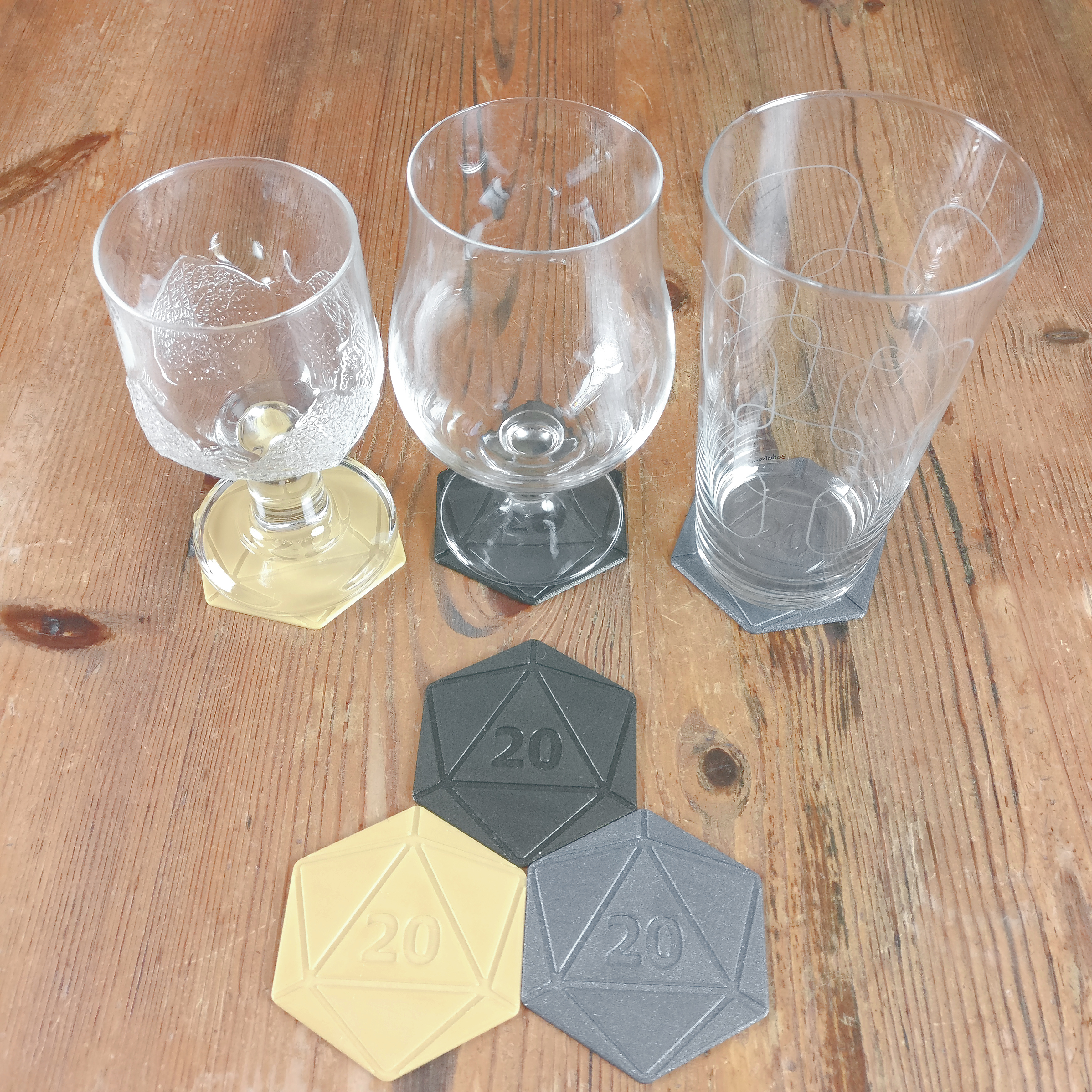

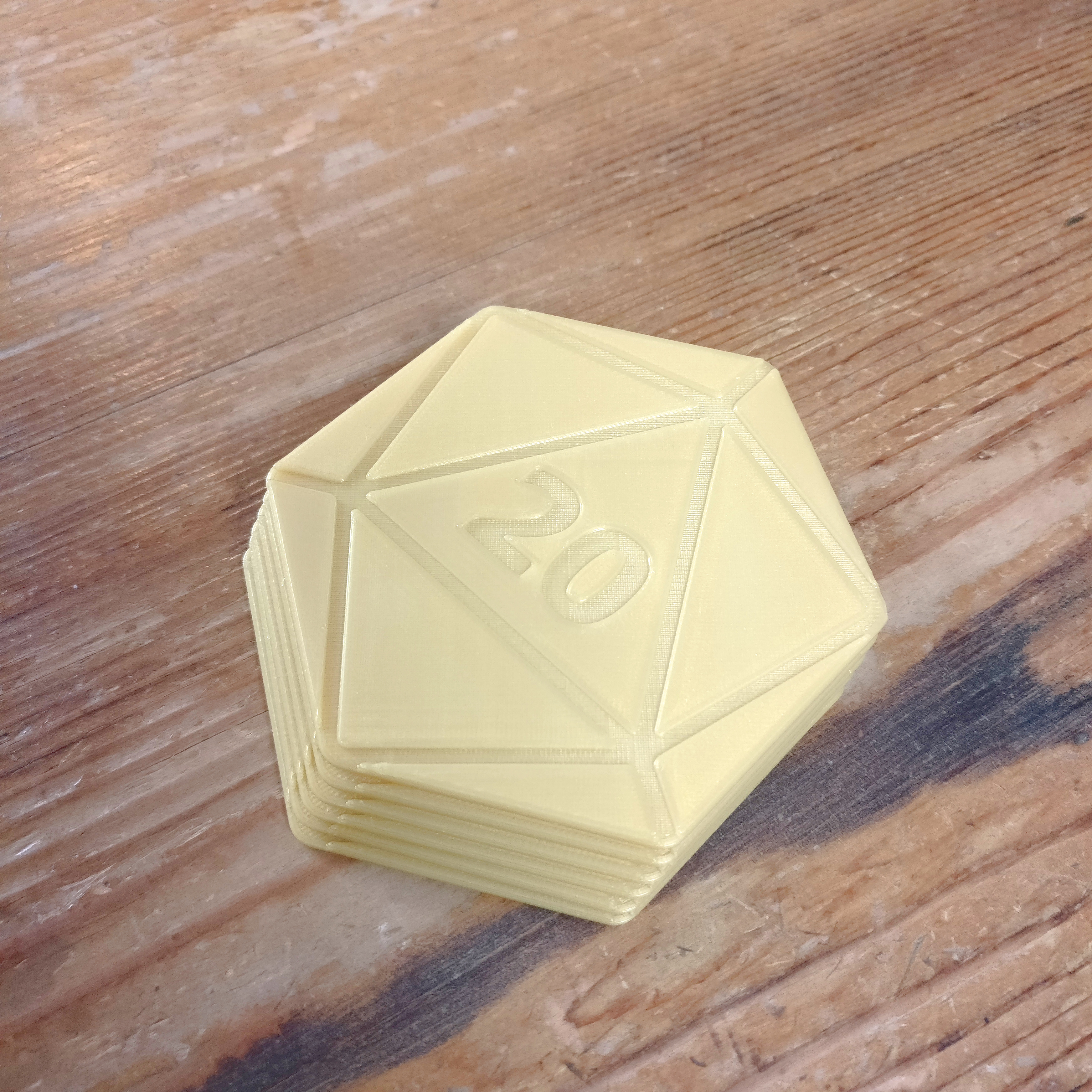

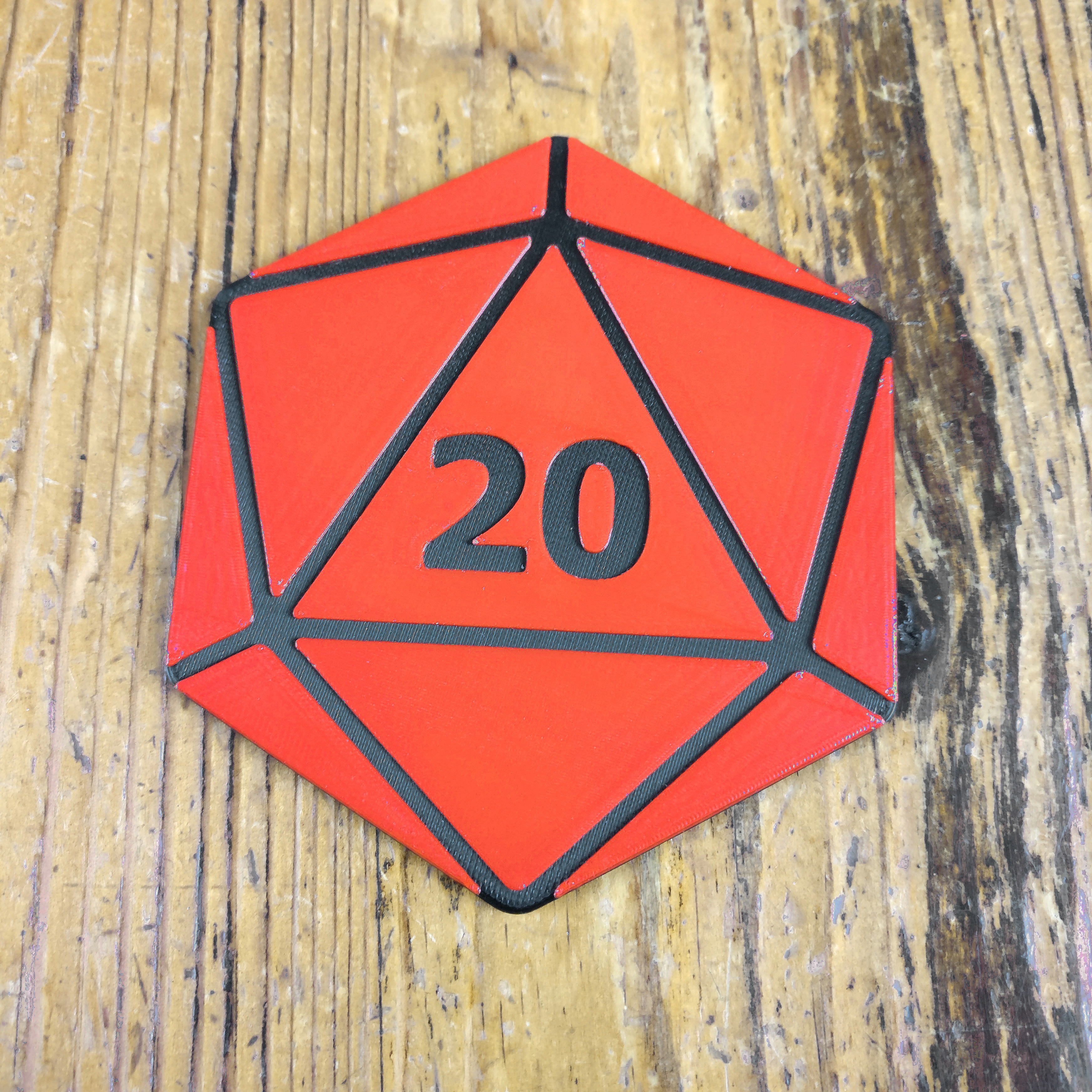

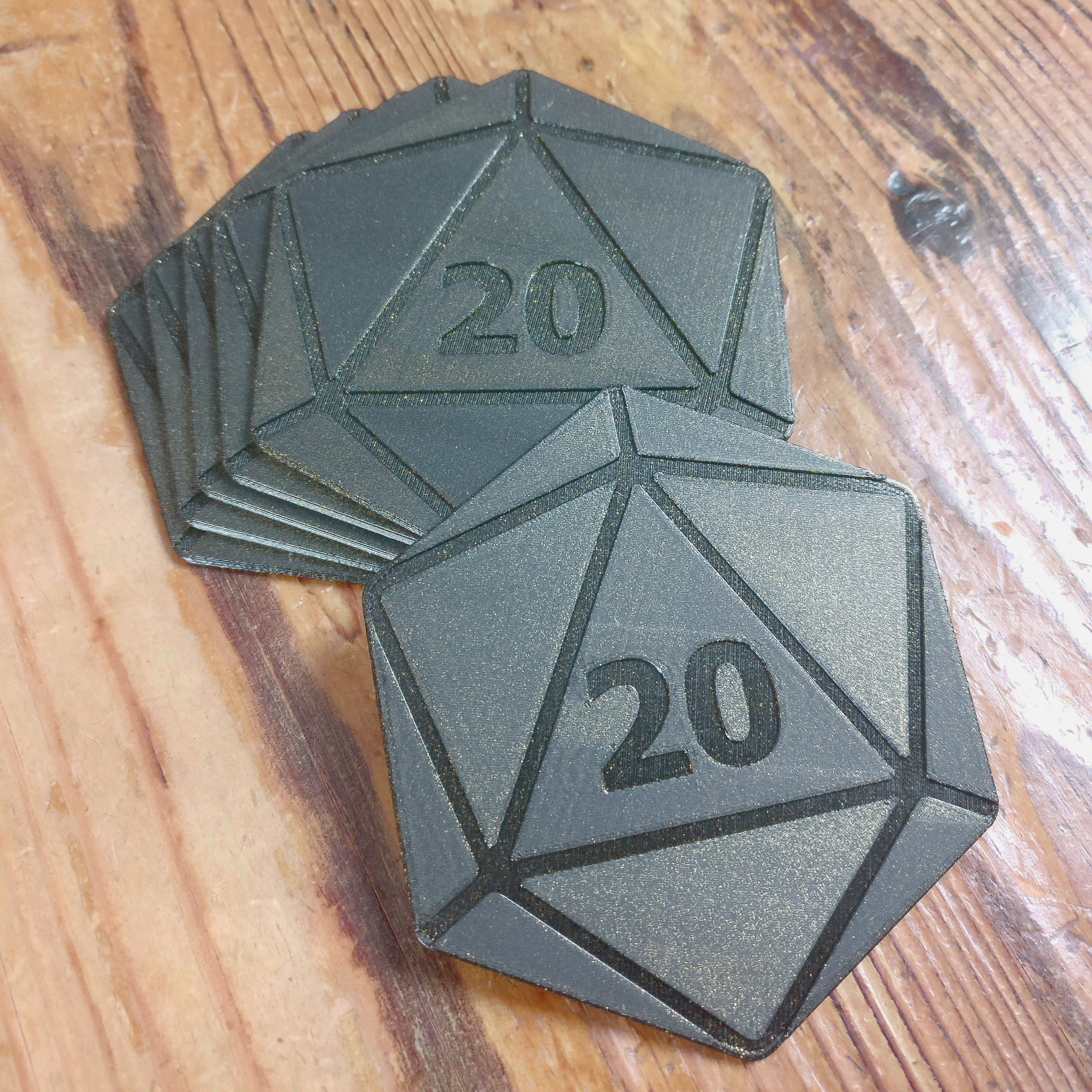

A must for Dungeons and Dragons game nights!
3D printing settings
0.24 layer height
5° hotter than your normal print temp.
0 extra skin wall count.
Compensate inner wall overlaps on (pre-Cura 5.0)
100 top layers
Monotonic ordering on (Cura 4.11+) for at least top surface and ironing.
Ironing Line spacing 0.15
3 top surface skin layers with lines pattern.
0.3mm top surface skin line width
Skin overlap should be the lowest that doesn't give gaps near de walls. I used 2% but some printers may need more.
Z-hop on at around 0.16mm
Ironing with Zig Zag pattern
Ironing flow needs to be tweaked for each printer/material. I used 8%
Ironing inset 0.15
Ironing Speed around 20- for shiny surface, 50+ for matte surface. I used 60.
Iroining acceleration 1500-2000 depending on your printer capabilities.
Ironing jerk 15-20 depending on your printer capabilities.
For printers without Linear advance, add Coasting at around 0.06mm³ if it's a bowden extruder or add 0.03mm³ if it's a direct drive.
3D printer file information
3D design format: STL Folder details Close
- D20 Coaster.stl
- 3D model size: X 84.2 × Y 74 × Z 2.12 mm
- Publication date: 2021/09/12 at 10:23
