Drone Chassis 3 Inches
:strip_icc():blur(20)/https://files.cults3d.com/uploaders/14277272/illustration-file/6dc0cef3-677e-4f68-bf60-a98a90ab09a3/DronPlanoV3_Inferior.png)
?
Creation's quality:
0.0/5
(0 votevotes)
Evaluation of members on the printability, utility, level of detail, etc.
Your rating:
0/5
- 647 views
- 2 likes
- 11 downloads
3D model description

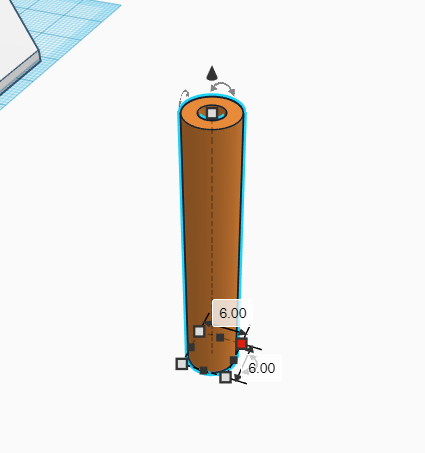

Drone chassis for 3 inches, flat 2 levels, just 100 grams of weight, connecting both levels with standard aluminum columns of 3 meters or made with printing (preferable) in TPU Flexible to absorb impacts.
Engines used: DYS BL1806 for 3 inches
3s, 4s or 5s battery holder and slider for gripper tape.
Standard electronic holes of 30.5 x 30.5 mm.
2 mm holes for the motors

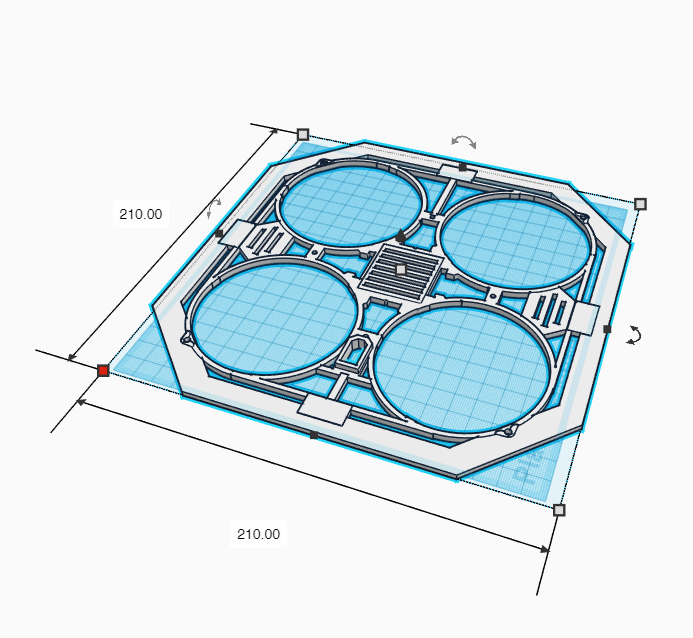

Measures: 210 x 210 x 4 mm.
It is very stable in flight, the ideal is to print it in PETG and the connection columns of both levels do it in TPU

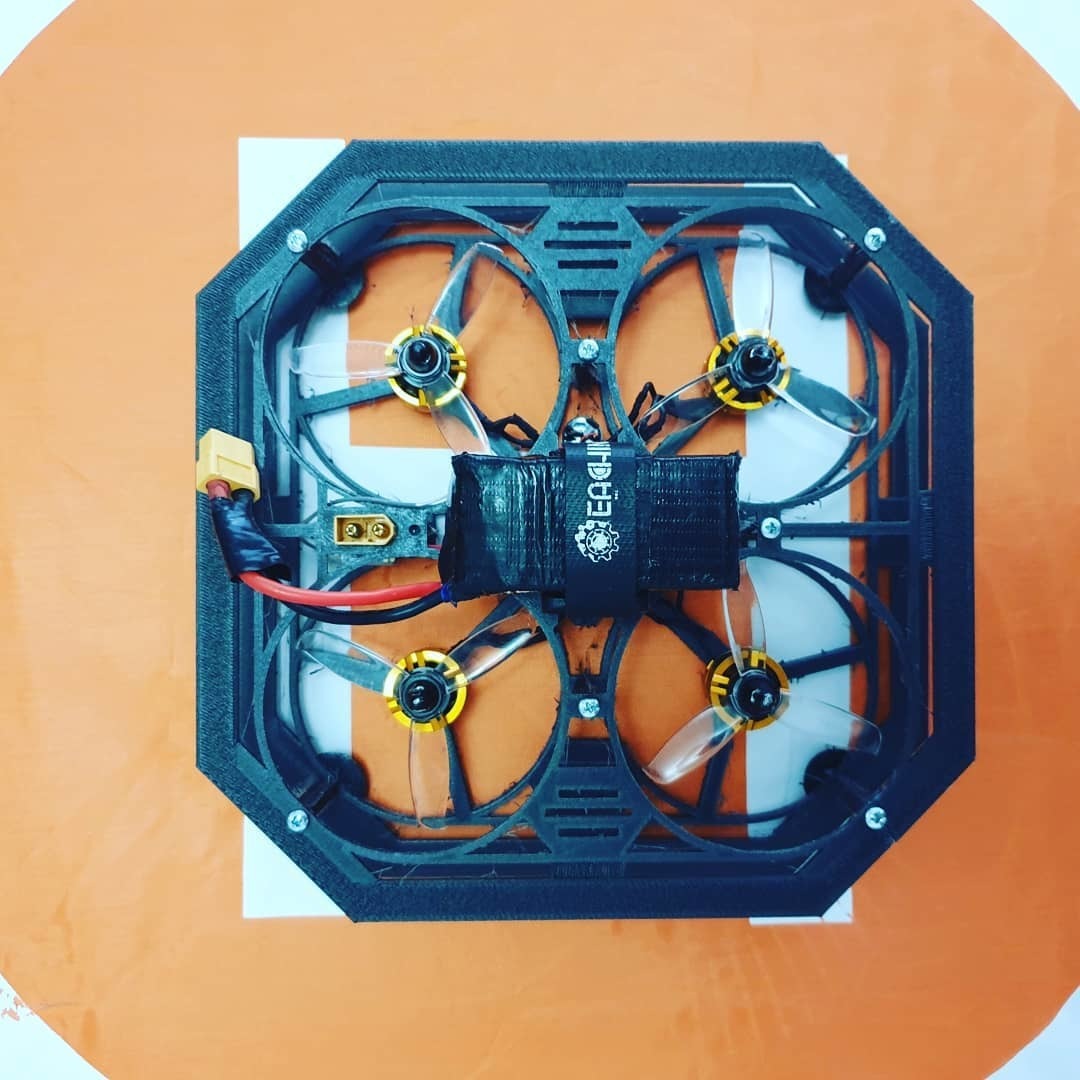

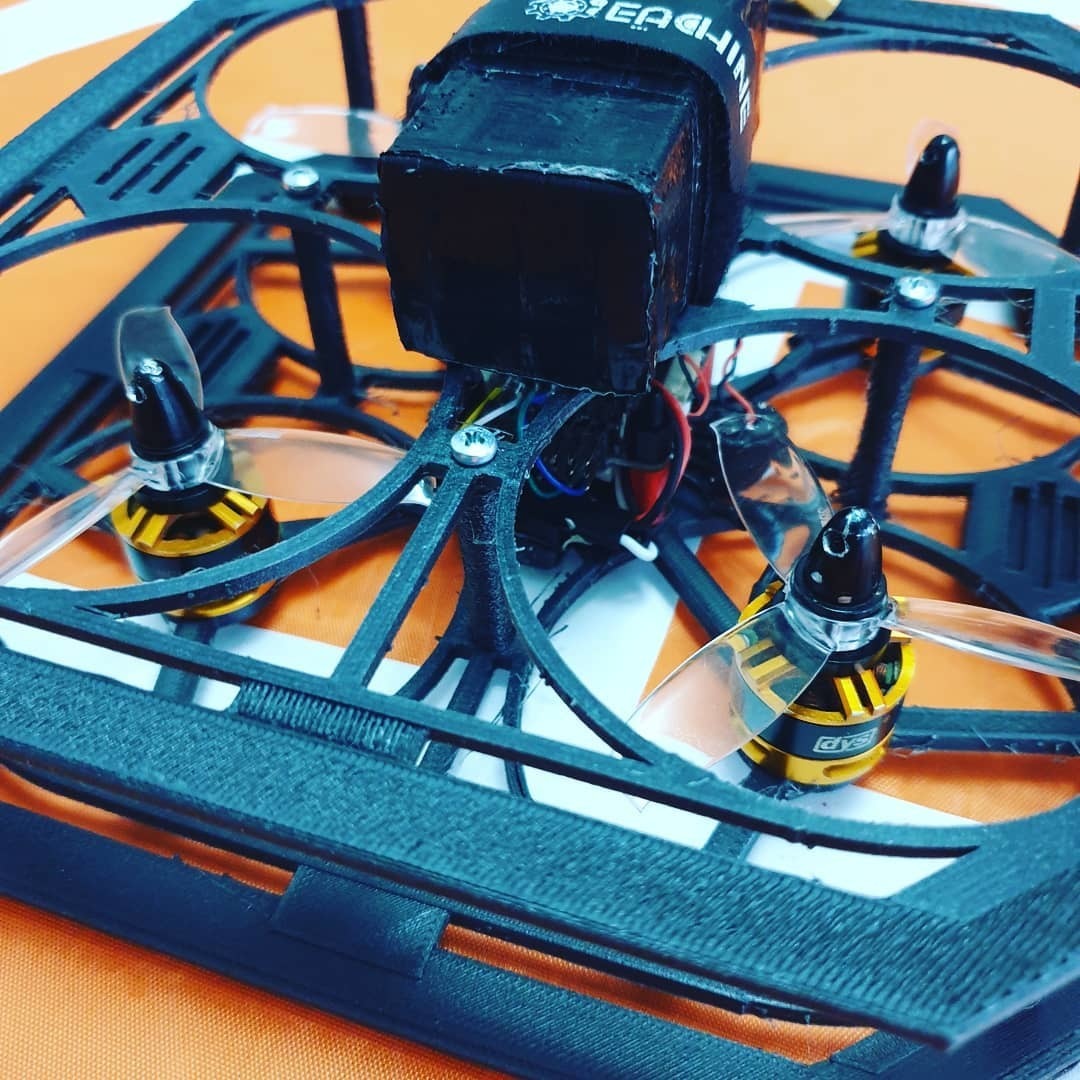

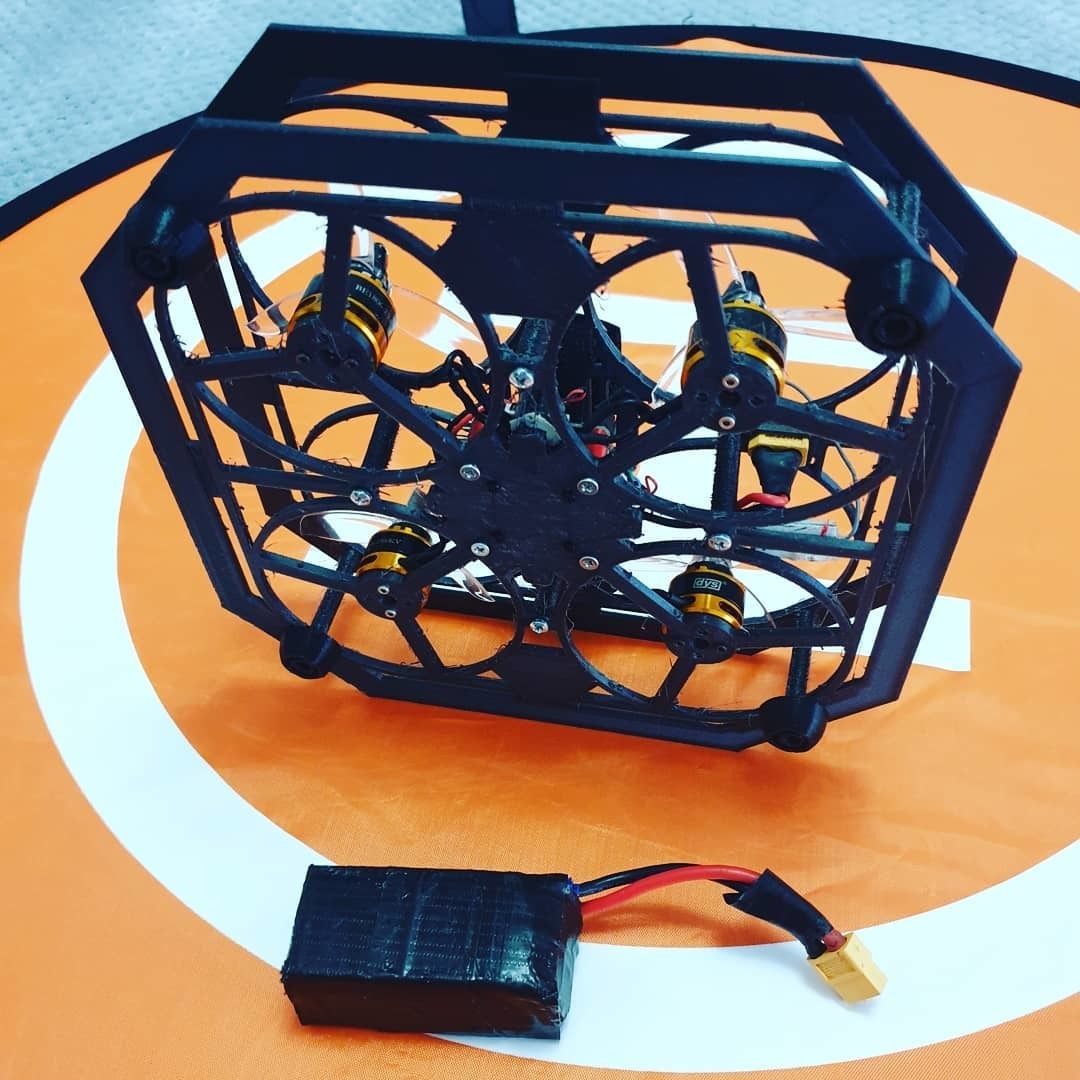

You can see this design printed and mounted on:
https://www.instagram.com/p/B_K4nKXnGPB/?utm_source=ig_web_copy_link
3D printing settings
Layer 0.25
Filler 50%.
No brackets
PLA / PETG / PLA+ Carbon
- 3D file format: STL
- Last update: 2020/05/18 at 18:58
- Publication date: 2020/04/23 at 11:45
