3D model description

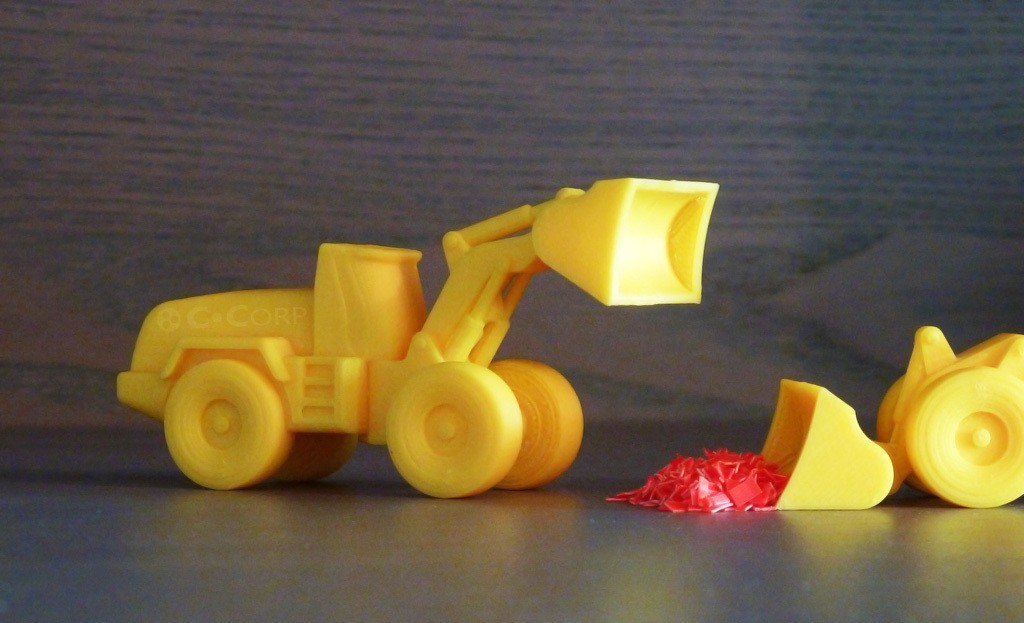

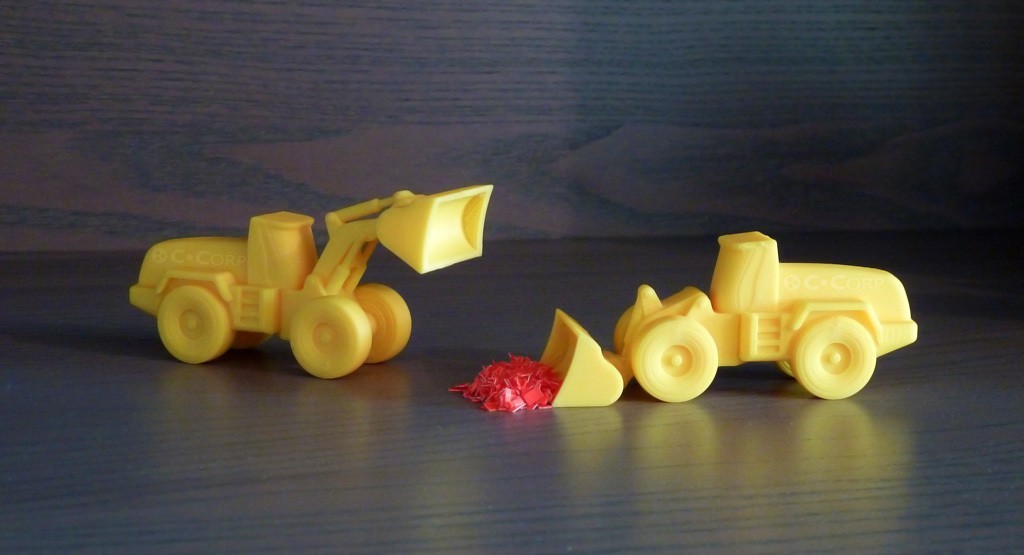

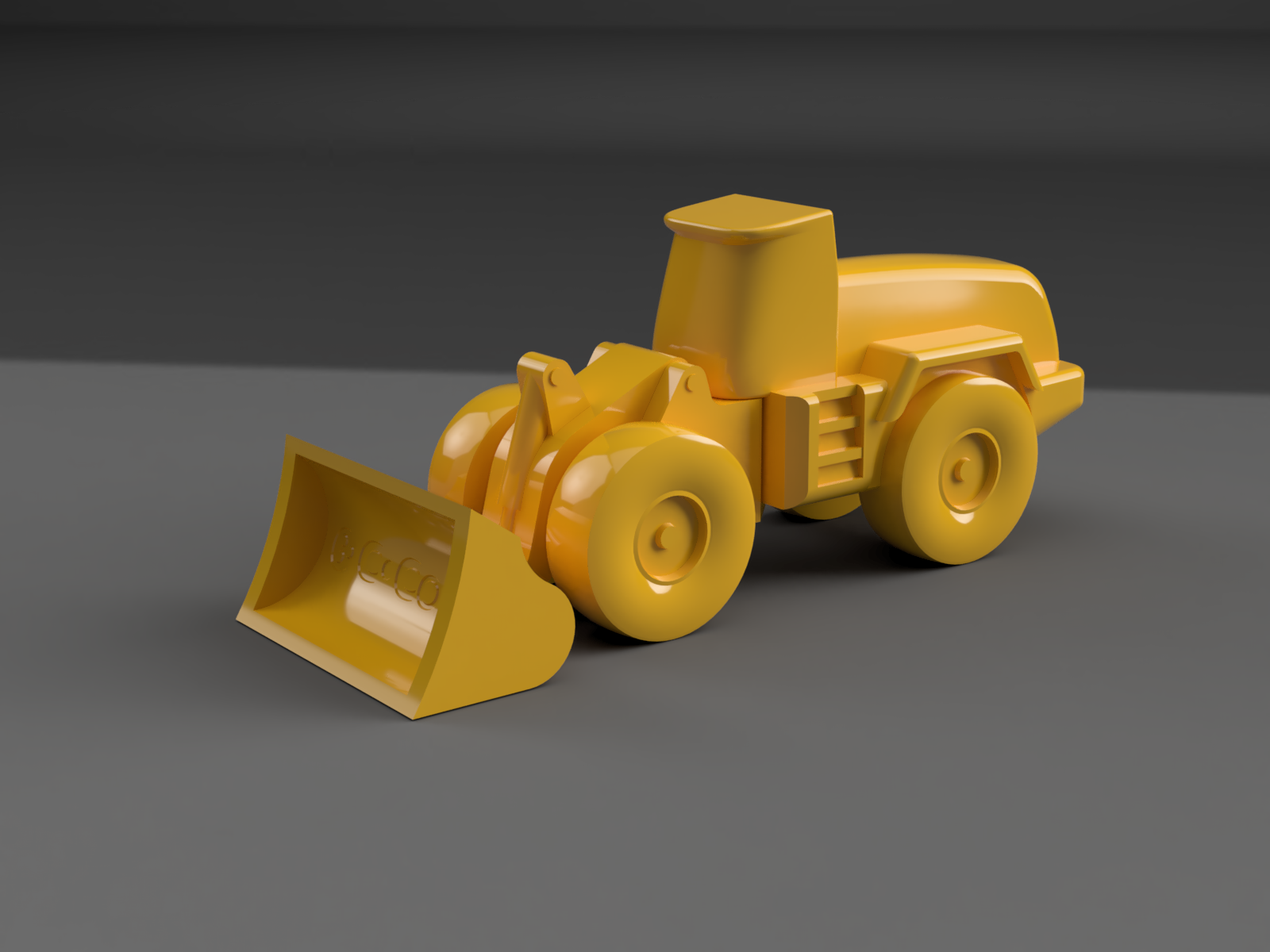

Parametric miniature loader model with 3 predefined bucket positions.

Printing:
Print both part of a model, as well as 3 centering pins.
Paste the pieces on one half, then paste the set

By modifying the original file Fusion 360 (http://a360.co/2reDwSw), you can customize the position of the bucket.
- Low bucket: alphaGodet = 90 °, alphaBras = 136 °, LV = 9mm
- Low bucket: alphaGodet = 50 °, alphaBras = 50 °, LV = 11mm
- Low bucket: alphaGodet = 125 °, alphaBras = 50 ° , LV = 9mm

It is preferable to modify the angles 10 ° by 10 ° to allow the sketch solver to follow.

For each model you want, print both sides plus 3 pins.
Glue the 3 pin on the first side, then assemble the two parts.

By edditing the original Fusion 360 file (available at http://a360.co/2reDwSw), you can make other bucket positions.
- Low bucket: alphaGodet = 90 °, alphaBras = 136 °, LV = 9mm
- Low bucket: alphaGodet = 50 °, alphaBras = 50 °, LV = 11mm
- Low bucket: alphaGodet = 125 °, alphaBras = 50 ° , LV = 9mm

Be sure to change the value 10 ° by 10 ° so the sketch solver follow.
