HO catenary (catenary)

Make
?
Creation's quality: 3.8/5 (4 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 9.7k views
  • 14 likes
  • 50 downloads

3D model description

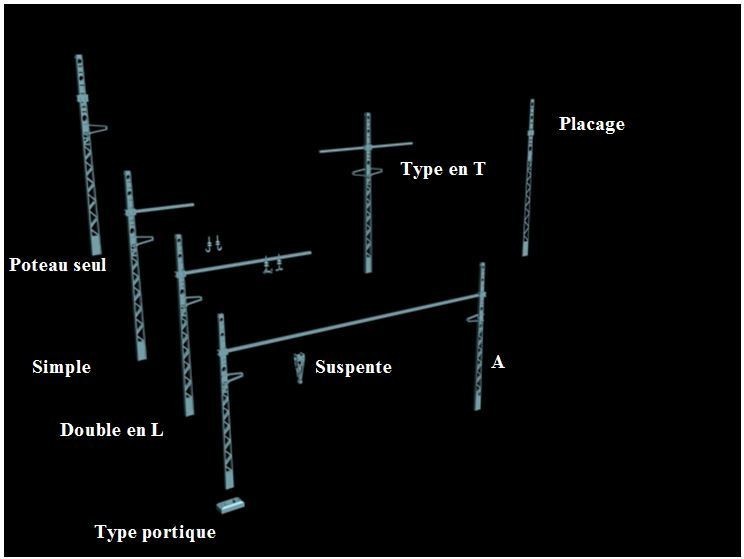

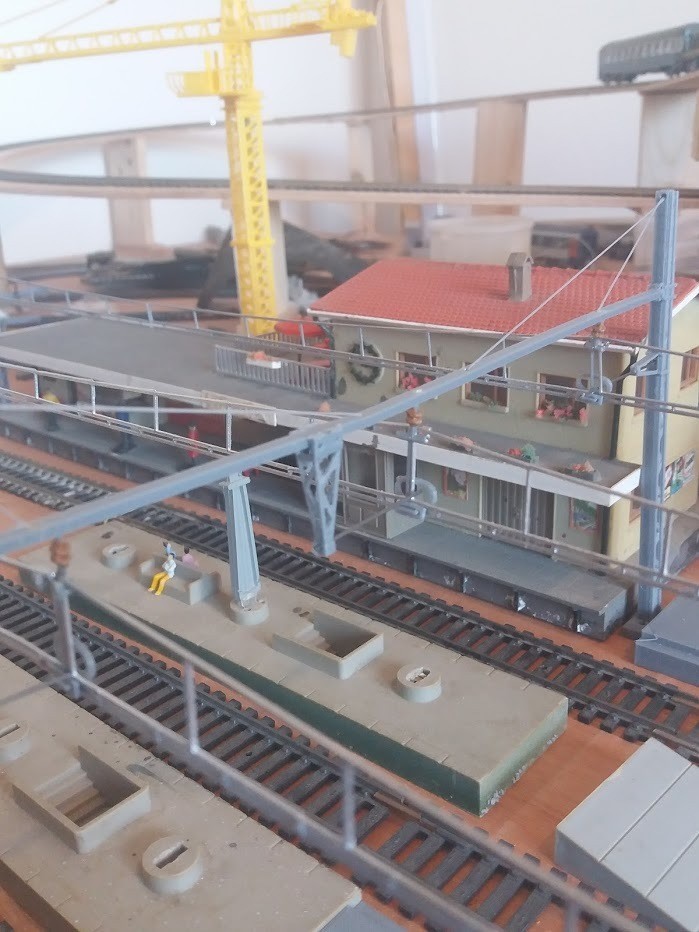

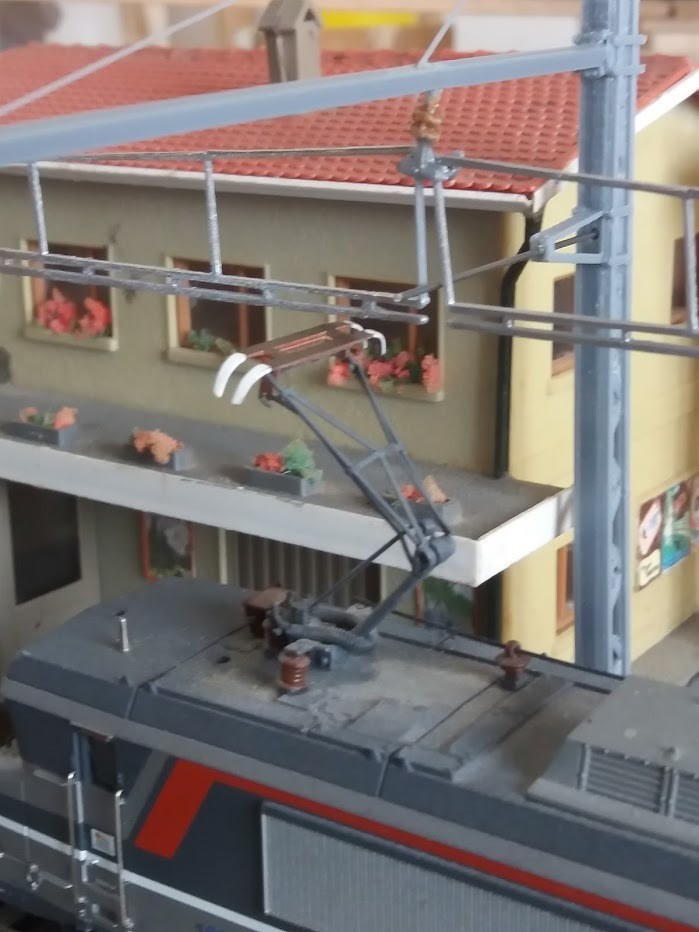

Here are five models of HO 1500v overhead contact line masts

The inverted L-type single mast

Type L inverted but for two channels

The T-type for two lanes

Then the 3-way gantry crane

  • 2 sizes of overhead lines, 2x20 and 13.5 cm

Each pylon is very detailed.

An instruction manual for printing is provided in pdf with images.

For ease of printing, the pylons should be printed flat.

So only the side towards the printer nozzle will have a real relief.

To have the same thing on the other side, the front of the pylon (very thin) will also be printed flat and then glued (like a veneer).

3D printing settings

Overall height of the pylons = 130mm

3D printer file information

  • 3D design format: STL and ZIP Folder details Close
    • 2x Poteau_catenaire_Double en L.STL
    • 2x traverse catenaire 3 voies.STL
    • Descriptif de montage.zip
    • Isolateur.STL
    • Isolateur_coulissant.STL
    • Isolateur_double.STL
    • Ligne aerienne_1500v_13,5 cm.STL
    • Ligne aerienne_1500v_demi40 cm.STL
    • Placage_poteau.STL
    • Poteau type portique 3voies.STL
    • Poteau_catenaire_Double en T_fixed.STL
    • Poteau_portique 3voies.STL
    • Poteau_simple.STL
    • Poteau_type L .STL
    • Semelle.STL
    • Suspente.STL

    Learn more about the formats

  • Last update: 2020/02/27 at 18:26
  • Publication date: 2017/10/15 at 14:27
