Bungee launcher pedal - 3d printed version

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 1.6k views
  • 7 likes
  • 77 downloads

3D model description

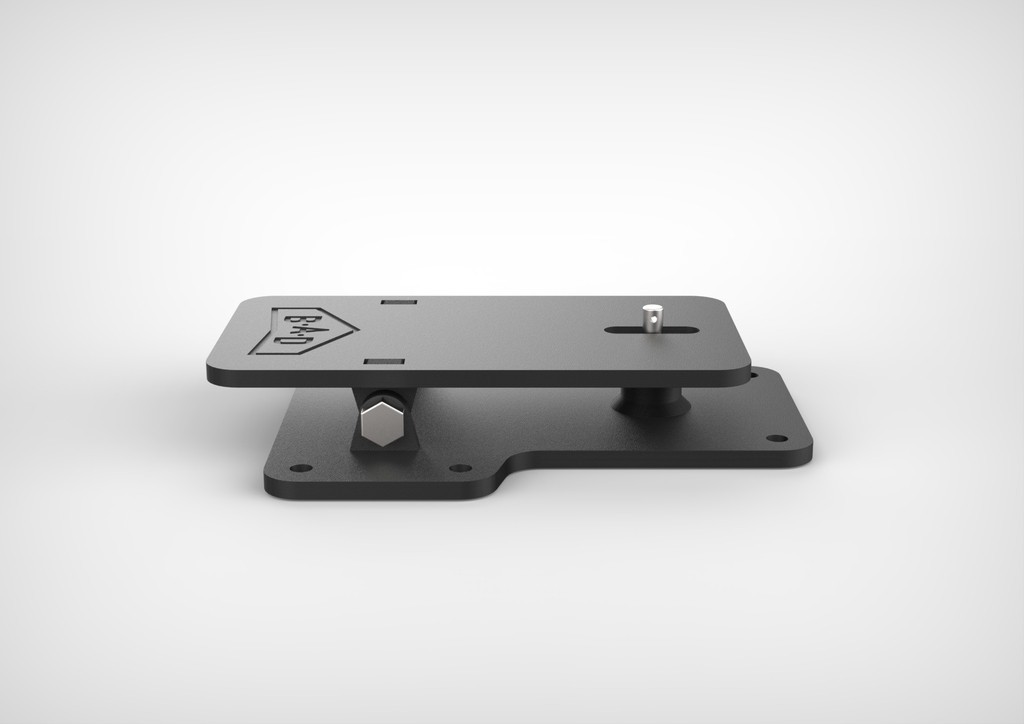

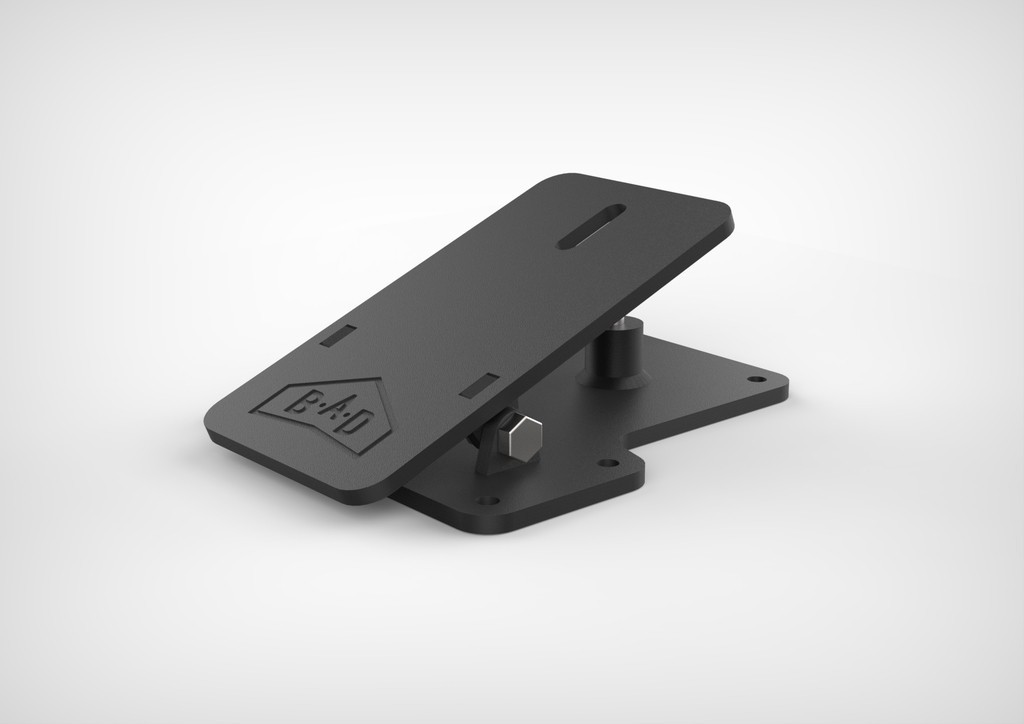

This is the 3d printed version of my bungee launcher pedal.

Pretty straight forward build:

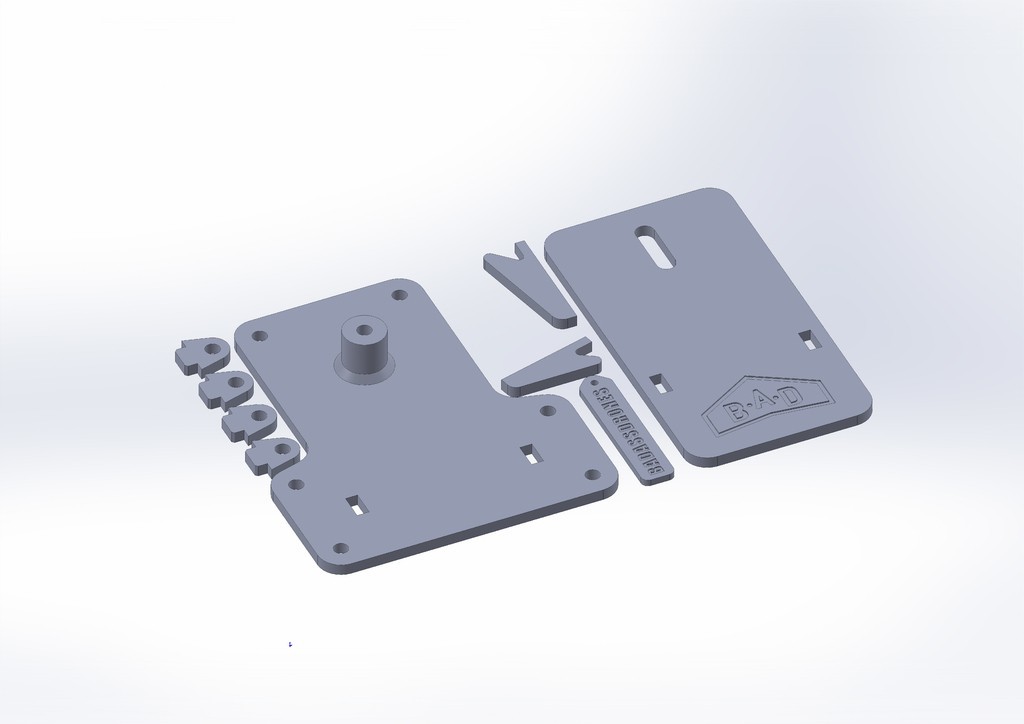

1) print all parts flat (base x1, pedal x1, pivot x4) with solid material and settings (e.g : PLA or ABS 1.2mm walls, 50% infill)

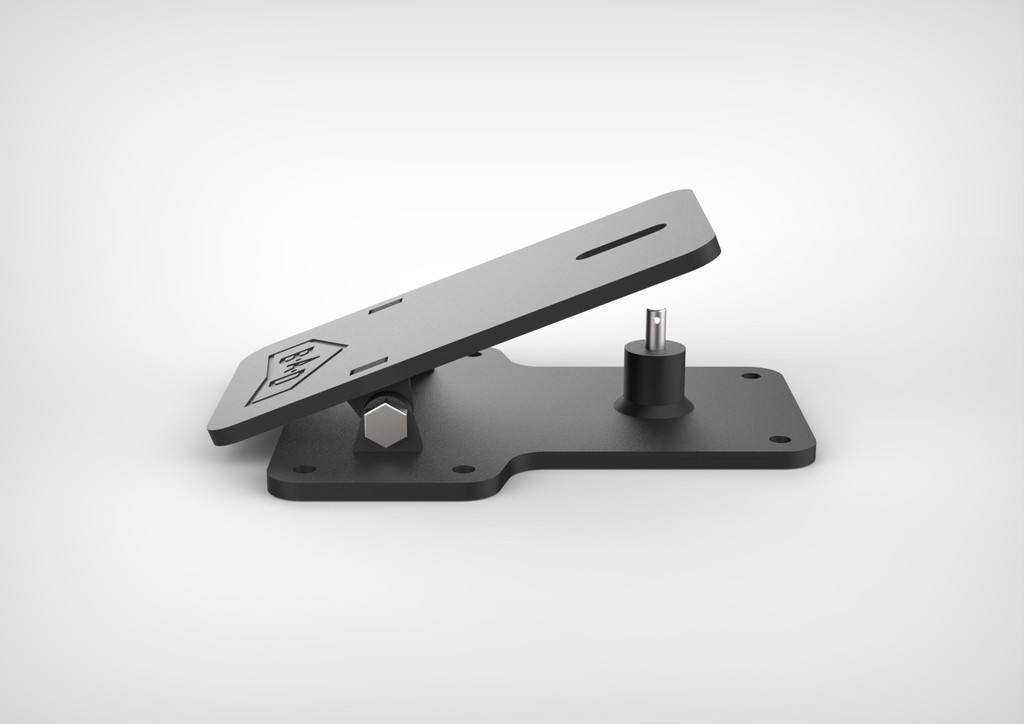

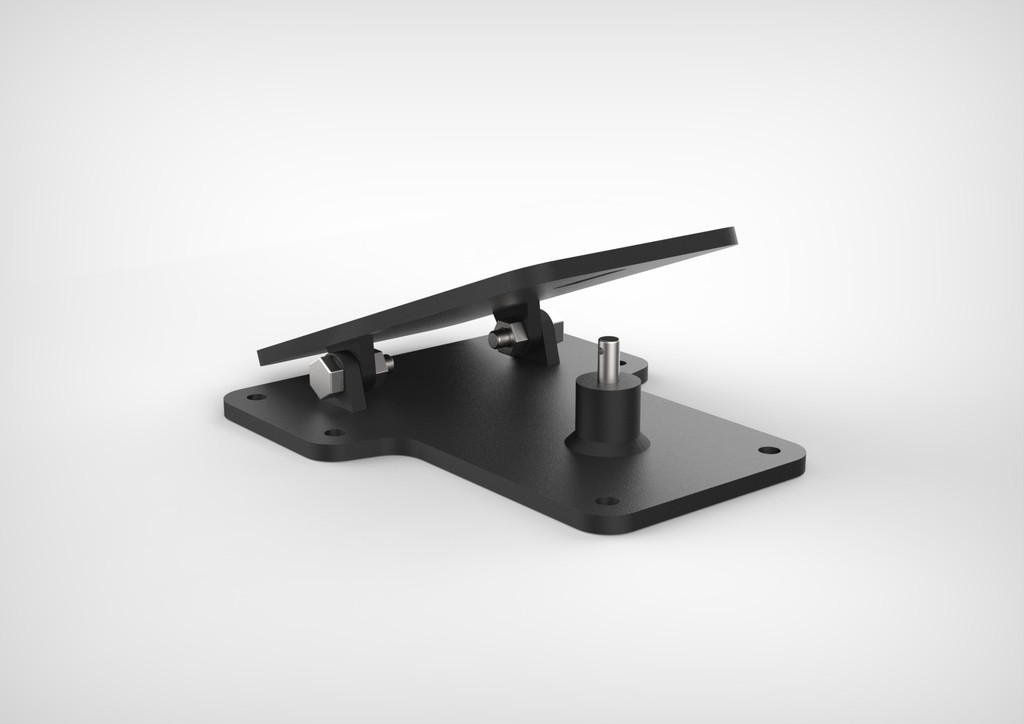

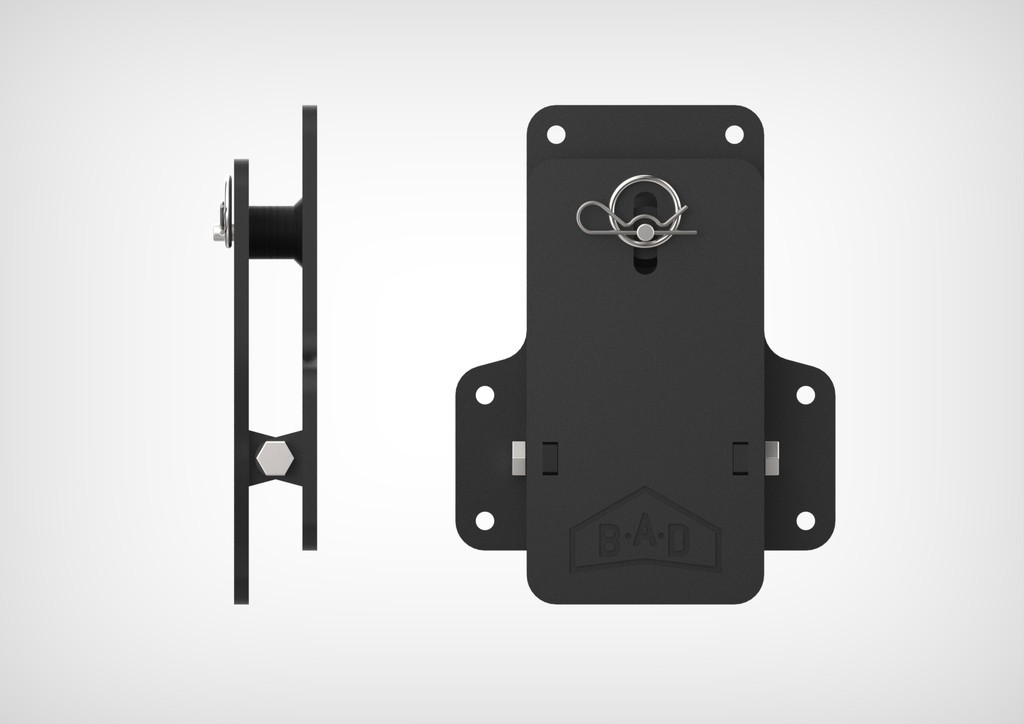

2) glue them together according to picture
3) assemble with 2 M6 20mm screws and 2 M6 bolts
4) glue a long M6 cutted screw or a solid plastic cylinder (e.g. PMMA) 6mm diameter

To complete the kit you'll need :

  • a 5-10m long bungee rope (6 to 9mm diameter depending on the weight of your plane)
  • few metal rings
  • a launching plateform (I'll post a file for this soon)
  • a metal safety pin
  • few tent pegs

Enjoy !

Alex,
comments and tips much appreciated ;)

  • 3D file format: STL
  • Publication date: 2018/08/31 at 10:27
