Brushless Shutter Bug

Creation's quality: 3.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.

3D model description

You are watching my latest FPV Whoop Quadctoper design. It has a rigid base, with 83mm motor distance.You may choose between the normal ducts or ducts with an additonaly saftey ring to get more rigidity. The AUW using 300mah Lipos is around 70grams. It can take up to 650mah Lipos. I have added a lipo cage for 300mah and will add one for 450mah and 650mah. Just pop it in at the hole in your baseframe. Print the lipocage with tpu.

I use the F7 All in one Cam but it will fit various FPV Cams, you may use stylesuxxs customizable cam mount. Base settings for each cam within this thingi will fit this frame. Best to print the cam mount in TPU. I also mounted small standoffs to the base of the FPV cam mount to gain some space.

I included the standoff that i used for mounting the ducts above the board. As the Crazybee F4 Pro V2.0 flightcontroler i use comes with further standoffs included, i did not add the bottom standoffs for the fc. But if you need other standoffs, feel free to have a look at my customizable standoff thingi.
You will need at least 3x 20mm M2 screws to fit the FC and ducts onto the baseframe. And 3x 5mm to fit the standoffs to the cam mount

I have used AMAX 1103 Motors for the build and had the best performance with Avans 2" 4 blade props.

For control i use the Frsky Taranis X - Lite and installed a FrSky XSR receiver.

I developed this frame for the "IGOW Contest" (International game of whoops). Since i activated the RPM filtering this bird is very smooth. You may watch my instagram video to get an impression.

At this moment i use GNB 2S 300mah Lipos they work great for acrobatics, but you dont get a lot of airtime, i guess the 450mah perform better. Using the 650mah lipos you get a lot of flight time but acrobatics are not as snappy.

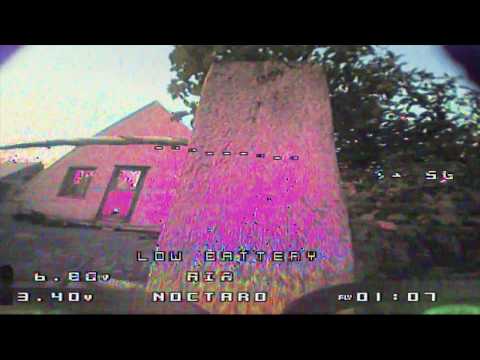

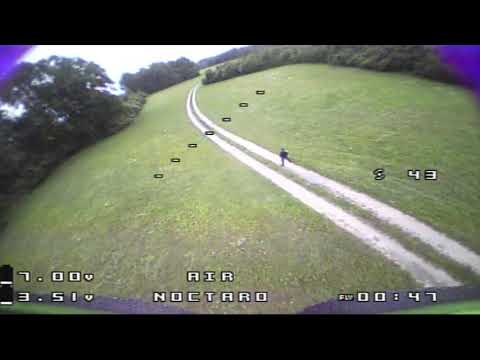

Instagram Video:

  • 3D file format: STL
  • Publication date: 2019/09/13 at 12:37
