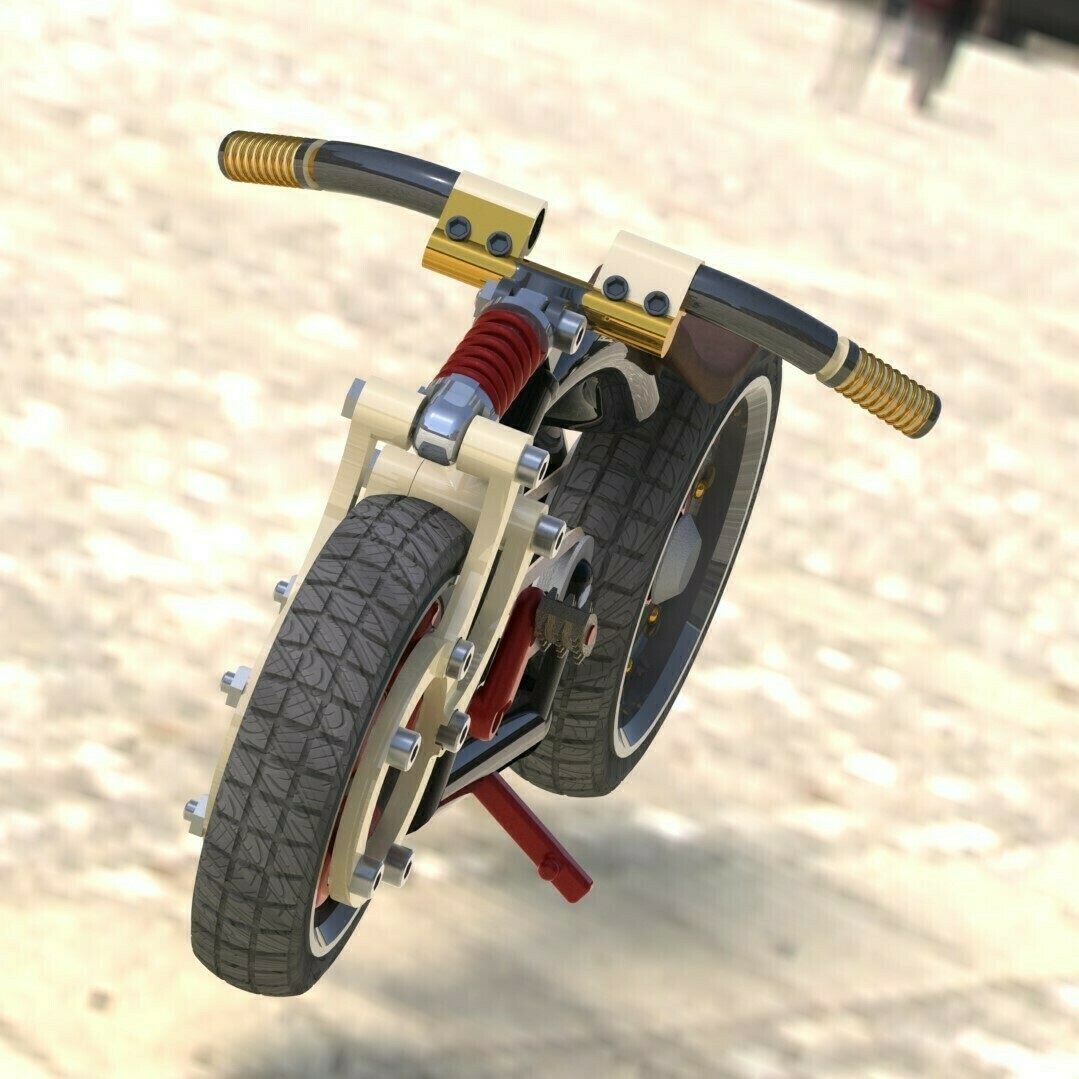

Scrambler bike 1/10

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 345 views
  • 2 likes

3D model description

Size:

scale 1-10 -(220 mm length approx., 80 mm width. Wheel diameter 63 mm.)

With functional power transmission plates by means of a rubber band, swivel castors.

All parts are designed so that they can be easily printed with the largest quantity.

Tires for greater realism of the model, use flexible filament with 0% filler (the more flexible the better).

The rest of the parts the pla or abs is very good.

You will find three types of files.

  1. The complete bike - 1 piece

  2. semi-assembled - 18 pieces, you will need glue to put the pieces together.

  3. completely disassembled piece by piece, you will need to assemble it - 23 pieces, in this one you will need some M3 x 12mm screws to assemble it.

3D printing settings

Quality: 0.12 mm

I recommend the highest possible quality so that small parts do not lose their original geometry.

Nozzle:

0,4 mm

Filling:

20% in solid parts.

0% on tyres.

Support:

5%

Perimeter:

1,2 mm

  • 3D file format: RAR and STL
  • Last update: 2021/04/12 at 03:17
  • Publication date: 2021/03/23 at 20:21
