ARTICULATED G1 TRANSFORMERS RATCHET - NO SUPPORT

?
Creation's quality: 5.0/5 (2 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 4.6k views
  • 37 likes
  • 544 downloads

3D model description

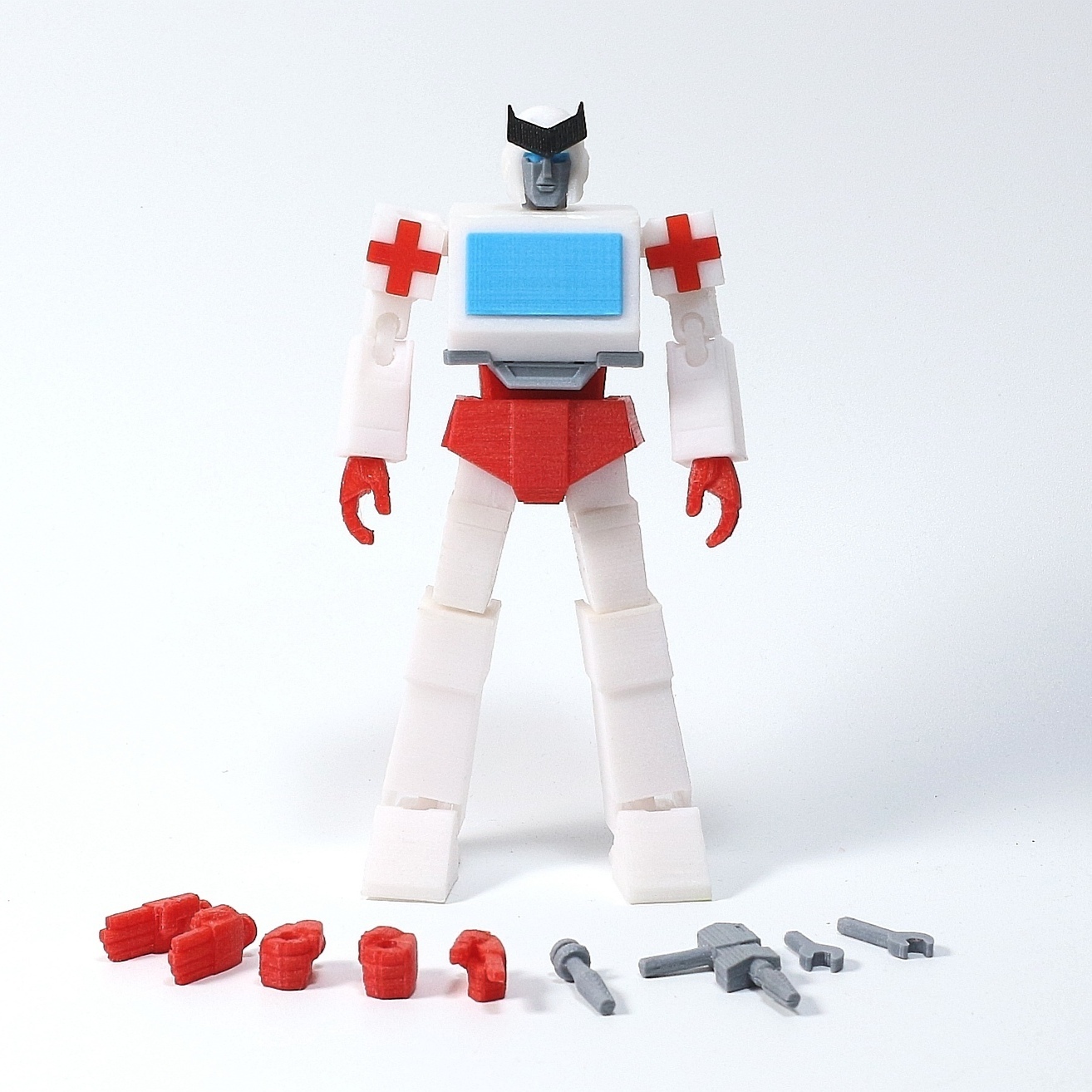

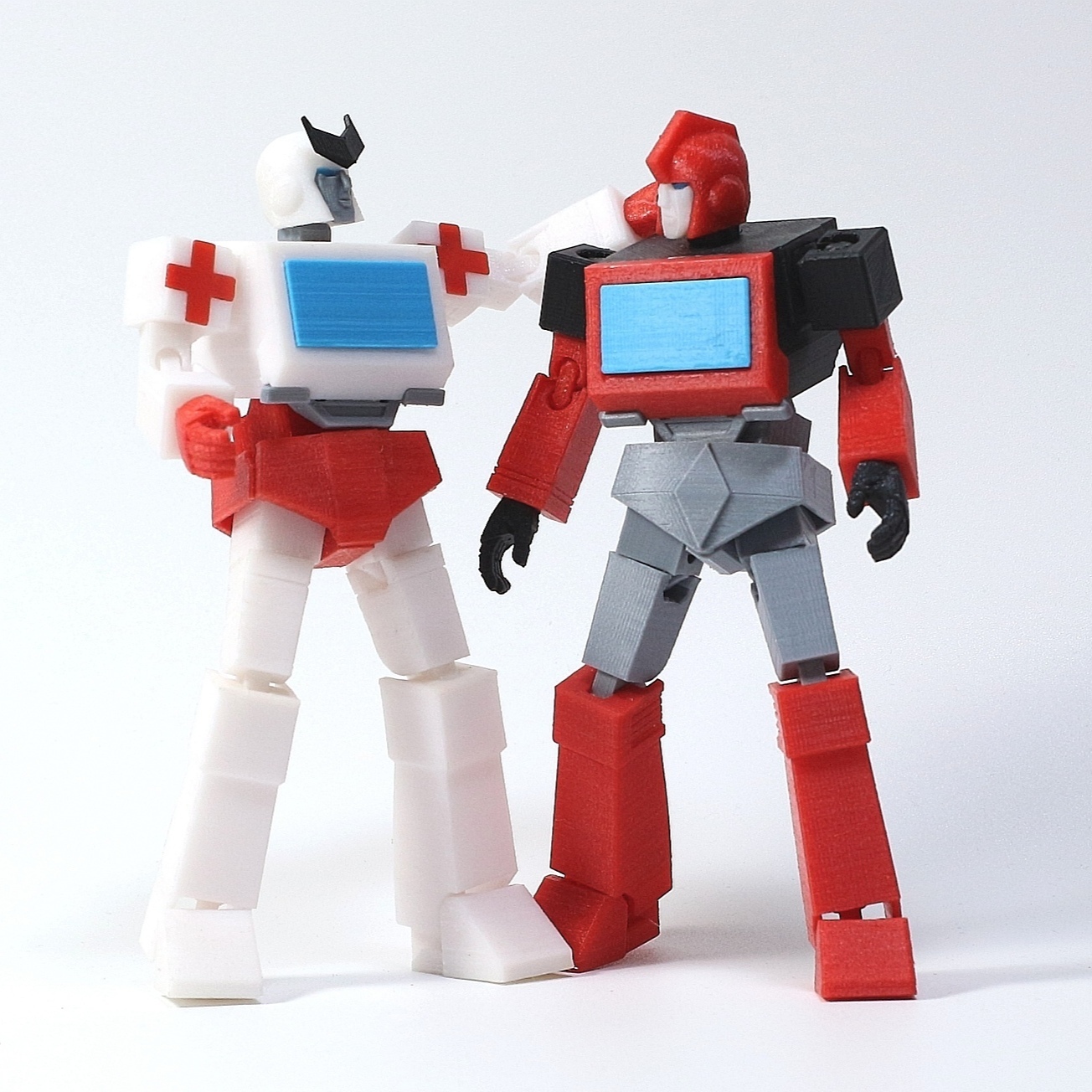

G1 Ratchet base on 1984 Transformers TV Series. This is fully articulated model but not transformable.

DISCLAIMER:
1. Contains small parts and requires high precision. Your printer may need to be properly calibrated for best results.
2. This model is for fan art purposes only. The original Transformers characters are the property of Hasbro/Takara Tomy. The creator is in no way associated with the owners.

Video Preview: https://youtu.be/8Uoerly3-qU
More updates: https://www.instagram.com/toymakr3d/

  • Skale: 1:30 (16.5cm)
  • Coloring can be done by using different color of filament (detail on files name)
  • No Supports
  • Gap tolerance: 0mm balljoint, 0.05mm swivel, 0.05 peg joint
  • Best print orientation for maximum strength result
  • Easy to print
  • Easy to assemble
  • Easy to rescale

Point of articulation:

  • Neck balljoint
  • Abdomen balljoint
  • Shoulders balljoint
  • Upper arm swivel joint
  • Elbow double balljoint
  • Wrist swivel
  • Waist swivel
  • Hip balljoint
  • Thigh swivel joint
  • Knee doble balljoint
  • Ankle balljoint
  • Toe swivel

Accesories:
- Gun
- Wrench
- Arm Cannon

Important Tips:
- Cutter or sand paper for tolerance adjustment
- Super glue for splited parts
- Use nail polish to fix loose ball joint


3D printing settings

Sample Print Setting:
- Nozzle: 0.4mm
- Layer: 0.15mm
- Filamen: PLA
- Temperature: 195°C
- Speed: 40/s
- Skin/top/bottom: 0.8mm
- Infill: 30%

3D printer file information

  • 3D design format: STL and ZIP Folder details Close
    • 10_Rat_Body5_Abdomen_RED.stl
    • 11_Rat_Hand1_Shoulders_WHITE.stl
    • 12_Rat_Hand2_Shoulders2_RED.stl
    • 13_Rat_Hand3_Top_WHITE.stl
    • 14_Rat_Hand4_Elbowjoint_WHITE.stl
    • 15_Rat_Hand5_Bottom_WHITE.stl
    • 16_Rat_Hand6_Fist_RED.stl
    • 16_Rat_Hand6_Pointed_RED.stl
    • 16_Rat_Hand6_Relax_RED.stl
    • 16_Rat_Hand6_Salute_RED.stl
    • 17_Rat_Waist1_Main_RED.stl
    • 18_Rat_Waist2_Side_RED.stl
    • 19_Rat_Waist3_Front_RED.stl
    • 1_Rat_Head1_Helmet_WHITE.stl
    • 20_Rat_Waist4_Hips_RED.stl
    • 21_Rat_Leg1_Hip_WHITE.stl
    • 22_Rat_Leg2_Thigh_WHITE.stl
    • 23_Rat_Leg3_Kneejoint_WHITE.stl
    • 24_Rat_Leg4_MainLeft_WHITE 2.stl
    • 24_Rat_Leg4_MainRight_WHITE 2.stl
    • 25_Rat_Leg5_Anklejoint_WHITE.stl
    • 26_Rat_Leg6_Bottom_WHITE.stl
    • 27_Rat_Leg7_Bottom2_WHITE.stl
    • 28_Rat_Gun_GREY.stl
    • 29_Rat_Wrench_GREY.stl
    • 2_Rat_Head2_Face_GREY.stl
    • 30_Rat_ArmCannon_GREY.stl
    • 3_Rat_Head3_Eyes_LIGHTBLUE.stl
    • 4_Rat_Head4_Antenna_BLACK.stl
    • 5_Rat_Head5_Neck_GREY.stl
    • 6_Rat_Body1_Main_WHITE.stl
    • 7_Rat_Body2_ShoulderJoint_WHITE.stl
    • 8_Rat_Body3_Glass_LIGHTBLUE.stl
    • 9_Rat_Body4_Headlight_GREY.stl

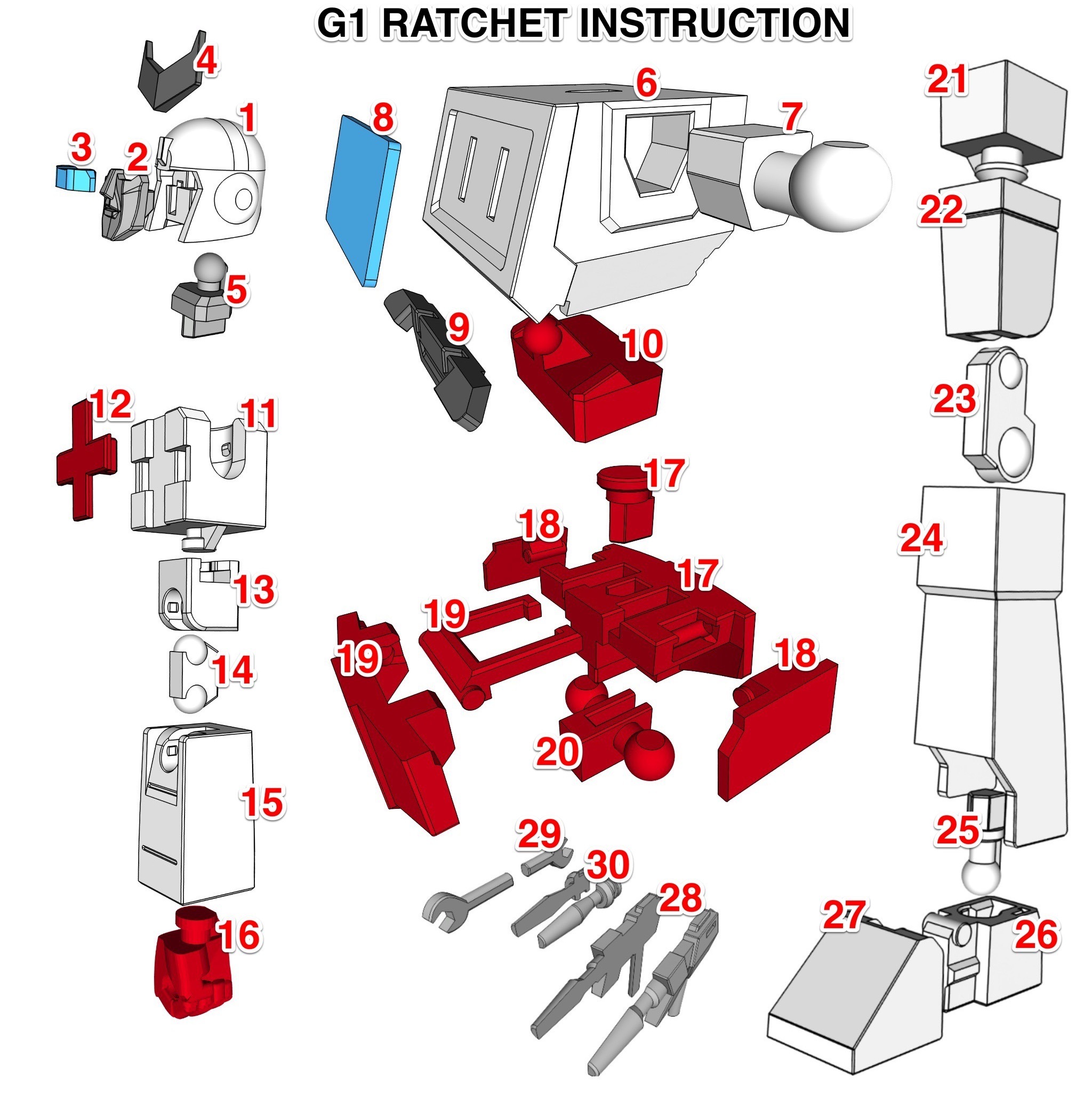

    • Ratchet_Instruction-1.zip

    Learn more about the formats

  • Last update: 2020/09/09 at 05:00
  • Publication date: 2020/04/19 at 02:04
