ARTICULATED G1 TRANSFORMERS OPTIMUS PRIME - NO SUPPORT

?
Creation quality: 4.9/5 (9 votes)
Evaluation of members on the printability, utility, level of detail, etc.

3D model description

Video preview: https://youtu.be/FvW6aTGwAzE
More updates: https://www.instagram.com/toymakr3d/

DISCLAIMER:
1. Contains small parts and requires high precision. Your printer may need to be properly calibrated for best results.
2. This model is for fan art purposes only. The original Transformers characters are the property of Hasbro/Takara Tomy. The creator is in no way associated with the owners.

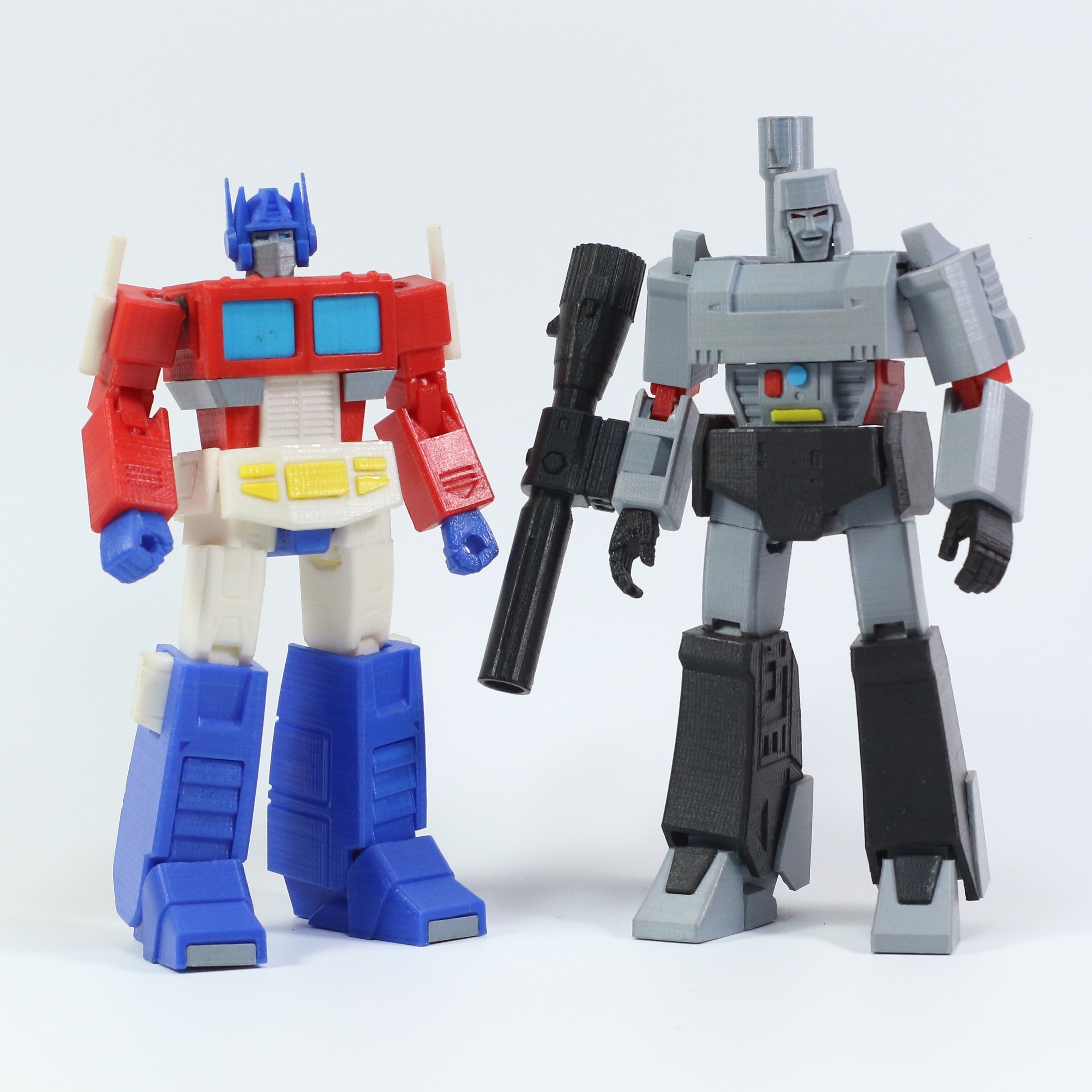

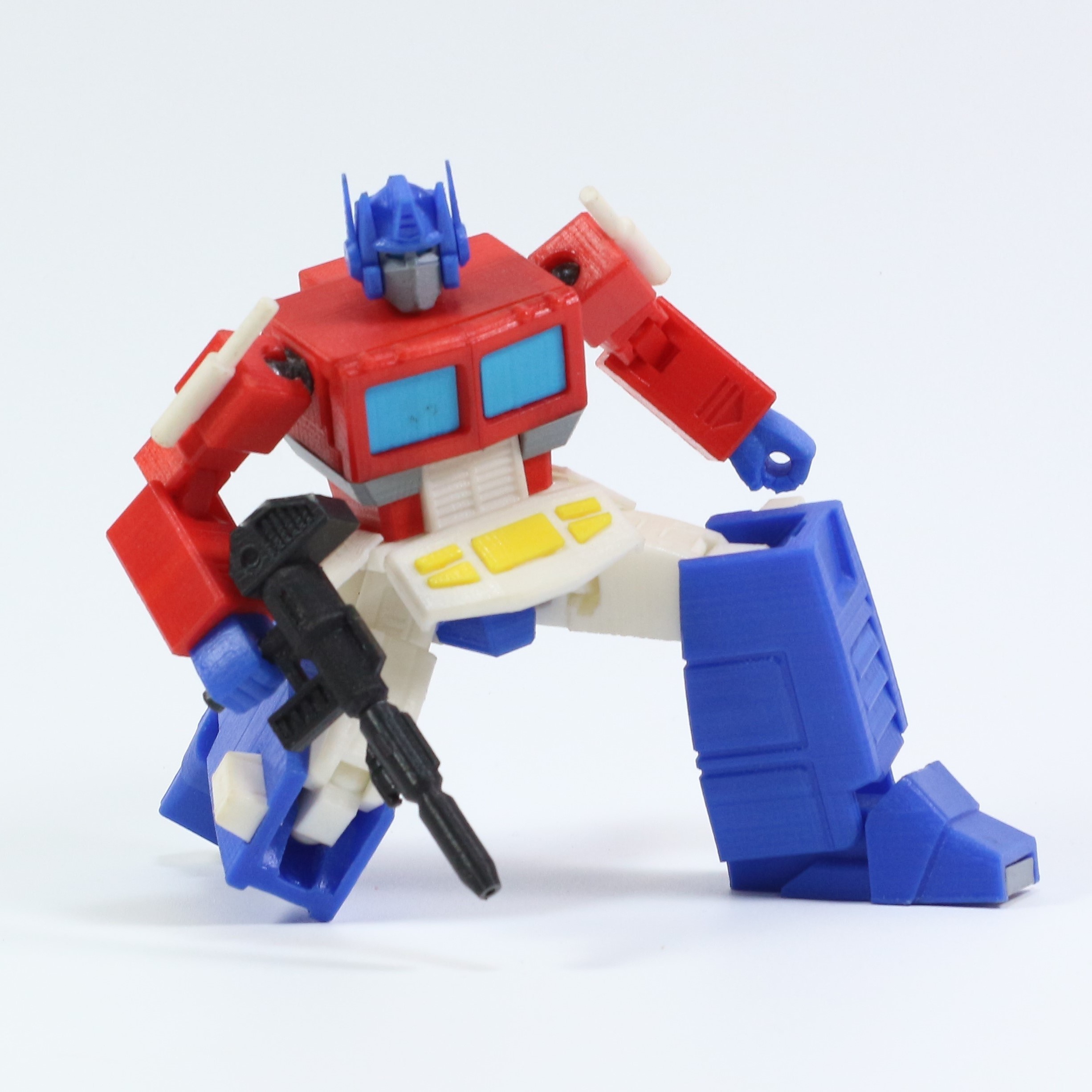

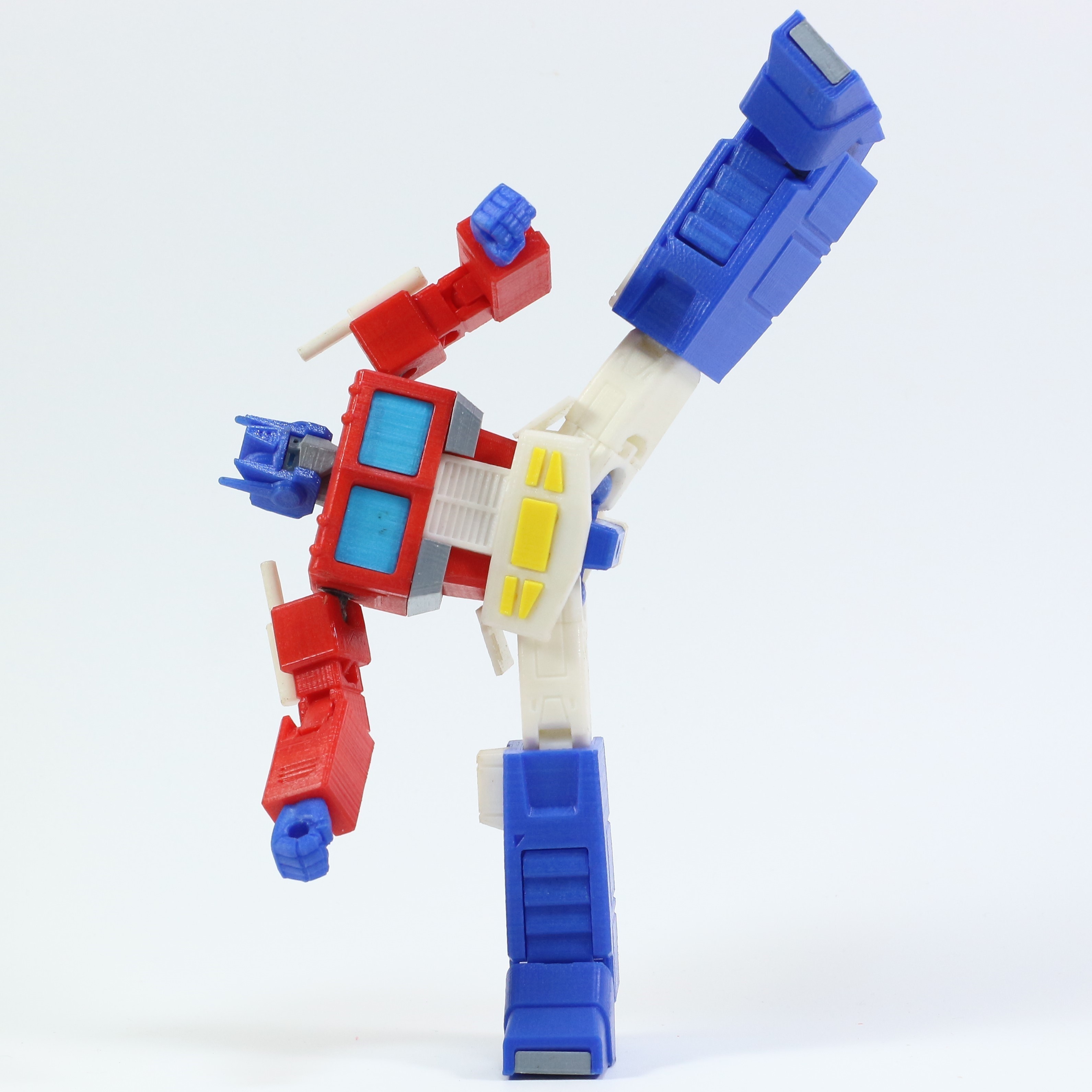

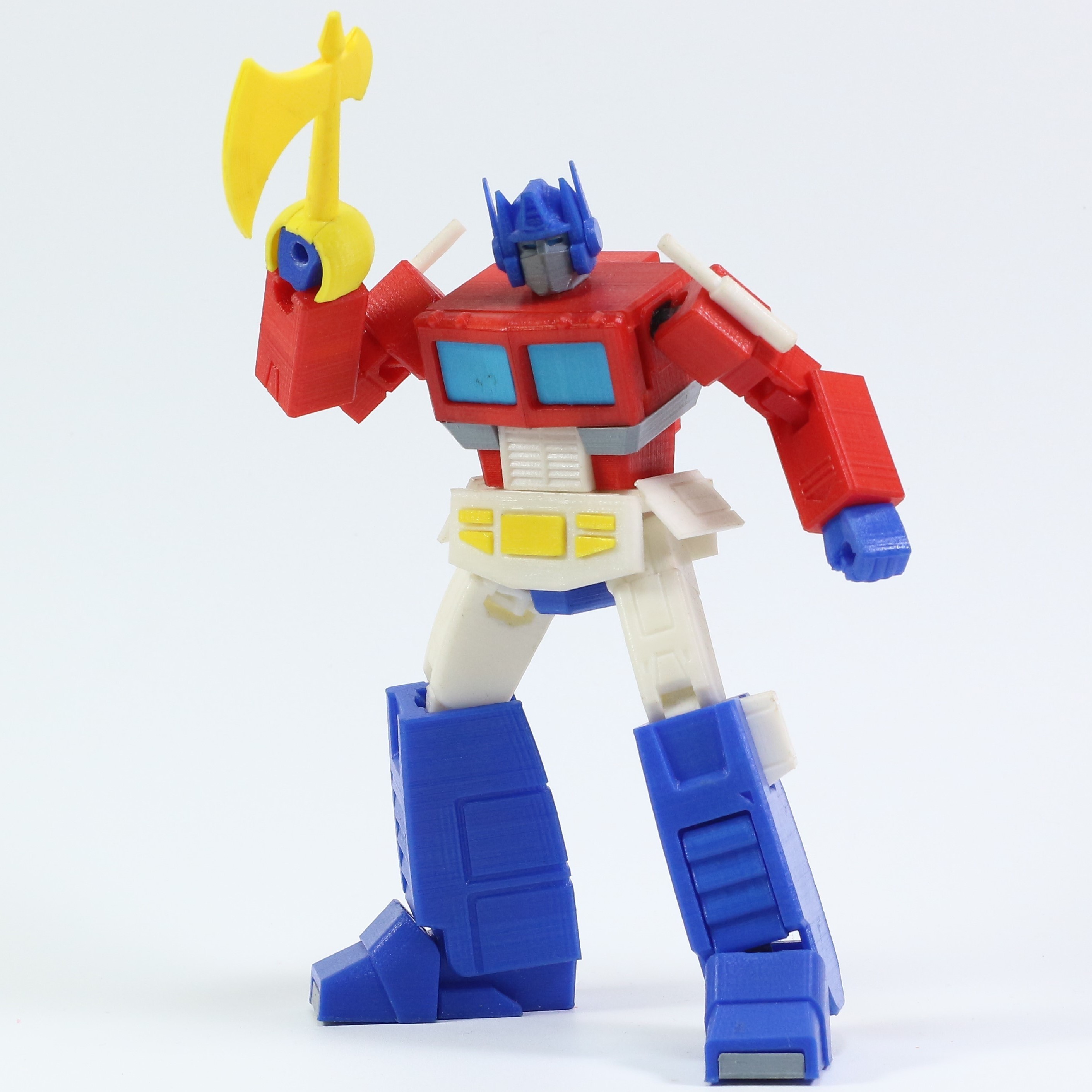

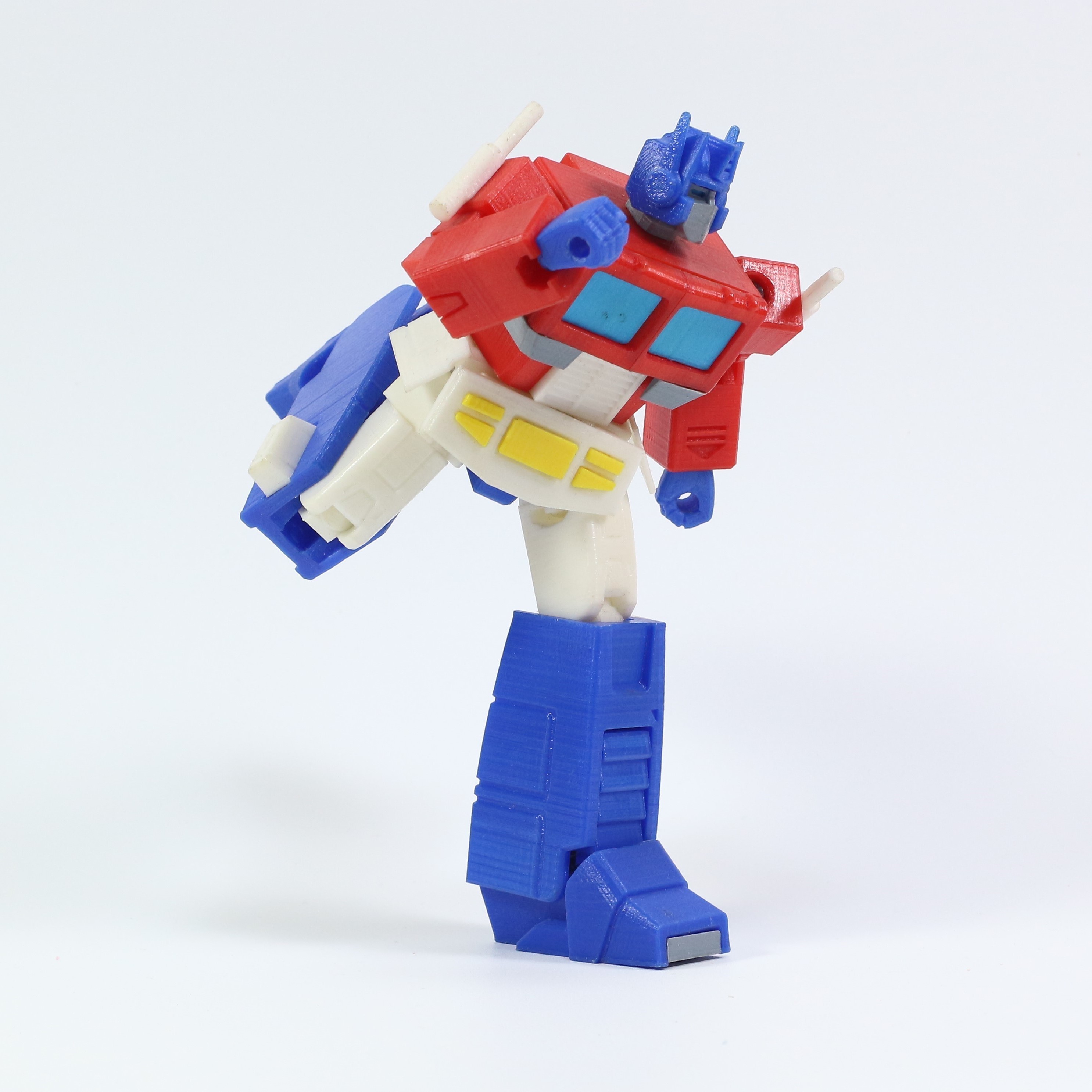

G1 Optimus Prime base on 1984 Transformers TV Series. This is fully articulated model but not transformable.
- Skale: 1:30 (20cm)
- Coloring can be done by using different color of filamen (detail on files name)
- No Supports
- Gap tolerance: 0mm balljoint, 0.05mm swivel, 0.05 peg joint
- Best print orientation for maximum strength result
- Easy to print
- Easy to assemble
- Easy to rescale

Point of articulation:
1. Neck balljoint
2. Abdomen balljoint
3. Shoulders balljoint
4. Upper arm swivel joint
5. Elbow double balljoint
6. Wrist swivel
7. Waist swivel
8. Hip balljoint
9. Thigh swivel joint
10. Knee doble balljoint
11. Ankle balljoint
12. Toe swivel

Accesories:
- Gun
- Enegon axe
- Matrix Of Leadership

Important Tips:
- Cutter or sand paper for tolerance adjustment
- Super glue for split parts
- Use nail polish to fix loose ball joint

Note:
Email me toymakr3d@gmail.com if you got any error
Enjoy, Like, and Share


3D printing settings

  • Nozzle: 0.4mm
    • Layer: 0.1mm
    • Filamen: Esun PLA+
    • Temperature: 205°C
    • Speed: 40/s
    • Skin/top/bottom: 0.8mm
    • Infill: 40%

3D printer file information

  • 3D design format: STL and ZIP Folder details Close
    • 1.Head1_Helmet_(Blue).stl
    • 10.Chest6_Shoulderjoint_(Black).stl
    • 11.Chest7_Abdomen_(Red).stl
    • 12.Chest8_AbdomenFront_(White).stl
    • 13.Chest9_Backpack1_(Red).stl
    • 14.Chest10_Backpack2_(Grey).stl
    • 15.Hand1_Shoulder1_(Red).stl
    • 16.Hand2_Shoulder2_Exhaust_(White).stl
    • 17Hand3_Middle_(Red).stl
    • 18.Hand4_Elbowjoint_(Red).stl
    • 19.Hand5_Bottom_(Red).stl
    • 2.Head2_Face_(Grey).stl
    • 20.Hand6_Fist_(Blue).stl
    • 20.Hand6_Fist_(UpdatedNormal)_(Blue).stl
    • 20.Hand6_Fist_(UpdatedPointed)_(Blue).stl
    • 20.Hand6_Fist_(UpdatedSalute)_(Blue).stl
    • 21.Waist1_Main_(White).stl
    • 22.Waist2_Front_(White).stl
    • 23.Waist2_Front2_(Yellow).stl
    • 24.Waist4_Side_(White).stl
    • 25.Waist5_Back_(Red).stl
    • 26.Waist6_Bottom_(Blue).stl
    • 27.Leg1_Thigh1top_(White).stl
    • 28.Leg2_Thigh2bottom_(White).stl
    • 29.Leg3_Kneejoint_(White).stl
    • 3.Head3_Eyes_(LightBlue).stl
    • 30.Leg4_FootRight_(Blue).stl
    • 31.Leg5_FootLeft_(Blue).stl
    • 32.Leg6_Foot2_Gastank_(White).stl
    • 33.Leg7_Foot3_Front_(Blue).stl
    • 34.Leg8_Angklejoint_(Black).stl
    • 35.Leg9_Bottom1_(Blue).stl
    • 36.Leg10_Bottom2_(Blue).stl
    • 37.Leg11_Bottom3_(Grey).stl
    • 38.Acc1_Gun_(Black).stl
    • 39.Acc2_Axe_(Yellow).stl
    • 4.Head4_Neck_(Grey).stl
    • 40.Acc3_Matrix_(Grey).stl
    • 5.Chest1_Main_(Red).stl
    • 6.Chest2_Inside_(Grey).stl
    • 7.Chest3_Window_(Red).stl
    • 8.Chest4_Glass_(LightBlue).stl
    • 9.Chest5_Bottom_(Grey).stl
    • Optimus_Prime_Instruction.zip

    Learn more about the formats

  • Last update: 2020-09-09 at 04:59
  • Publication date: 2020-02-01 at 16:23
