ARTICULATED G1 TRANSFORMERS BUMBLEBEE - NO SUPPORT

?
Creation's quality: 5.0/5 (5 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 6.6k views
  • 51 likes
  • 499 downloads

3D model description

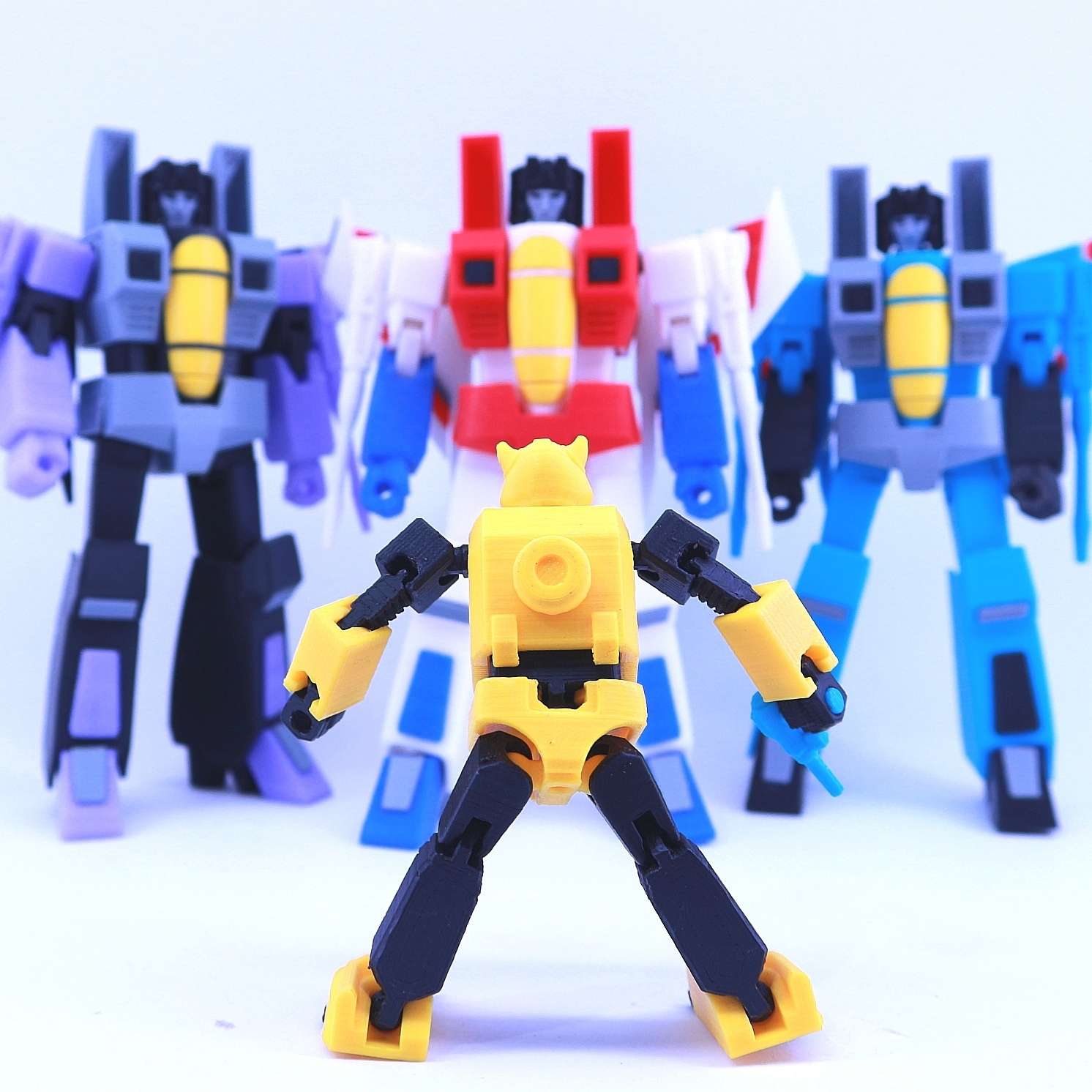

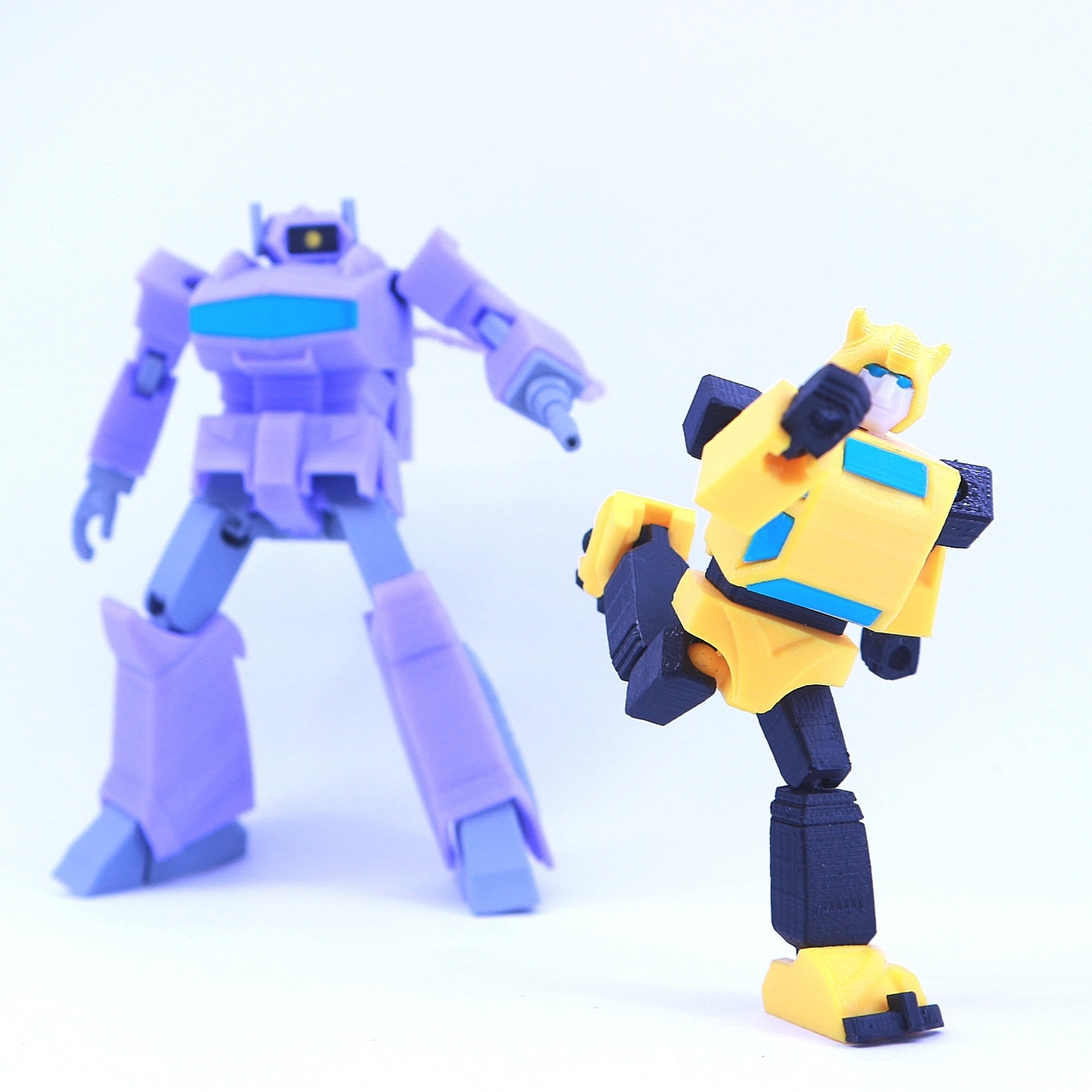

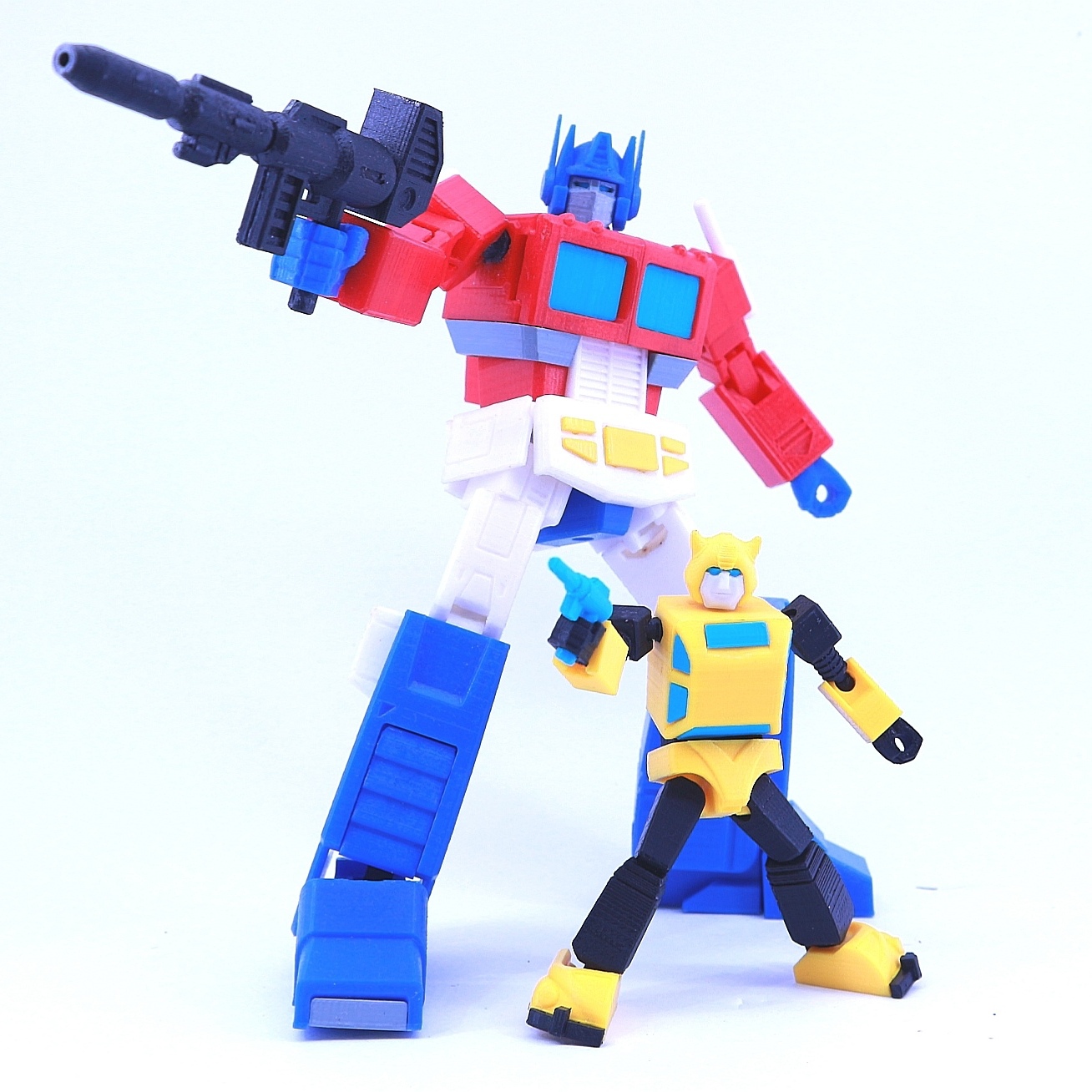

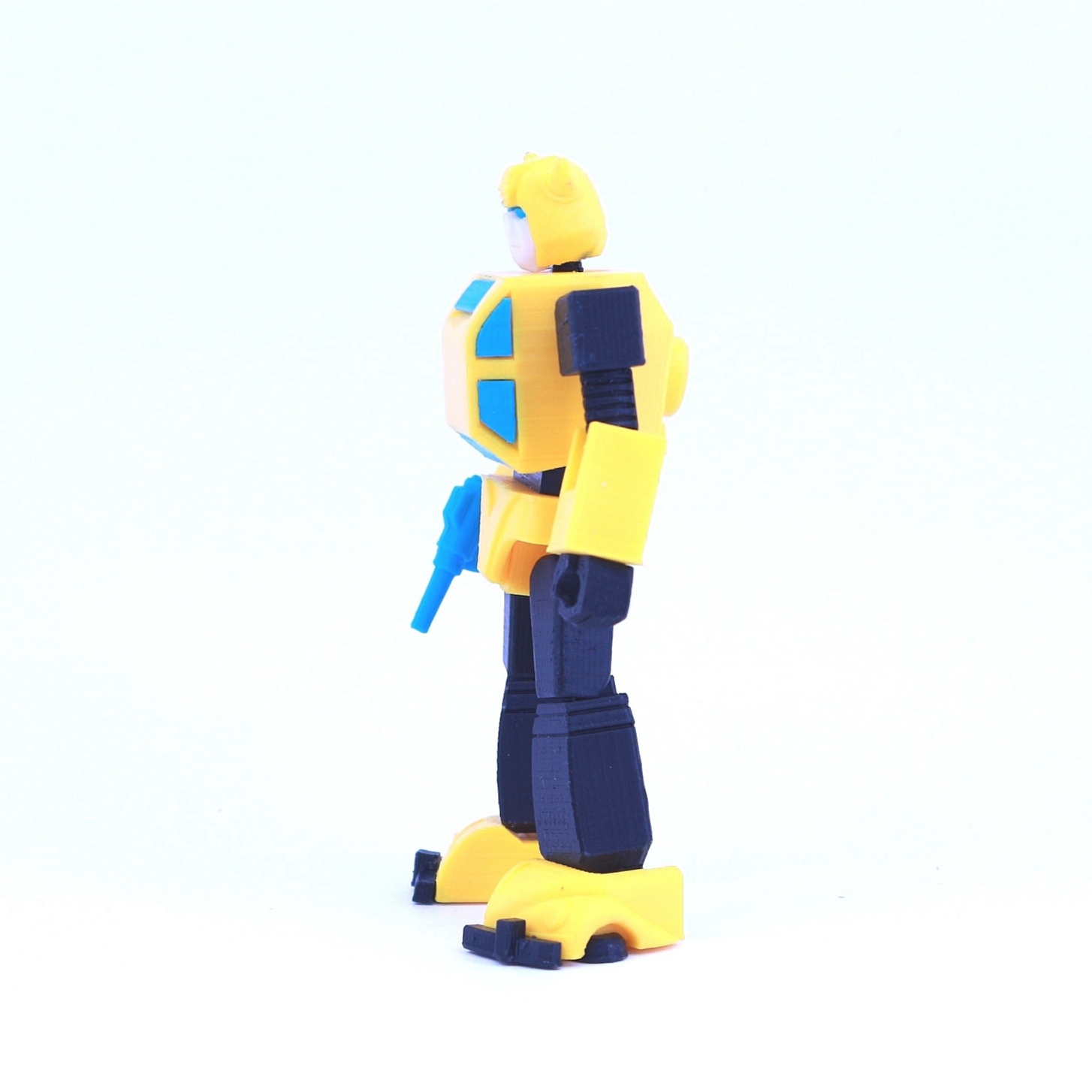

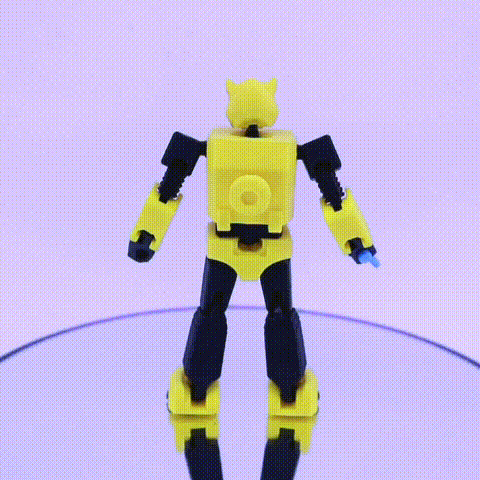

G1 Bumblebee, fully articulated model but not transformable.

DISCLAIMER:
1. Contains small parts and requires high precision. Your printer may need to be properly calibrated for best results.
2. This model is for fan art purposes only. The original Transformers characters are the property of Hasbro/Takara Tomy. The creator is in no way associated with the owners.

VIDEO PREVIEW: https://youtu.be/mI5ogQVoiY4
More Updates: https://www.instagram.com/toymakr3d/

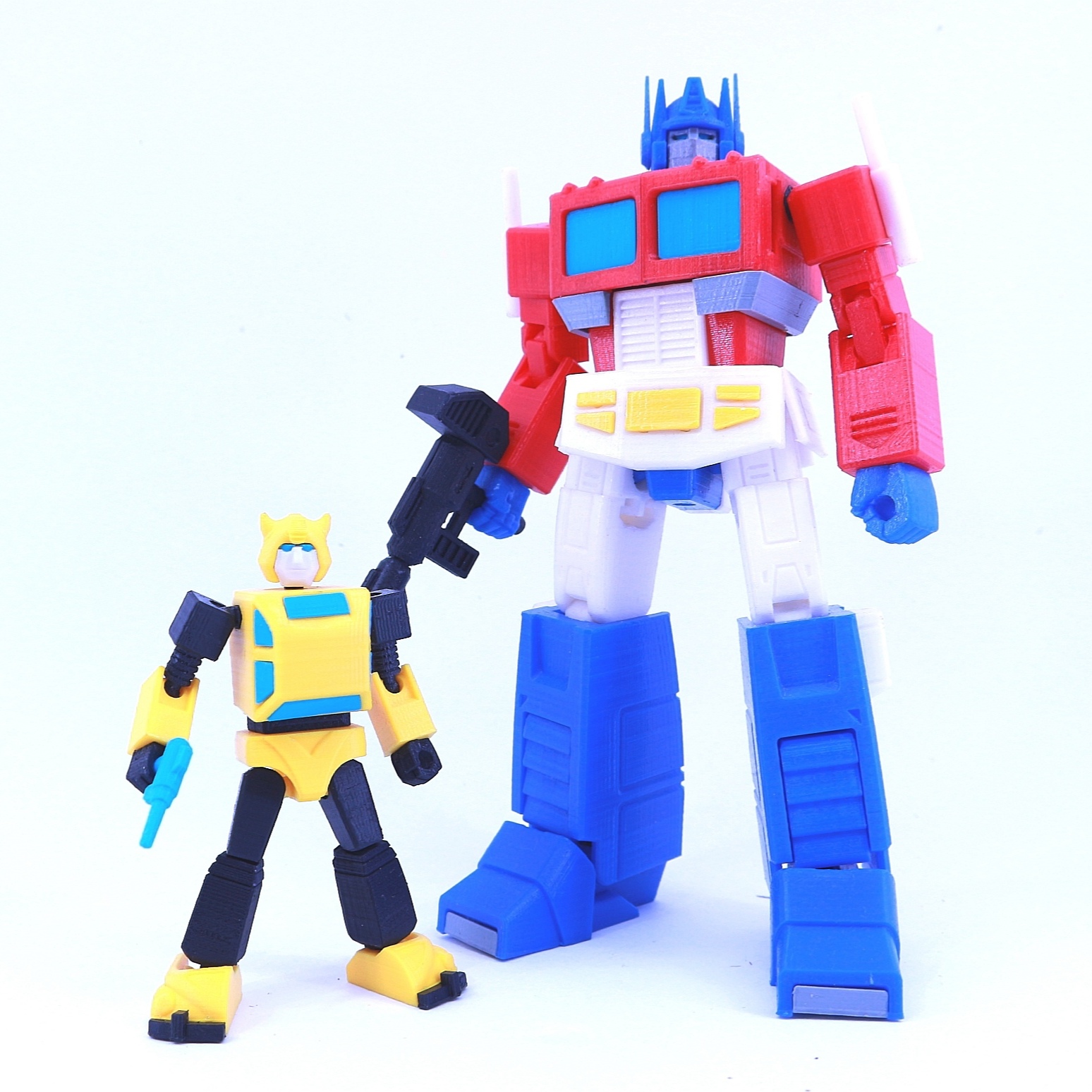

  • Skale: 1:30 (10cm)
  • Coloring can be done by using different color of filament (detail on files name)
  • No Support

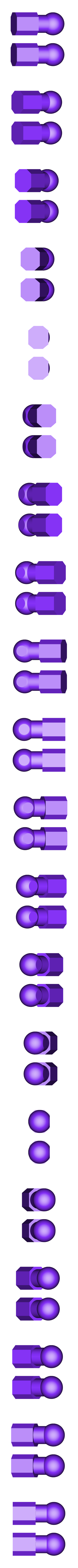

  • Gap tolerance: 0mm balljoint, 0.05mm swivel, 0.05 peg joint
  • Best print orientation for maximum strength result
  • Easy to print
  • Easy to assemble
  • Easy to rescale

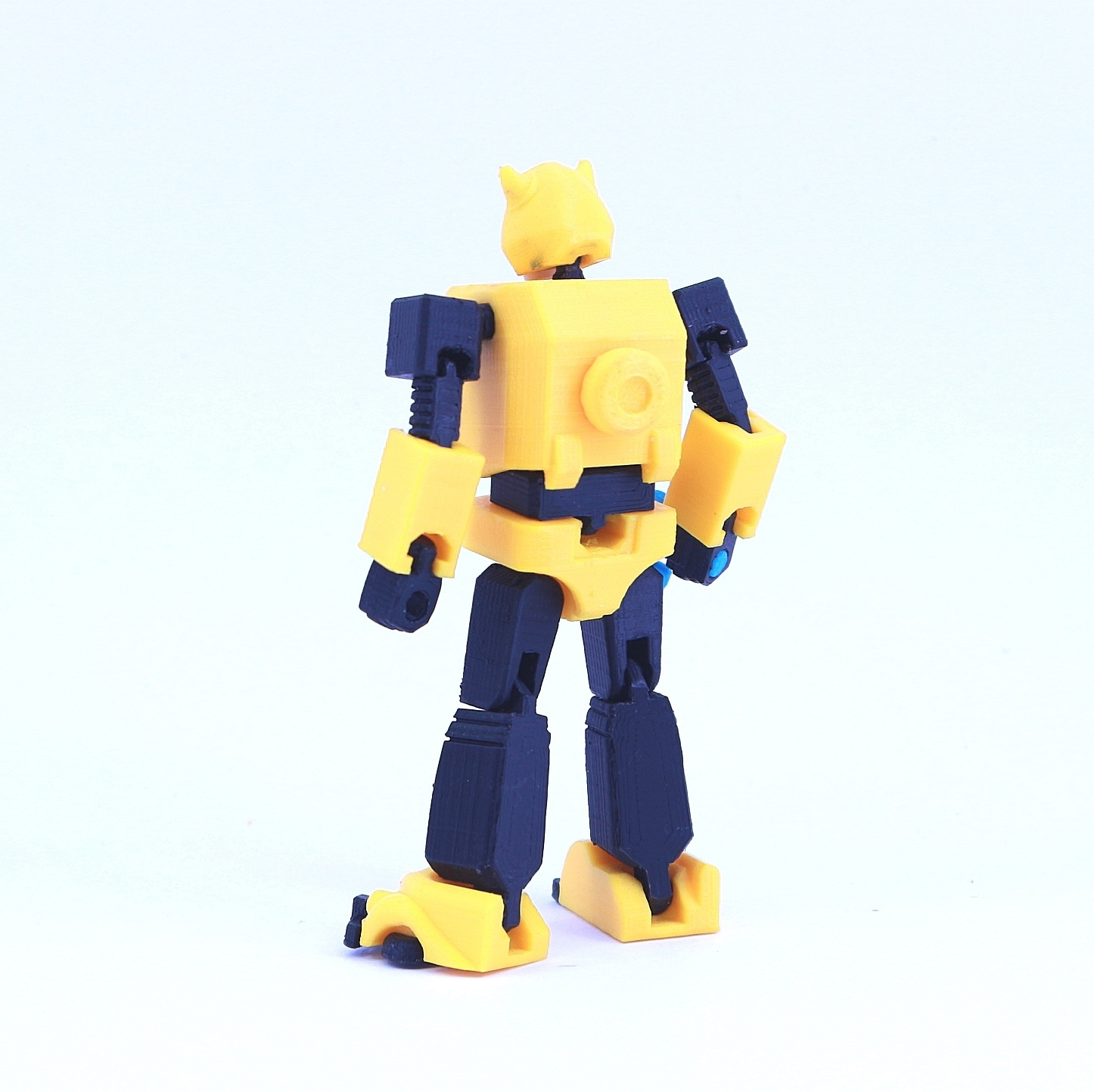

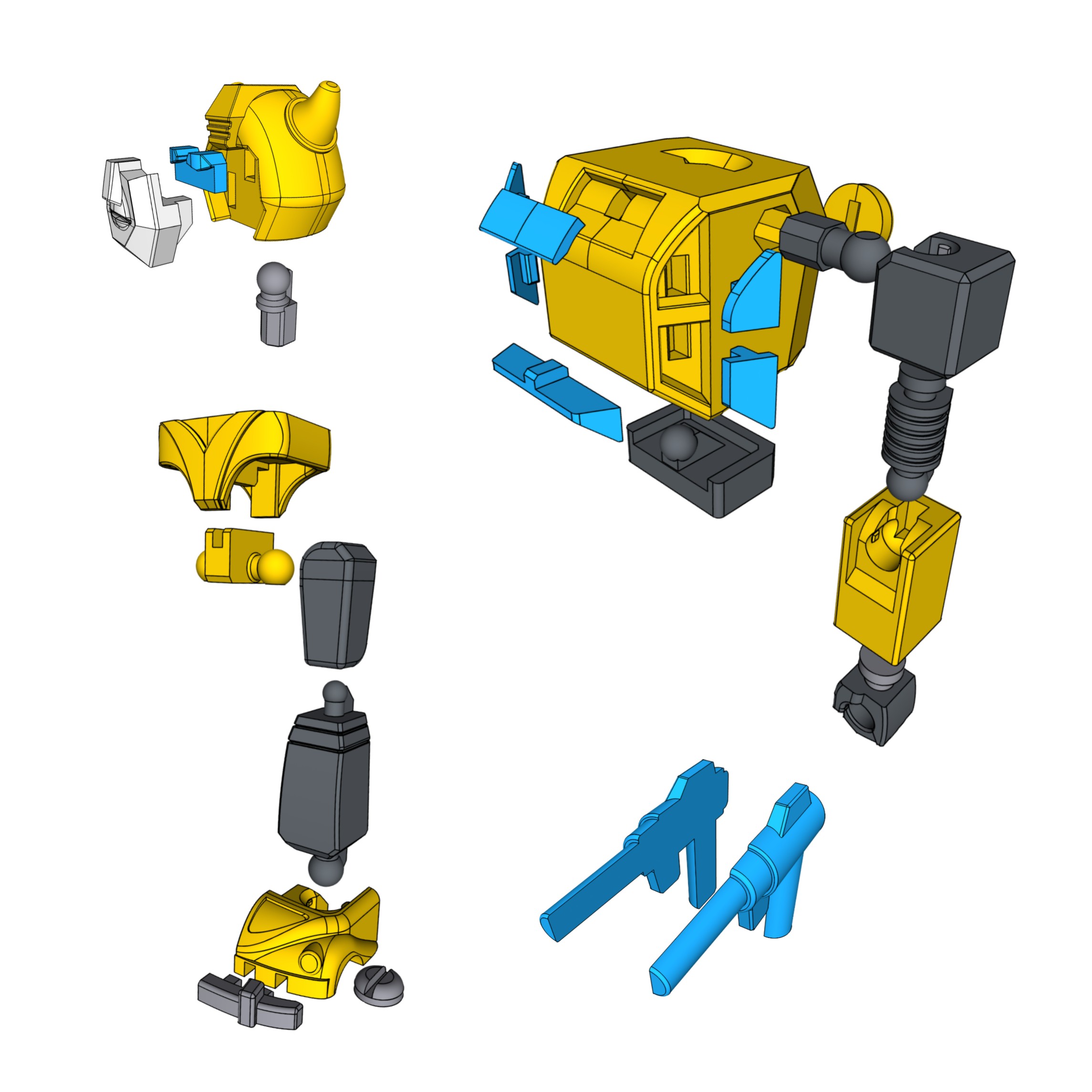

Point of articulation:
1. Neck ball joint
2. Abdomen ball joint
3. Shoulders ball joint
4. Upper arm swivel joint
5. Elbow ball joint
6. Wrist swivel
7. Waist swivel
8. Hip ball joint
9. Thigh swivel joint
10. Knee ball joint
11. Ankle ball joint

Accesories :

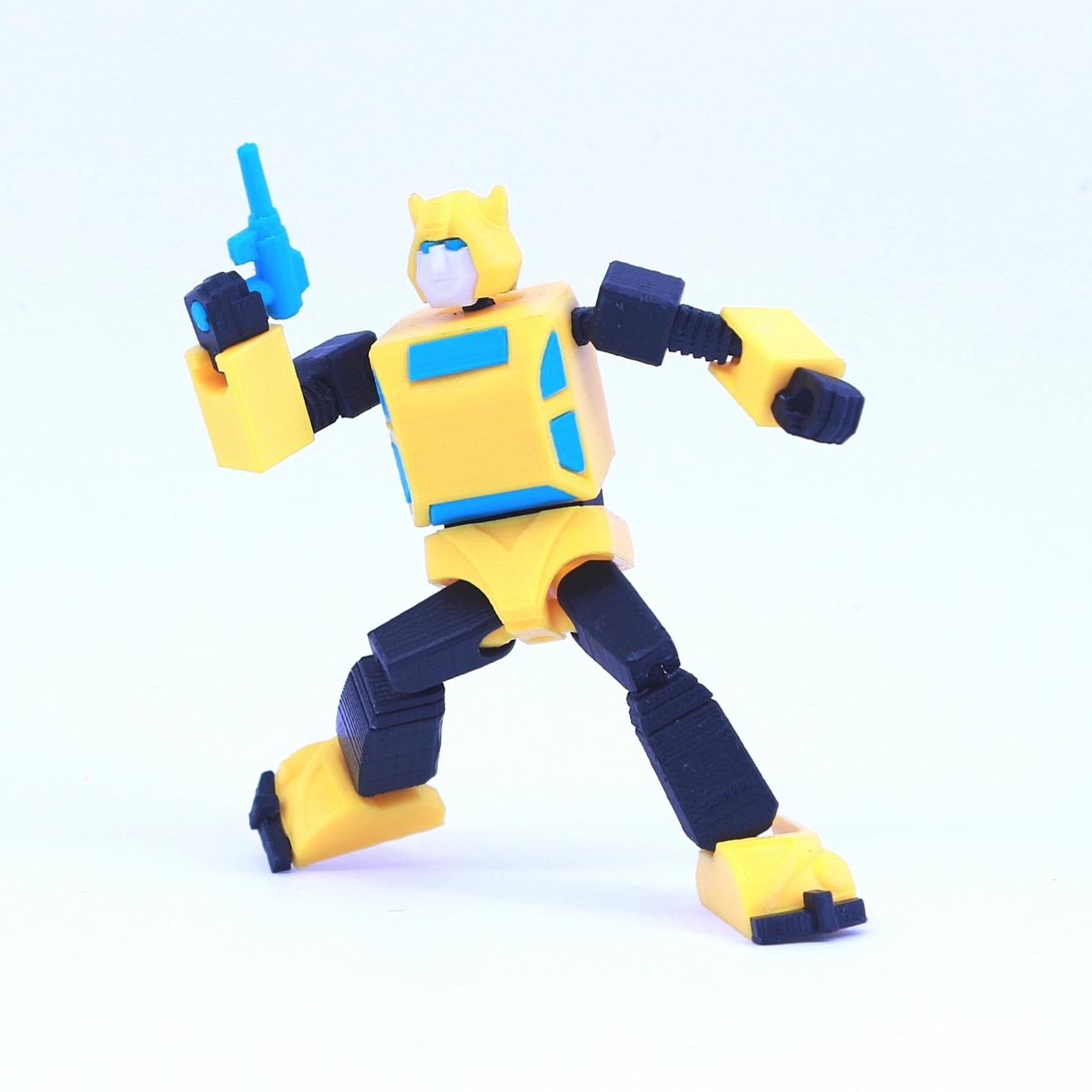

- Gun

IMPORTANT TIPS:
- To fix loose ball joint for long term use: https://youtu.be/M1wy6QLZC8c
- Cutter or sand paper for tolerance adjustment
- Use super glue for splited parts

Note:
Email me toymakr3d@gmail.com if you got any error
Enjoy, Like, and Share

3D printing settings

Sample Print Setting:
Nozzle: 0.4mm
Layer: 0.1mm
Filamen: PLA
Temperature: 200°C
Speed: 40/s
Skin/top/bottom: 0.8mm
Infill: 25%

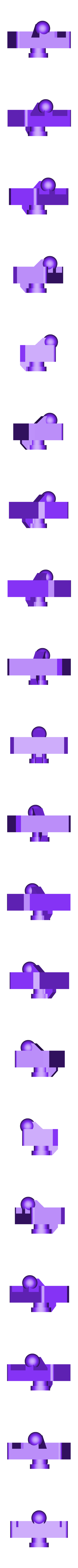

  • 3D file format: STL
  • 3D model size: X 15 × Y 14.6 × Z 15.6 mm
