Amiga 500 Expansion Cover RGB2HDMI FPV model 4
- 266 views
- 1 like
- 4 downloads
3D model description

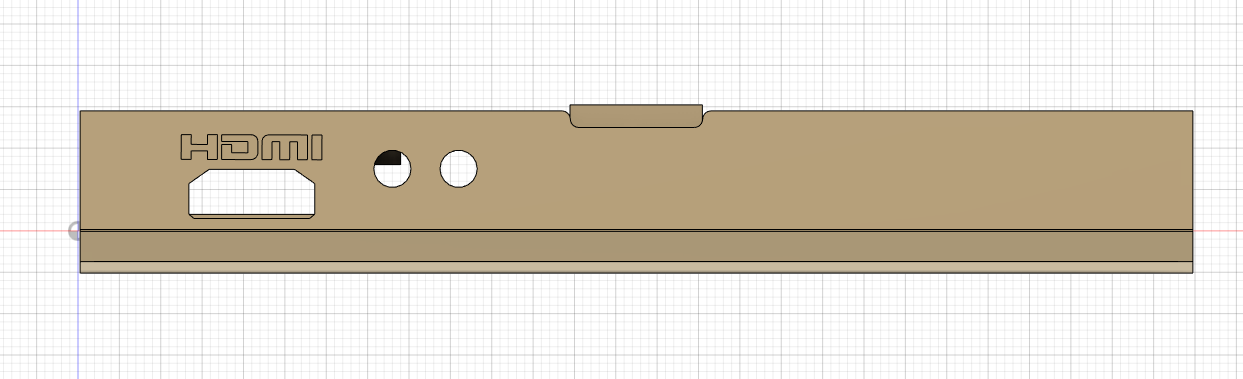

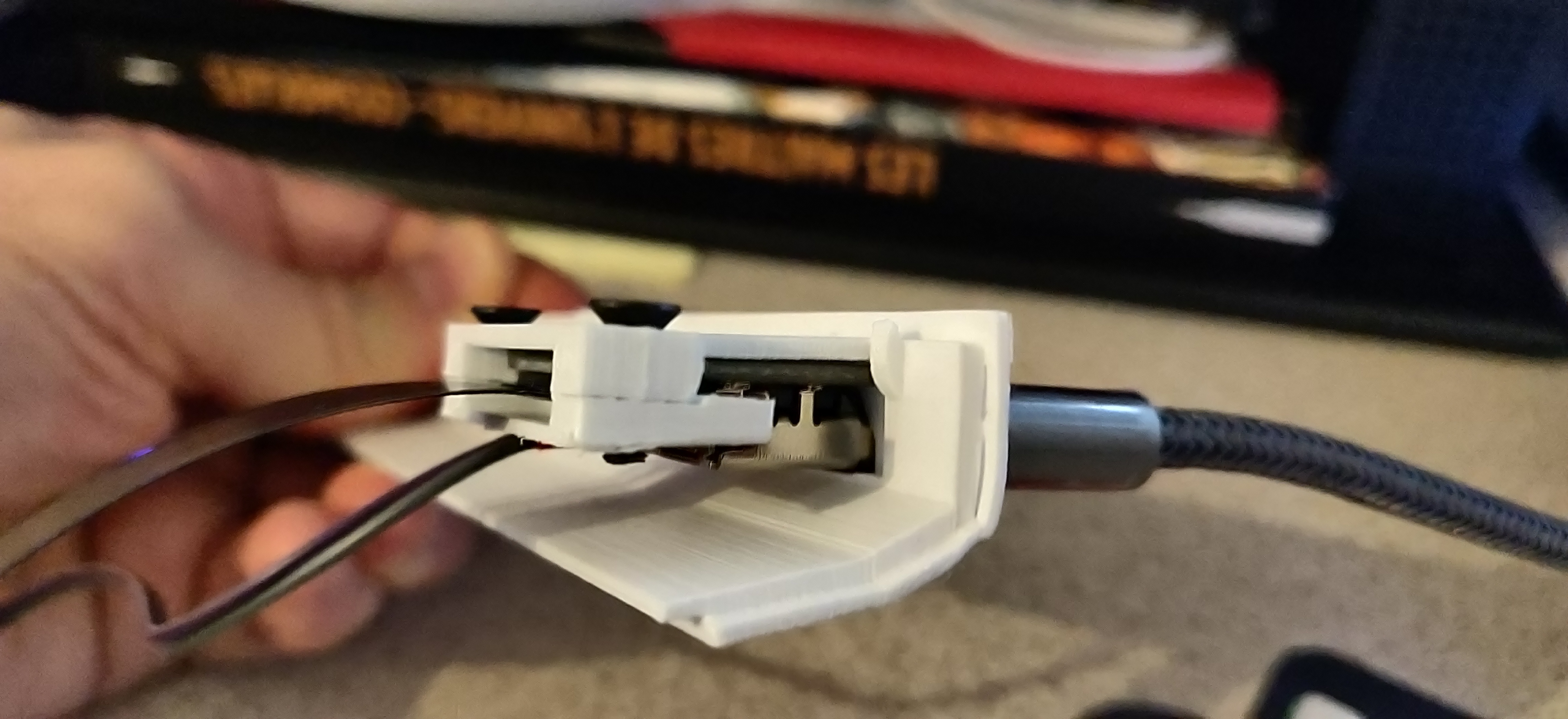

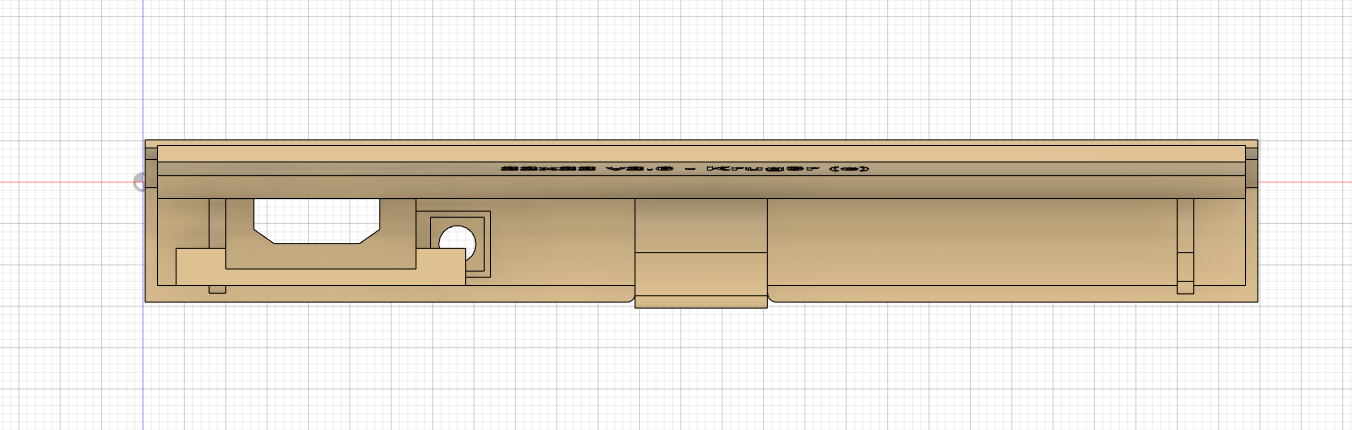

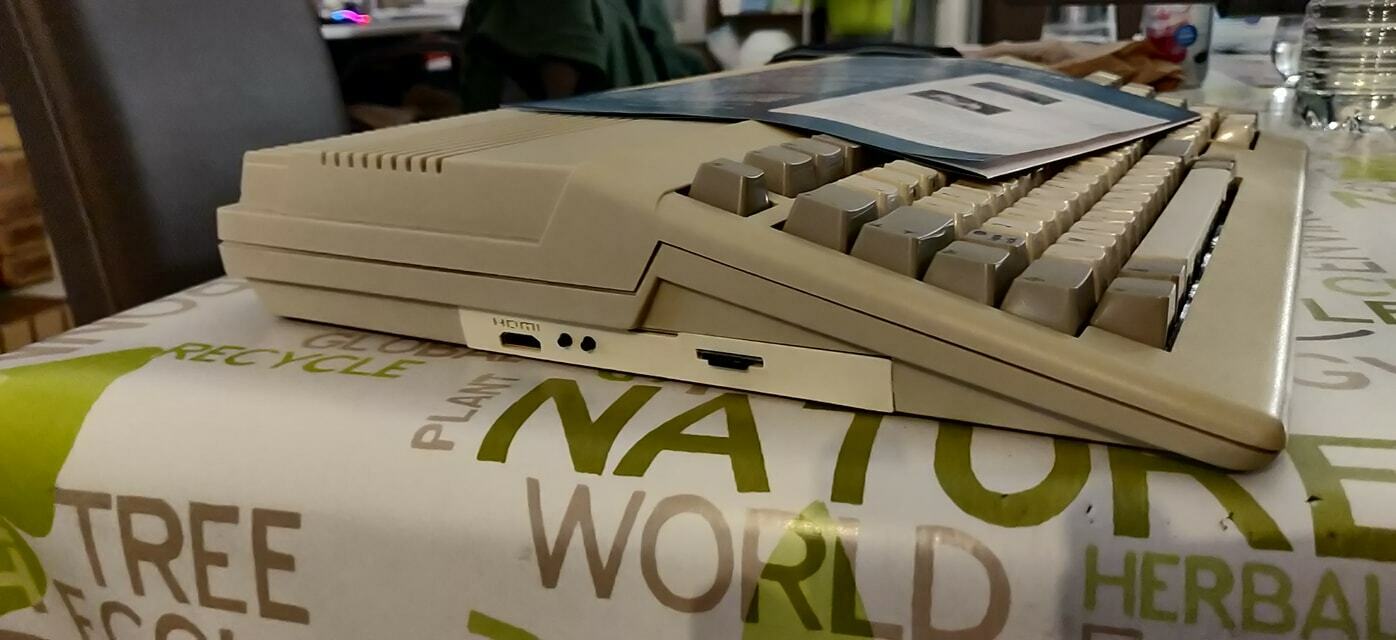

Amiga 500 cover expansion for a integration without a hole on your favorite older computer.
This part cannot be used with an expansion like A500-HDD+, others.

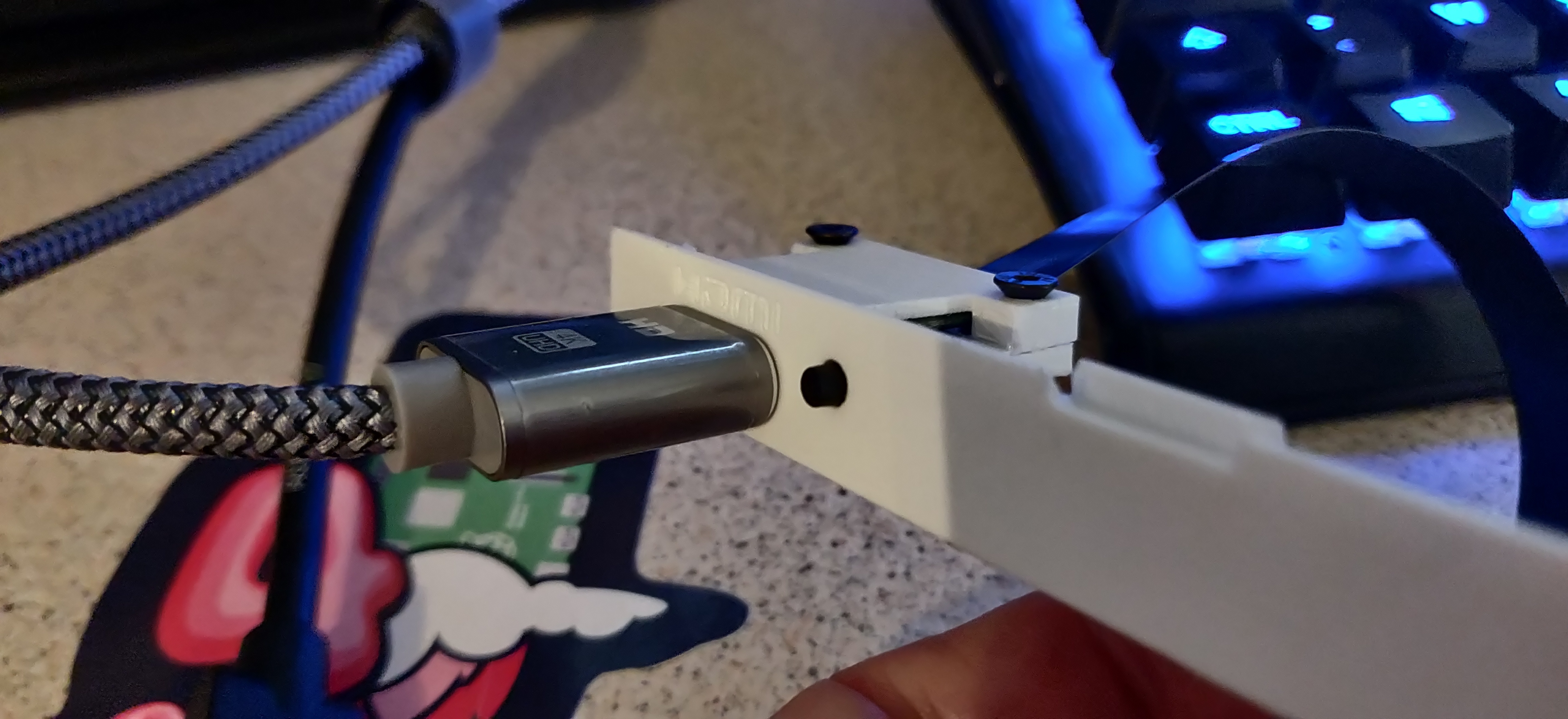

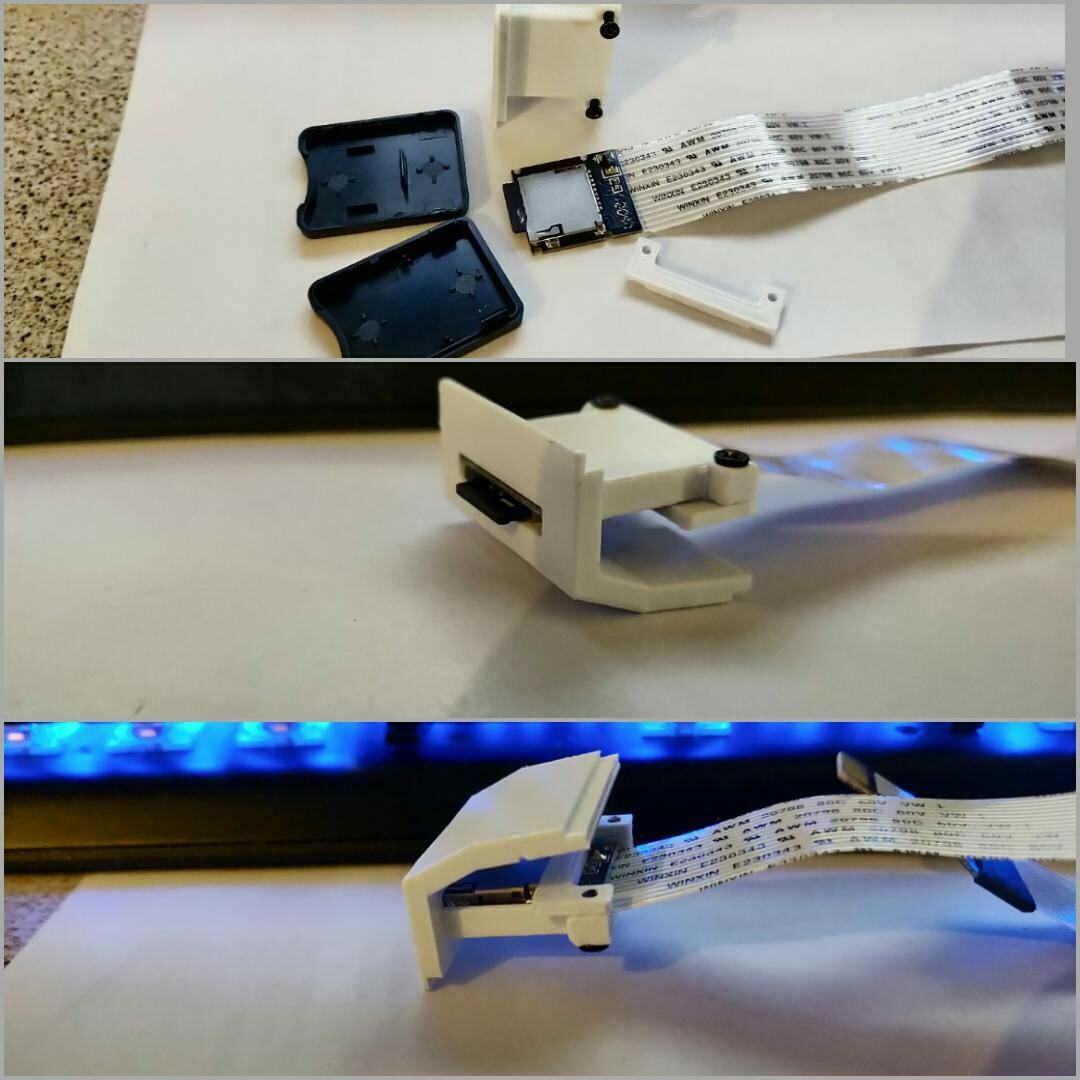

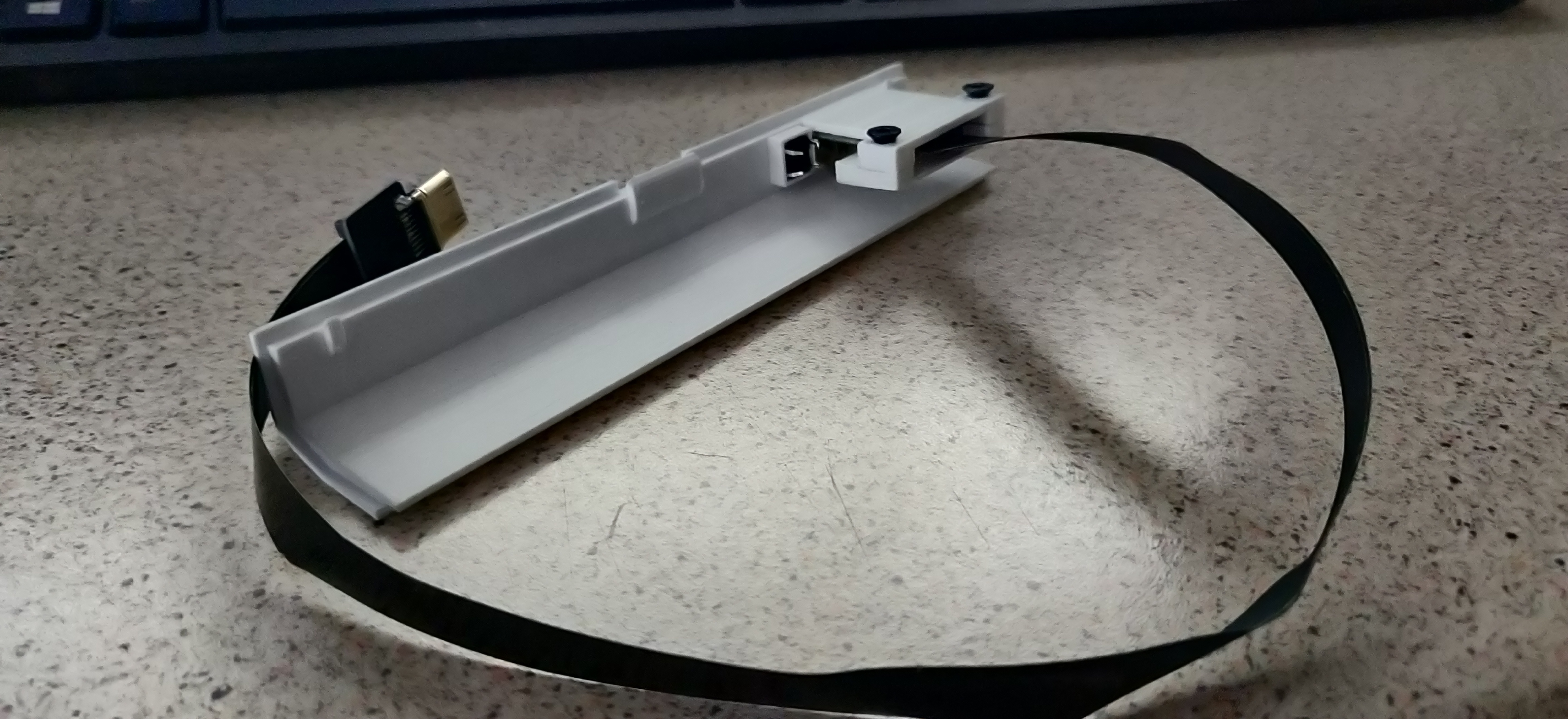

It's design to use a FPV connectors and ribbon, and a micro switch (6mmx6mmx9.5mm) to OSD access.

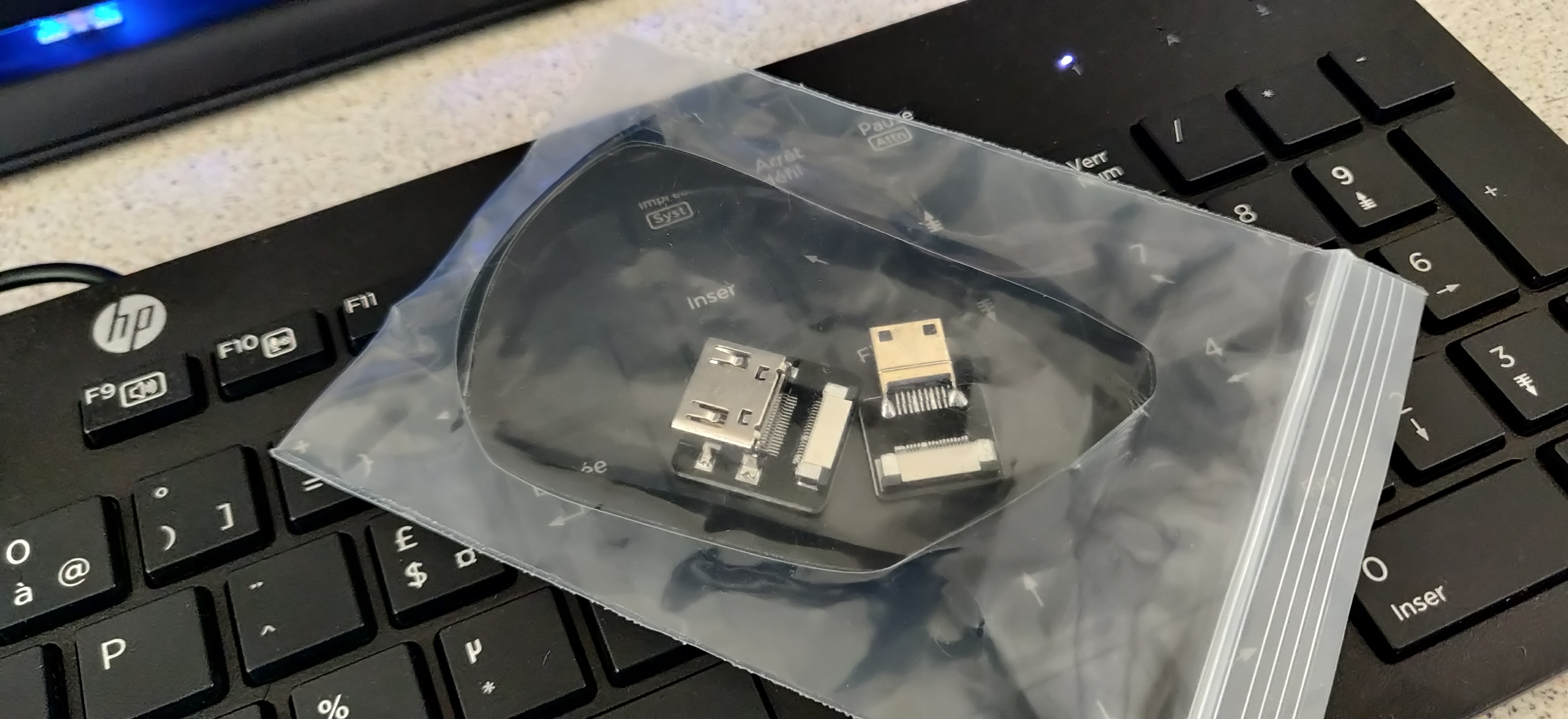

HDMI FPV female A4 22mmx22mm and male type C1 or C3 or A1 (for this last connector, a mini-HDMI to HDMI adapter needed) example here
3D printing settings
Layer height tested : 0.08, 0.12, 0.15, 0.2
Wall Thickness : 1.32mm
Wall Line Count : 3
Top and Bottom Thickness : 0.84mm
Top and Bottom Layer : 7,
First layer speed : 40mms
Support : yes and "everywhere" (supports needed inside de model)
Adhesion : as you want, i use BRIM option with "only outside" checked
- 3D file format: STL
- Last update: 2021/03/16 at 22:35
- Publication date: 2021/02/27 at 14:43
