Age of Empires 2 's Trebuchet
:strip_icc():blur(15):format(webp)/https://files.cults3d.com/uploaders/19682557/illustration-file/feac1b93-9261-4b76-a3a2-e8bb5bd50053/DSC01006.jpg)
/https://preview3d-images.cults3d.com/variants/i53cfptl645vtkweibw5f786vg1y/77d3f3b93f425080e8527932a83b54282f99f31ca9700de02f554c0ba0d78731)
/https://preview3d-images.cults3d.com/variants/qon2459lf1jt1nkbutjijhj6aq7l/77d3f3b93f425080e8527932a83b54282f99f31ca9700de02f554c0ba0d78731)
/https://preview3d-images.cults3d.com/variants/fi36yox7ue96l2kb9ehfeydykxin/77d3f3b93f425080e8527932a83b54282f99f31ca9700de02f554c0ba0d78731)
/https://preview3d-images.cults3d.com/variants/gl3do1hzfjljaaxu3v6k4h07c38s/77d3f3b93f425080e8527932a83b54282f99f31ca9700de02f554c0ba0d78731)
/https://preview3d-images.cults3d.com/variants/wug4y28r7hg695jj0k7kena4283g/77d3f3b93f425080e8527932a83b54282f99f31ca9700de02f554c0ba0d78731)
/https://preview3d-images.cults3d.com/variants/ux71d7lfpsazdtmys3630rzuk5dx/77d3f3b93f425080e8527932a83b54282f99f31ca9700de02f554c0ba0d78731)
/https://preview3d-images.cults3d.com/variants/w1acy2d306wt0idnzofjw1v7h3td/77d3f3b93f425080e8527932a83b54282f99f31ca9700de02f554c0ba0d78731)
/https://preview3d-images.cults3d.com/variants/ephvlwuv1cdtoixwlw214wx95r78/77d3f3b93f425080e8527932a83b54282f99f31ca9700de02f554c0ba0d78731)
/https://files.cults3d.com/uploaders/19682557/illustration-file/feac1b93-9261-4b76-a3a2-e8bb5bd50053/DSC01006.jpg)
/https://files.cults3d.com/uploaders/19682557/illustration-file/5bdea942-ee03-41db-80be-7aada8ba77ed/DSC01009.jpg)
/https://files.cults3d.com/uploaders/19682557/illustration-file/3e0168af-62fb-4abf-a456-a2cb2e0c2eab/DSC01010.jpg)
/https://files.cults3d.com/uploaders/19682557/illustration-file/df2ca7d5-9f6d-4797-a9bf-2b2e1659723f/DSC01011.jpg)
/https://files.cults3d.com/uploaders/19682557/illustration-file/54e003e4-9595-4c34-a409-379e14ac54b0/DSC01015.jpg)
/https://files.cults3d.com/uploaders/19682557/illustration-file/6247d8d1-1a37-47b5-9435-a547c49c8cf9/evoluzione.jpg)
?
Creation quality:
5.0/5
(1 votevotes)
Evaluation of members on the printability, utility, level of detail, etc.
Your rating:
0/5
- 2.4k views
- 9 likes
- 128 downloads
3D model description

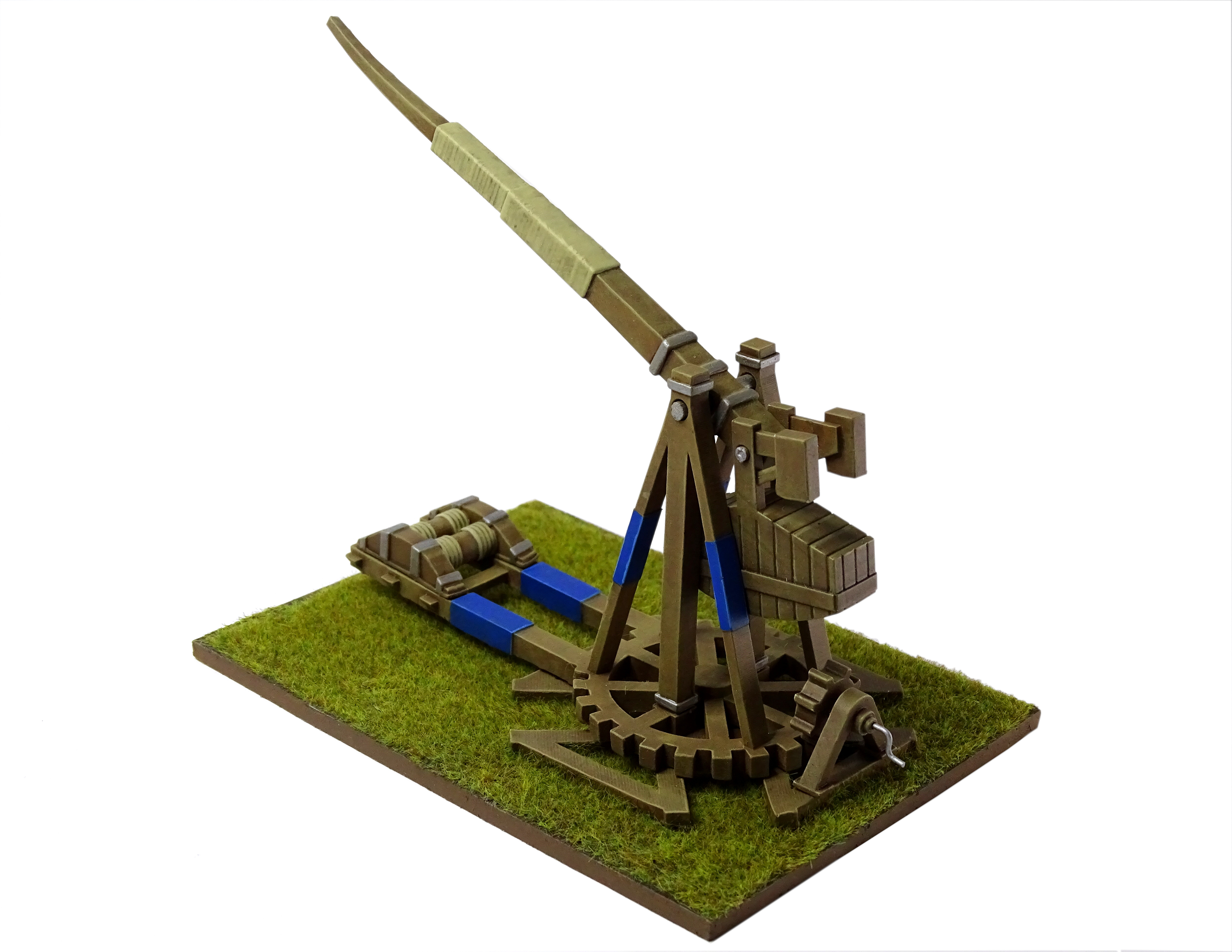

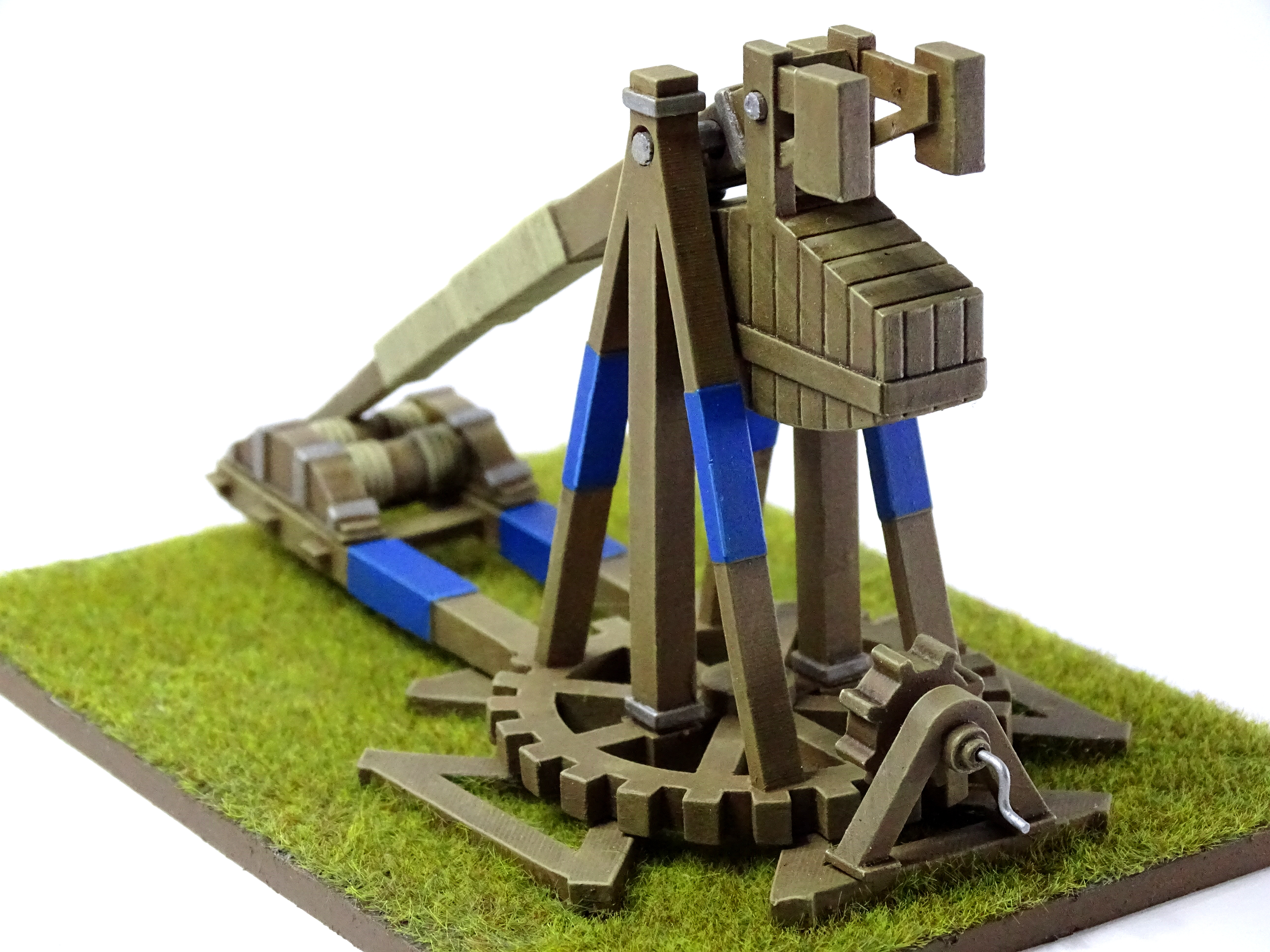

This is a detailed replica of the Trebuchet from Age of Empire 2.
Since I paid more attention to the model than to its functioning (which, in the video game, remains mysterious…), this trebuchet does not function as a catapult and cannot throw objects, nor can it rotate on itself.

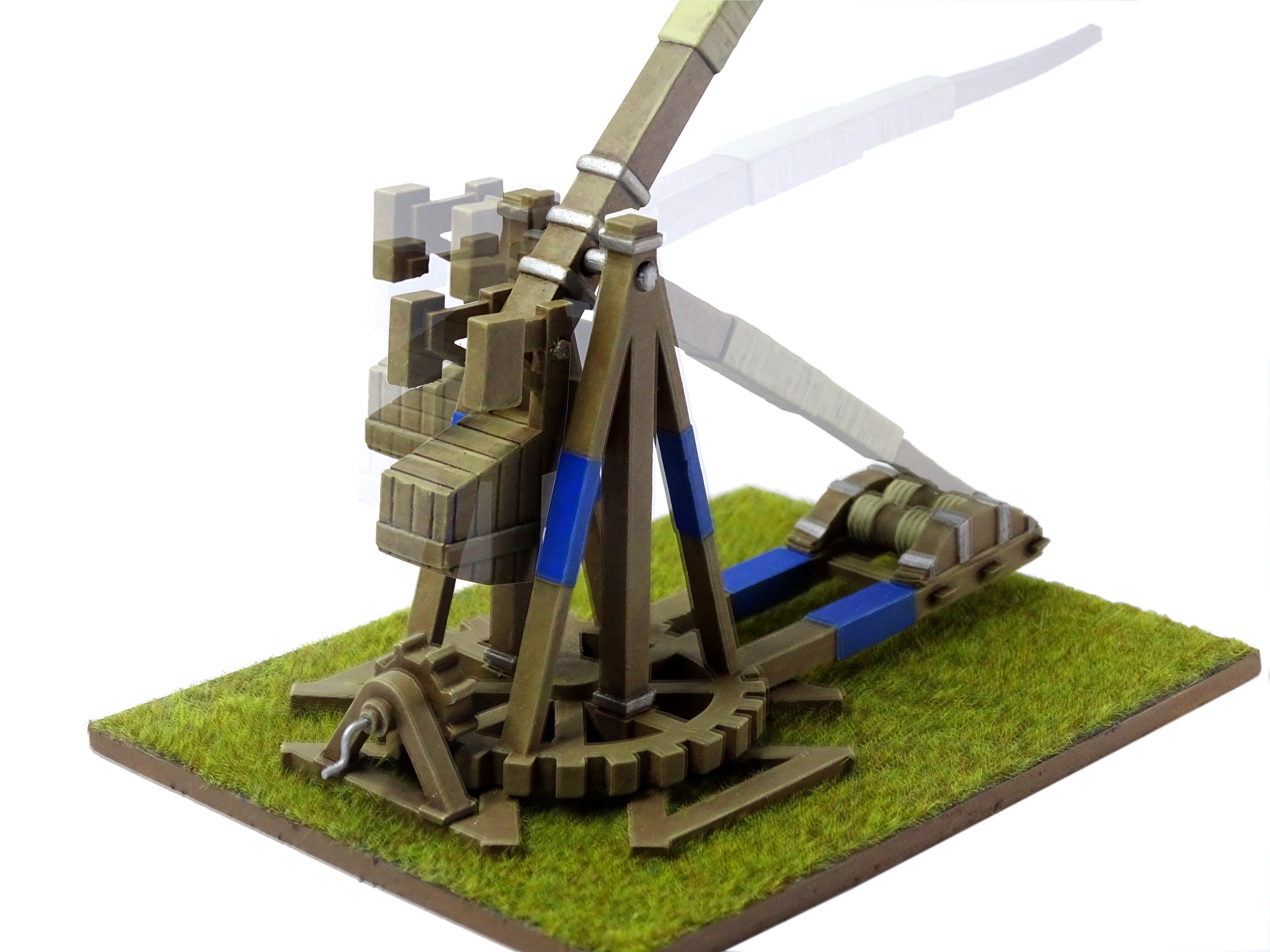

However, when molded and mounted well, the arm and counterweight can move easily (approximately 90 degrees).
I have left out the ropes and the bullet netting because I think it is more difficult to print them than to add them manually with cotton, twine or other threads.
I hope you enjoy,
Good Siege
3D printing settings
My print setting was: - Layer height 0.05 mm; - Bottom layer count 5 seconds; - Exposure time 7 seconds; - bottom exposure time 60 seconds.
My trebuchet measures: 70 mm wide x 135 mm long x 80 mm high and it took about 10 hours to be printed. Of course, you can print it in a different scale.
3D printer file information
-
3D design format: STL Folder details Close
- Arm (Braccio).stl
- Base.stl
- Counterweight (Contrappeso).stl
- Full Body (Corpo Intero).stl
- Gear (Ruota Dentata).stl
- Main Structure (Travi Principali).stl
- Pivot (Perni).stl
- Winch (Argano).stl
- Publication date: 2022-01-12 at 21:49
