Adapter Vive Audio strap to Occulus Rift S

Download 3D printer files Adapter Vive Audio strap to Occulus Rift S, DhemonaqDownload 3D printer files Adapter Vive Audio strap to Occulus Rift S, DhemonaqDownload 3D printer files Adapter Vive Audio strap to Occulus Rift S, DhemonaqDownload 3D printer files Adapter Vive Audio strap to Occulus Rift S, DhemonaqDownload 3D printer files Adapter Vive Audio strap to Occulus Rift S, DhemonaqDownload 3D printer files Adapter Vive Audio strap to Occulus Rift S, DhemonaqDownload 3D printer files Adapter Vive Audio strap to Occulus Rift S, DhemonaqDownload 3D printer files Adapter Vive Audio strap to Occulus Rift S, DhemonaqDownload 3D printer files Adapter Vive Audio strap to Occulus Rift S, DhemonaqDownload 3D printer files Adapter Vive Audio strap to Occulus Rift S, DhemonaqDownload 3D printer files Adapter Vive Audio strap to Occulus Rift S, DhemonaqDownload 3D printer files Adapter Vive Audio strap to Occulus Rift S, DhemonaqDownload 3D printer files Adapter Vive Audio strap to Occulus Rift S, DhemonaqDownload 3D printer files Adapter Vive Audio strap to Occulus Rift S, Dhemonaq

Did you 3D print this model?

3D model description

You own the Oculus Rift S virtual reality headset (one of the best in terms of image quality) but you are disappointed because the sound is not very good and it doesn't fit very well on your head?????

No problem, there is a fairly simple solution.

What could be better than combining the best of visual quality with the best of audio quality?

Simply combine the Oculus Rift S headset with the HTC VR Vive Deluxe Audio Strap. The ideal solution.

But obviously, these two products are not compatible as is, they have to be adapted together. There are tutorials and "packs" to buy to adapt the two products together.

However, the tutorials to do on your own are quite ugly and not very robust... and the ready-made packs are quite expensive.

I offer you here a creation of mine, robust and design. You have a printer, you can print it yourself in the color of your choice. This will make your helmet unique.

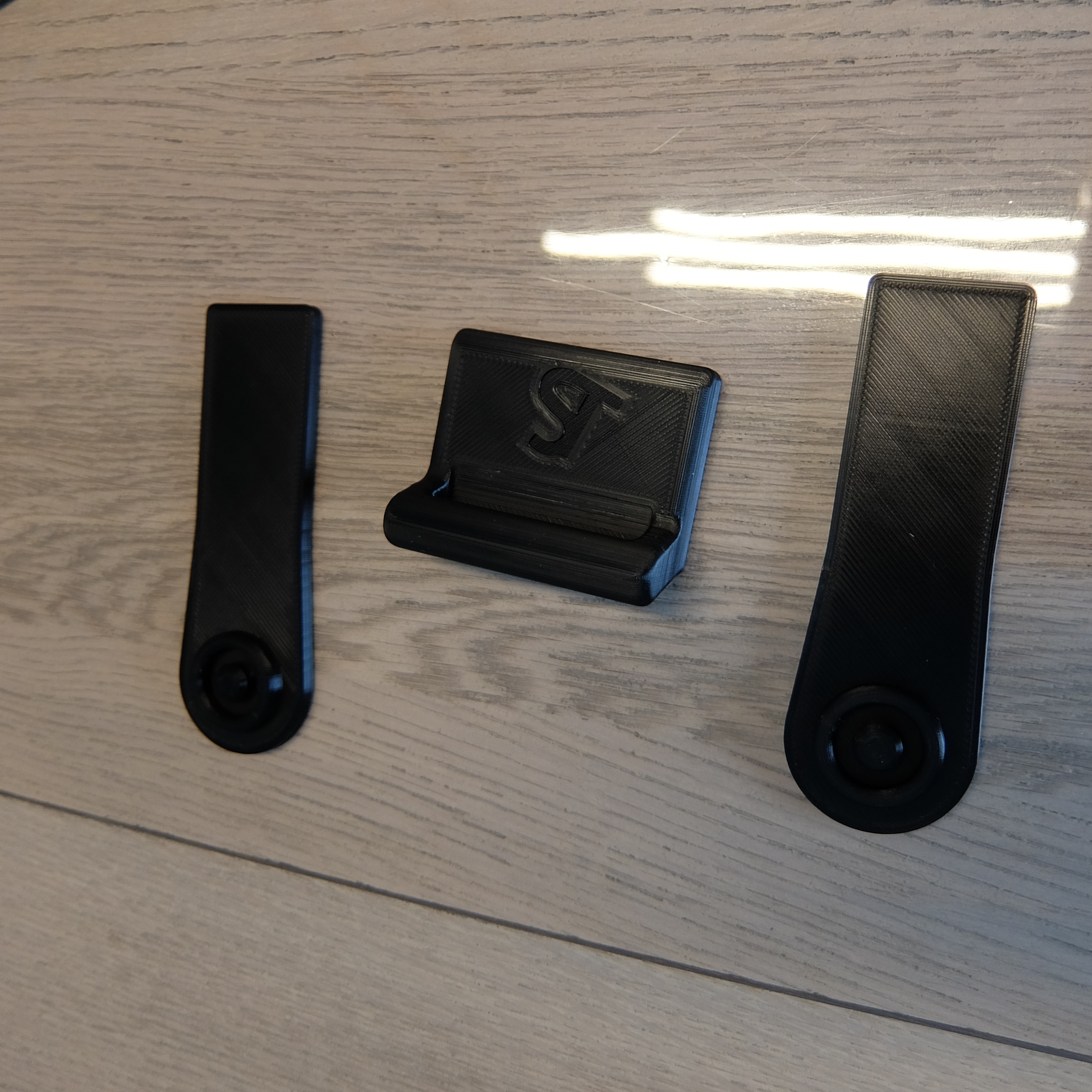

This adapter kit includes :

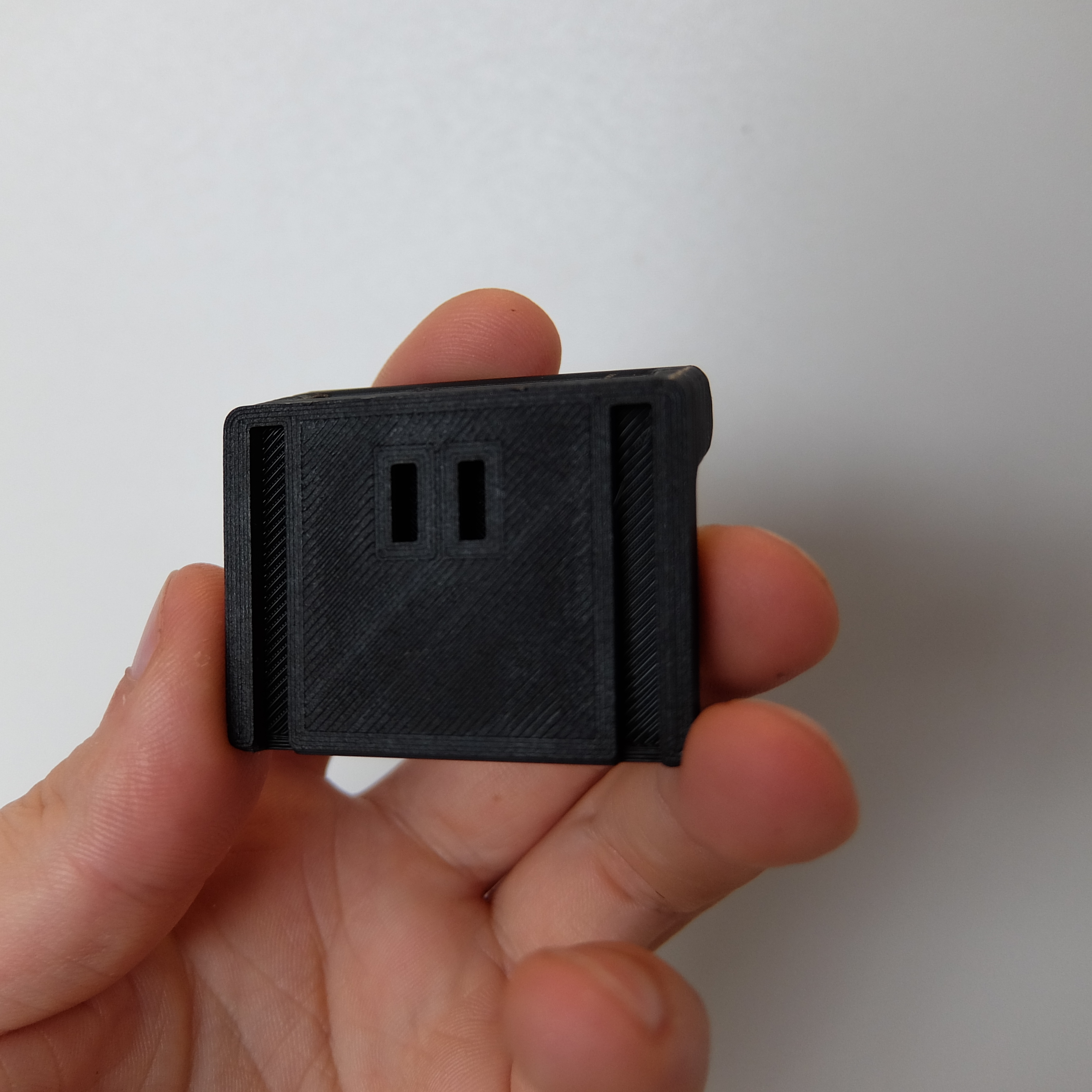

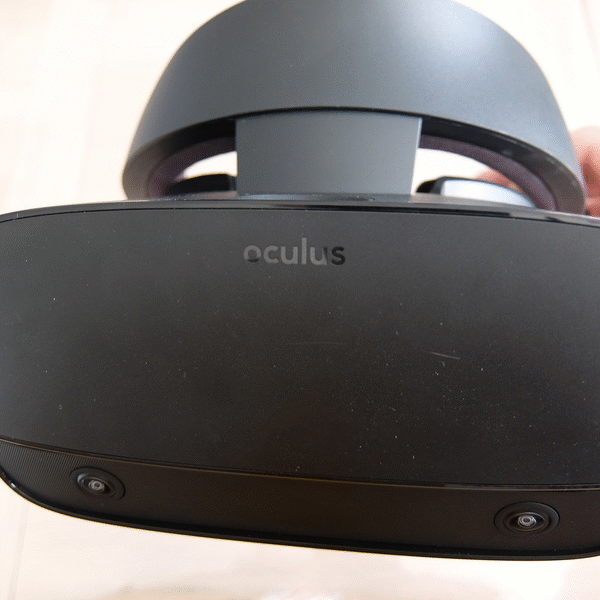

  • A first file to be attached to the top of the Oculus Rift S using the original helmet mount and with a slot to slide the Vive strap.

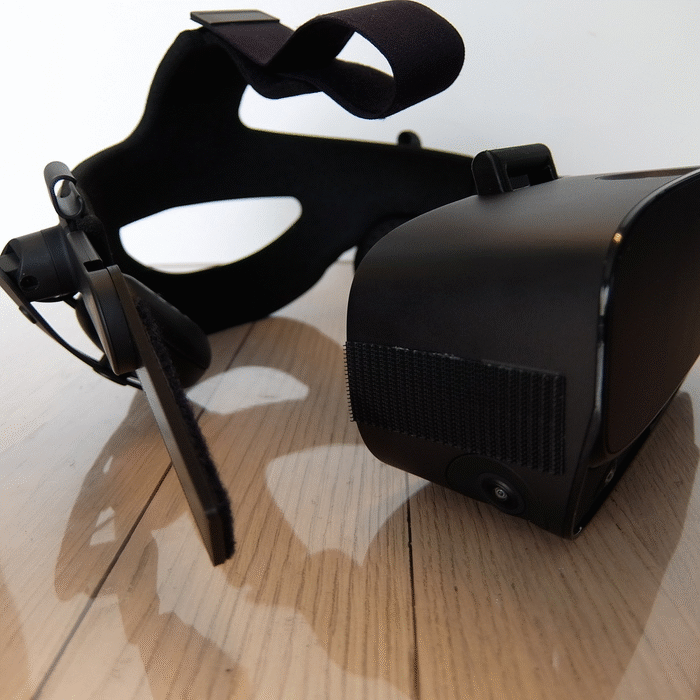

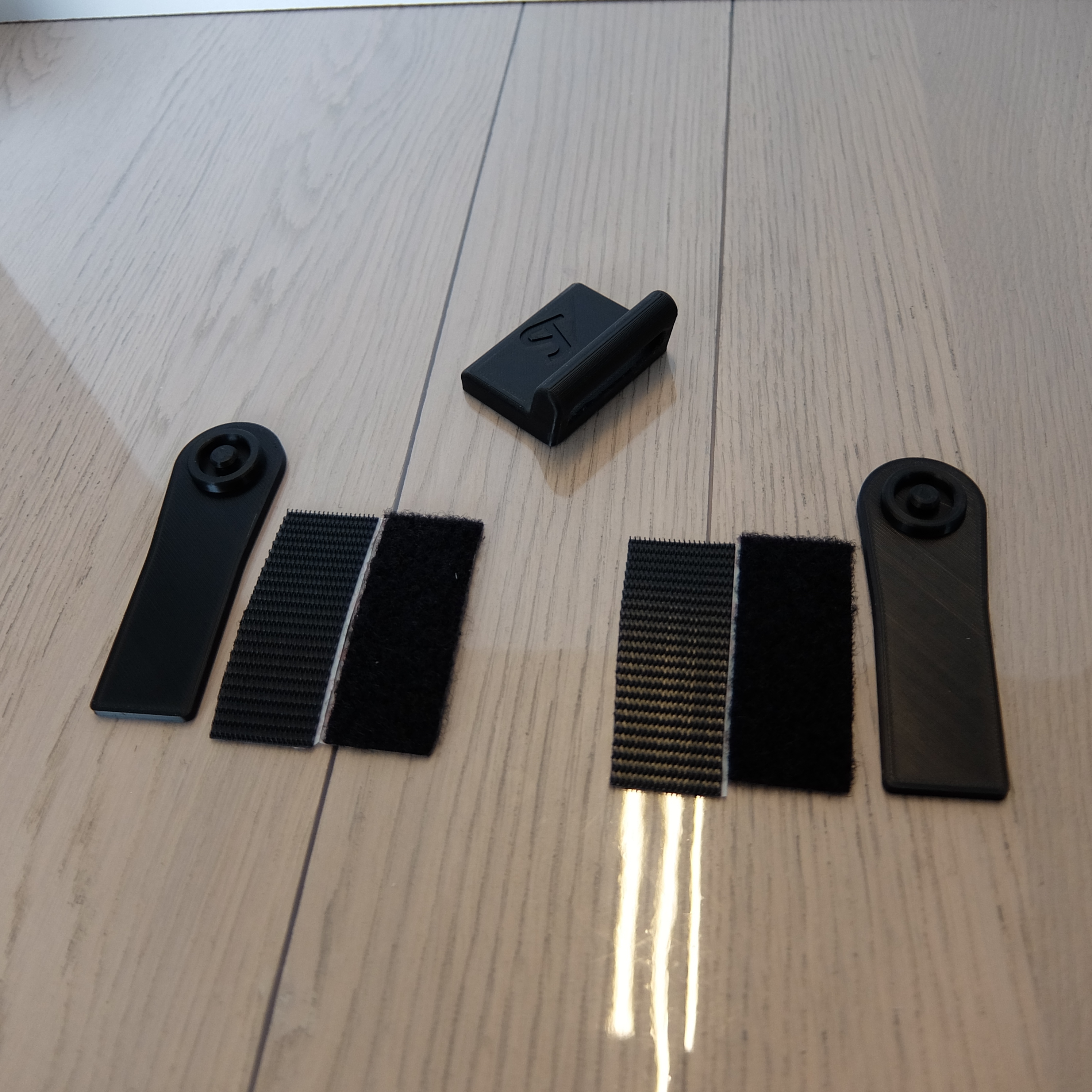

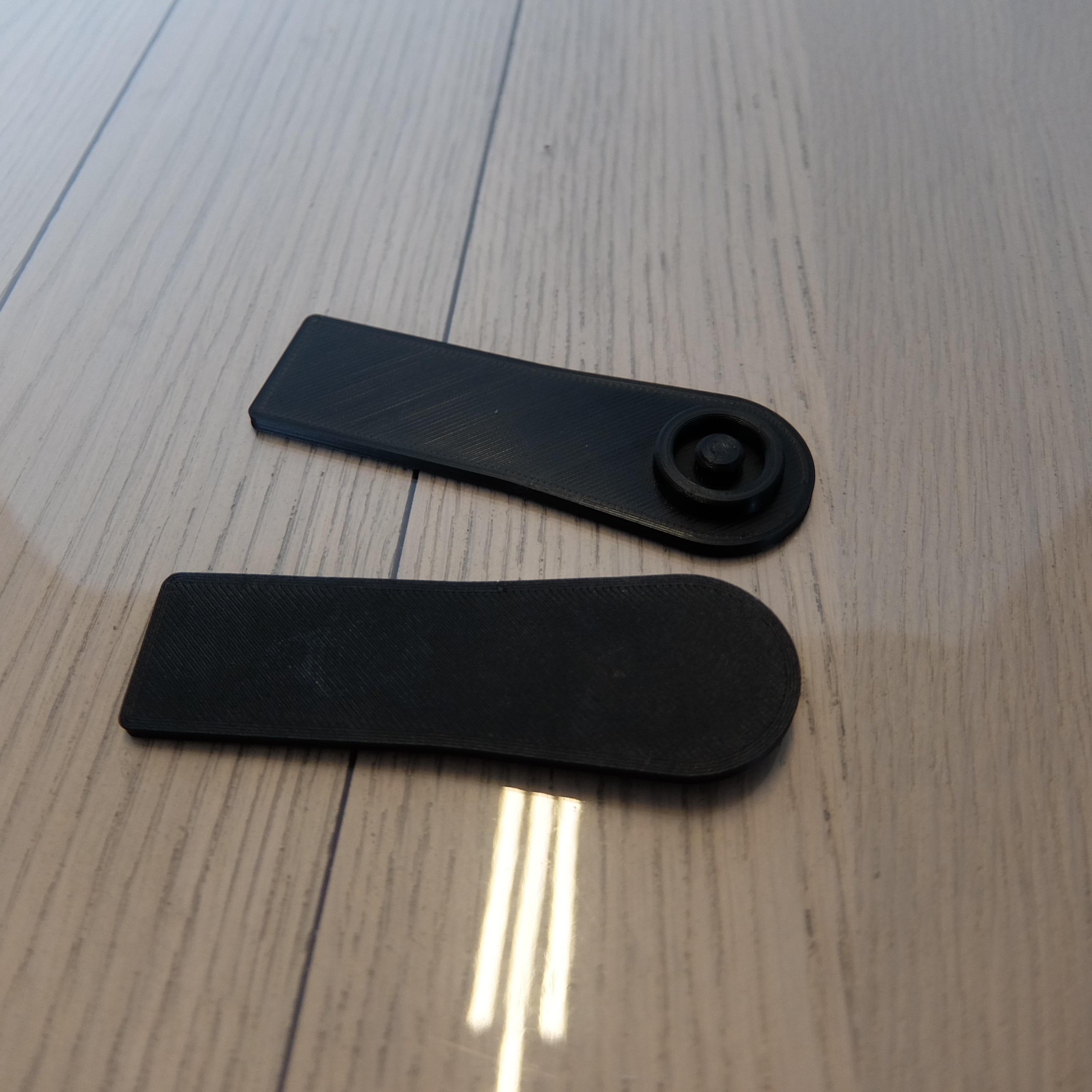

  • A second file to be printed twice and then clipped onto the original Vive Deluxe Audio Strap fasteners and then stick a small strip of adhesive Velcro on the adapter and on the Oculus Rift S helmet.

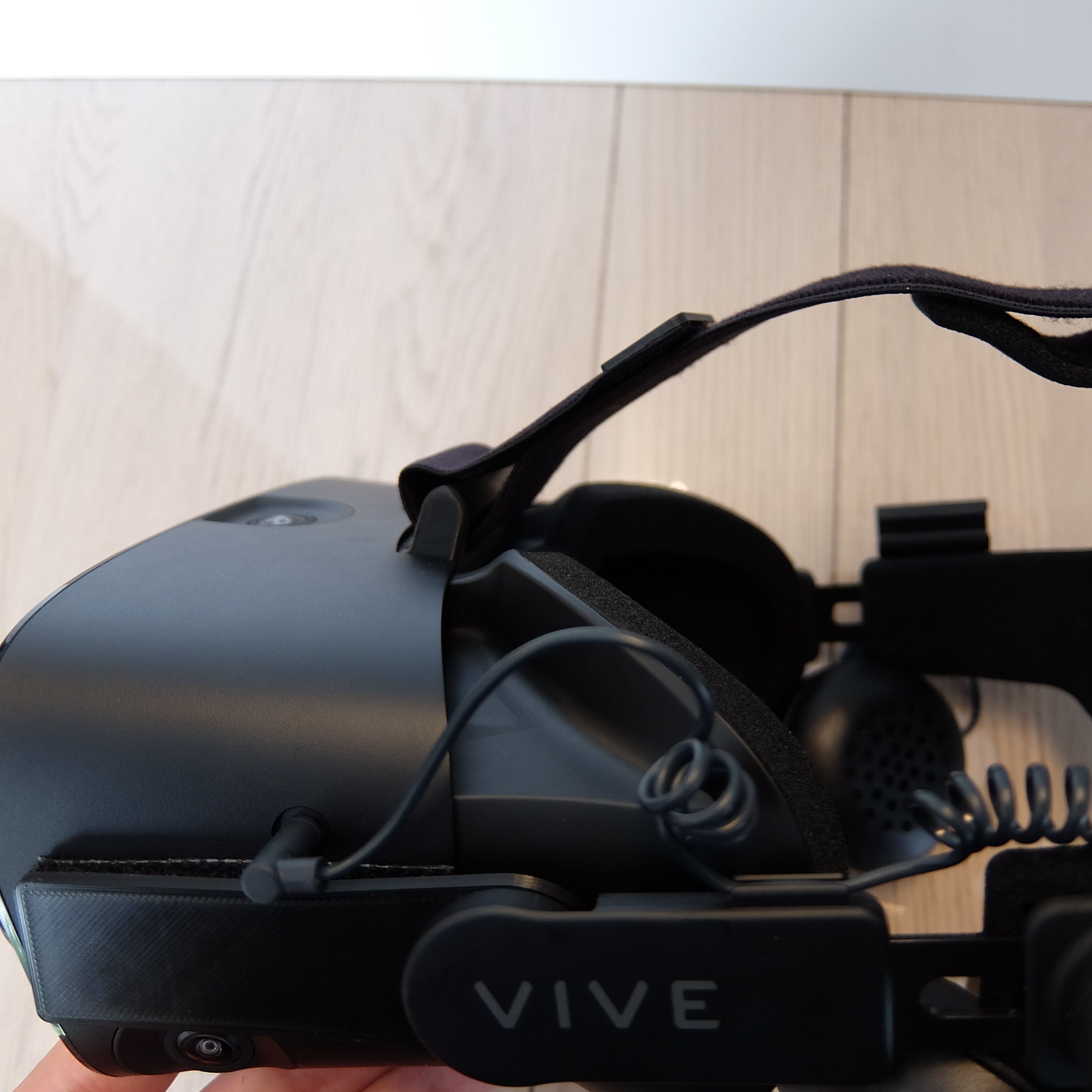

(The use of the original Vive clips allows to orientate the helmet and thus to have a better hold on the head, it is also more comfortable).

And that's it. I invite you to look at the photos for more details.

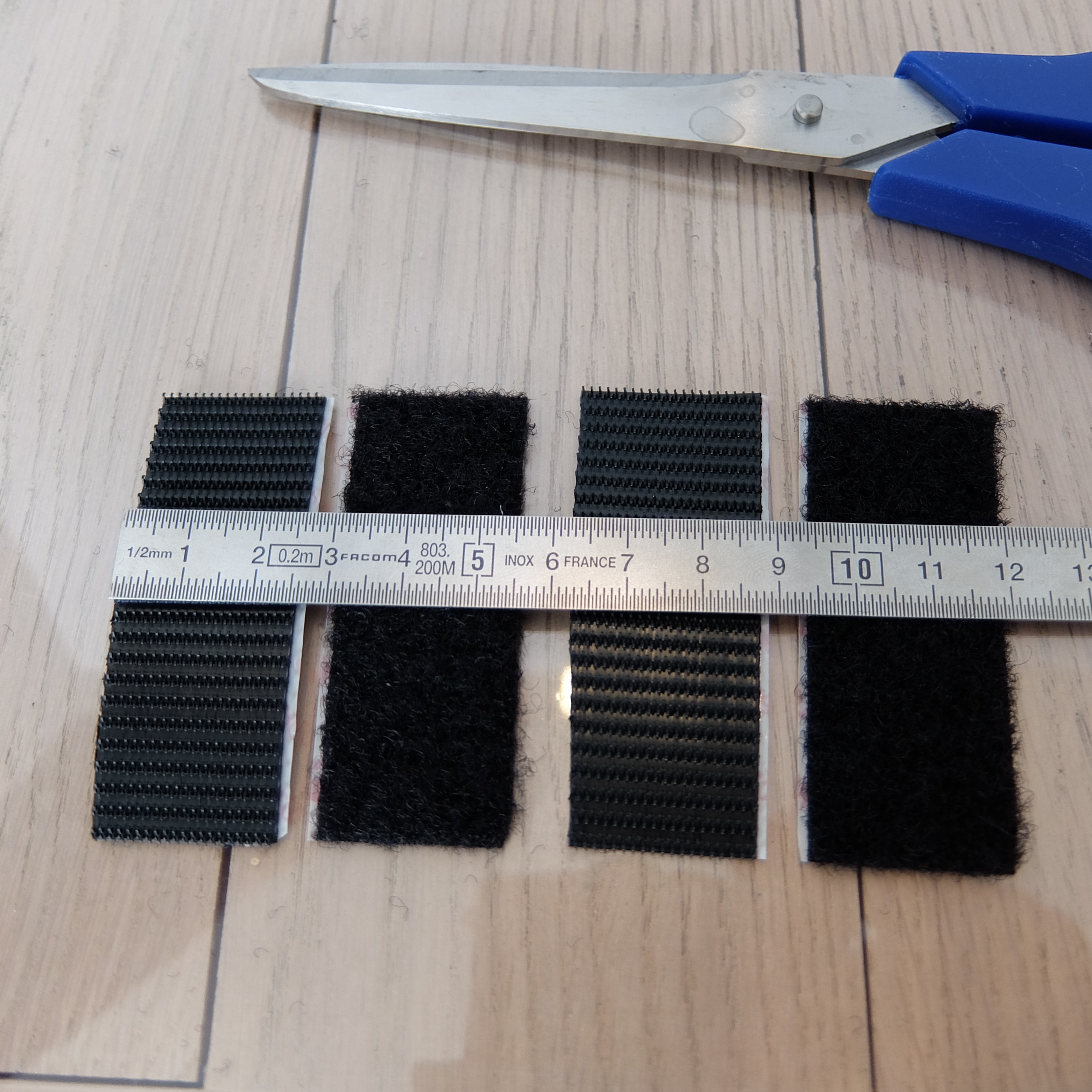

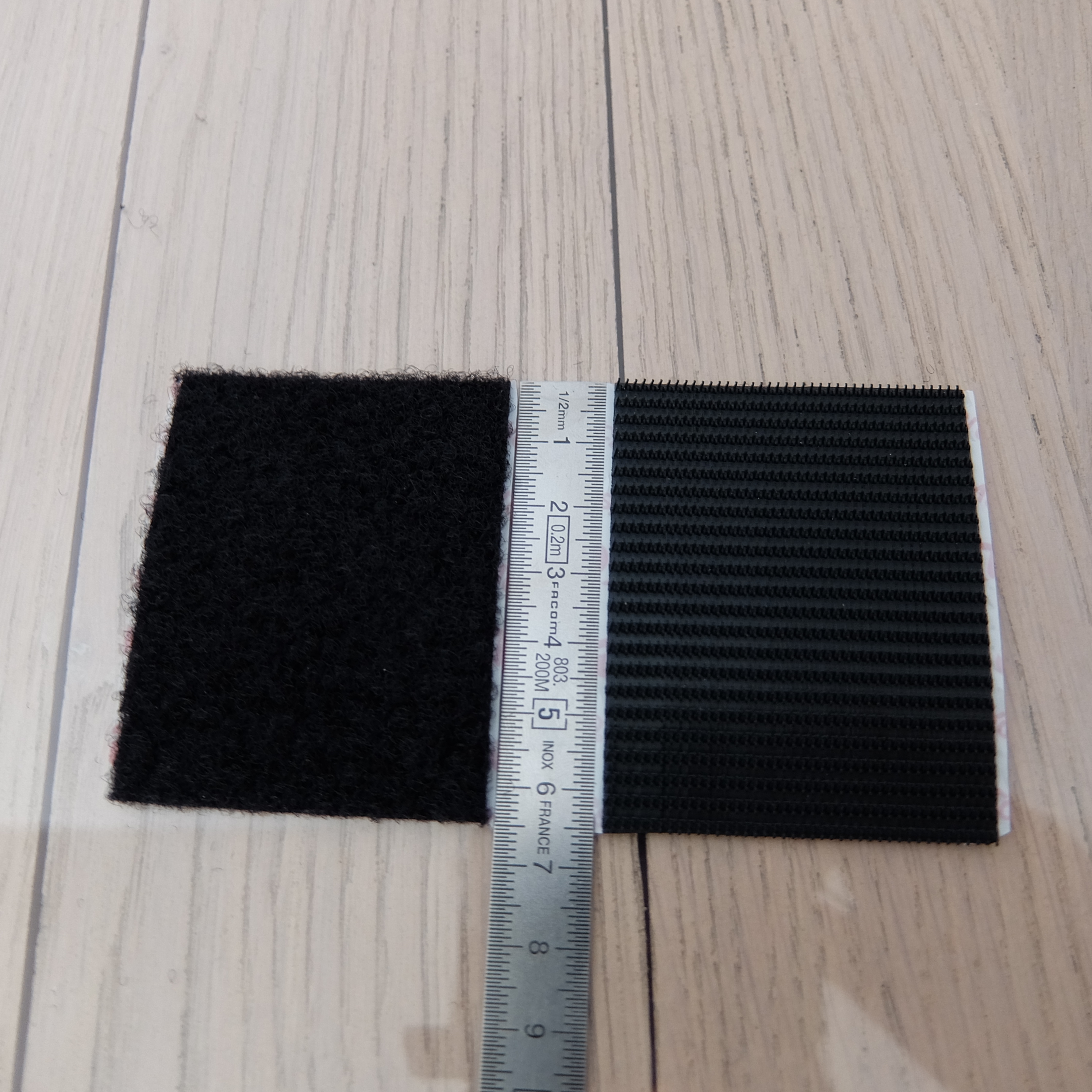

Velcro used to fix it:

Velcro 60241 Extra strong adhesive - Black 50 mm (double-sided tape can also be used, but the Velcro allows the helmet to be removed more easily for cleaning.

https://www.amazon.fr/Velcro-Adh%C3%A9sif-extra-fort-ultra-r%C3%A9sistant-ancienne-version/dp/B00FYRWOCG/ref=sr_1_5?__mk_fr_FR=%C3%85M%C3%85%C5%BD%C3%95%C3%91&dchild=1&keywords=velcro+50mm&qid=1593278786&s=hi&sr=1-5

3D printing settings

I cut out this model under CURA.

I have printed this model on the ENDER 3 with the following parameters:

Filament: PLA Ø1.75 mm

Nozzle: Ø0.4 mm

Layer thickness: Dynamic (automatic under Cura between 0.2 mm and 0.12 mm)

Nozzle temperature: 200°.

Plateau temperature: 50°.

Printing speed: 50 mm/s

Adhesion: none

For the top part:

The supports are necessary and the ideal is to remove those generated underneath, very easy under Cura (See last picture)

Filling: 20%.

For the sides:

No support

Filling: 50% (for more rigidity)

  • 3D file format: STL
