A320 FCU Panel Fully 3D Print

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 1.9k views
  • 8 downloads

3D model description

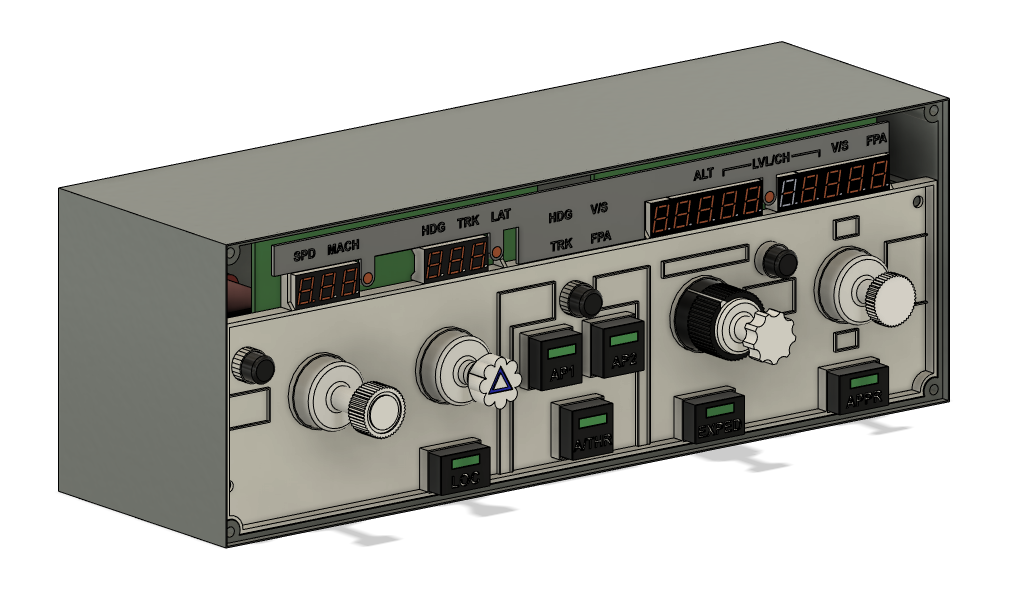

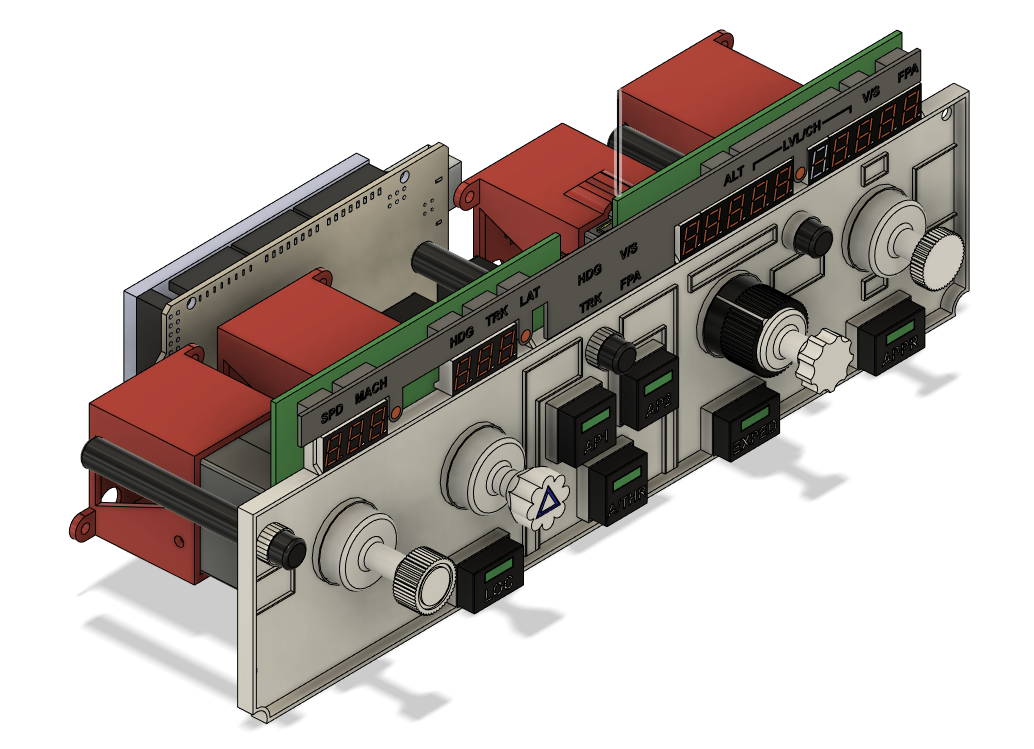

Are you tired of using mouse wheel to scroll knobs in Flight Simulator? You want to build a home cockpit simulator but price of the actual FCU hardware is too expensive? Now you can 3D print a quality and professionally designed a fully funtional A320 FCU at your home. You just need a 3D printer, or you can outsource of course. The 3D printed panels are backlighted too!! With our design, we carefully designed for easy printing and minimal supports. Using easily available hardware, you can finish build you own in matter of days. We have many years in designing a 3D printable objects, thus dont worry about all those 3D printing tollerance. We took care for you and you dont need to modify anything. We also designed a PCB and ready to order from PCB manufacturer like jlcpcb. The recommened controller is using Arduino Mega 2560 and interfacing using Mobiflight or HCSCIS. Refer to our documentation PDF for details. Wait no more!!! Build your own FCU now!! Requirement: Soldering Skills; Hardware Software Interfacing Skills; 3D Printer with minimum 300x300mm bed size and M600 (filament change) capable (Optional Laser Engraving)
https://www.youtube.com/watch?v=m0y0i1L7Ddg&t


3D printing settings

Infill 20%
Filament Change M600 required
bed Size 300x300

3D printer file information

  • 3D design format: 3MF and ZIP Folder details Close
    • A320 FCU Components List V5.zip

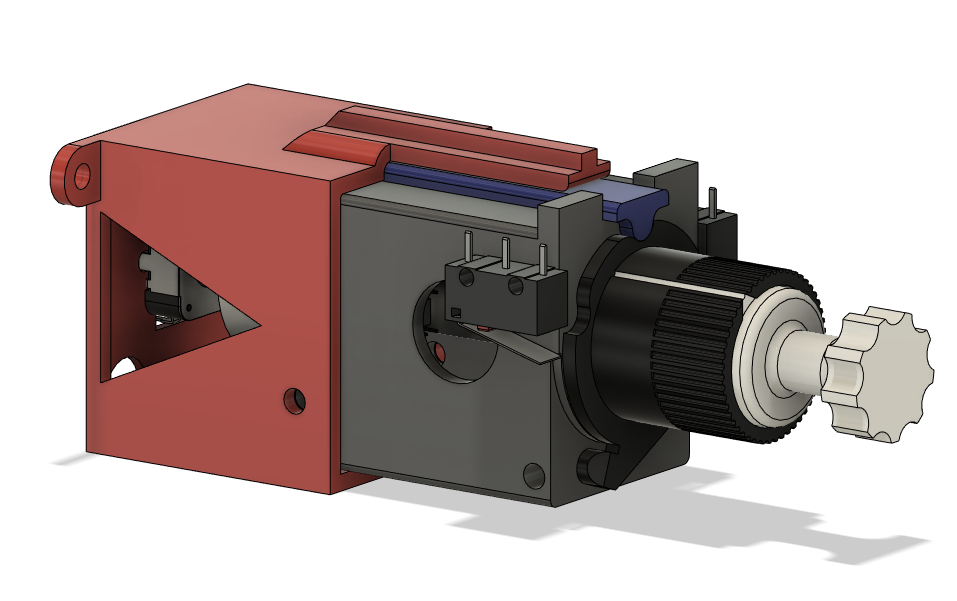

    • ALT_Module.3mf
    • HDG_Module.3mf
    • SOL3D_FCU_V1.1.3mf
    • SPD_Module.3mf
    • STL Files.zip
    • VS_Module.3mf
  • Last update: 2021/09/12 at 17:32
  • Publication date: 2021/07/18 at 19:00
