A02 Plane C-3D

?
Creation's quality: 5.0/5 (3 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 1.7k views
  • 26 likes
  • 202 downloads

3D model description

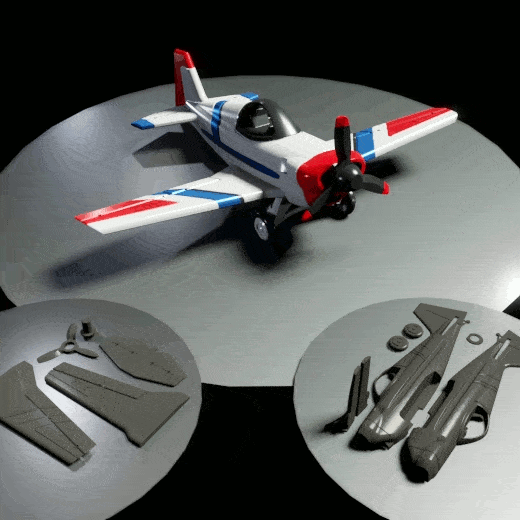

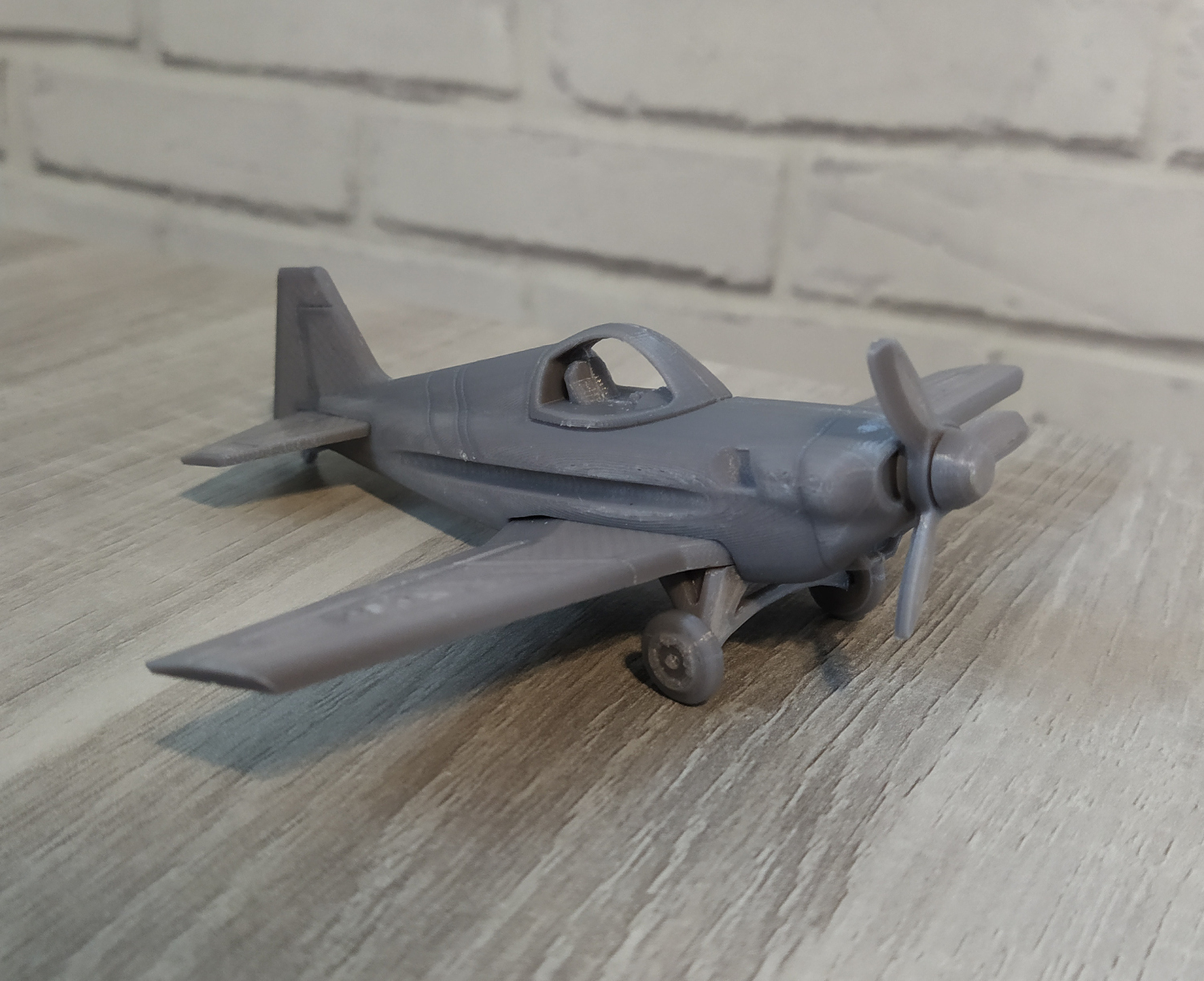

Aerobatic plane A02 C-3D (creation 3D)

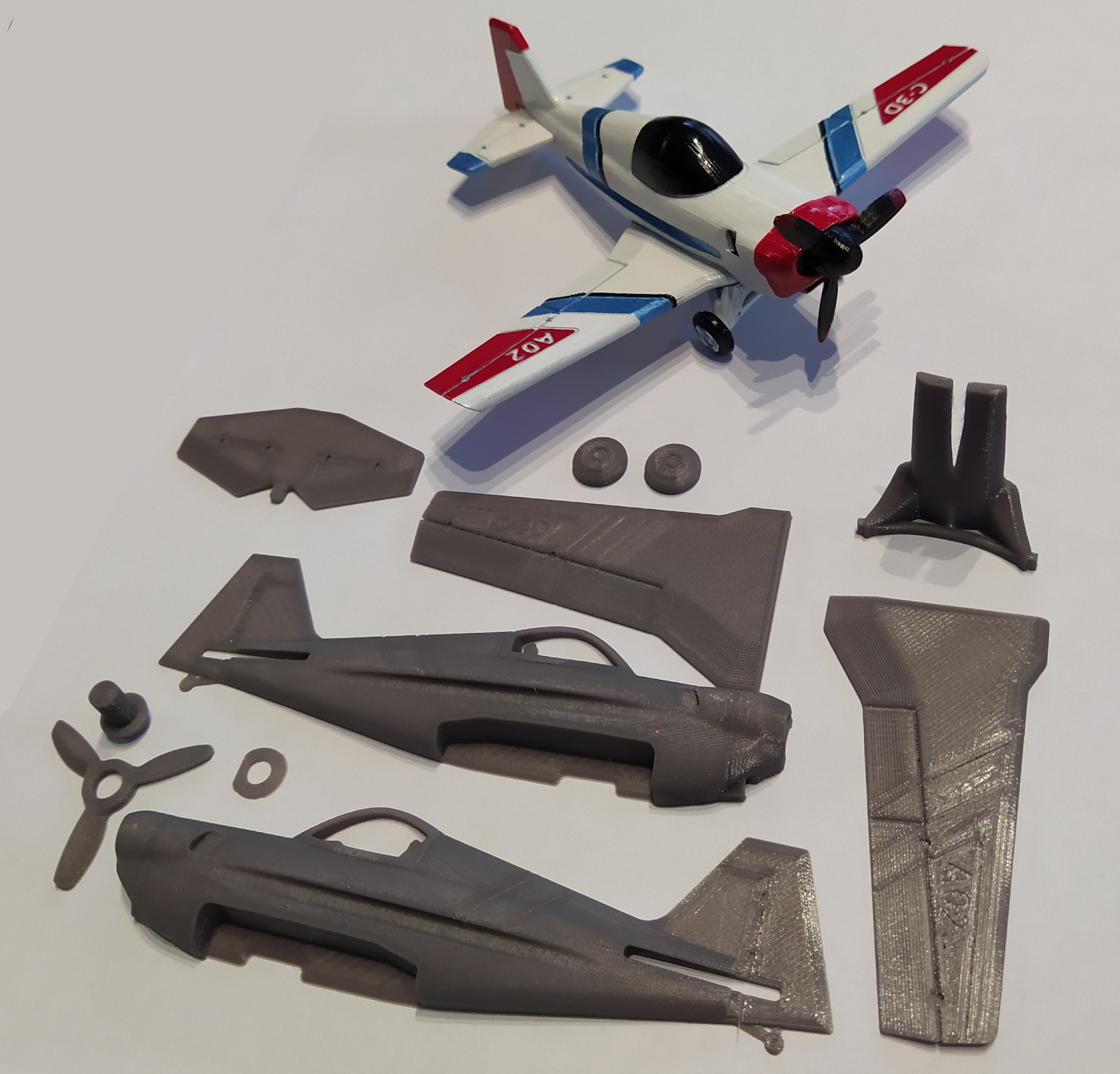

Manufacturing kit, designed and optimized for 3D printing.

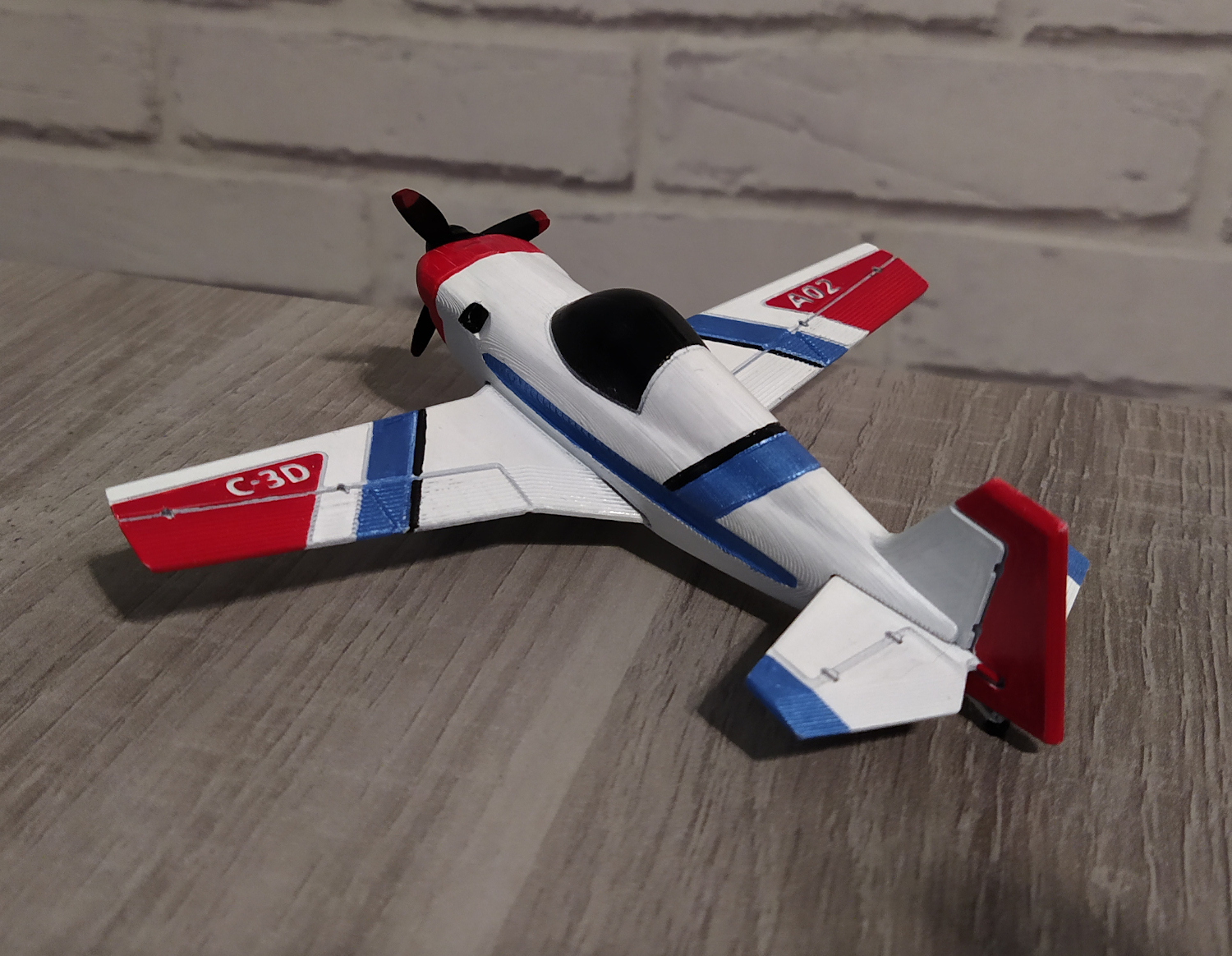

Easy to print and manufacture, tough, no external parts, easy to paint.

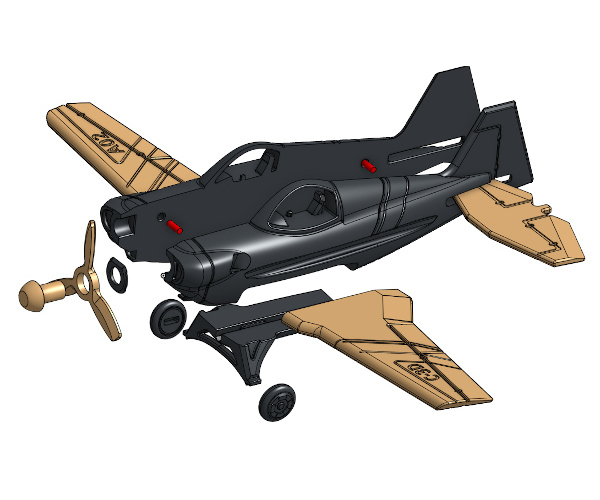

Just a little glue and two pieces of 5mm filament to fit the fuselage.

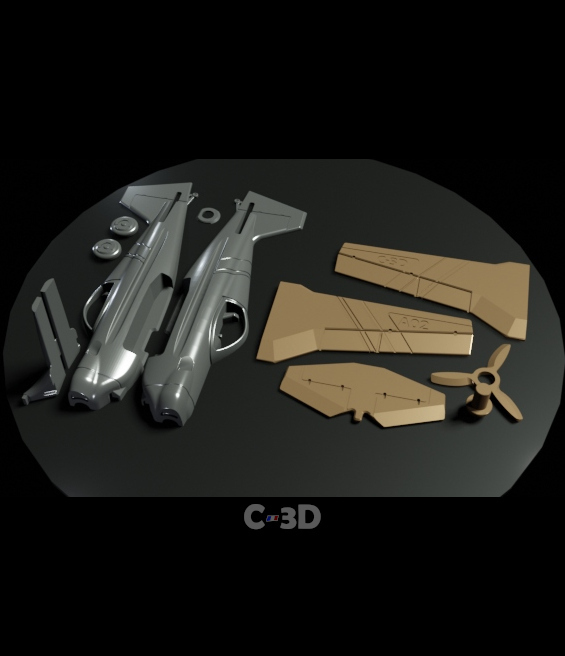

To be printed piece by piece, or using the two "ready to print" kits.
Minimum printer dimension (100% scale): X 120mm * Y 60mm * Z 40mm

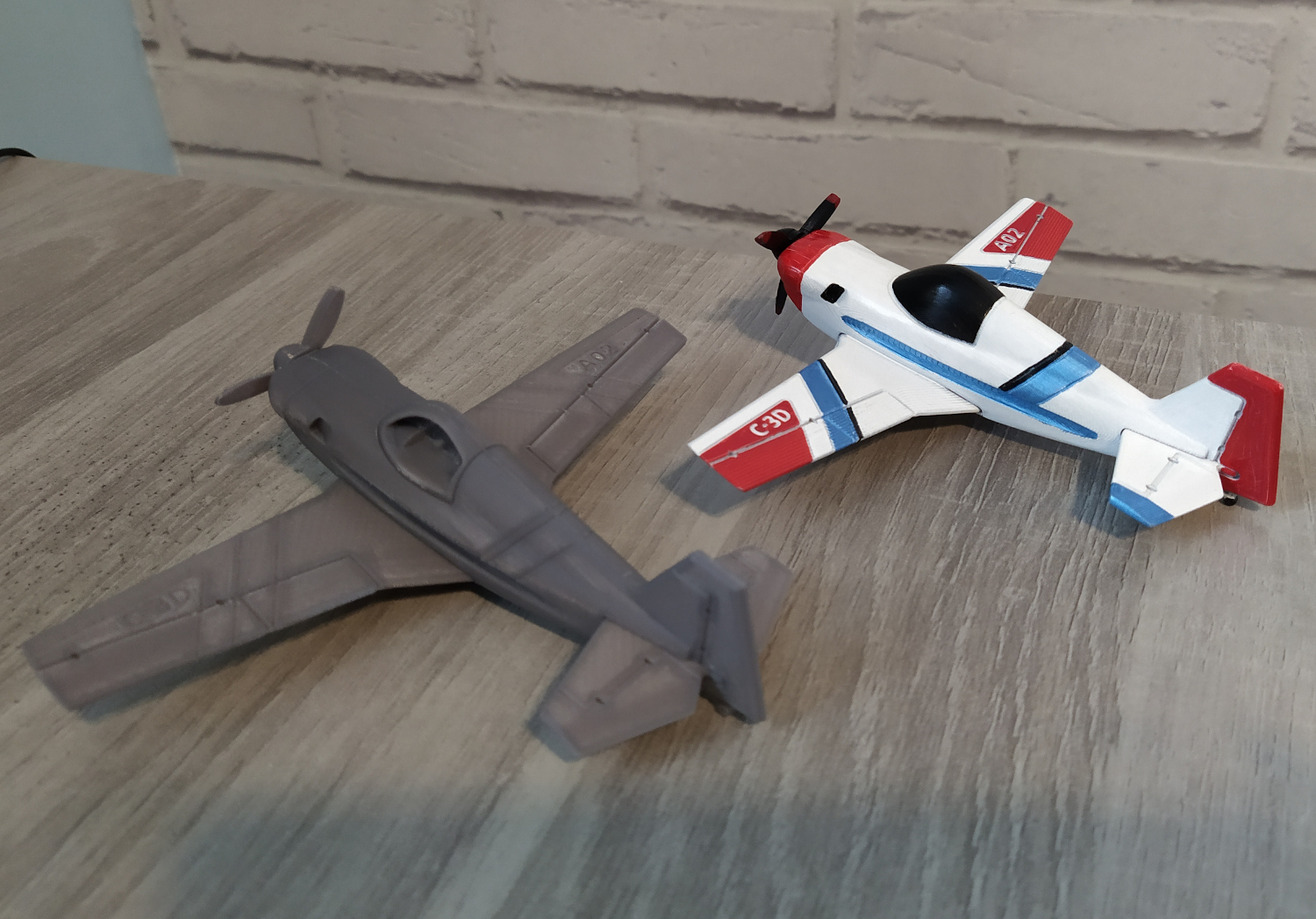

Assembled 3D model size: X 128 × Y 145 × Z 49 mm
3D model version: 3.0 (02/01/2021)

My models are designed with the aim of achieving a perfect balance between:
- aesthetic.
- solidity.
- attention to detail.
- solidity of parts and assembly.
- ease of 3D printing.
- ease of assembly.
- cost price, absence of external parts.
- modularity of the paintings.

More details on my dedicated website:
http://creation3d.net

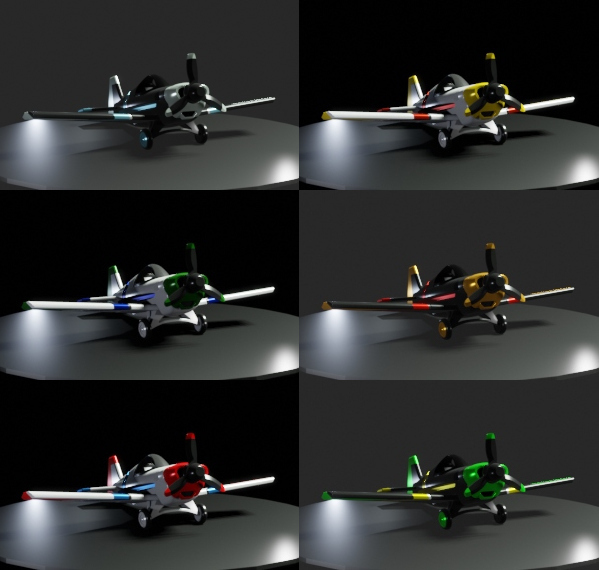

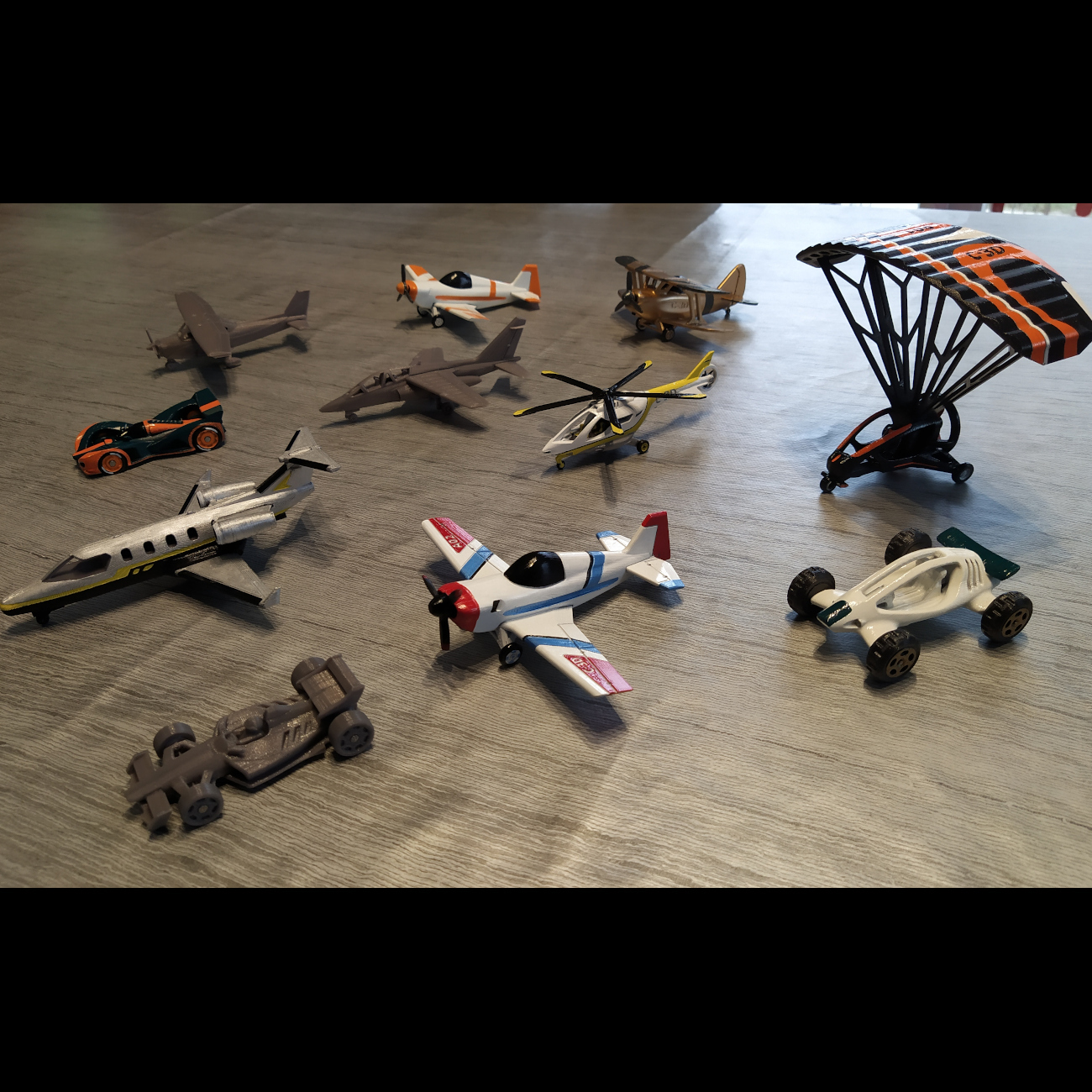

You will find my other models there as well as suggestions of paintings rendered at 360 °

Software used :
Modeling: Onshape standard
Renderings: Blender + Gimp
Prototyping: Prusa i3 Mk2

3D printing settings

FDM 0.4mm nozzle:
- PLA
- 0.1mm layers / 3 lines of walls
- 25% filling for fuselage / 85% min for wings
- No supports

  • 3D file format: STL and ZIP
  • Publication date: 2021/01/03 at 15:34
