3DRC 2WD Buggy 1:16 Car

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 👁 4.9k views
  • 17 likes
  • 298 downloads

3D model description

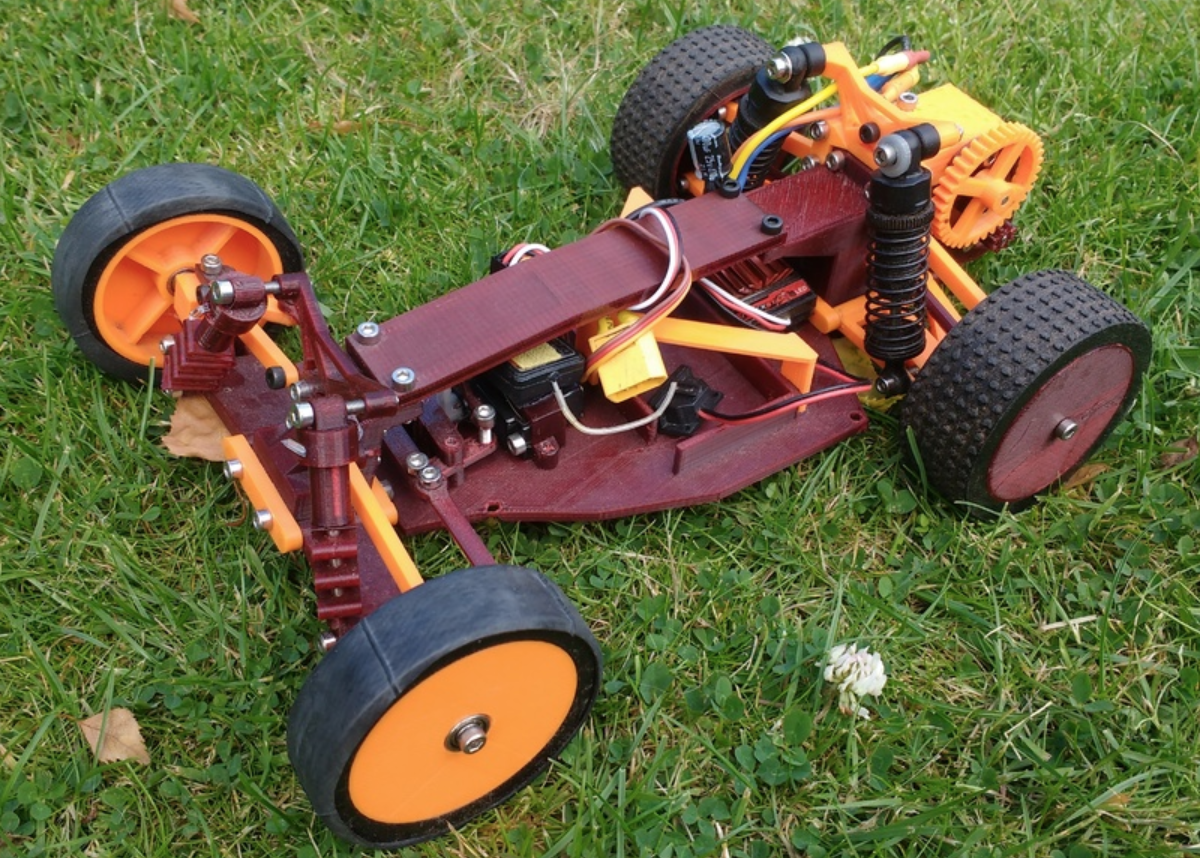

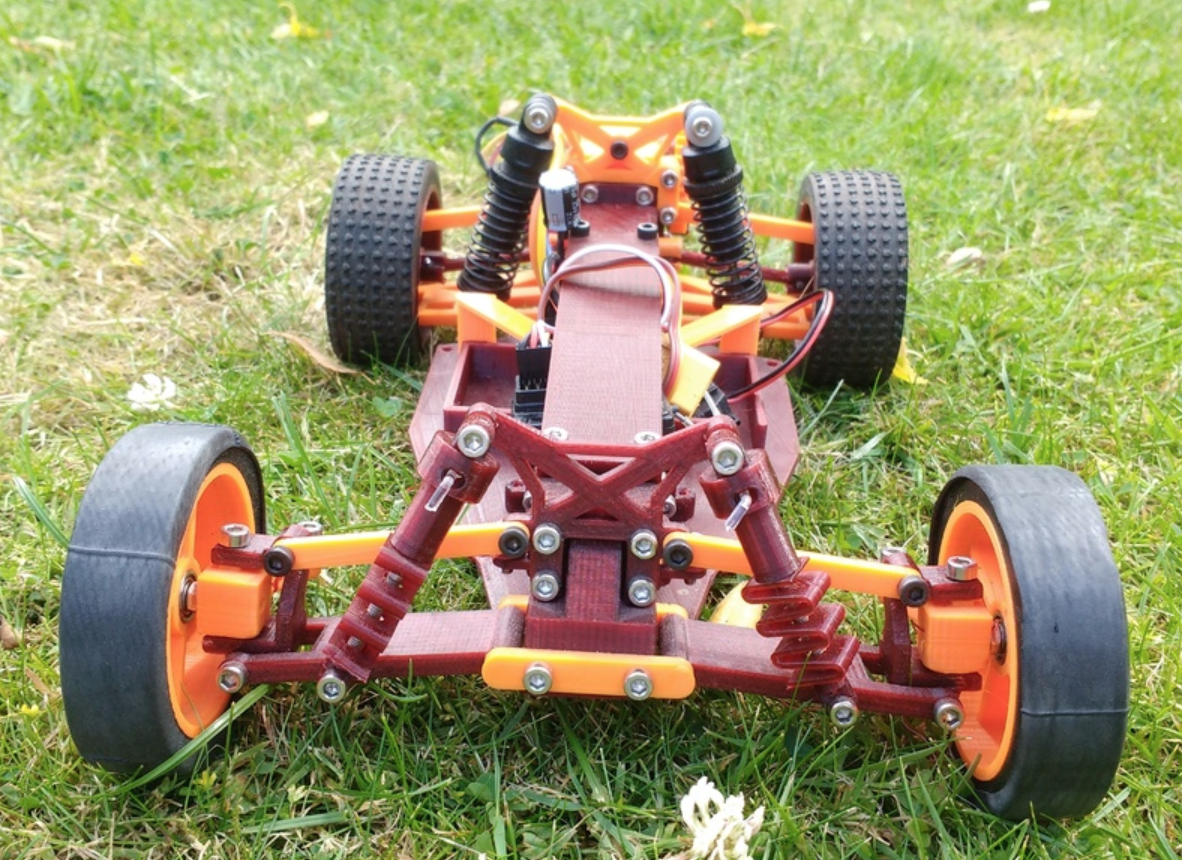

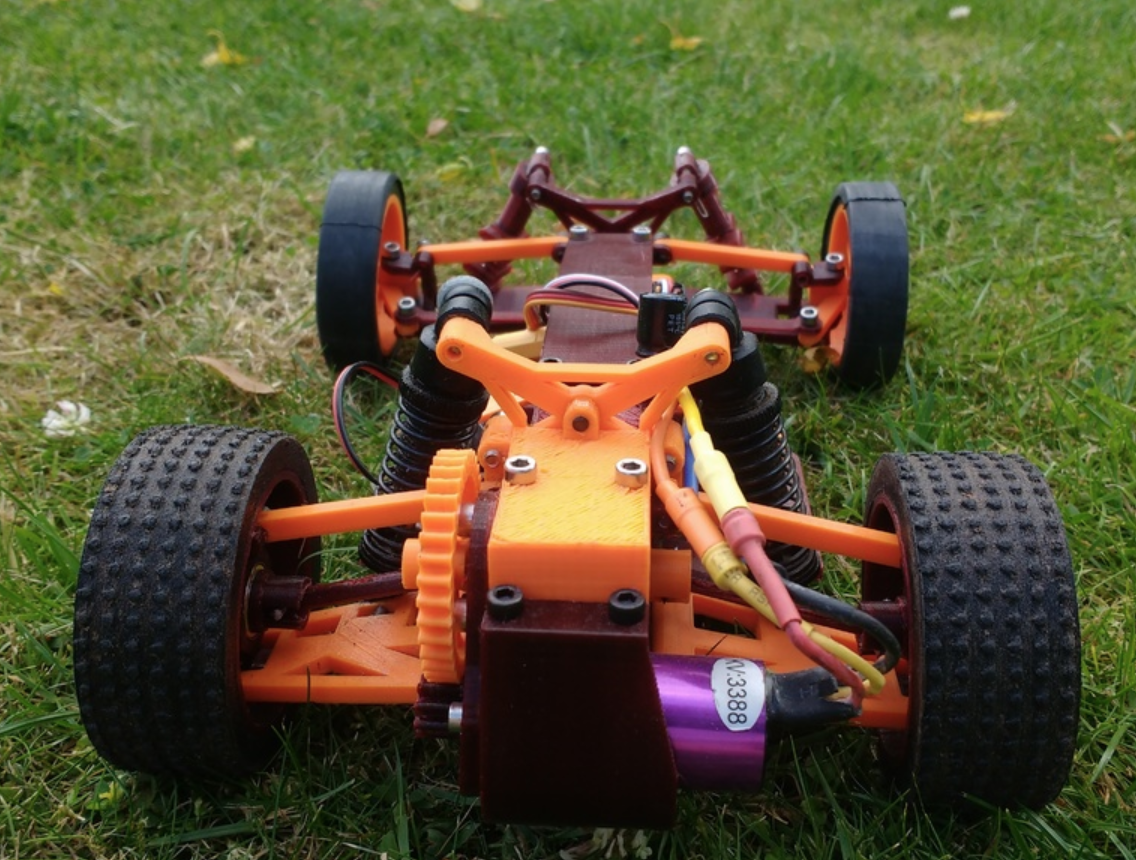

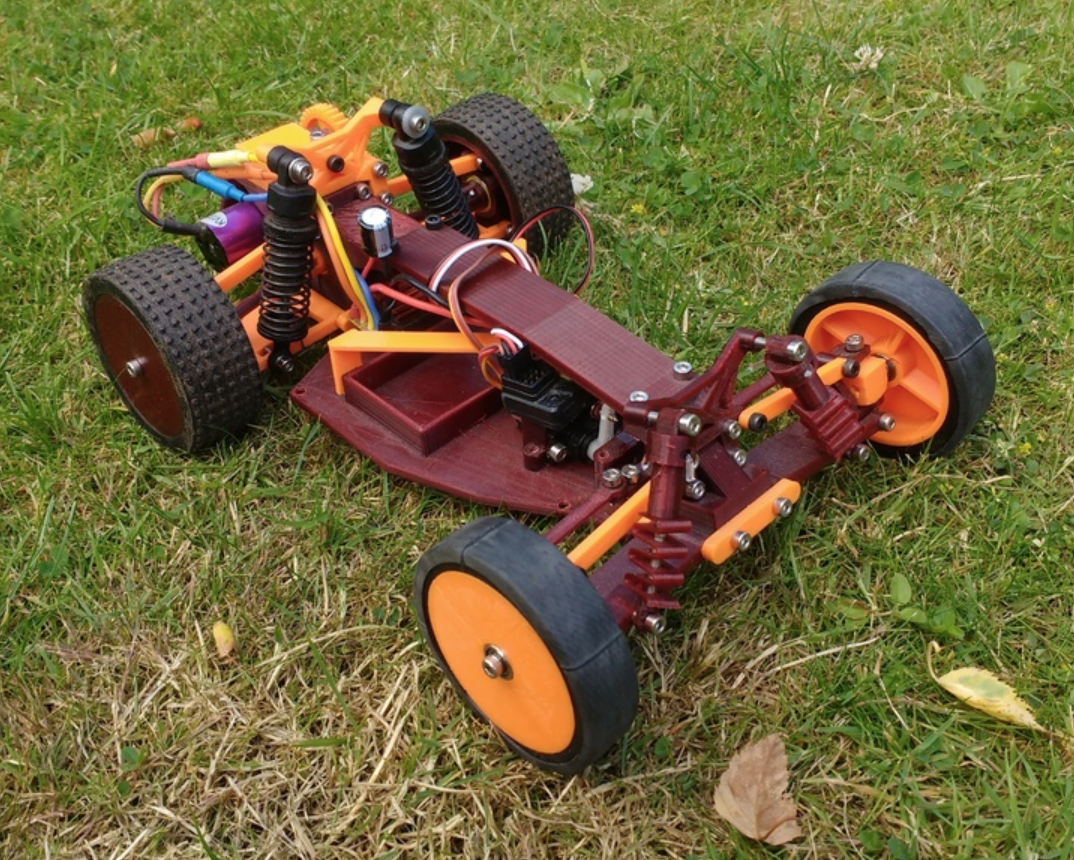

THE FIRST EASY TO PRINT RC BUGGY!
Designed with low-end printers in mind.
https://youtu.be/ZpdAvby5opg
All parts (except tyres) can be printed in PLA or PETG with no heated bed.

All printed in high quality rigid.ink filament - see their filament range and comparison here:
https://rigid.ink/pages/filament-comparison-guide

Features:

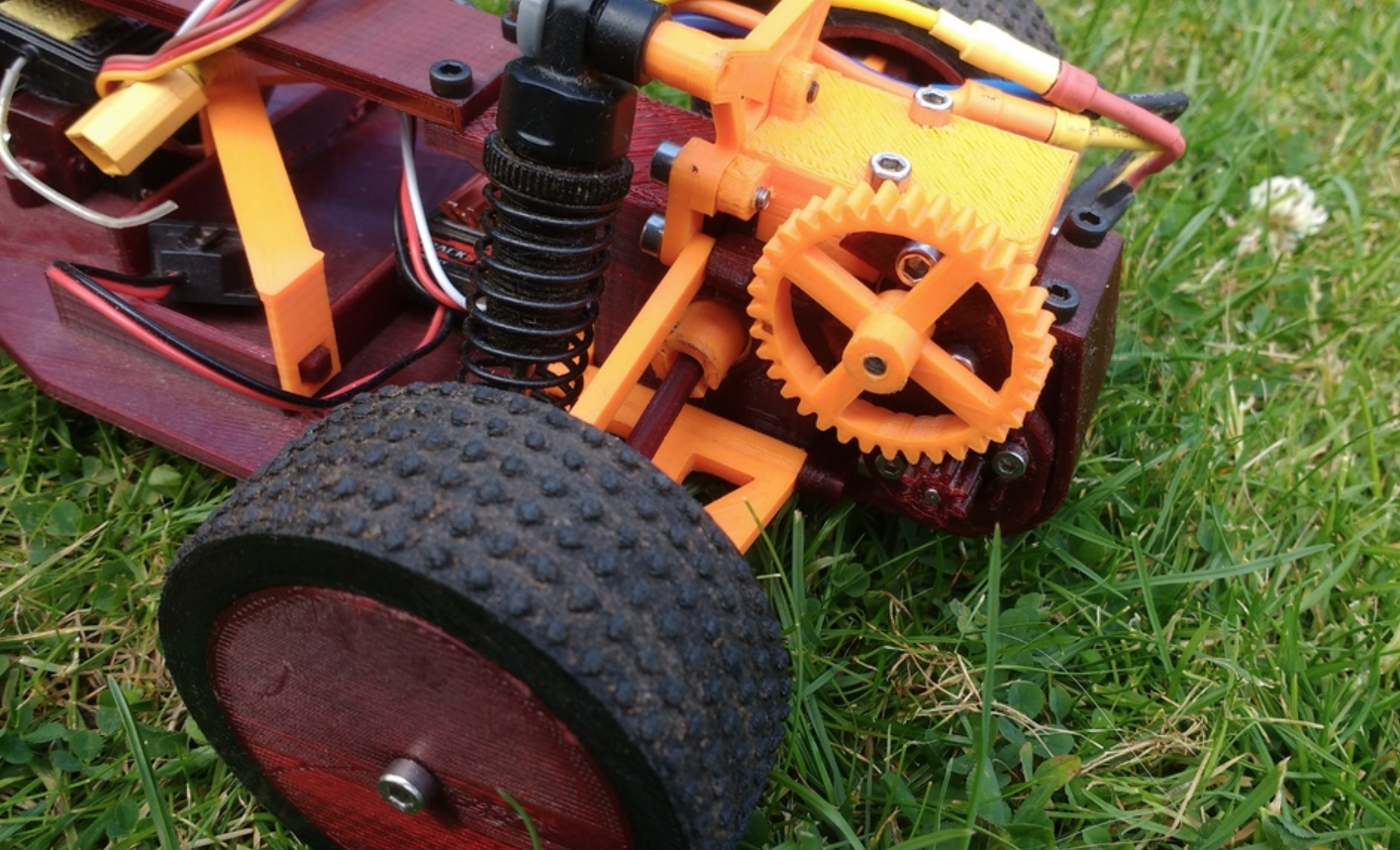

Oversized drivetrain is brushless-compatible when printed in PETG.
Drivetrain runs on ball bearings.
Full independent suspension.
Low-slung chassis is stable at high speeds and off road.
Multiple chassis configurations possible.

All stl files are in the .zip download

Extra parts:
Lots of M3 bolts (listed in assembly manual)
20mm diameter brushless inrunner motor.
Brushless ESC
13g metal gear servo
2-3s LiPo battery pack
RC radio system.

The tyres should be printed in a TPU filament. If you cannot print TPU, the buggy is compatible with standard 1/16 rear wheels and tyres. For the front, print the 1 piece wheel and tyre, then stretch a piece of bike inner tube over it.

I recommend printing all parts in PETG for better durability. I have had issues with PLA gears melting with brushless power.

Shocks:
The car is compatible with standard 1/16 scale shocks. I have also included 3D printable ones, but these only work with PETG plastic and have no damping.

3D printer file information

  • 3D design format: STL and ZIP Folder details Close
    • 3DRC_2wd_Buggy_Assembly_Guide.pdf.zip
    • RC Buggy.zip
    • diff_box_rear_cover.stl
    • servo_mount.stl

    Learn more about the formats

  • Publication date: 2018/01/30 at 12:02

License

CC BY NC
