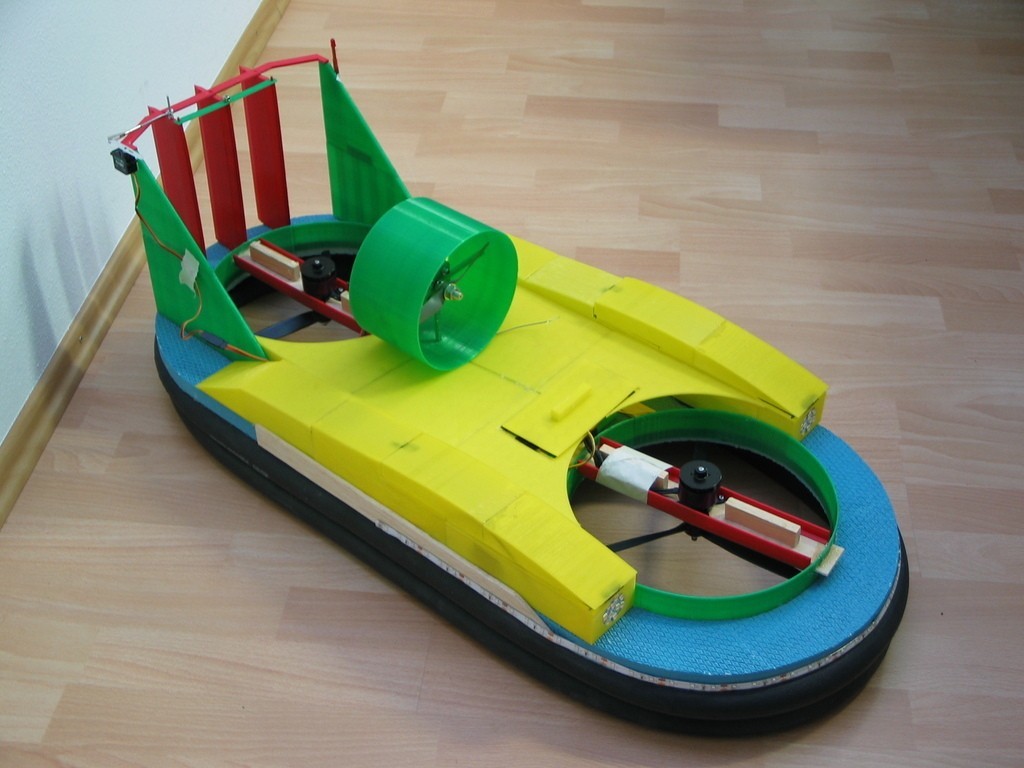

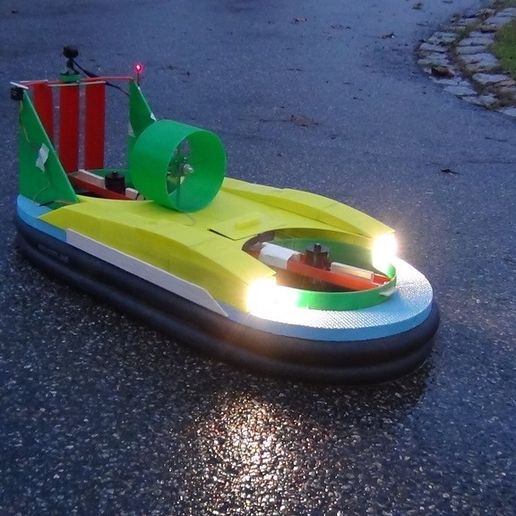

3D-Printed Hovercraft

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 2.6k views
  • 7 likes
  • 76 downloads

3D model description

I got the idea to build a Hovercraft last year when I read an article about Hovercrafts. From then I studied the topic and wanted to build one for myself.

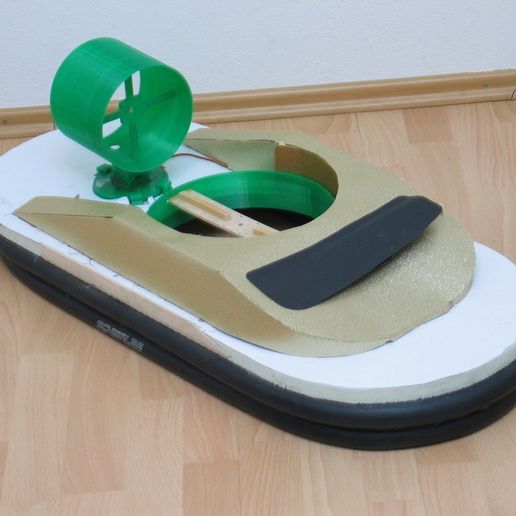

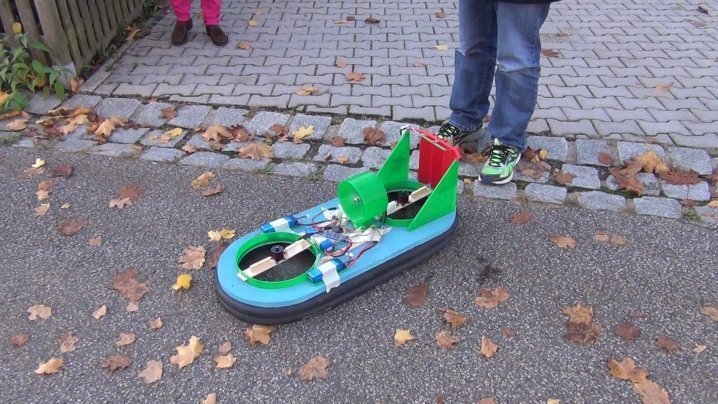

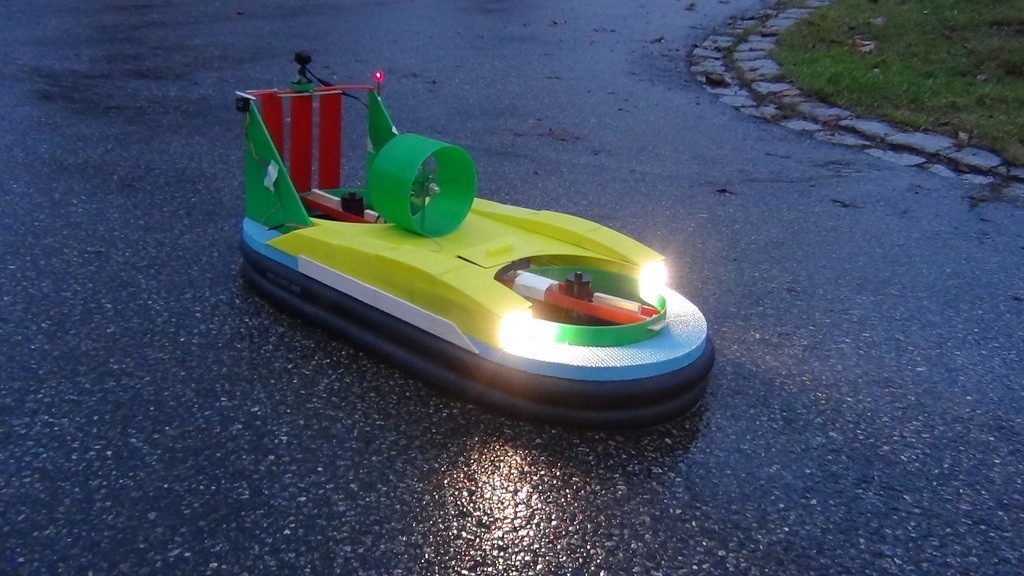

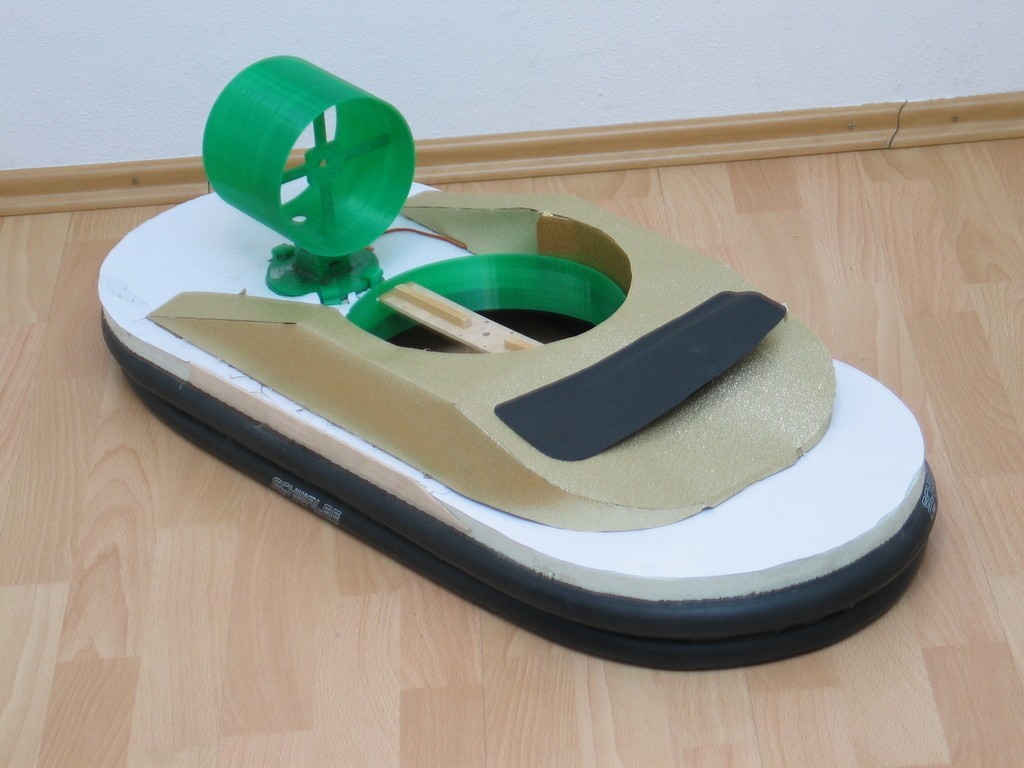

This is my third prototype because the other ones had some issues.

- They rotated around their own axis -> I could not control them

- They could not carry enough weight

- Small stones destroyed the propeller of the lifting motor -> I glued

two bicycle tubes under the base.

For the design I used Autodesk Inventor 2013 and my printer was the MakerBot Replicator. It took around 3-4 days to print the third Hovercraft.

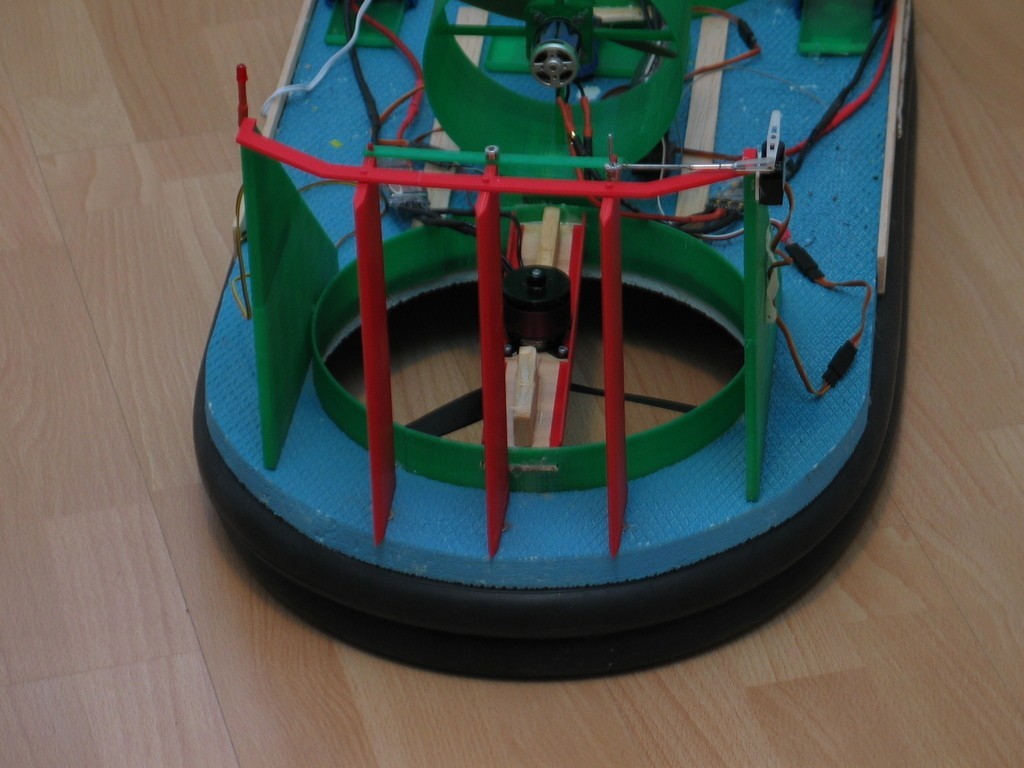

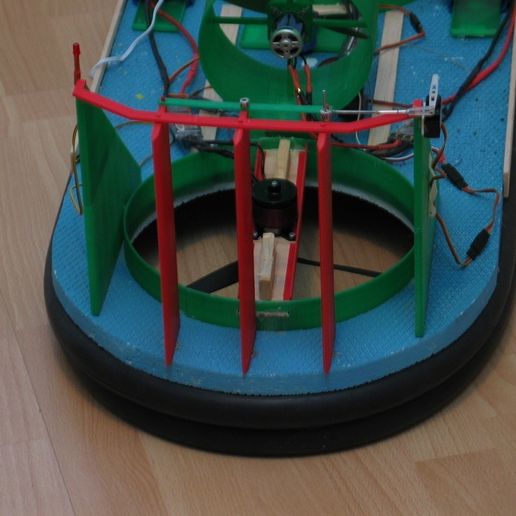

The base is not printed because it would take way too long. And Styrofoam has the advantage that it swims when the engines fail. I also did not print the bicycle tubes because they have to be flexible and they must be one piece so that no air flows out to the sides.

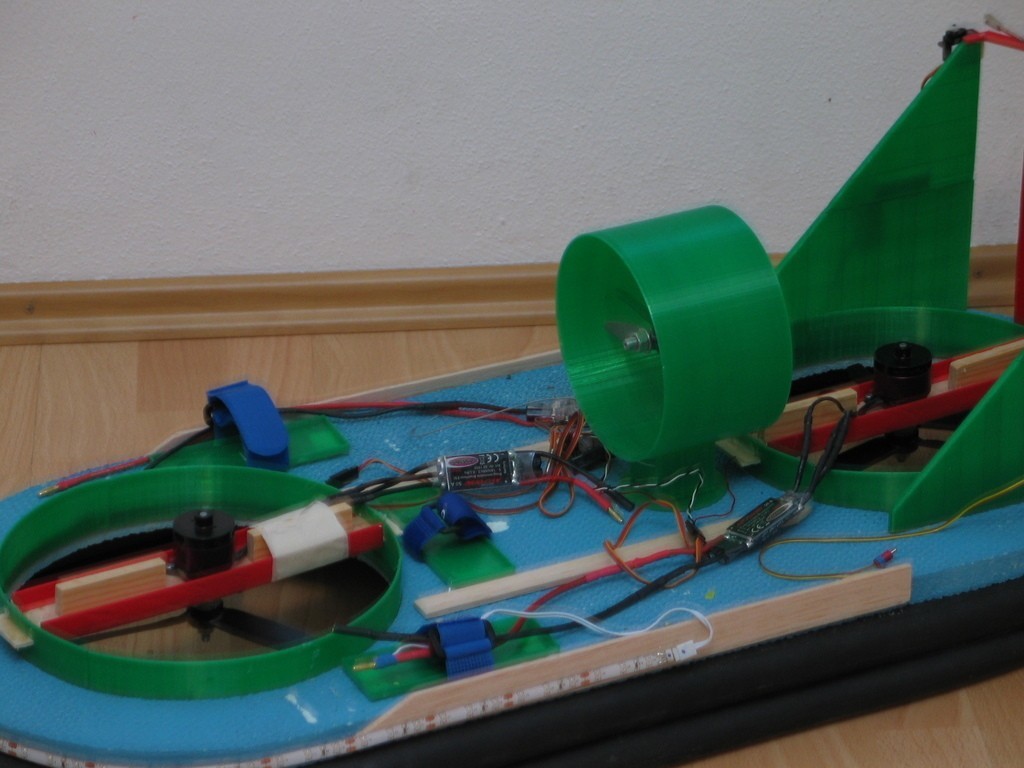

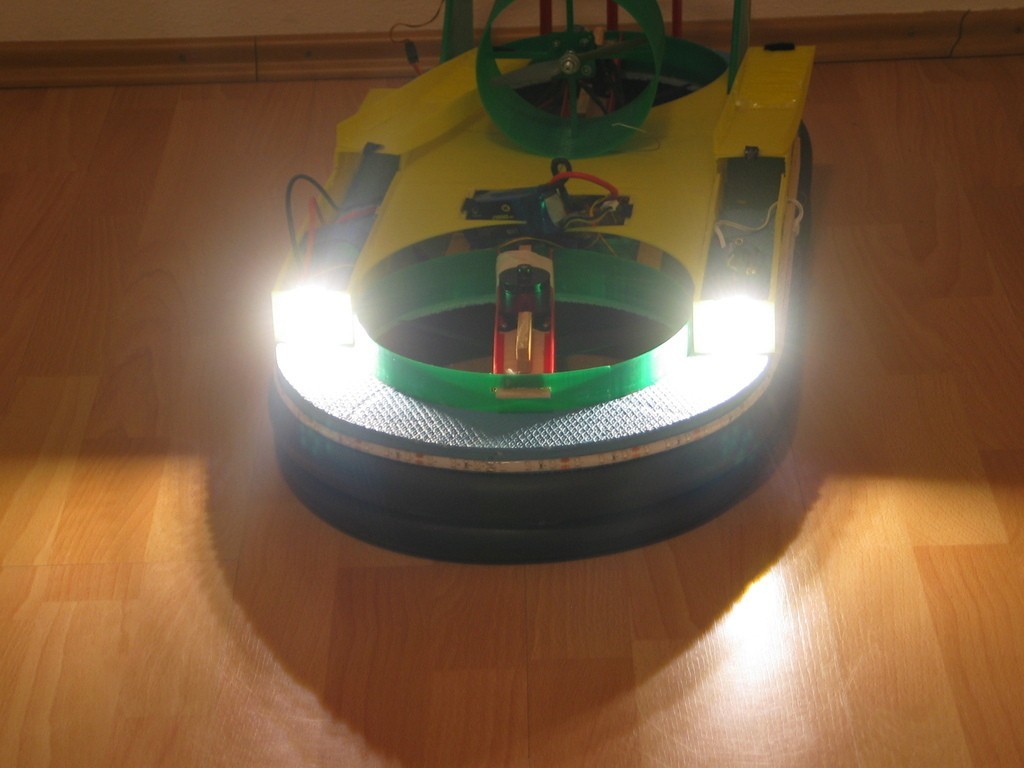

The Hoveraft is lifted by two motors and it has one thrust motor. The power for the motors comes from three 2800 mAh Lipo batteries.

My plans with the Hovercraft are to develop a cheap mobile research station for example for the arctic. The advantages are that it has no CO2 emissions and you can control it from another place like a drone.

Just ask if you have a question!

3D printing settings

I made it wth a Makerbot Replicator

Infill: 15%

Shells: 2

Speed: 75 mm/s

You can find a detailed instruction here:

http://makezine.com/projects/3d-print-rc-hovercraft/

You need:

Styrofoam base (35” x 14” x 0,8”)

Two bicycle tubes (28”), Extra Light (Around 0,31 pound)

Two “Hacker A30-12M Brushless Motor”

One “Pichler Boost 18 Brushless Motor”

Three ESCs “Xetronic 50A”

One Servo (Around 4,5 pound pulling load)

One receiver and transmitter

Hot glue

3x 2800 mAh Lipo batteries with 11,1 Volt

2x Propeller 9x6

1x Propeller 5x4,5

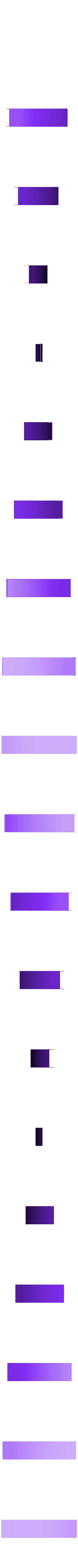

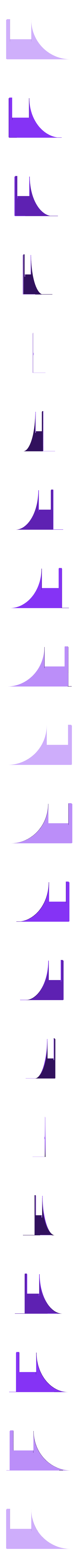

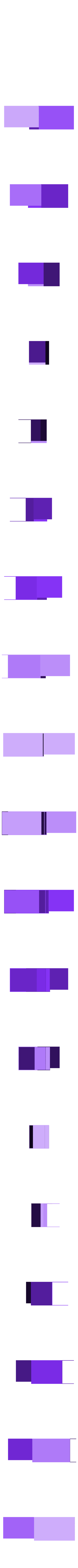

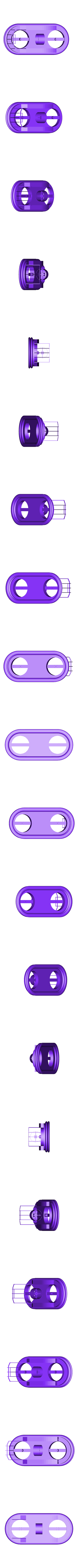

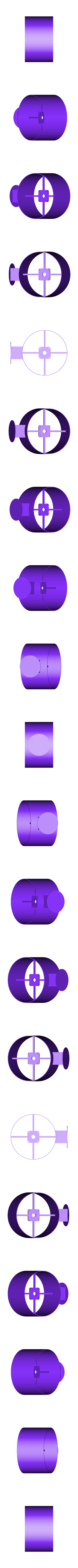

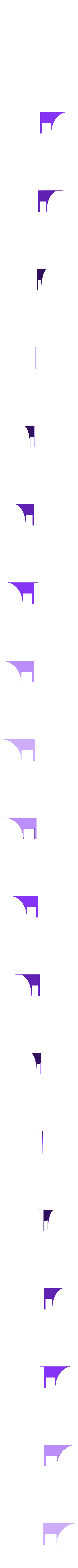

Print all parts once, exept:

2x Ruder 2.1

2x Ruder 2.2

3x Ruder

3x Akku

2x Verkleidung 2.1.4 or 2x Verkleidung 2.1.4.1 and 2x Verkleidung 2.1.4.2

2x Ring 1

2x Ring 2

2x Ring 3

4x Halterung

2x Hubmotor

  • 3D file format: STL
  • Publication date: 2018/12/14 at 16:03

Tags

Creator

License

CC BY SA
