3D model description

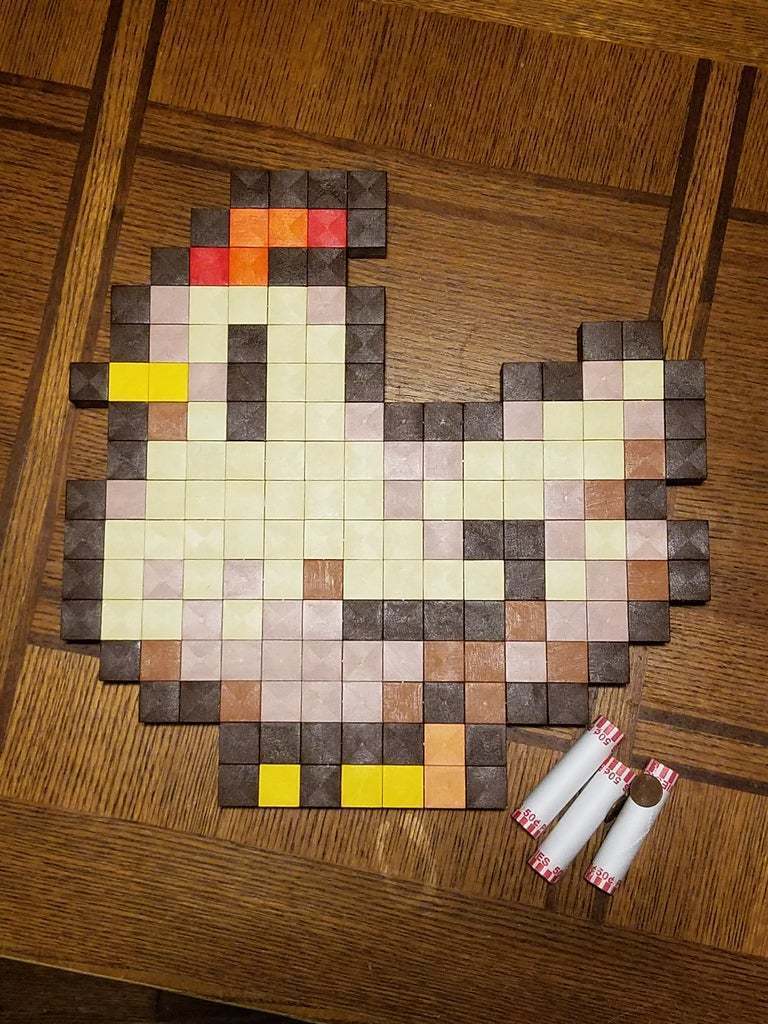

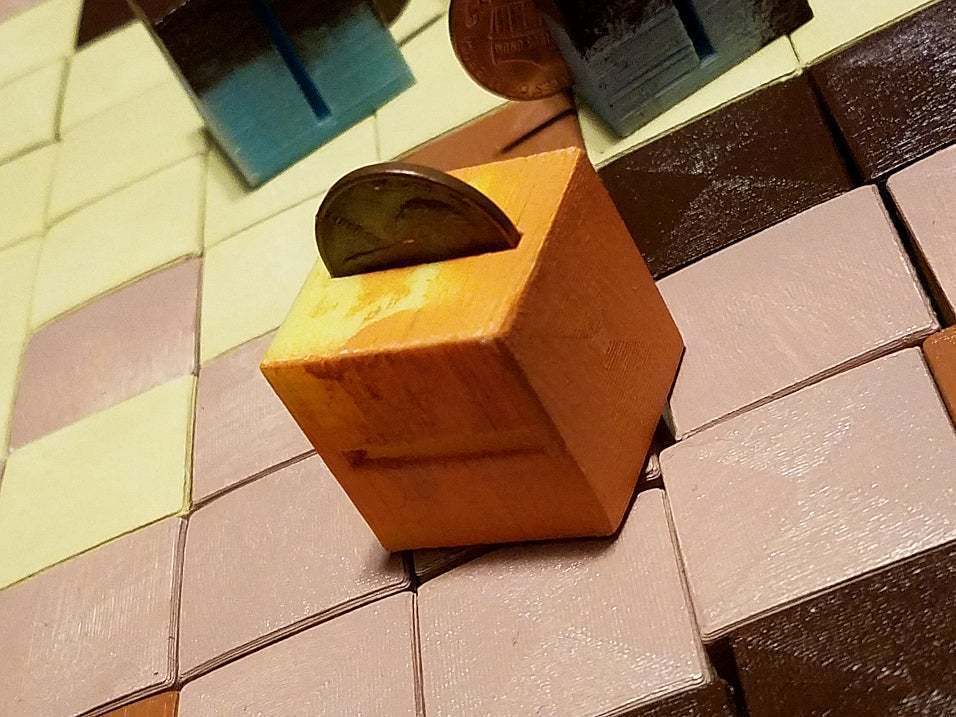

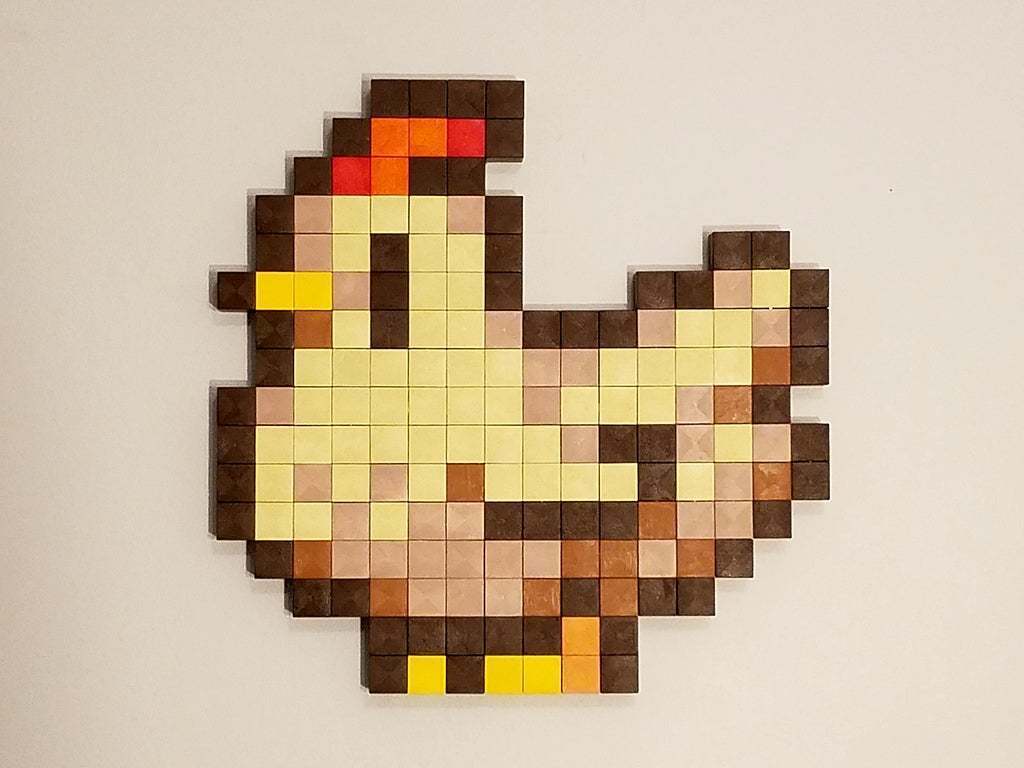

Inspired by the wood block pixel art of Etsy user BodegaCatCo and others, I designed some 3D-printable plastic blocks that connect together with American pennies.You can make flat wall art, such as the Stardew Valley chicken featured in my pictures, or 3-dimensional art by stacking blocks on top of each other. These blocks measure 23.8mm / 0.94 inches cubed.

Steps:

  1. Find a pixel art drawing of your favorite video game character. A good resource is pixelart.com.

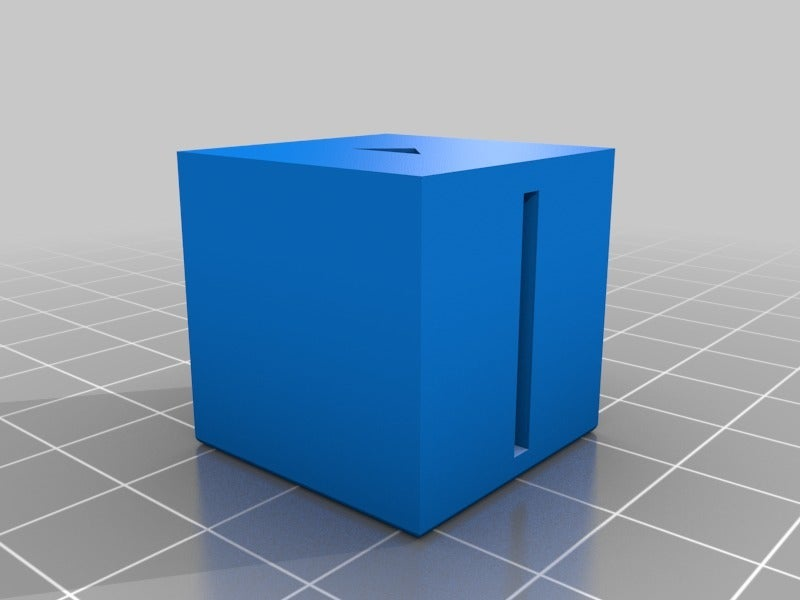

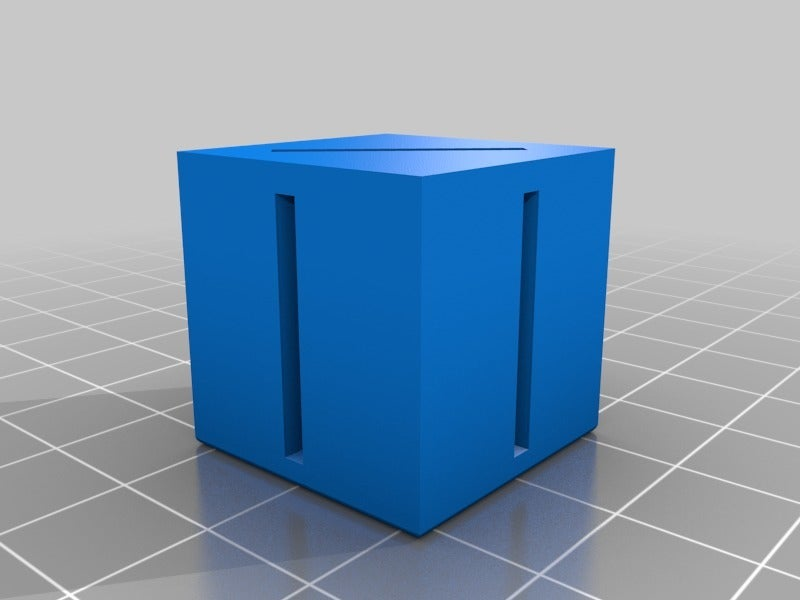

  2. Print 2 test blocks of "PennyPixelBlockArtStandard.stl." You'll probably need to print several tests to get the penny grip just right. It's essential that you use Cura's setting "horizontal expansion" to tweak the penny grip (or another slicer's equivalent).

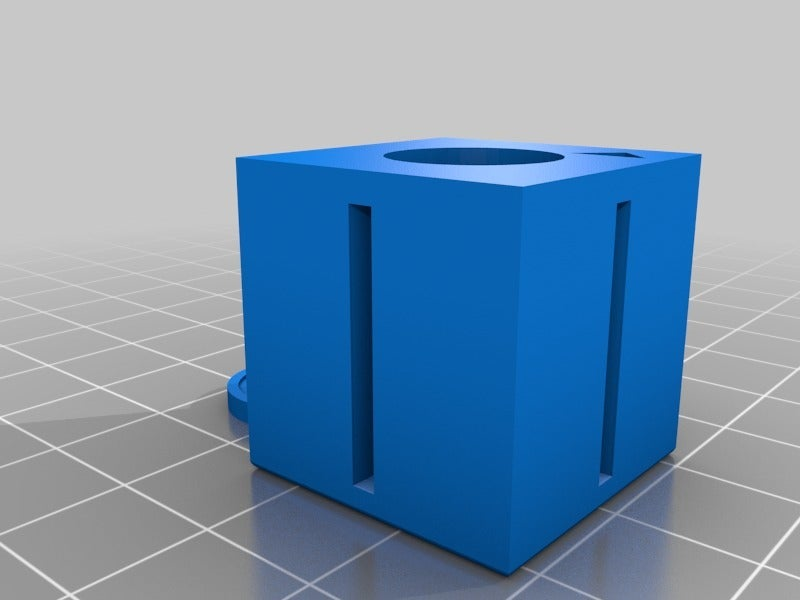

  3. Map out the amount of blocks and their colors. You can print all in one color of plastic and then paint, or you can print in various colors of plastic. If you're making 2D art and you don't mind seeing the penny holes on the exposed sides, all you need is "PennyPixelBlockArtStandard.stl". If you want the sides to be solid, you'll need to use several of the .STLs. If you want to hang the art on a wall, print two of "PennyPixelBlockArtHanger.stl" and place them appropriately. These special blocks allow you to hang a nail on the back.

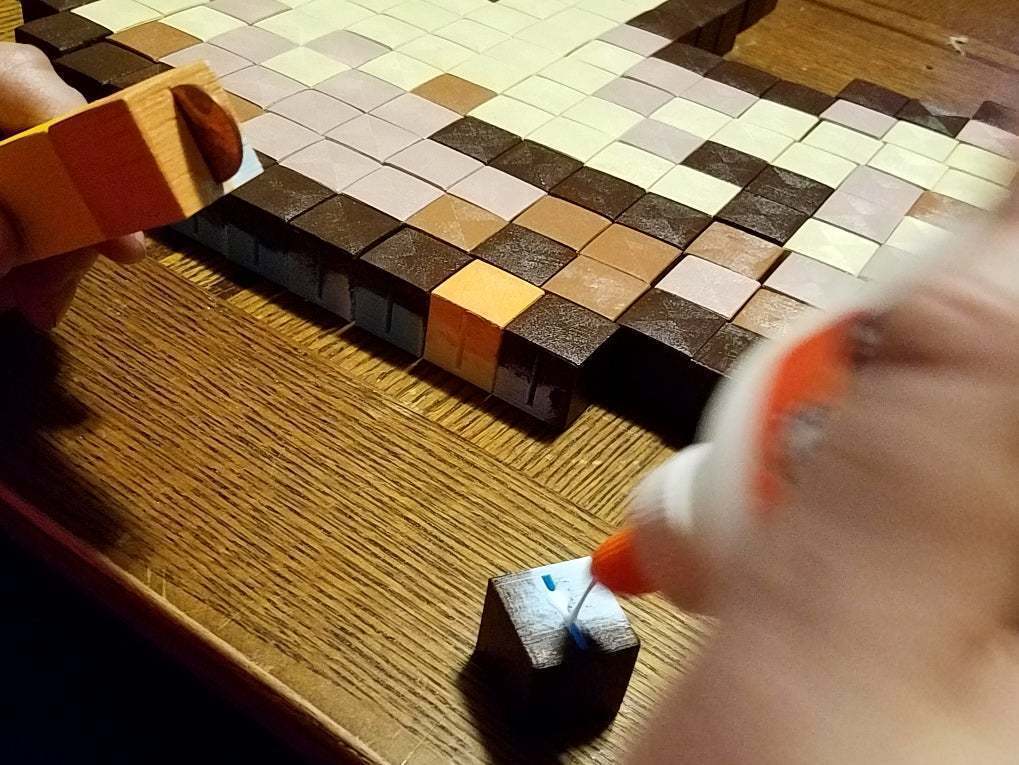

  4. Print and connect. I use a little Elmer's Glue in the penny slots to make a solid connection. Once complete, I tape the back side to make it hold better.

The directional triangles on the backside of the blocks help you maintain polarity. I highly recommend keeping all triangles facing the same direction. This will help if your printer prints the block length slightly different than block width. You won't always be able to maintain the same direction with blocks with exposed faces, but it shouldn't matter too much.

Cat for scale. ;-)

  • 3D file format: SKP and STL
