3D model description

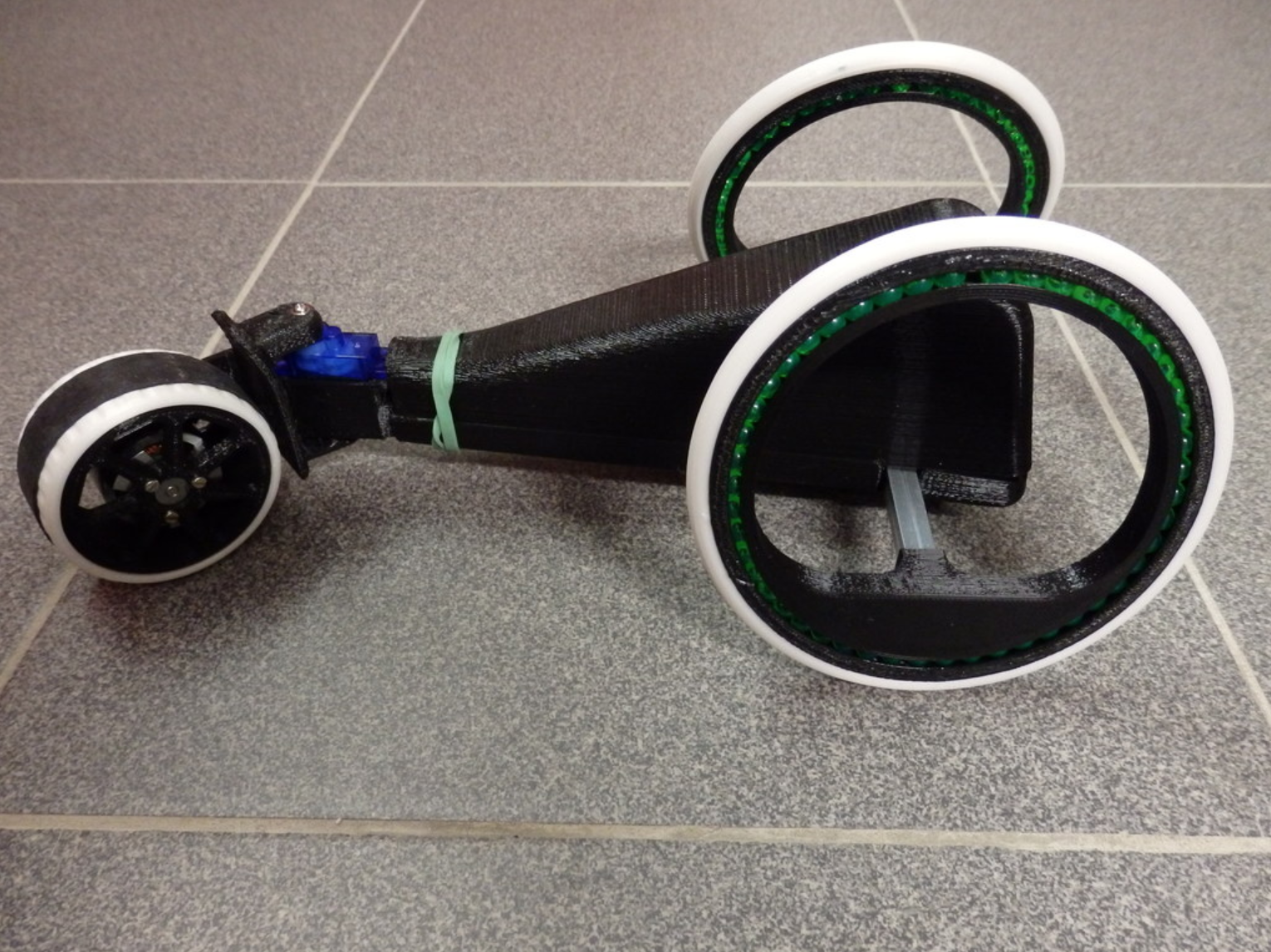

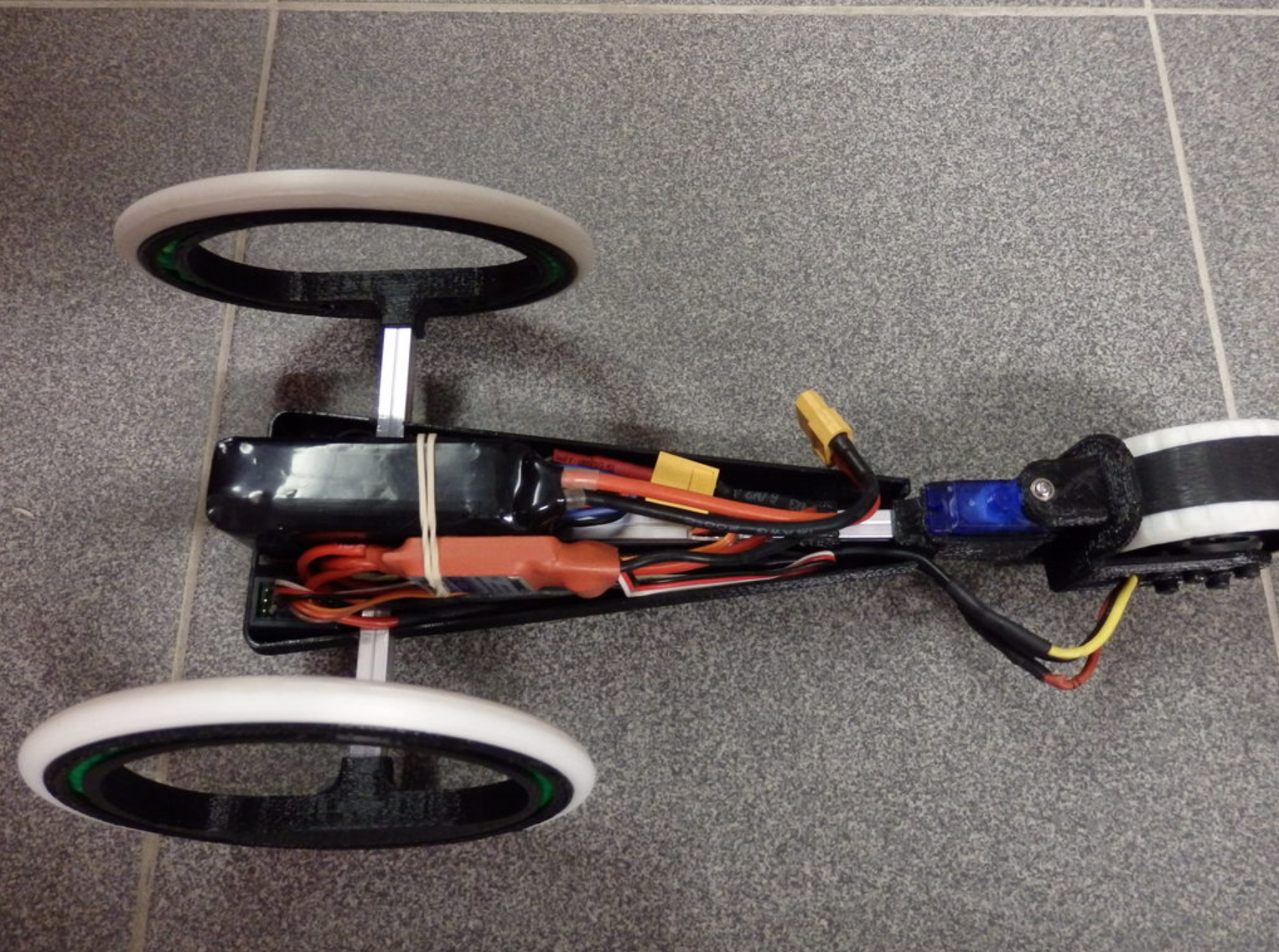

Here is a radio controlled 3 wheeled vehicle, which looks like nothing special.

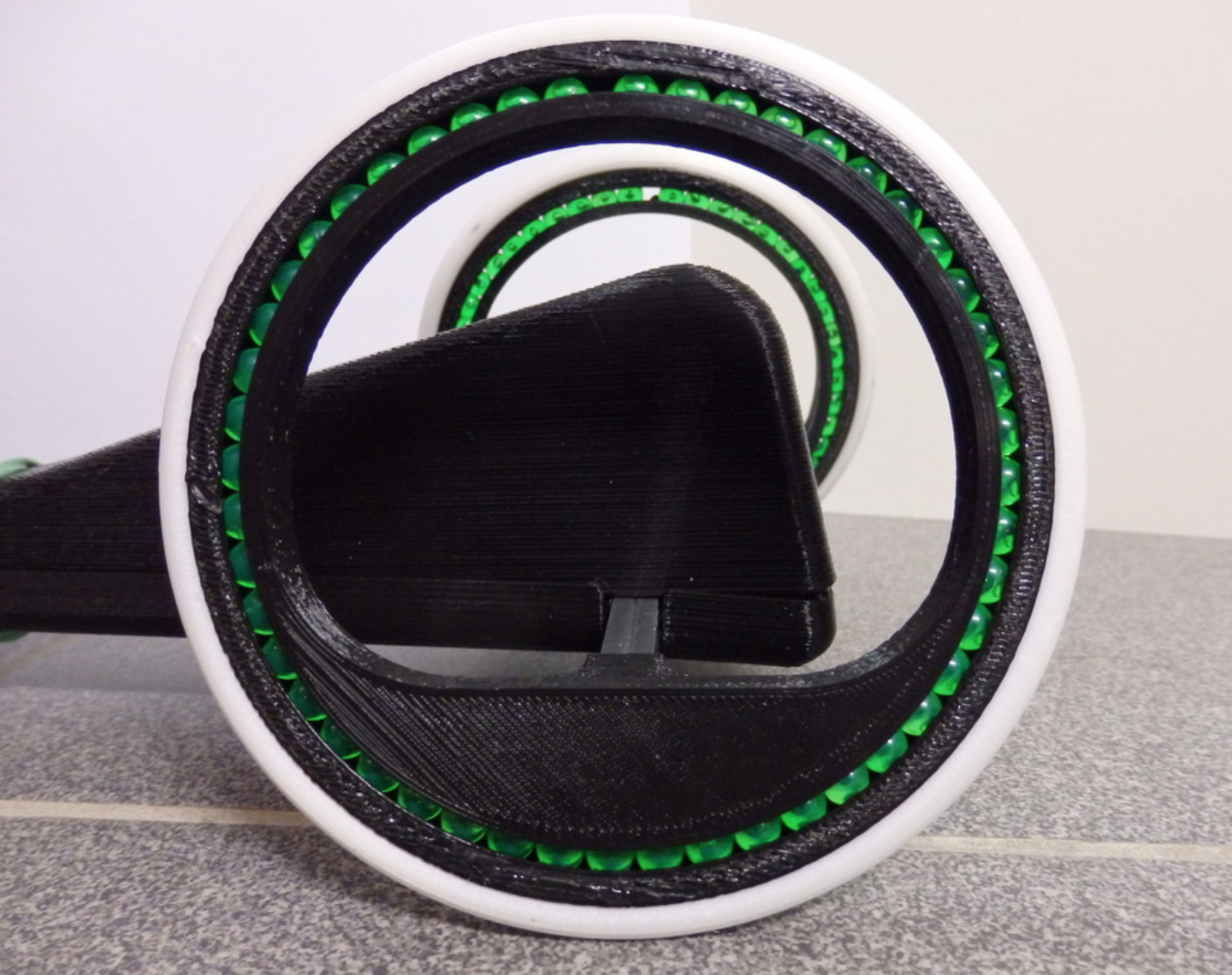

It has, for front wheels, large ball bearings inclined on a low axis.

The ball bearings come from 6mm Airsoft balls.

The tires were printed in Innoflex 60 (more flexible than the Pla).

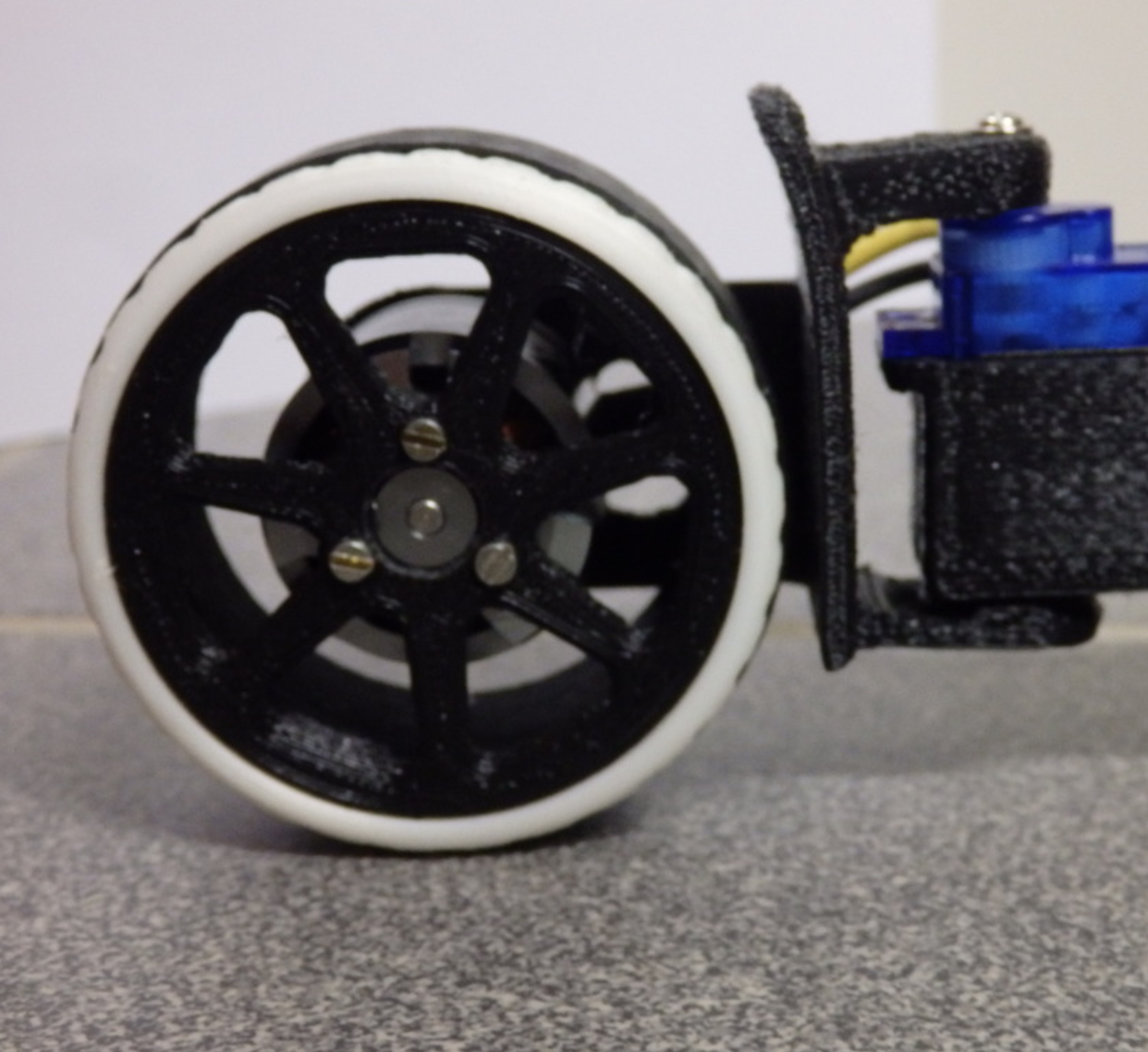

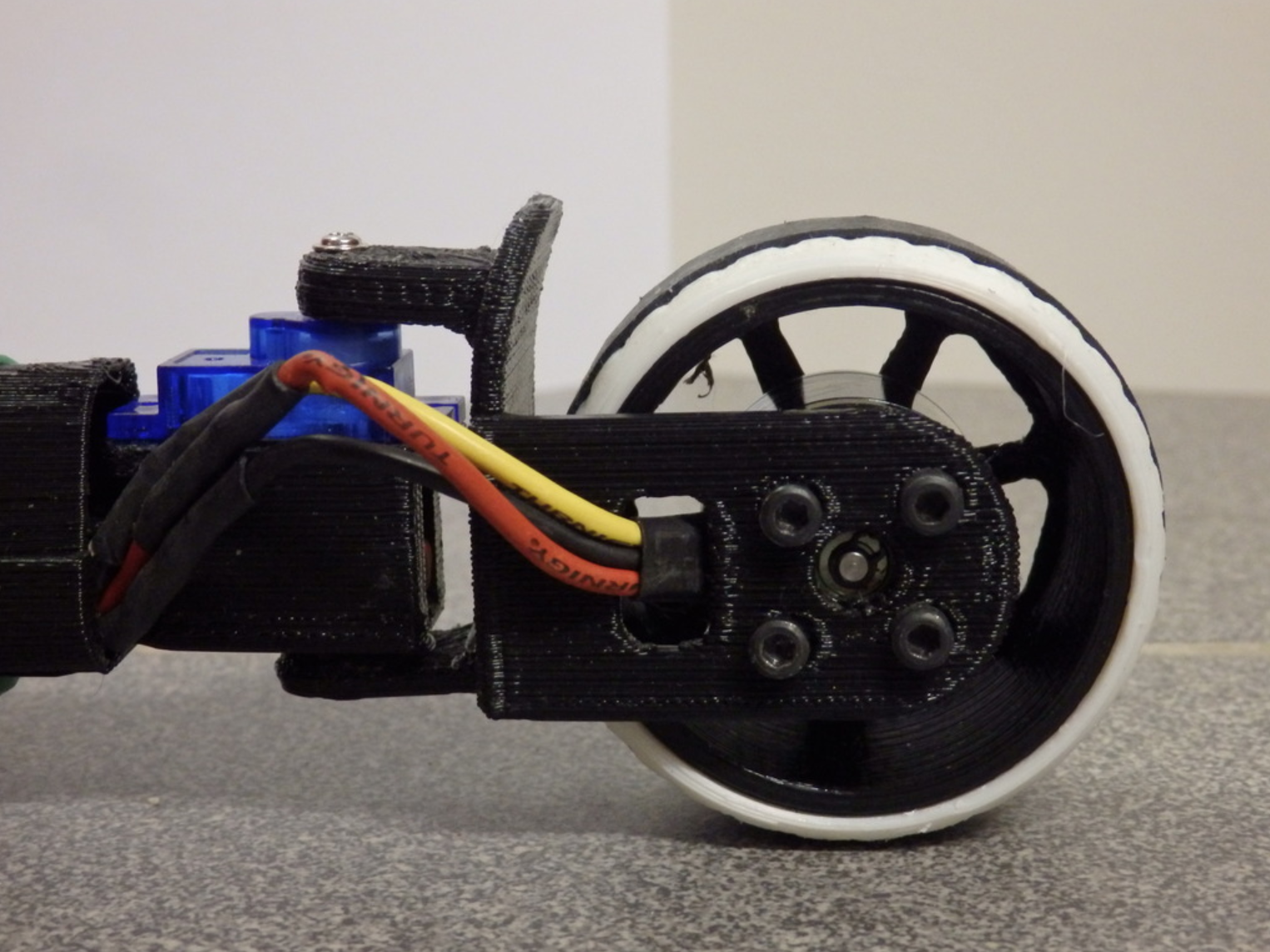

The engine is a NTM Prop Drive Series 28-26A 1200kv (short shaft version) motor installed in the rim and bolted to the fork.

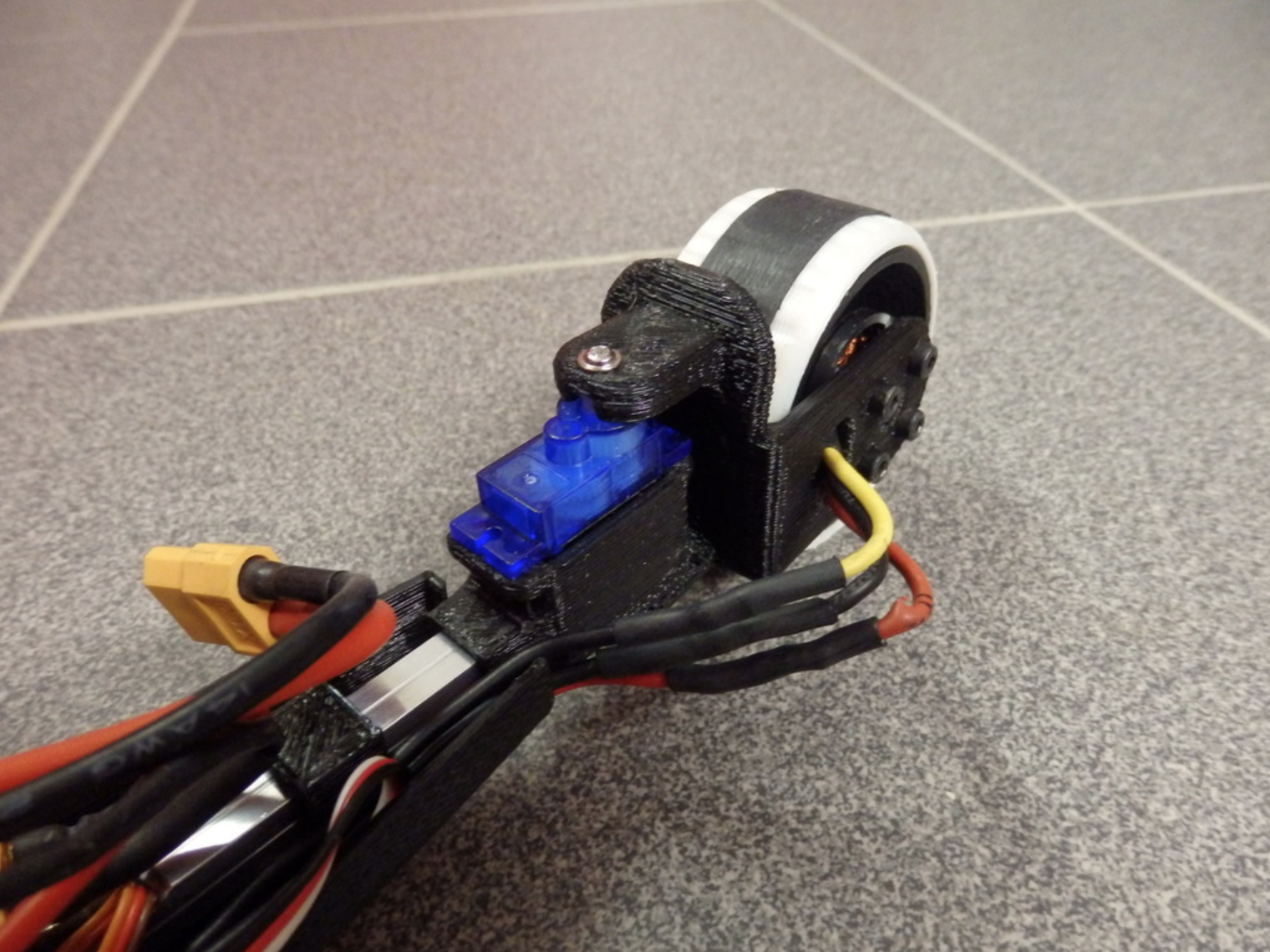

The steering is ensured by a 9 gram servo hobby, inserted in its support which is attached to the aluminum tube.

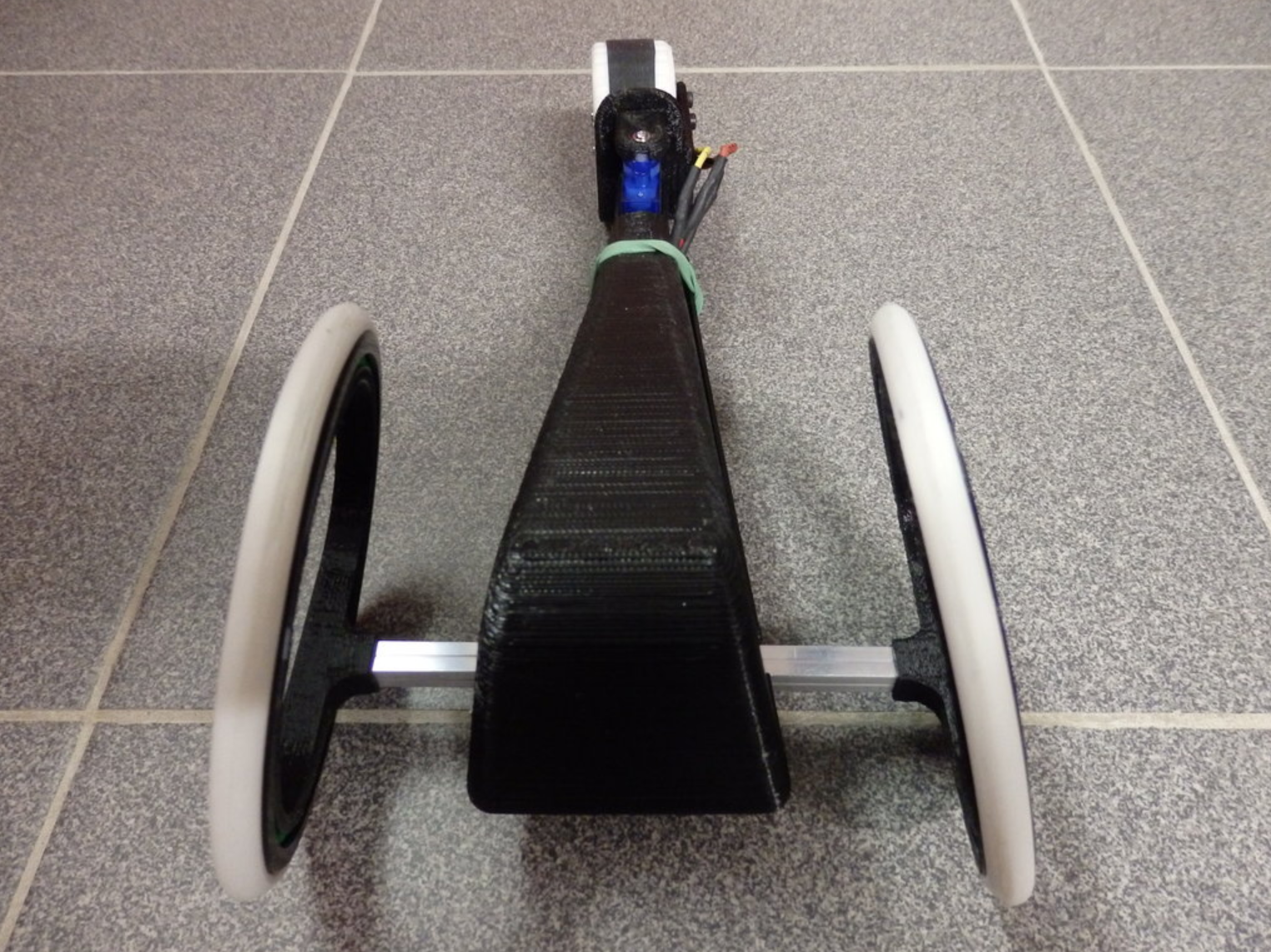

Base and hood were printed without support

The motorized fork is printed with support

• Realization in PLA and Innoflex 60

• Thickness of 0.3 mm

• 1mm shell thickness

• Filling 20%

• Temperature 220C °

• Support none

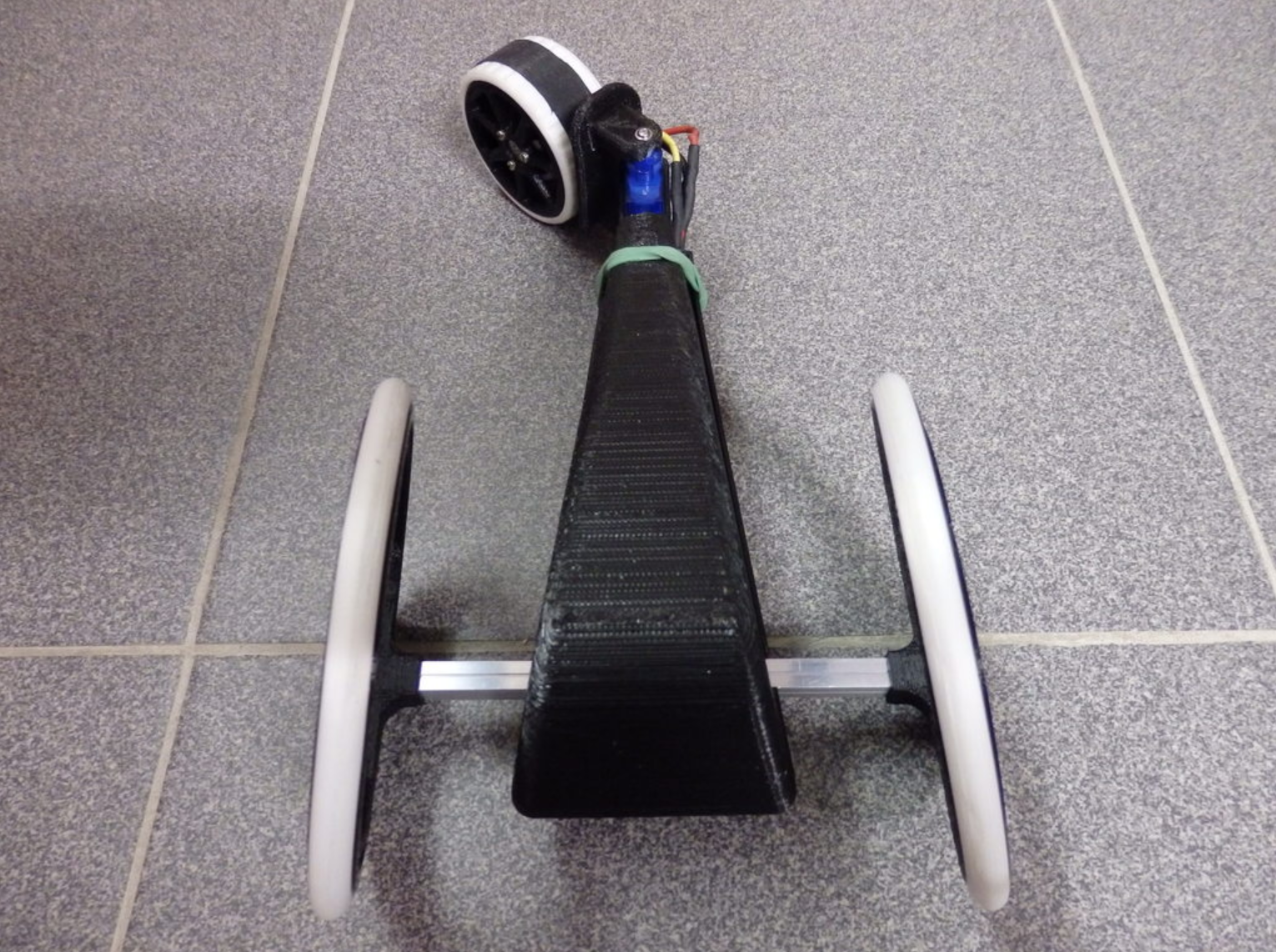

• The 2 square tubes are made of 75x75mm aluminum with a length of 125 mm

NTM Prop Drive Series 28-26A 1200kv Engine (short shaft version)

• [The servo used for steering is a 9 gram](http://www.hobbyking.com/hobbyking/store/__662__HXT900_Micro_Servo_1_6kg_0_12sec_9g.html

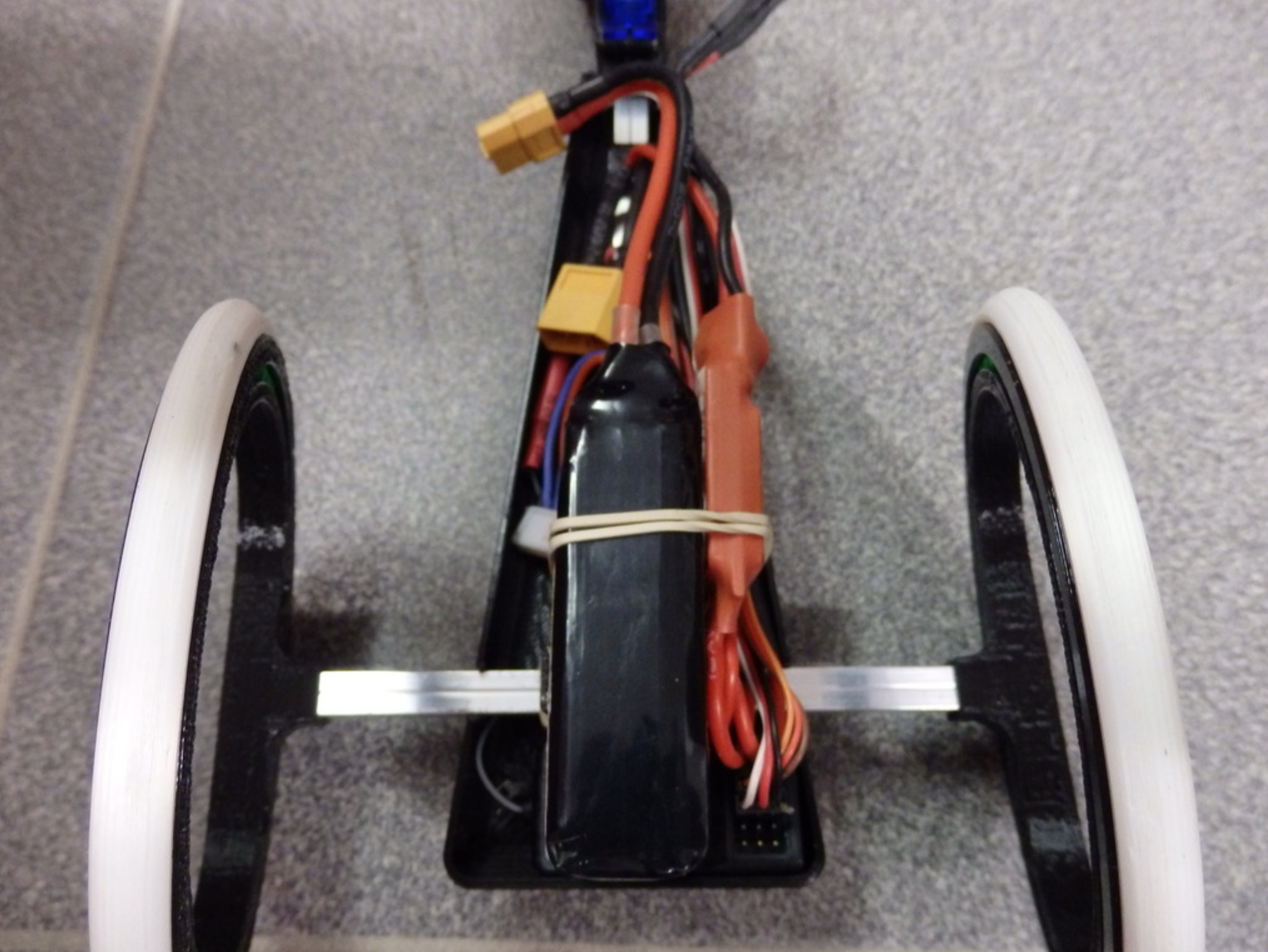

• Lipo battery of 3S 11.1V 1300mA)

• The black ring on the propulsion tire is a piece of bicycle inner tube (to increase grip on the ground).

https://www.youtube.com/watch?v=3cP8GkW9X9U

  • 3D file format: STL
  • Publication date: 2017/10/23 at 15:29
