Worm Gear Tripod

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 1.4k views
  • 7 likes
  • 87 downloads

3D model description

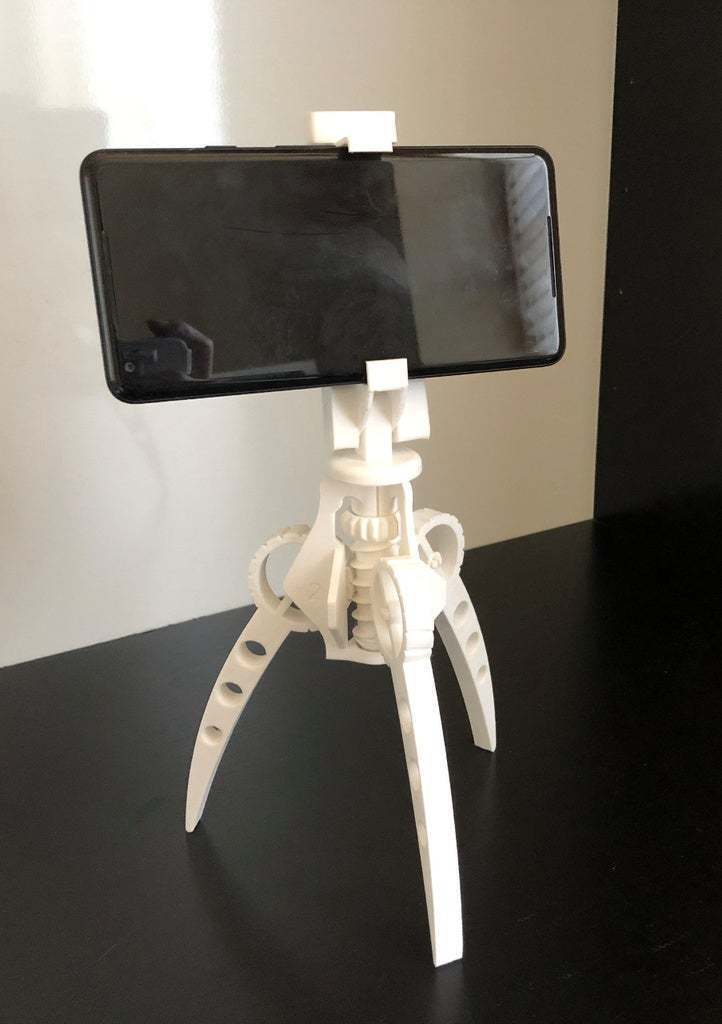

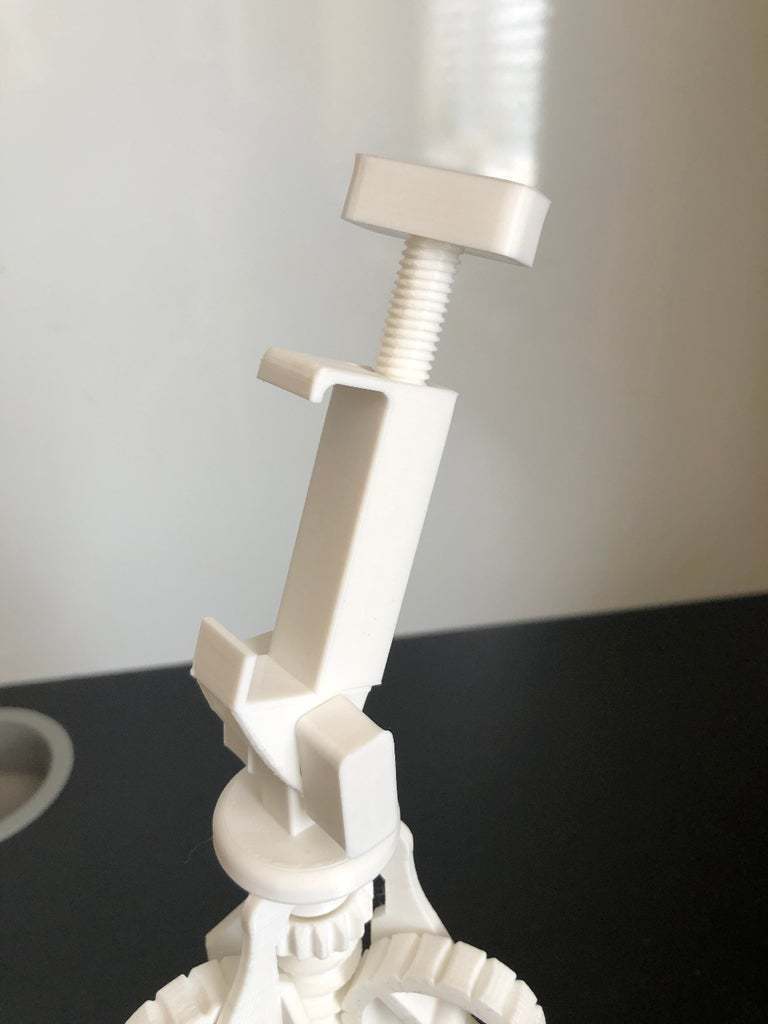

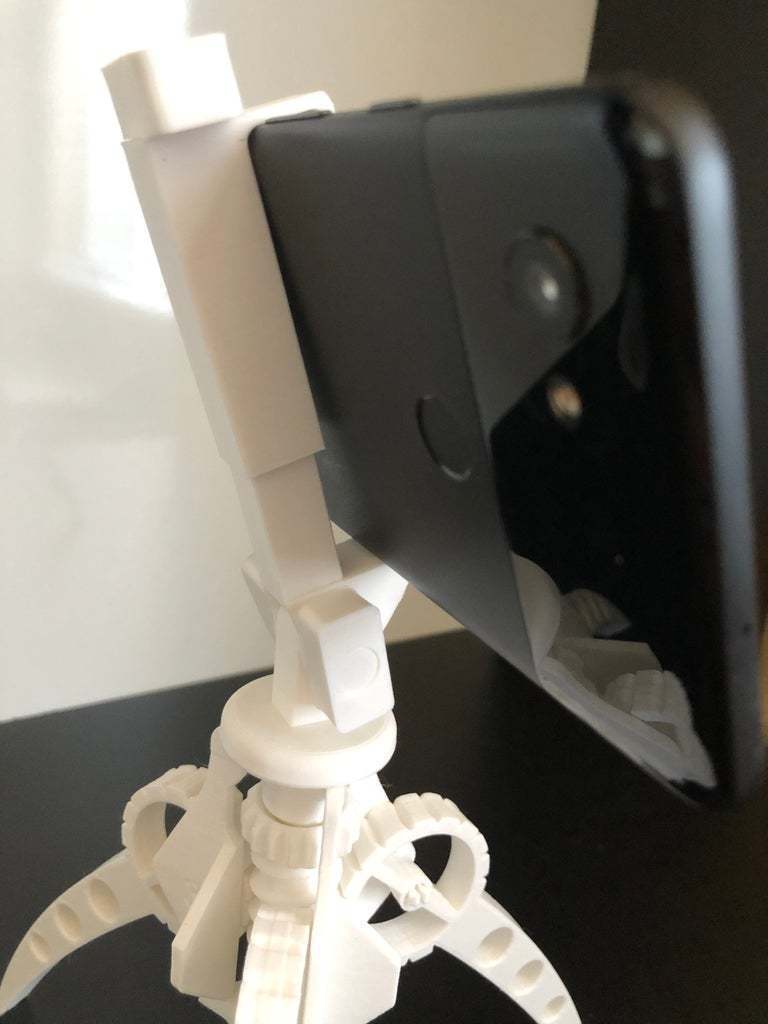

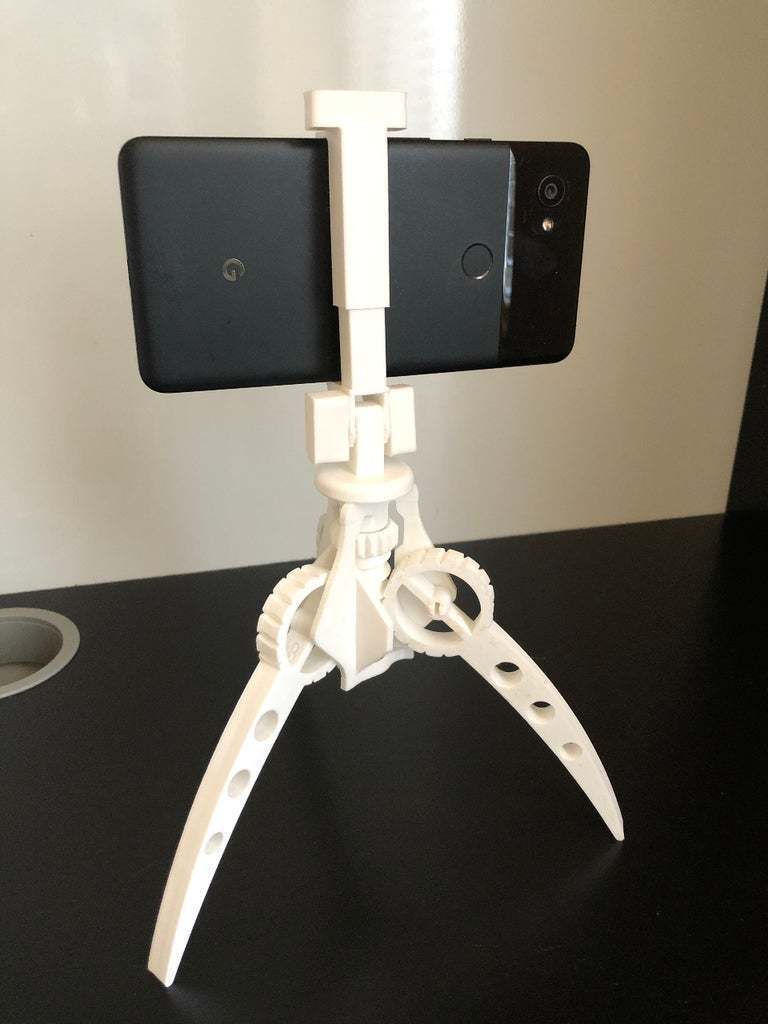

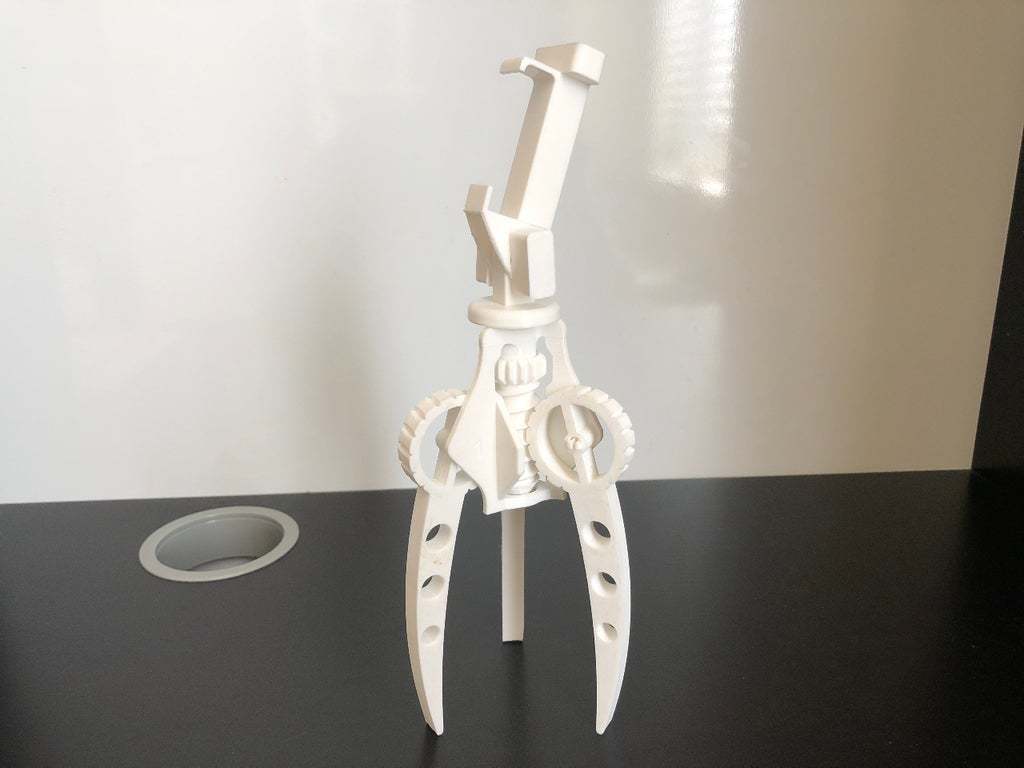

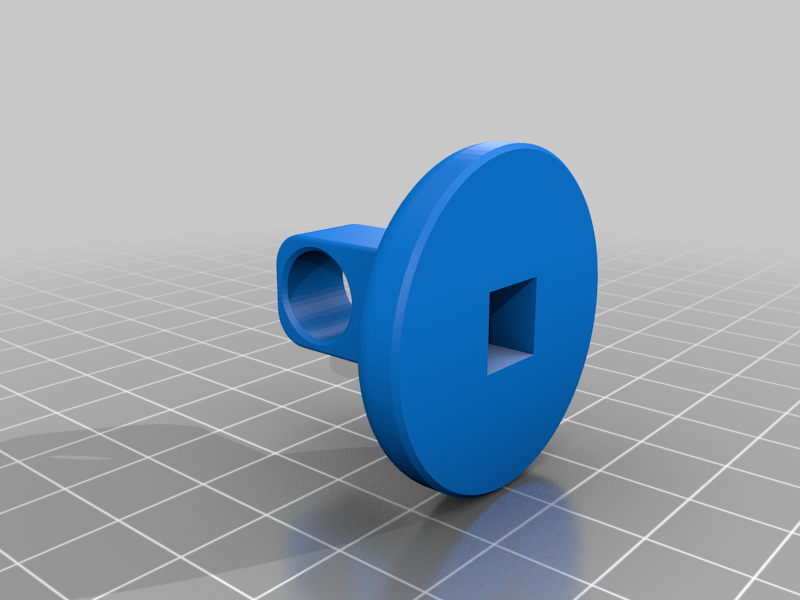

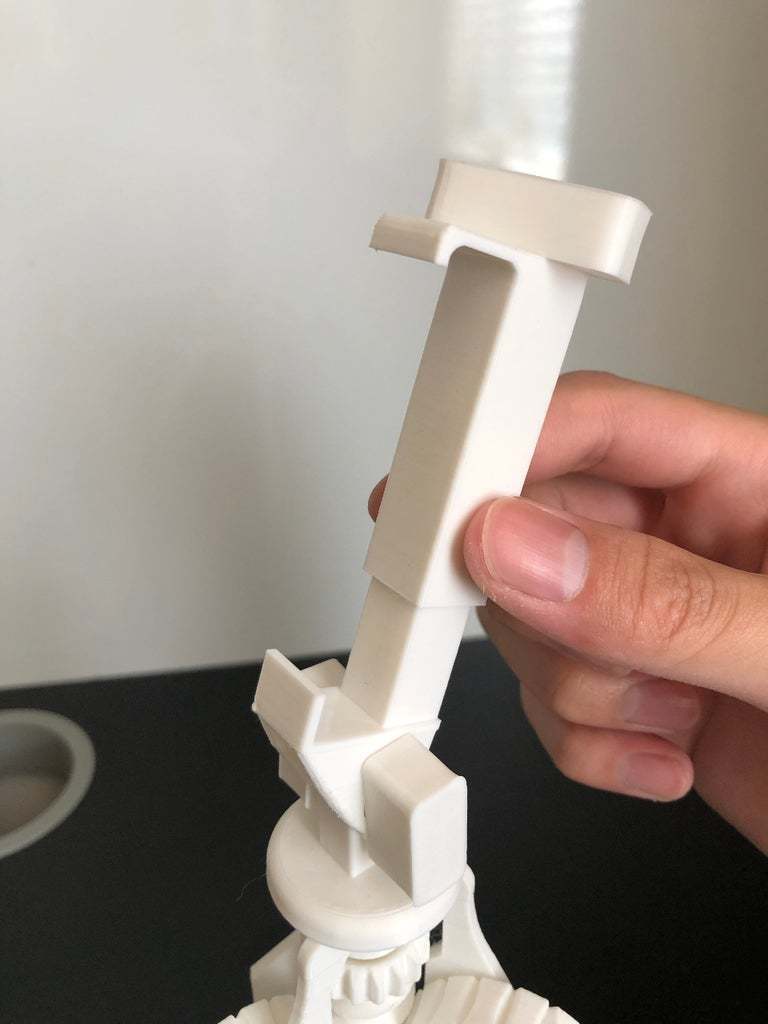

This is a tripod utilizing the worm gear mechanism to move up and down. It has a phone mount inspired by the Universal tripod phone mount designed by neyfrota. If you want to mount something else like a camera, feel free to design your own adapter to fit whatever it is that you want to mount.

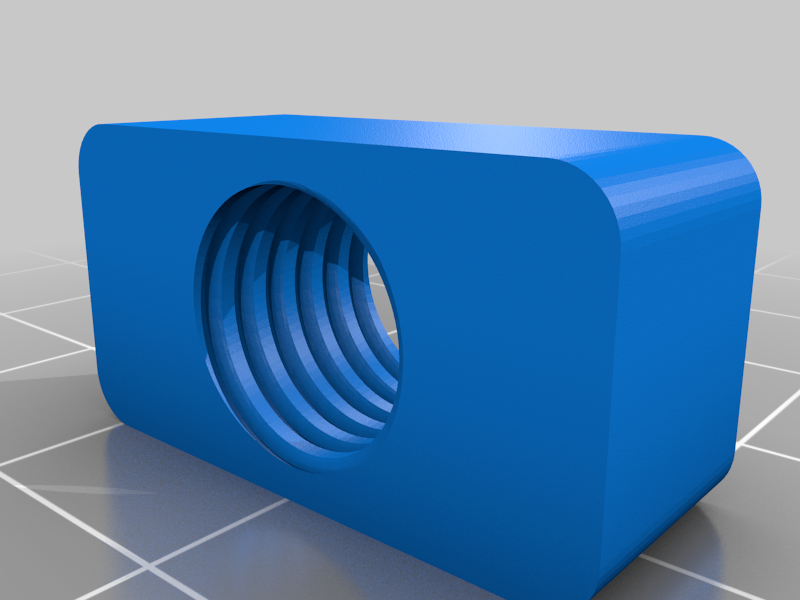

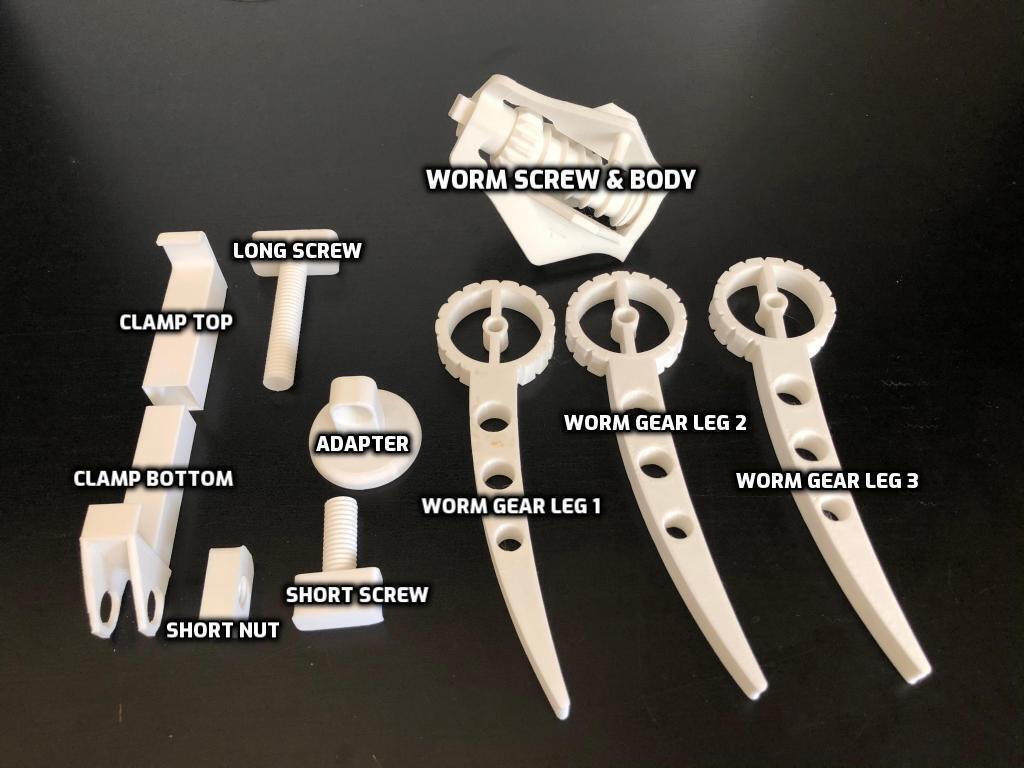

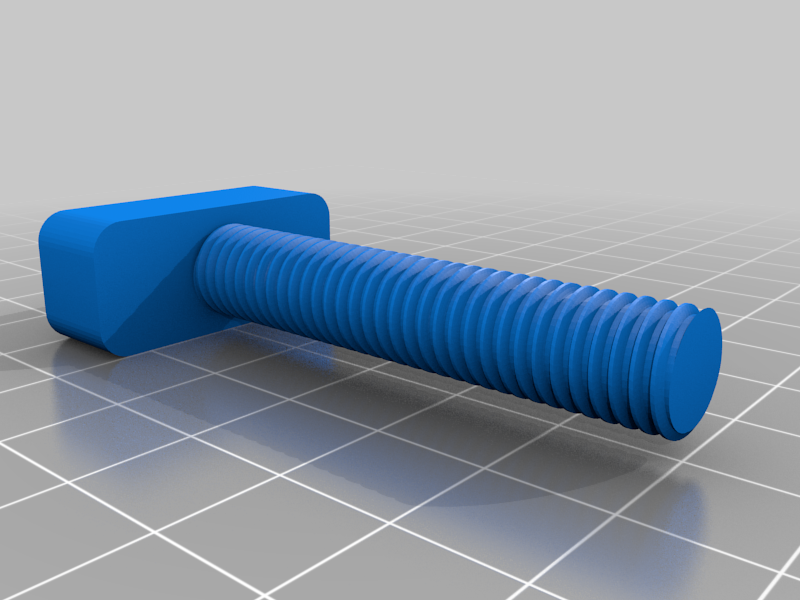

When printing Worm Screw & Body support is needed at the snap fits and the bottom or use auto support, touch platform only option. At least 0.12 mm layer height is needed when printing the Clamp Bottom, Long Screw, Short Screw, and Short Nut.

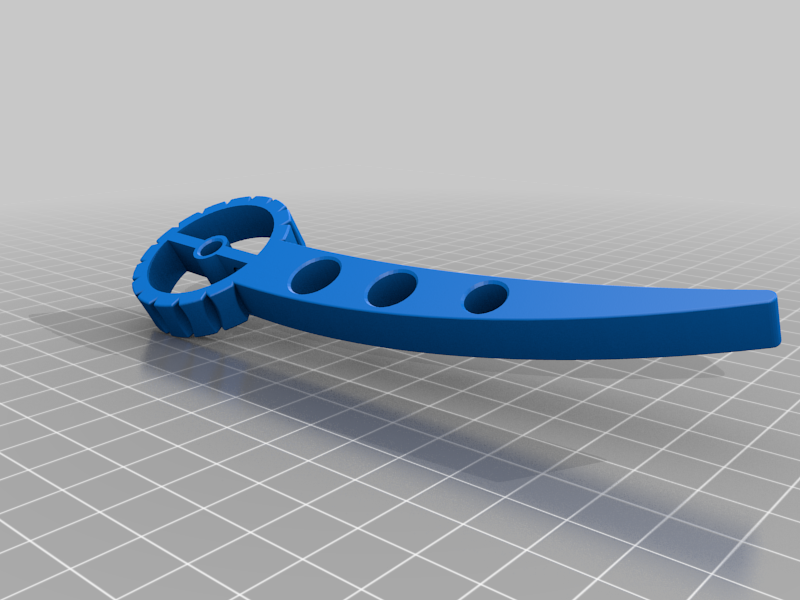

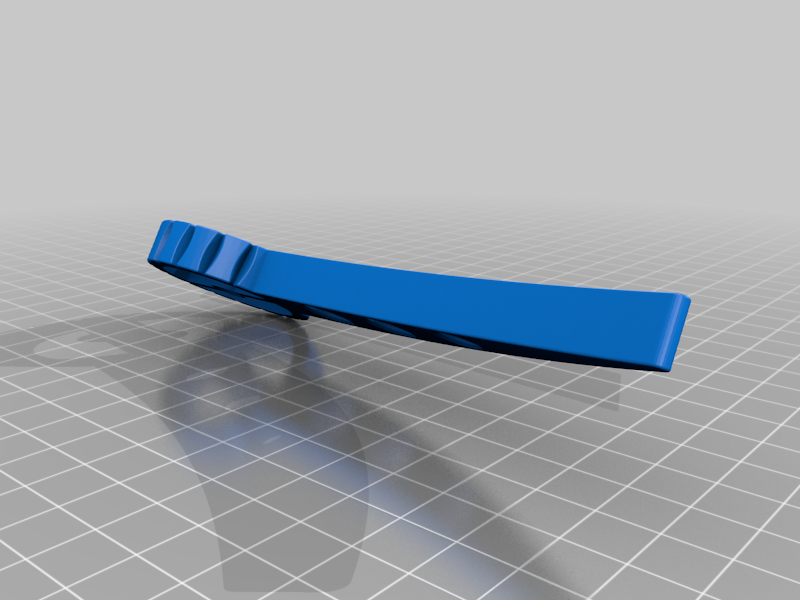

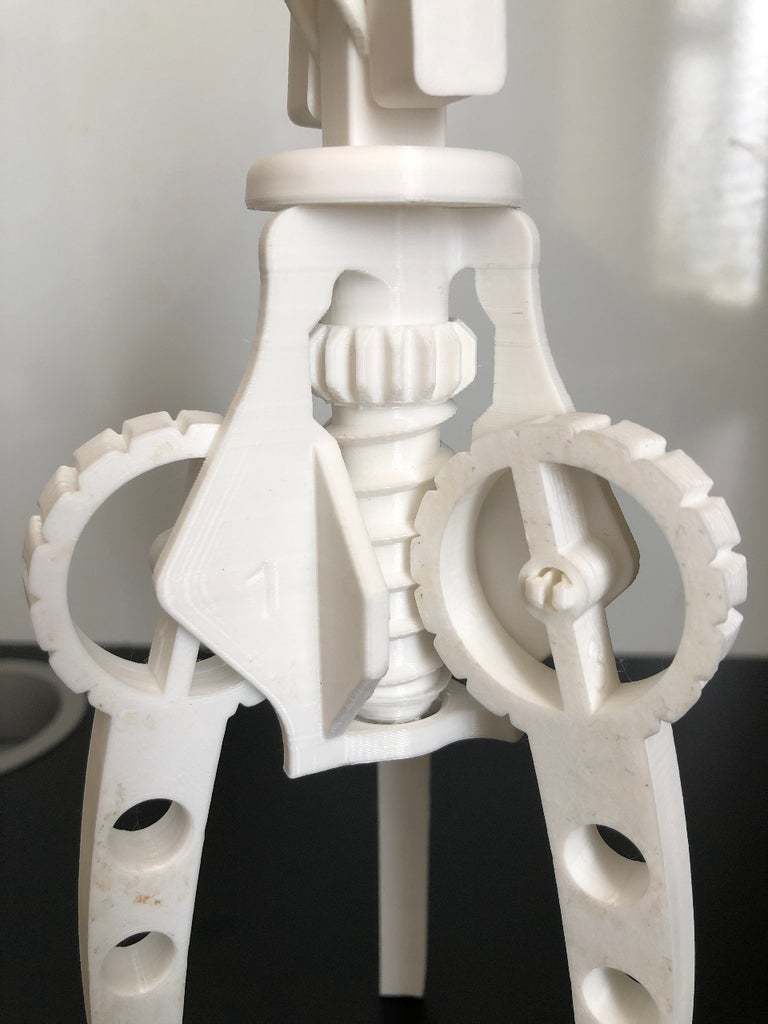

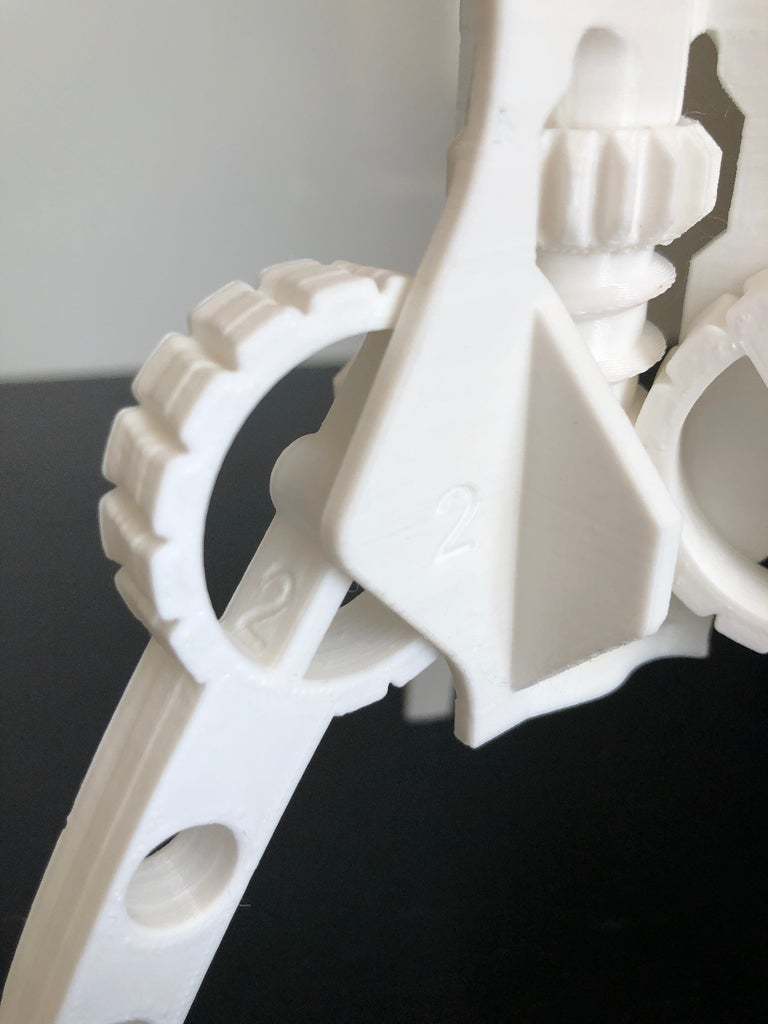

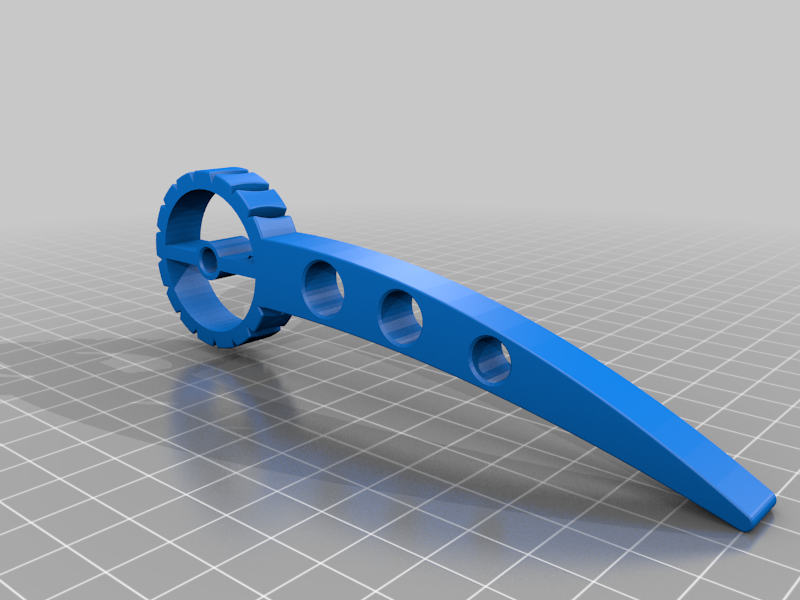

During assembly, the worm screw had an indentation to be align to the base indentation. Once that is aligned the worm gear legs could be snap on to the Worm Screw & Base, there are numbers on the Base to match each leg.

P.S. Sorry about the picture quality Thingiverse limit the photo size to be 500kb...

  • 3D file format: STL
  • Publication date: 2020/08/10 at 11:01
