Woop 105mm Indestructible TPU 1103 7800kv 3S

Download free 3D printing models Woop 105mm Indestructible TPU 1103 7800kv 3S, MicrodureDownload free 3D printing models Woop 105mm Indestructible TPU 1103 7800kv 3S, MicrodureDownload free 3D printing models Woop 105mm Indestructible TPU 1103 7800kv 3S, MicrodureDownload free 3D printing models Woop 105mm Indestructible TPU 1103 7800kv 3S, MicrodureDownload free 3D printing models Woop 105mm Indestructible TPU 1103 7800kv 3S, MicrodureDownload free 3D printing models Woop 105mm Indestructible TPU 1103 7800kv 3S, MicrodureDownload free 3D printing models Woop 105mm Indestructible TPU 1103 7800kv 3S, MicrodureDownload free 3D printing models Woop 105mm Indestructible TPU 1103 7800kv 3S, Microdure

Did you 3D print this model?

3D model description

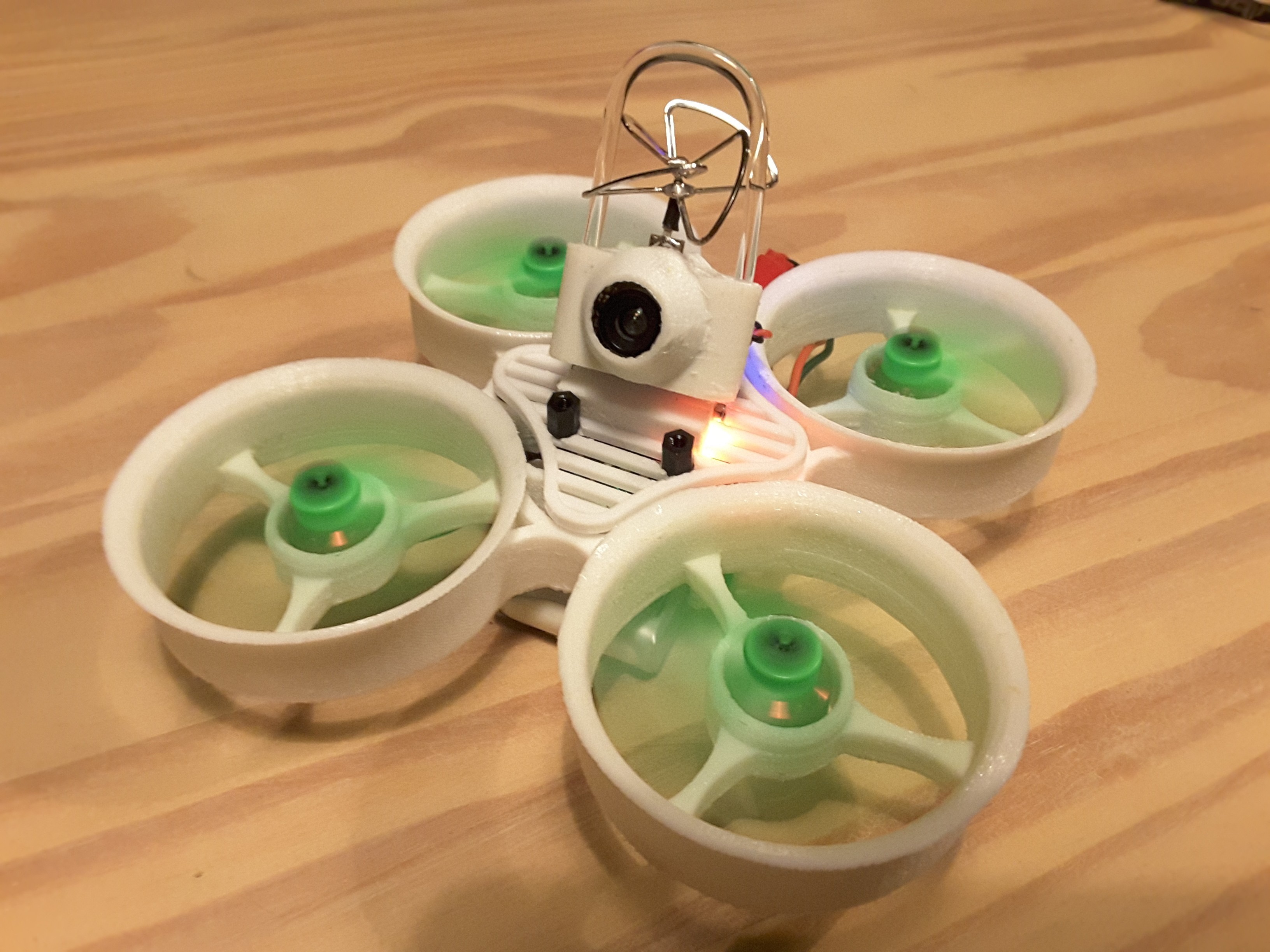

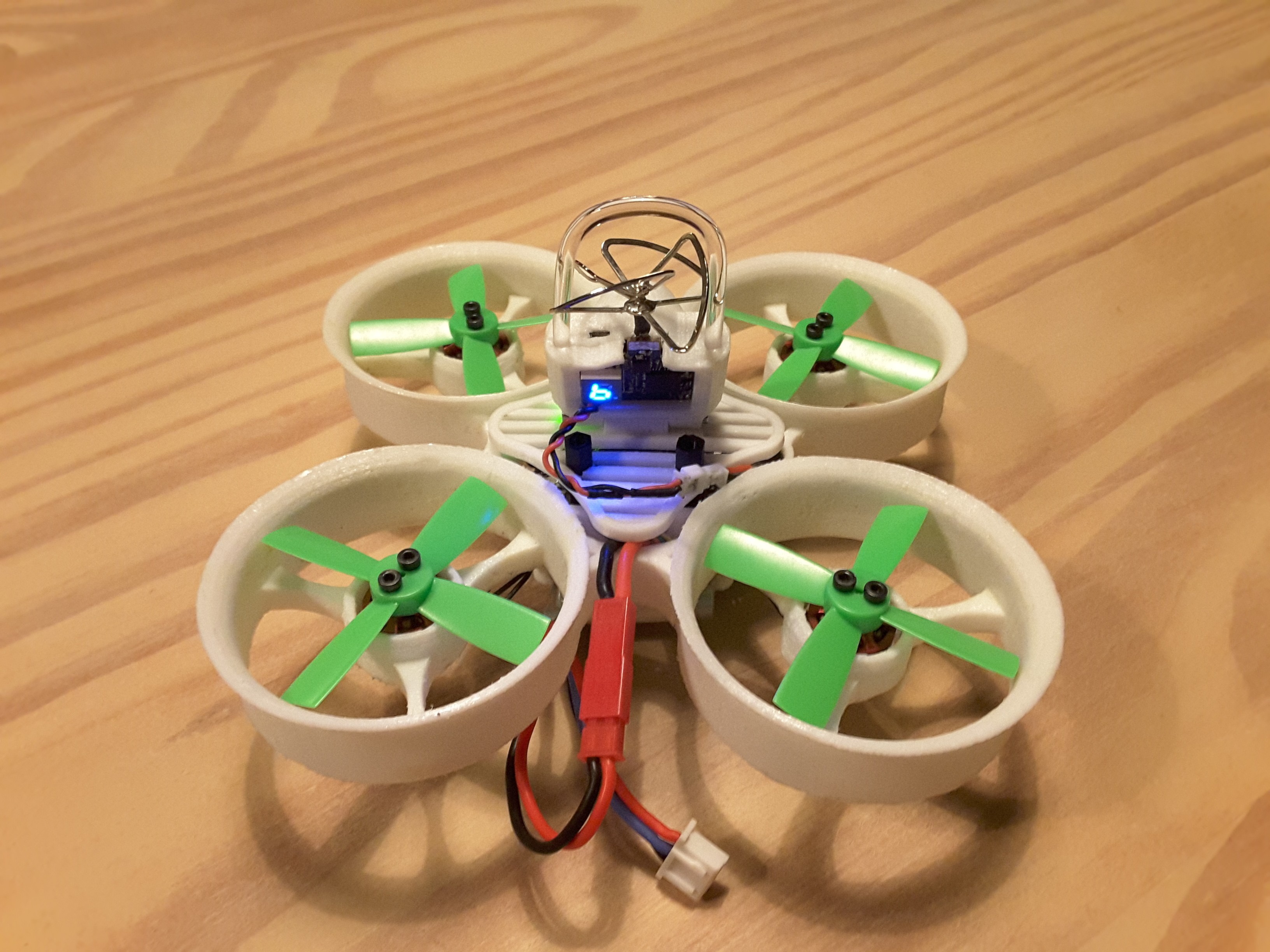

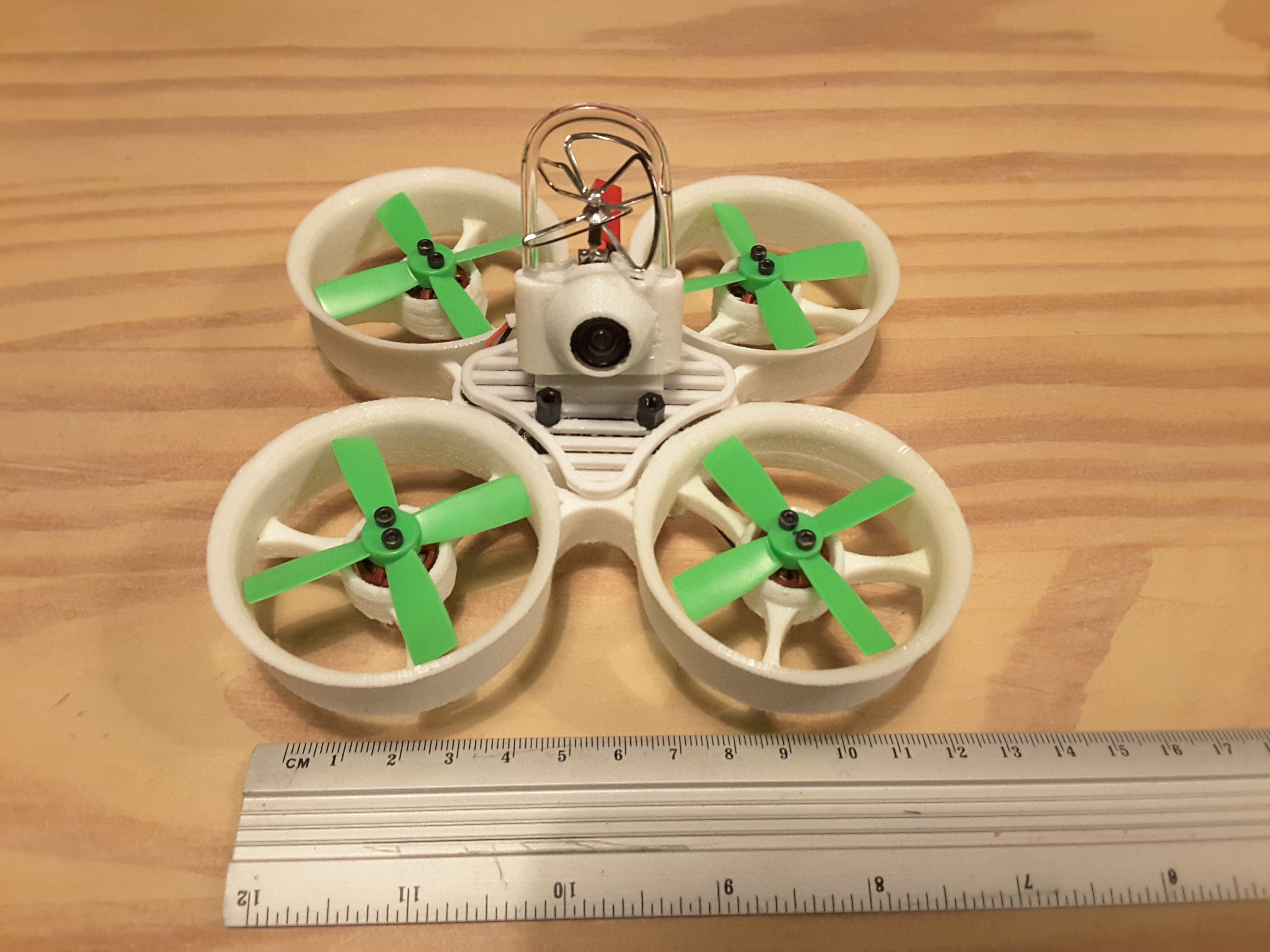

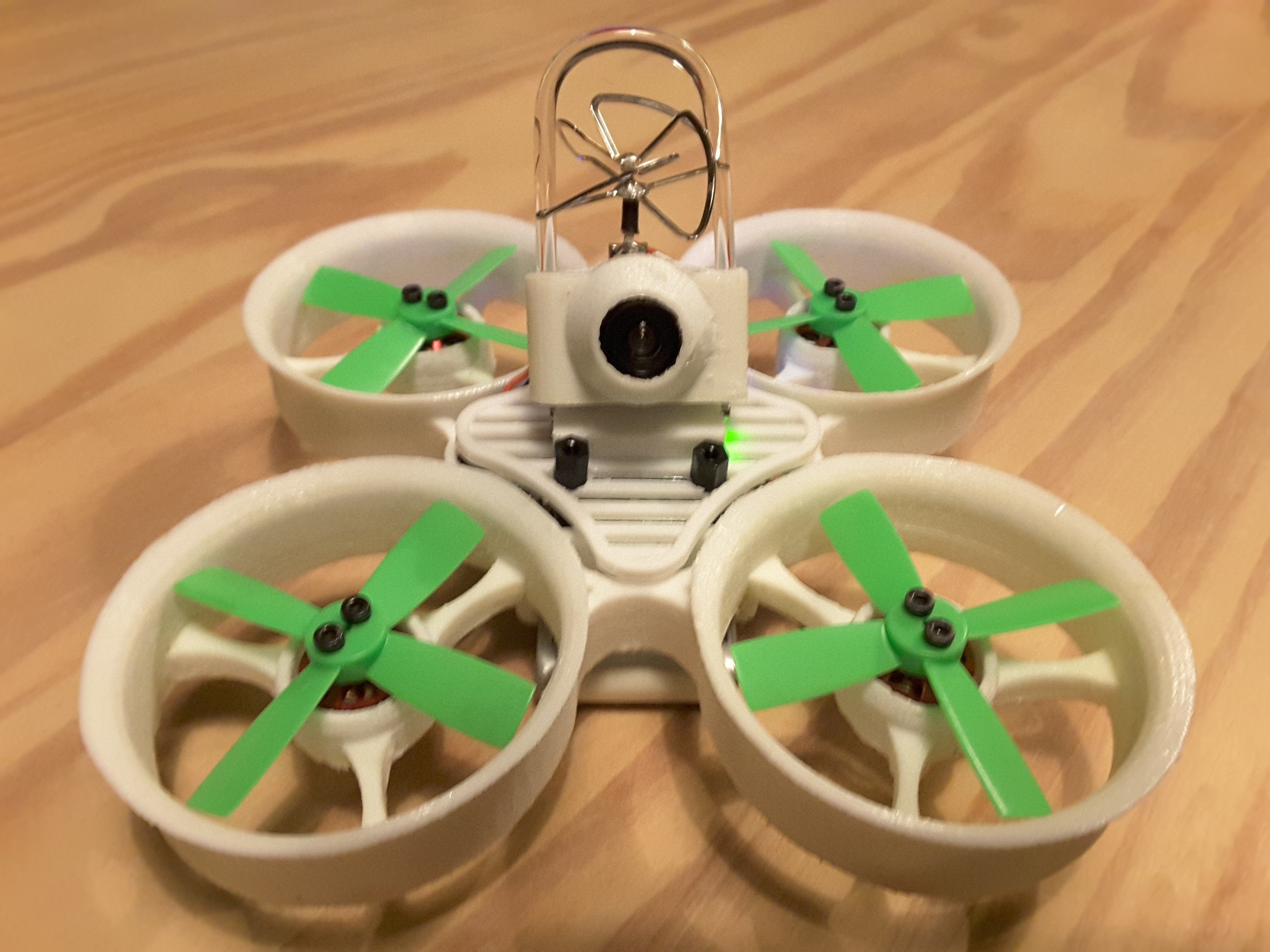

Here is a mini quad turbine in TPU with 1103 brushless motors that accepts the 3S with the propellers 4 blades and 2S with the 5 blades.
The chassis and the lipo door are in TPU Ultimaker and the top plate in Polycarbonate or ABS to rigidify the whole.
It takes 20% filling for the frame with 230 ° on a carpet at 70 ° at a speed of 30mm / s.

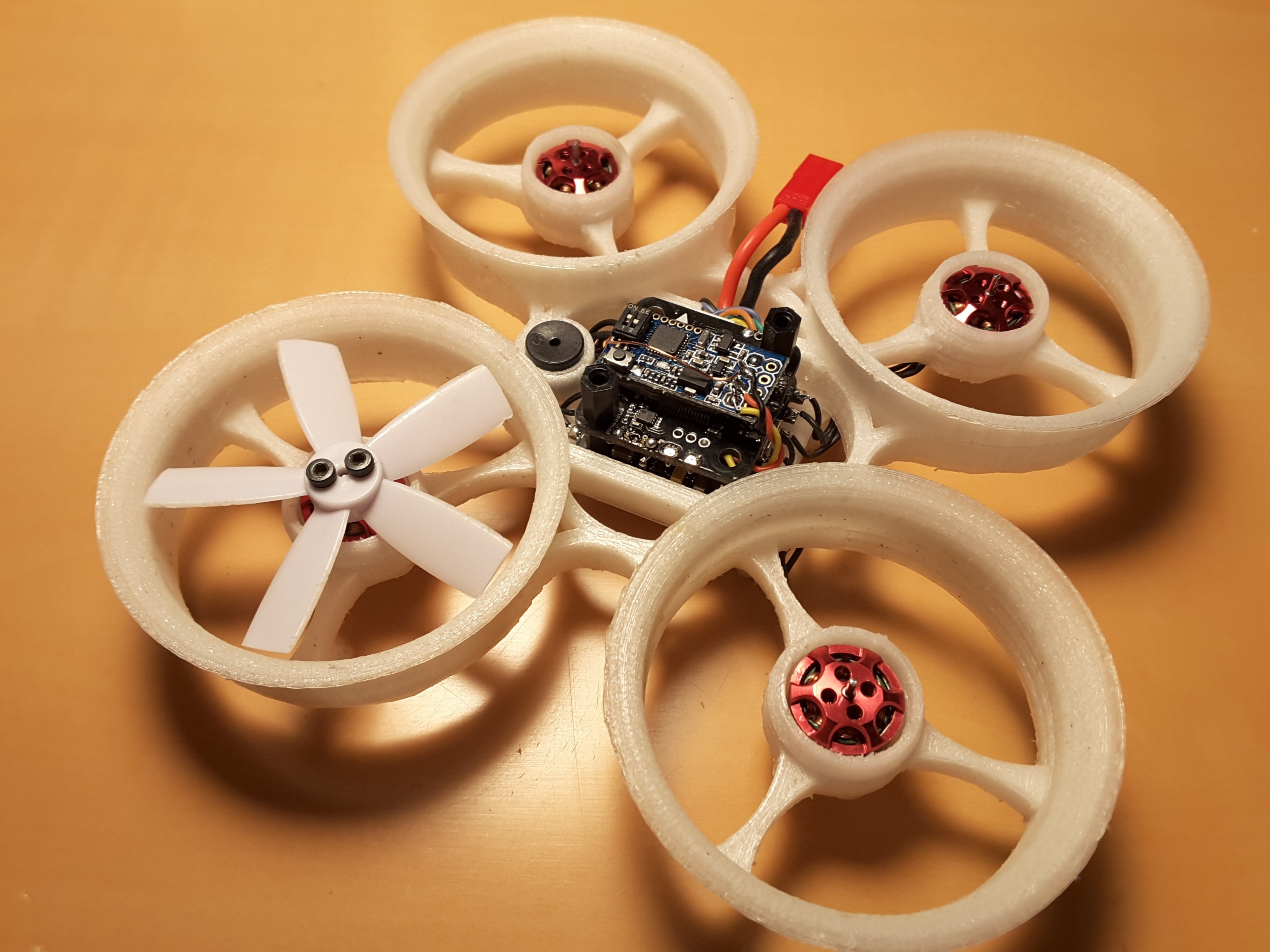

FC Lumenier F4:
https://www.drone-fpv-racer.com/lumenier-micro-lux-f4-1308.html

Receiver spektrum dsmx:
http://www.lemon-rx.com/index.php?route=product/product&path=72&product_id=109

Receiver Sbus/ ppm frsky:
http://www.banggood.com/fr/FD800-Tiny-Frsky-8CH-PPMSBUS-Receiver-Compatible-FRSKY-ACCST-X9DPlusDJTDFTDHT-For-QX95-QX90-p-1108071.html?p=LD020411878172015024

Esc4X12amp:
http://www.banggood.com/fr/20x20mm-Racerstar-Mini-RS12Ax4-12A-Blheli_S-BB2-2-4S-4-in-1-Brushless-ESC-D-Shot-Ready-p-1132683.html?p=LD020411878172015024

Brushless 1103 7800kv 3S:
http://www.banggood.com/fr/Kingkong-1103-7800KV-1-3S-Brushless-Motor-For-50-80-100-RC-Mini-Multirotor-p-1122783.html??p=LD020411878172015024

Propeller 4 blades :
http://www.banggood.com/fr/10-Pairs-Racerstar-2035-50mm-4-Blade-ABS-Propeller-1_5mm-Mounting-Hole-For-FPV-Racing-Frame-p-1127196.html?p=LD020411878172015024

Propeller 5 Blades max 2S !!!:
http://www.banggood.com/fr/4Pcs-2_0-Inch-50MM-ABS-5-Blade-Square-Propeller-2-CW-2-CCW-for-1104-Motor-p-1120653.html?p=LD020411878172015024

Lipo 3S 450mha:
https://hobbyking.com/fr_fr/turnigy-nano-tech-450mah-3s-65c-lipo-e-flite-compatible-blade-180cfx-eflb4503sj30.html

Lipo 2S :
https://hobbyking.com/fr_fr/turnigy-nano-tech-450mah-3s-65c-lipo-e-flite-compatible-blade-180cfx-eflb4503sj30.html

3D printing settings

It takes 20% filling for the frame with 230 ° on a carpet at 70 ° at a speed of 30mm / s.

  • 3D model format: STL

Tags

Creator

Designs 28
Downloads 2018
Followers

Fighter controlled obsolescence.

Facebook

License

CC BY NC ND
