Wemos_DF_holder Wonderfoon pcb

?
Creation's quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 724 views
  • 1 like
  • 14 downloads

3D model description

Wonderfoon is an 'old' Rotary dial telephone converted into to a jukebox for elderly people with Alzheimer / Dementia disease. When a number is dialed a song is played.
To convert the Ericsson T65 or other telephones to a wonderfoon a small computer and mp3 player is added. This is a revised version from the Wemos holder used by Wonderfoon parts.

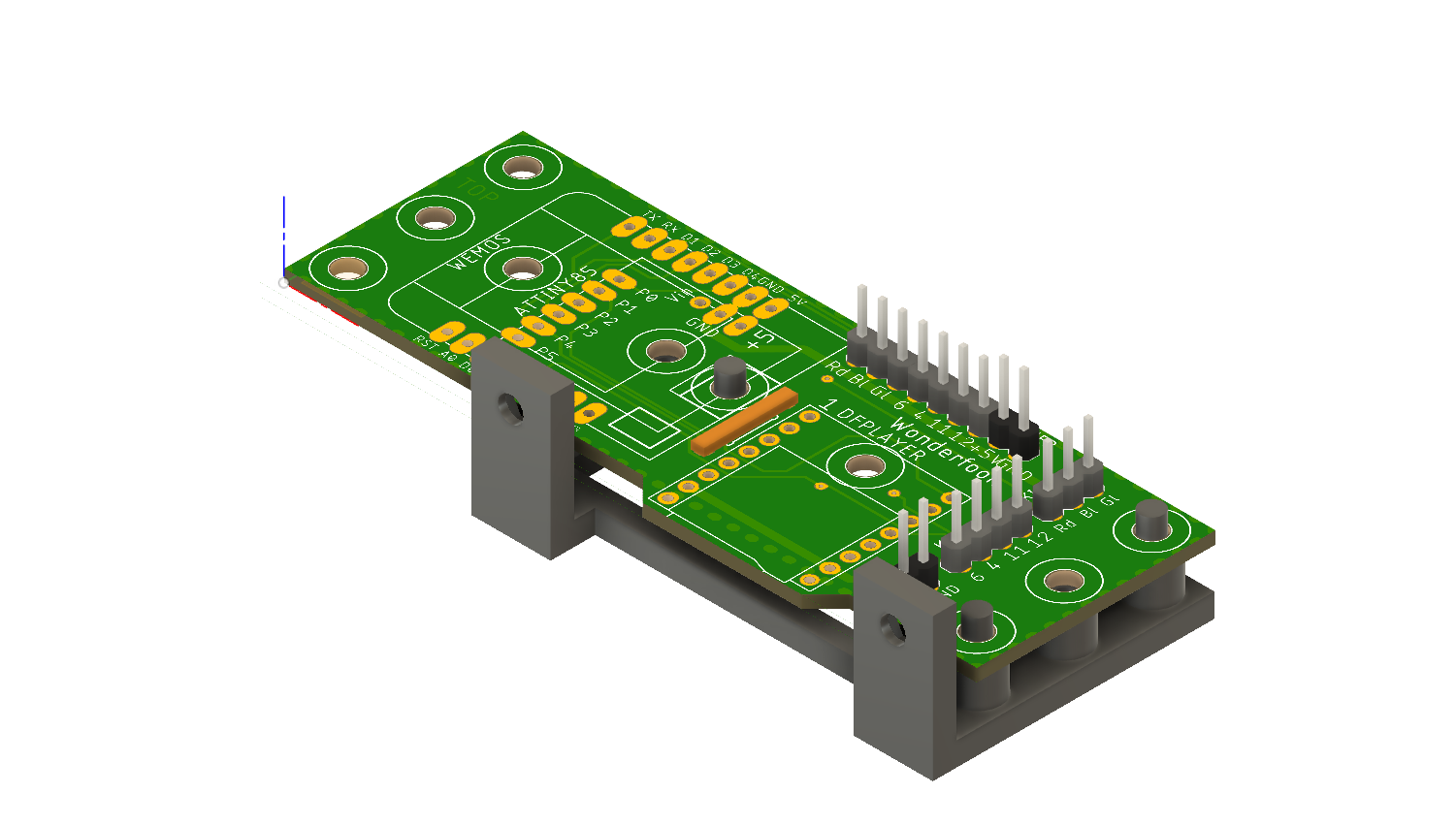

Especially designed for Wonderfoon_pcb.

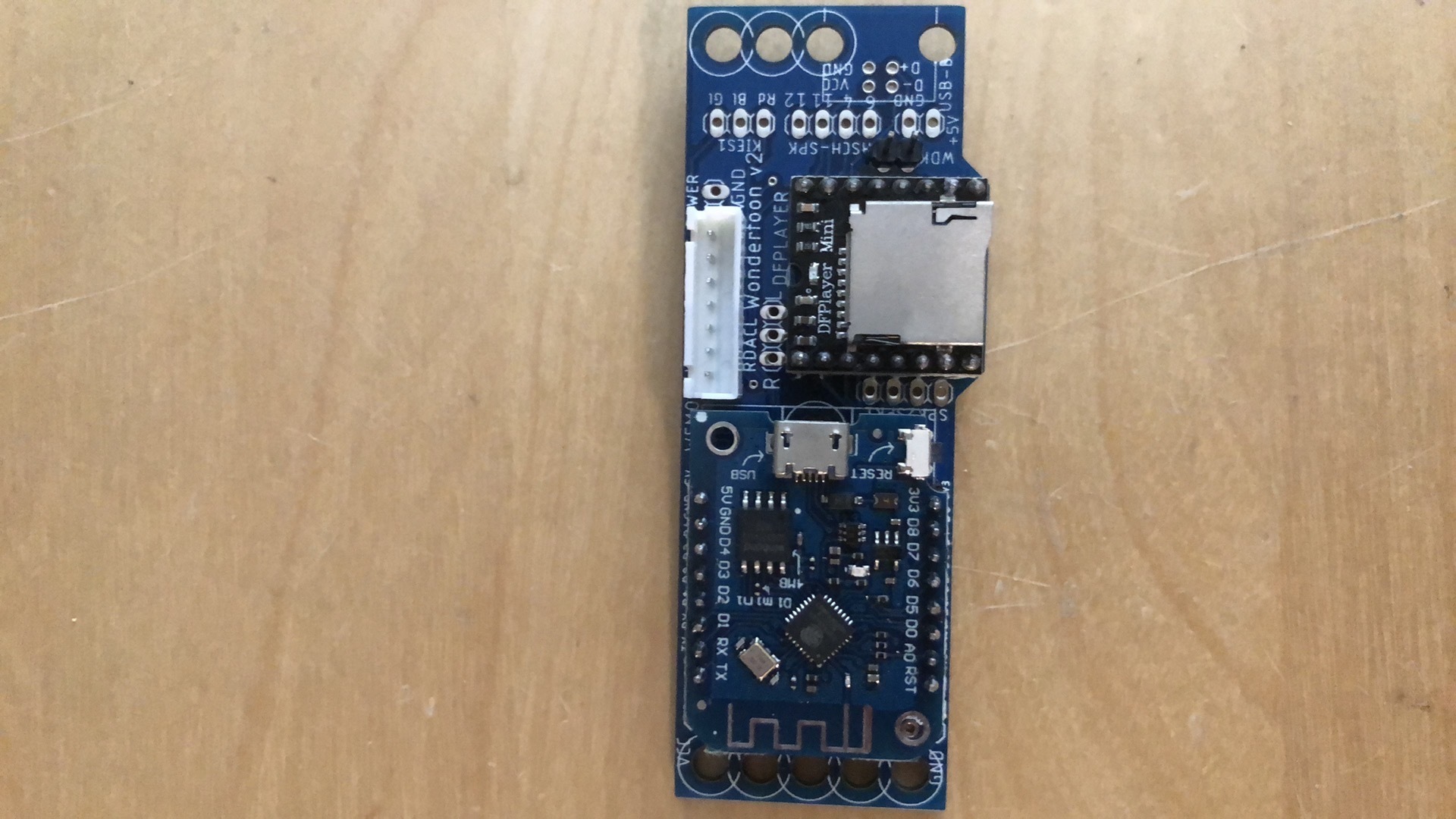

I designed a pcb to make the assembly of the Wonderfoon more simple and to prevent errors in wiring. It also saves a lot of time! You can tighten the pcb with 2 self tapping screws or use the 3 plastic pins and secure the pcb with your solder iron.

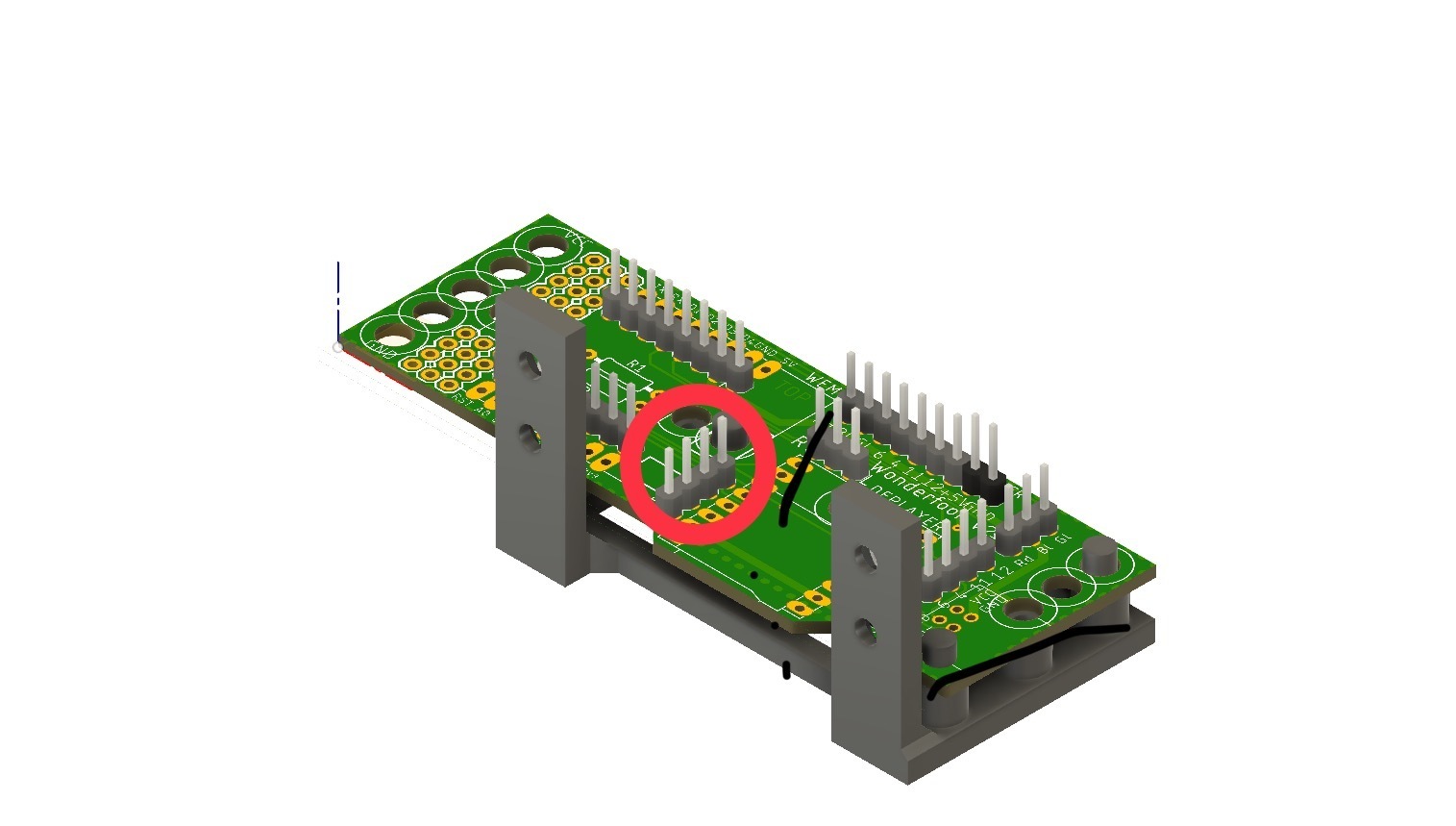

Updated 3D design on 18-12-2019 for an easier mounting! Longer legs! 4 mounting holes, use them how you want! For the latest updates for this model PCB Version 2 look at https://www.thingiverse.com/thing:4023158

  • 3D file format: STL
  • Last update: 2020/05/14 at 14:16
  • Publication date: 2019/12/19 at 21:15

License

CC BY NC ND

Tags
