USB Power Bank

3D model description

Approximate project cost: <$10
Max print dimensions 81 x 32 x 41mm

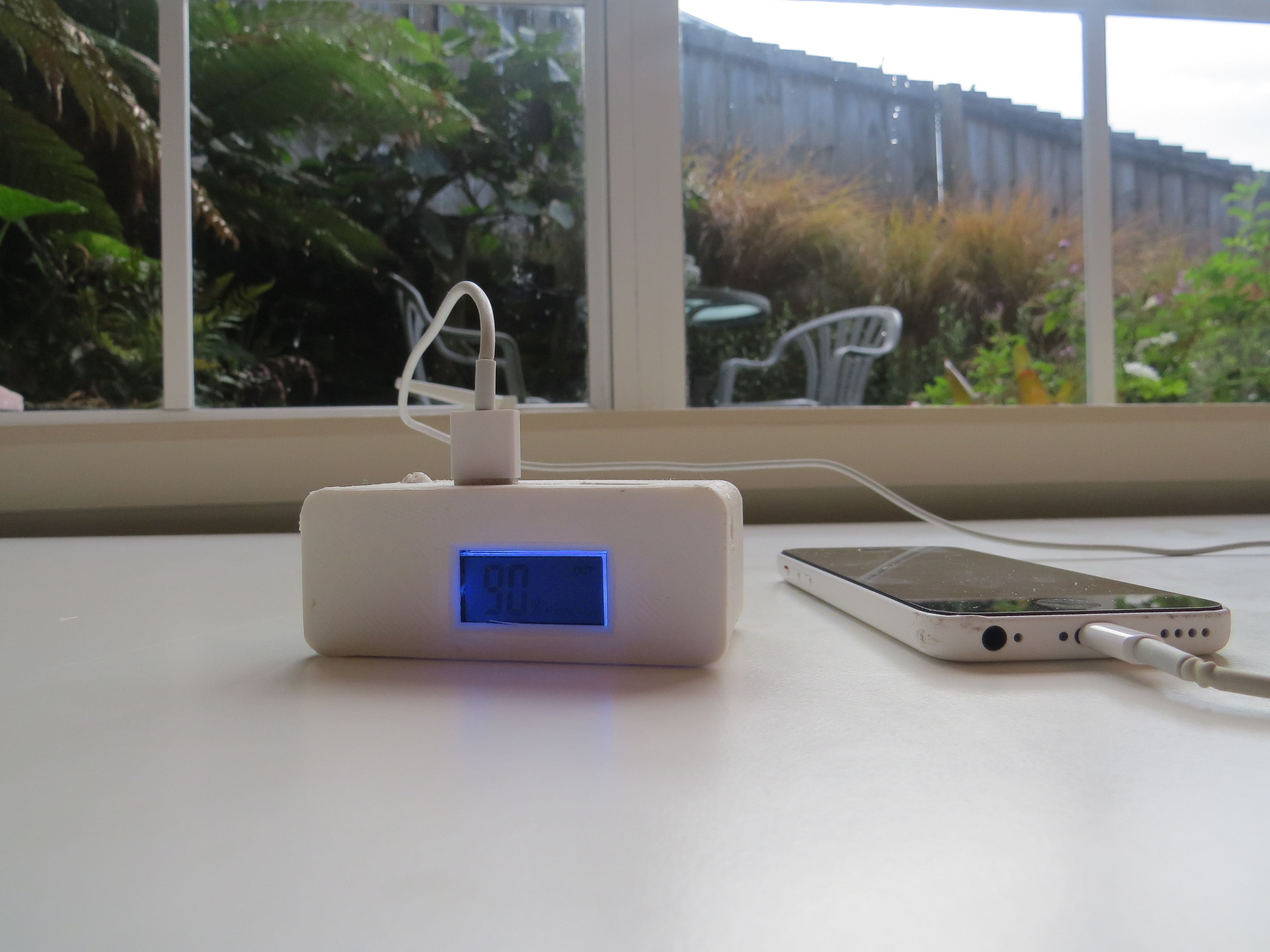

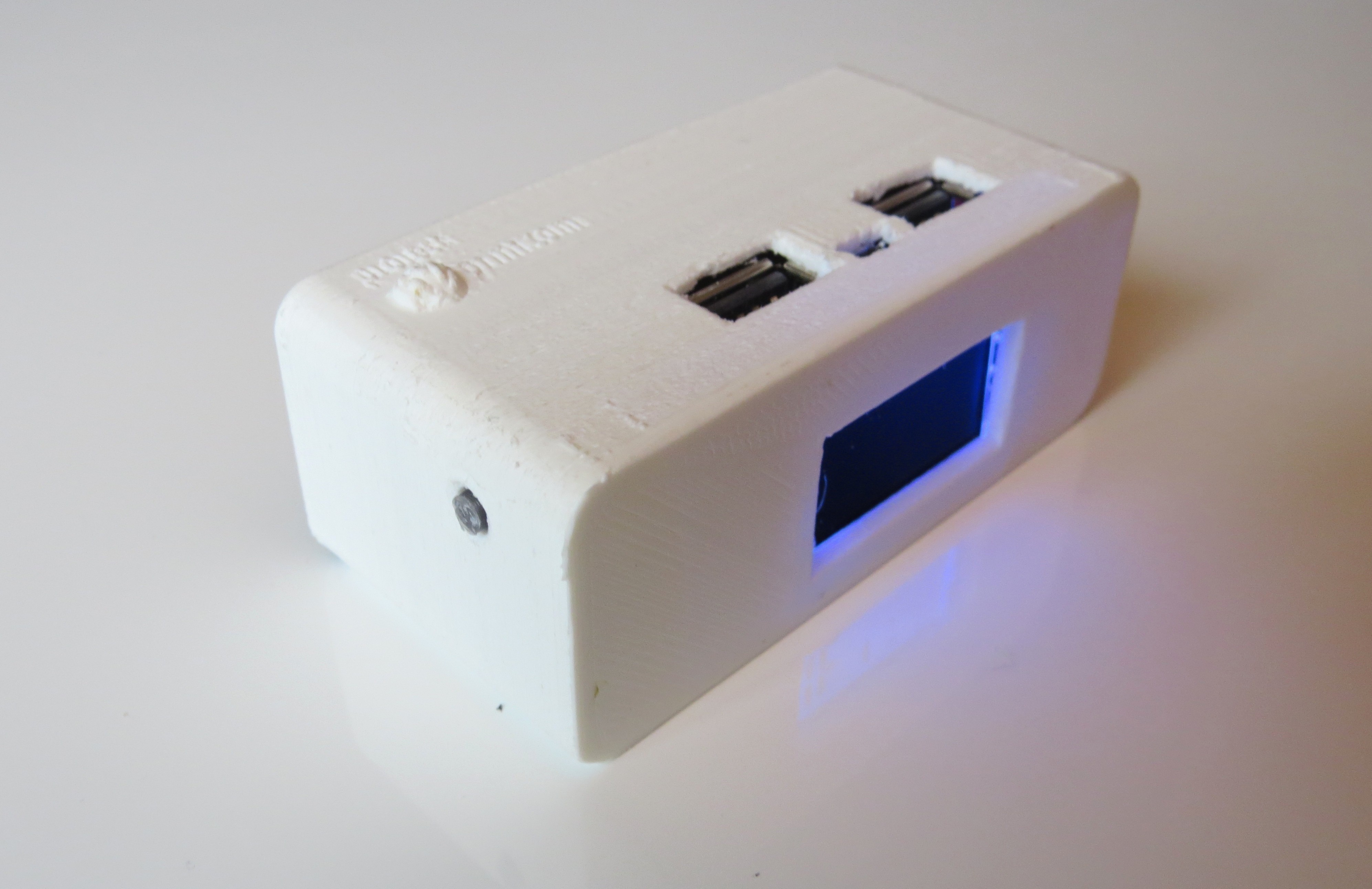

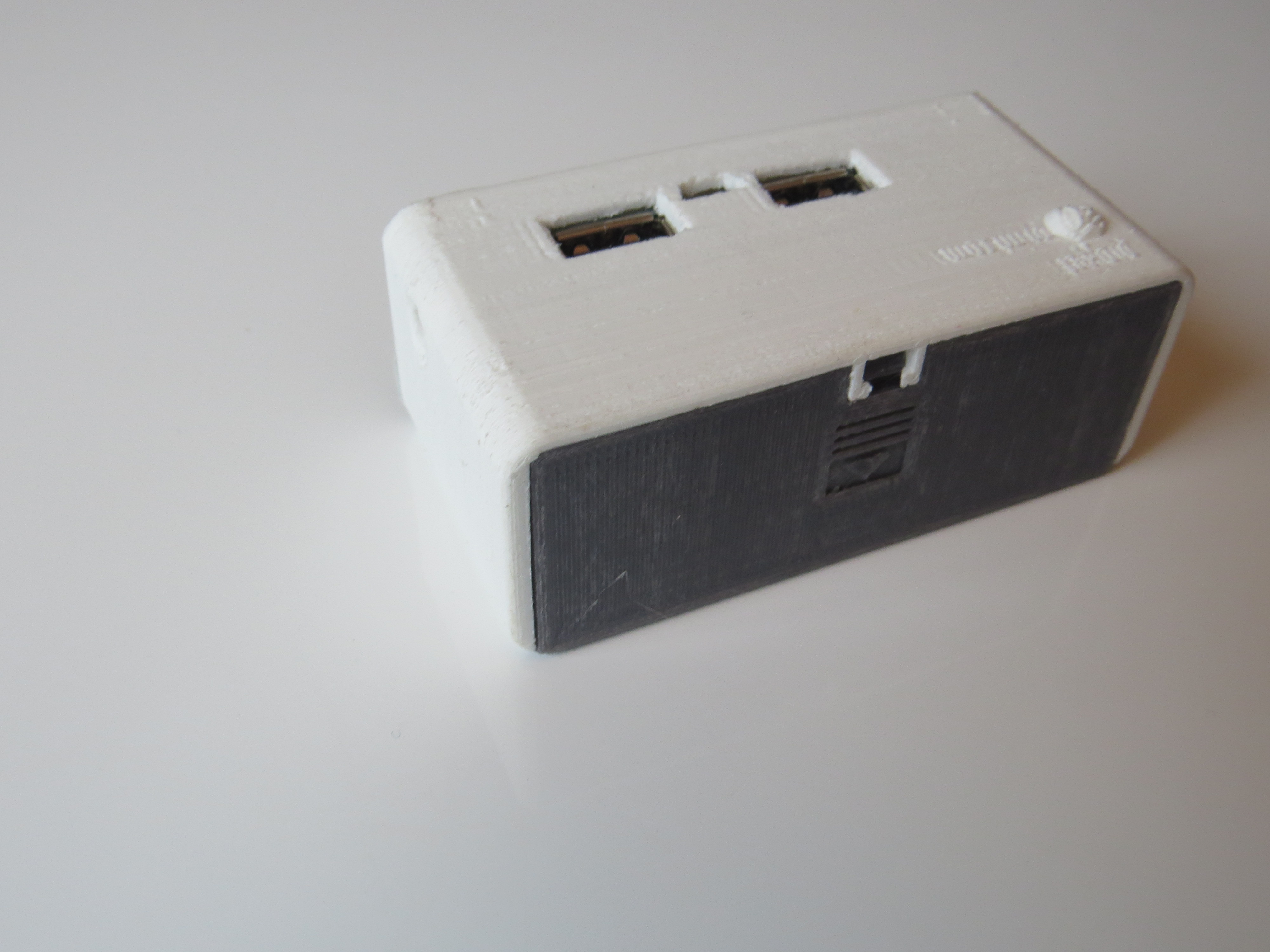

Never run out of battery again! This easy to print and assemble USB Backup Powerbank when fitted with a lithium-ion 18650 battery will recharge most of your commonly used electronic portable devices. It is charged via a micro USB cable (5V, 1A input) and has two USB outputs (1.0A and 2.1A). It has inbuilt overcharge and short circuit protection so you can use a standard 18650 lithium-ion battery. It also features a blue back-lit LCD display which tells you the percentage state of the battery pack (which is very handy) as well as an LED flashlight on the end! (Double click the button to turn the flashlight on/off). This is the perfect thing to put in your pocket or purse when you're out and about and unable to recharge your phone!

Once you've downloaded the complete STL files visit http://www.project3dprint.com for direct links to purchase the electronics yourself for this project. In the mean time you can get printing!

3D printing settings

-

  • 3D model format: STL

Tags

Creator

License

CC BY NC SA
