Universal Spool Holder

Lad04-1.JPG Download free STL file Universal Spool Holder • 3D printer object, 3DLadnik
Lad04-2.JPG Download free STL file Universal Spool Holder • 3D printer object, 3DLadnik
Lad04-3.JPG Download free STL file Universal Spool Holder • 3D printer object, 3DLadnik
Lad04-4.JPG Download free STL file Universal Spool Holder • 3D printer object, 3DLadnik
Lad04-5.JPG Download free STL file Universal Spool Holder • 3D printer object, 3DLadnik
Lad04-6.JPG Download free STL file Universal Spool Holder • 3D printer object, 3DLadnik
SpHl-02-4.STL Download free STL file Universal Spool Holder • 3D printer object, 3DLadnik
SpHl-02-5.STL Download free STL file Universal Spool Holder • 3D printer object, 3DLadnik
SpHl-02-6.STL Download free STL file Universal Spool Holder • 3D printer object, 3DLadnik
SpHl-01-4.STL Download free STL file Universal Spool Holder • 3D printer object, 3DLadnik
SpHl-01-5.STL Download free STL file Universal Spool Holder • 3D printer object, 3DLadnik
SpHl-01-6.STL Download free STL file Universal Spool Holder • 3D printer object, 3DLadnik
Add to
Make
?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 👁 5.8k views
  • 31 likes
  • 344 downloads

3D model description

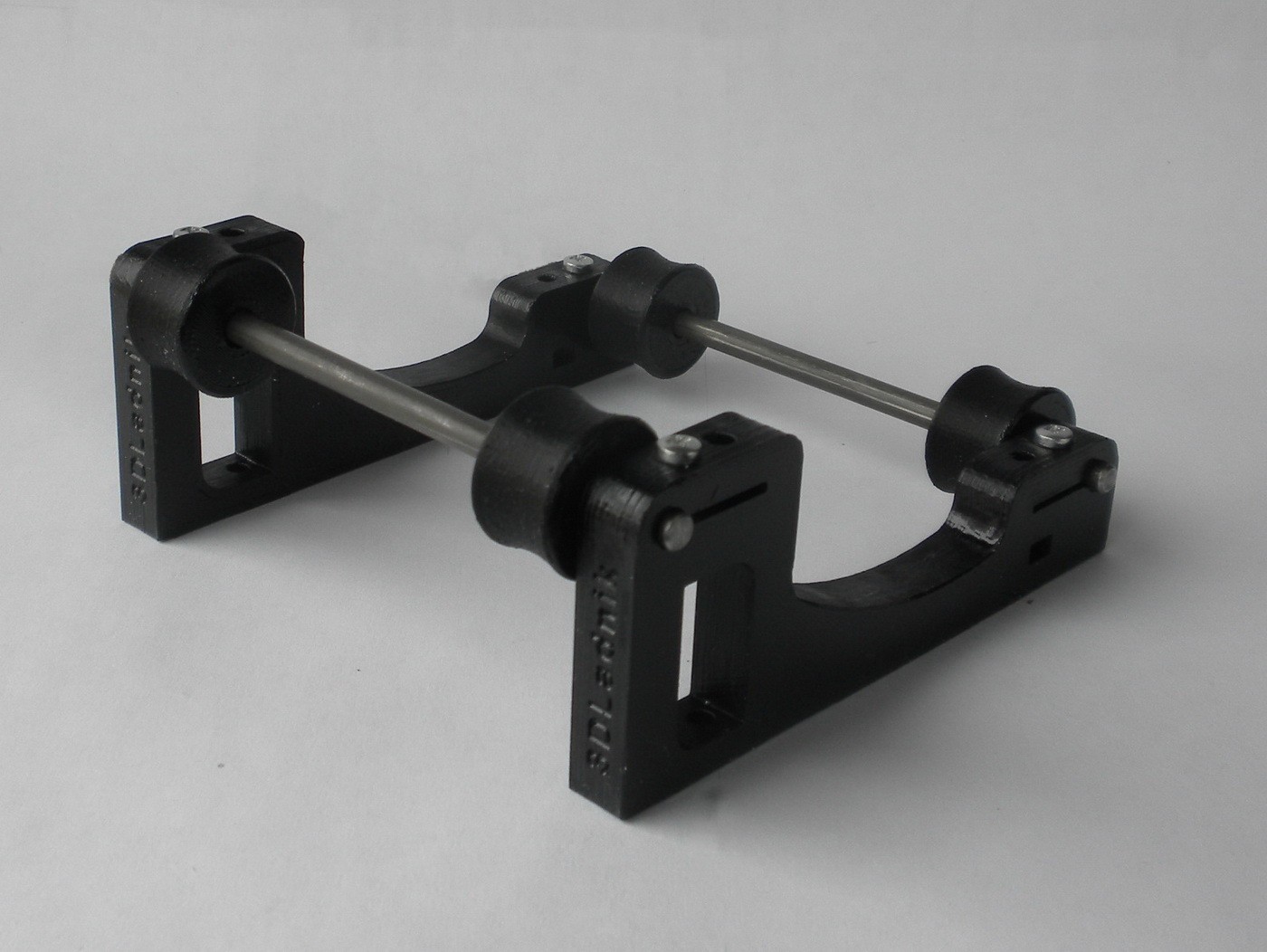

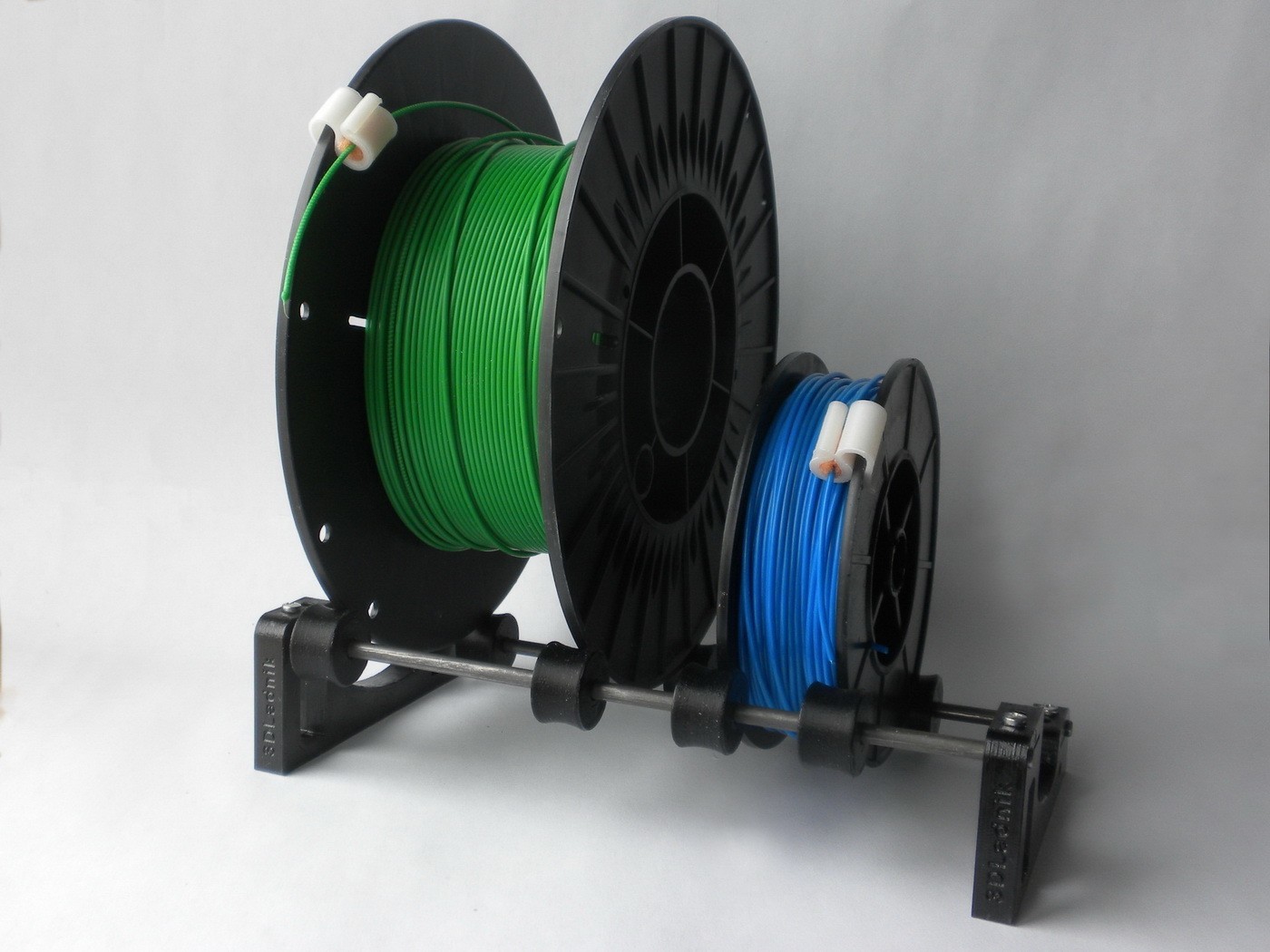

The universal Spool holder is designed for mounting 1 or 2 spool with diameters from 100 mm to 250 mm.

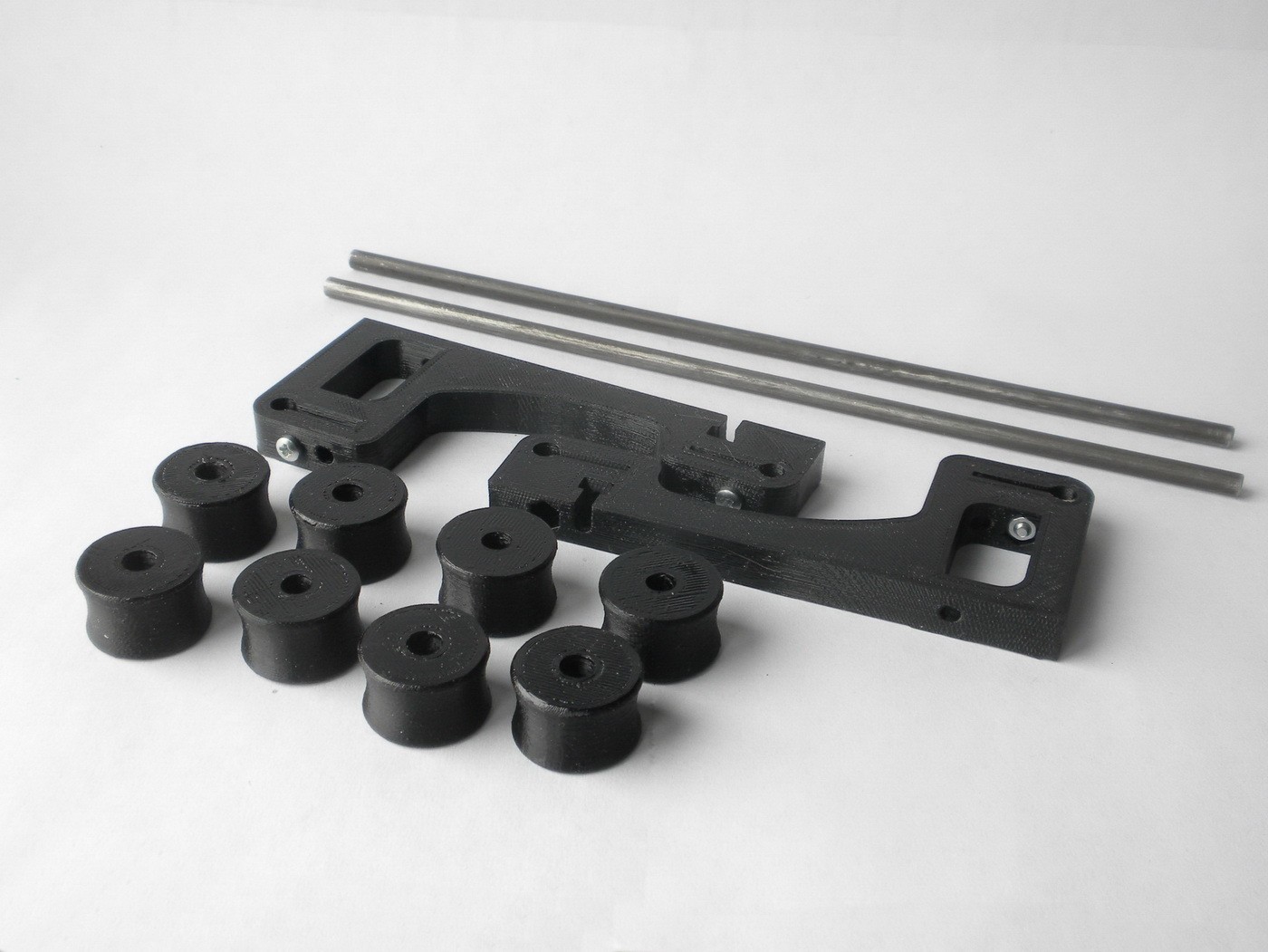

To assemble the Spool Holder, you need:

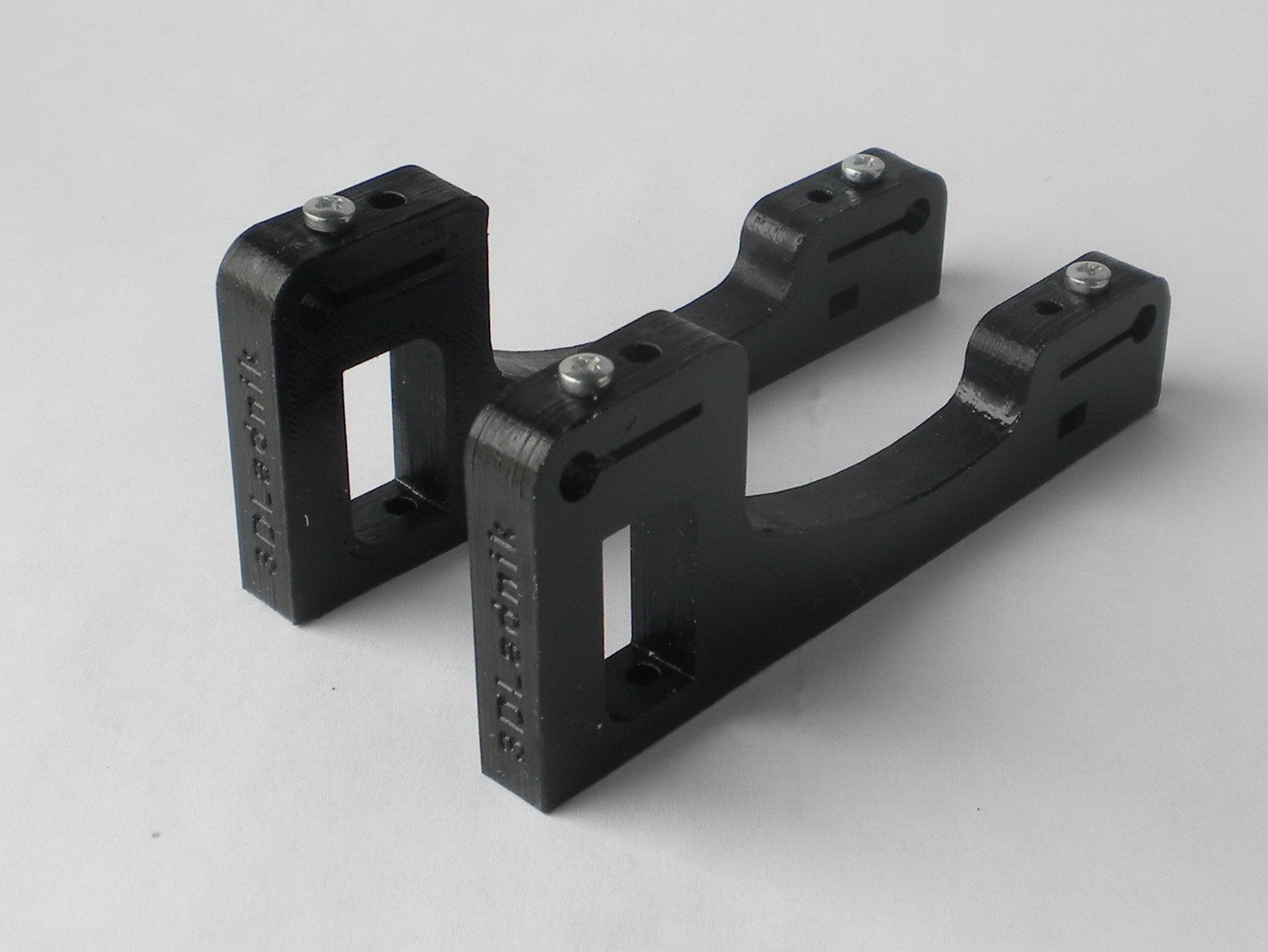

  • Stand SpHl-01 - 2 pcs.
  • Roller SpHl-02 - 4 pcs for a single holder and 8 pcs for a double holder.
  • Carbon steel axis - 2 pcs. There are three versions of the holder: with a diameter of 4, 5 or 6 mm. The recommended length of the axis is 225 mm for a single holder and 125 mm for a double holder.
  • Screw M3 x 16 - 4 pcs.
  • Nut M3 - 4 pcs.

files:
SpHl-01-4 and SpHl-02-4 for axes with a diameter of 4 mm
SpHl-01-5 and SpHl-02-5 for axes with a diameter of 5 mm
SpHl-01-6 and SpHl-02-6 for axes with a diameter of 6 mm

3D printer file information

  • 3D design format: STL Folder details Close
    • SpHl-01-4.STL
    • SpHl-01-5.STL
    • SpHl-01-6.STL
    • SpHl-02-4.STL
    • SpHl-02-5.STL
    • SpHl-02-6.STL

    Learn more about the formats

  • Publication date: 2018/03/23 at 11:50

License

CC BY
