Universal bicycle mobile phone holder Ellipticals

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 734 views
  • 4 likes
  • 33 downloads

3D model description

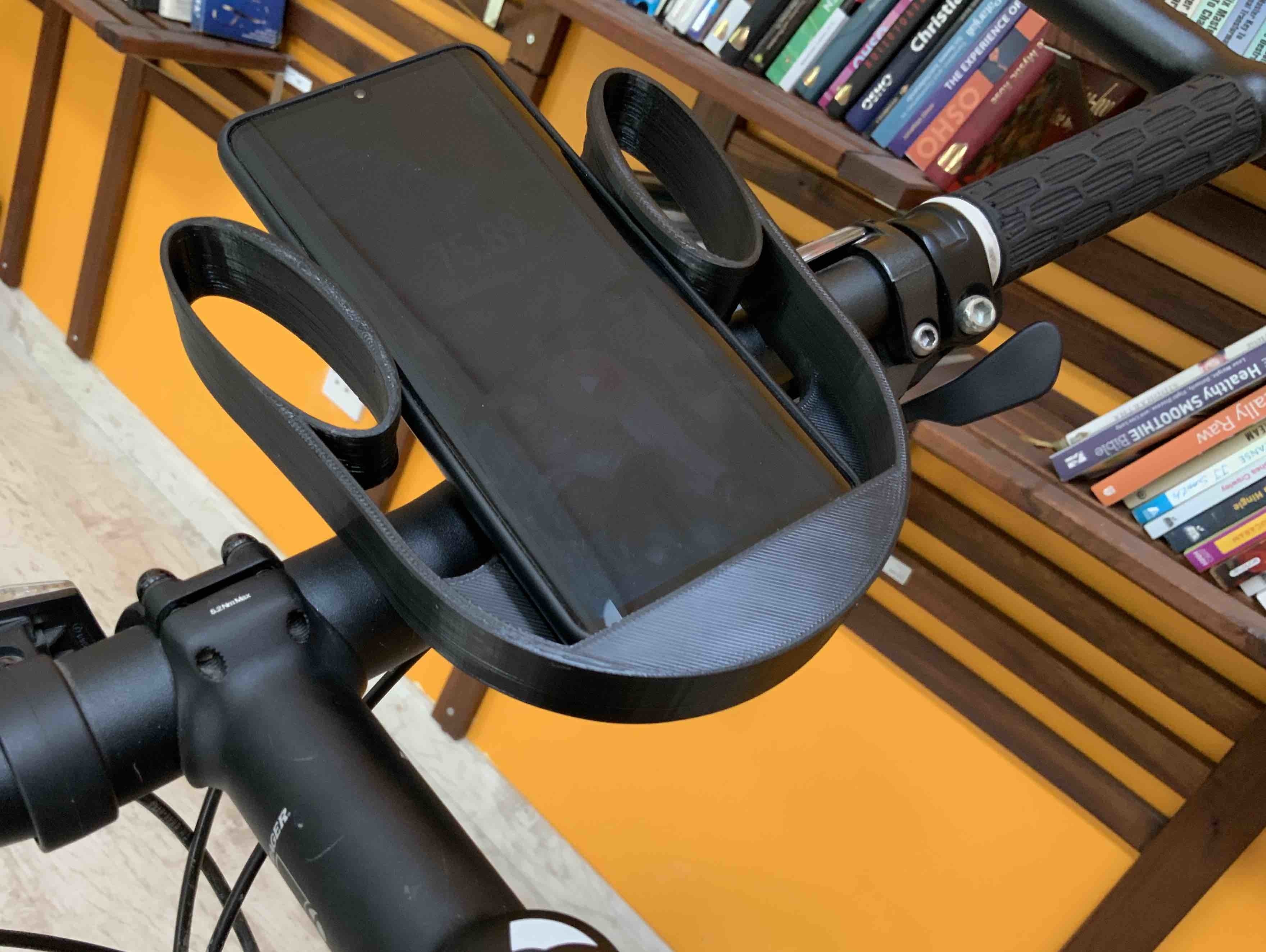

The simplest universal bicycle mobile holder with the least printed parts. You can add foam strips on the inner rim of the ellipticals to slide in even smaller phones or any other devices. As is, it holds a phone width between 65mm and 80mm.

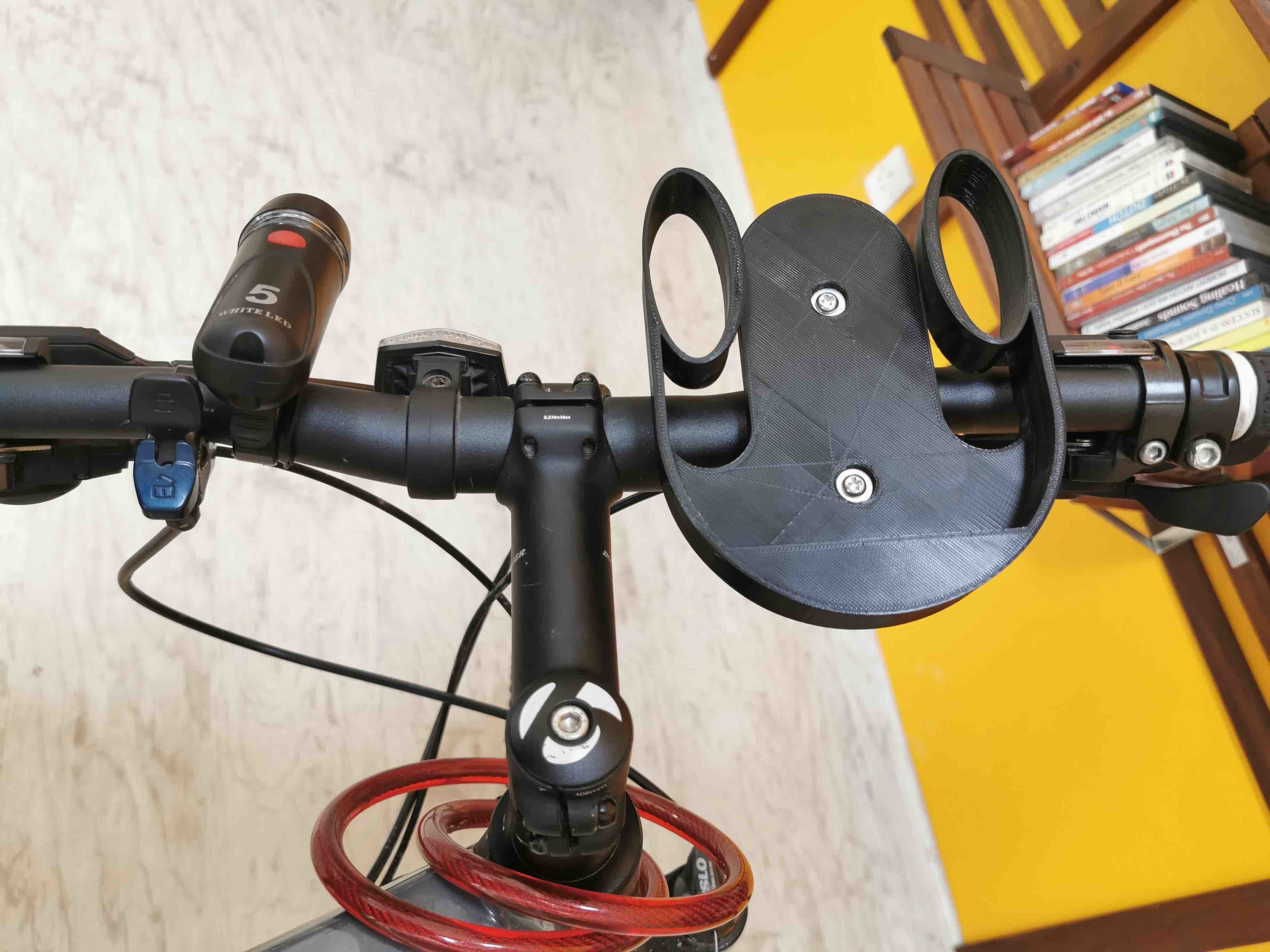

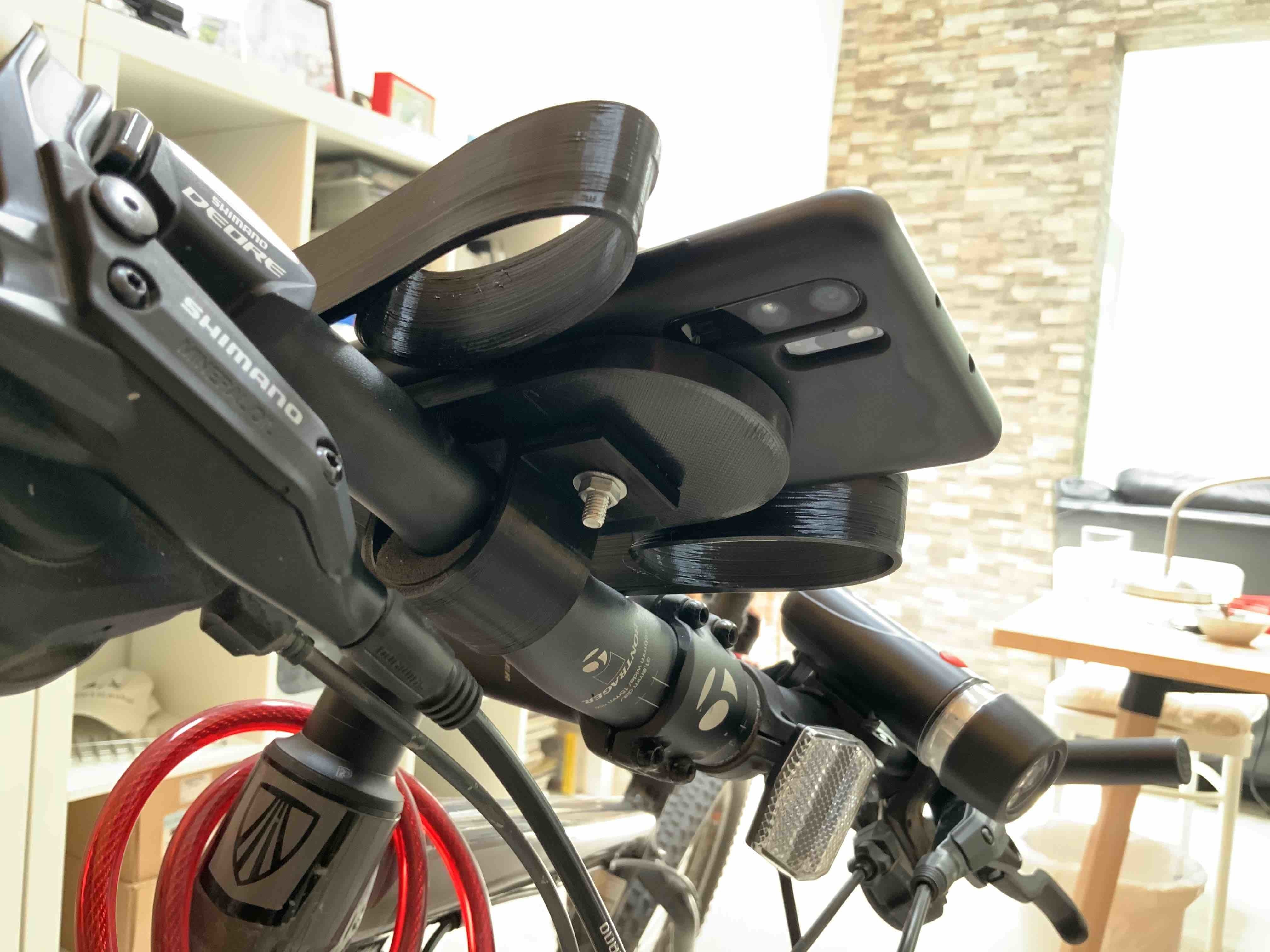

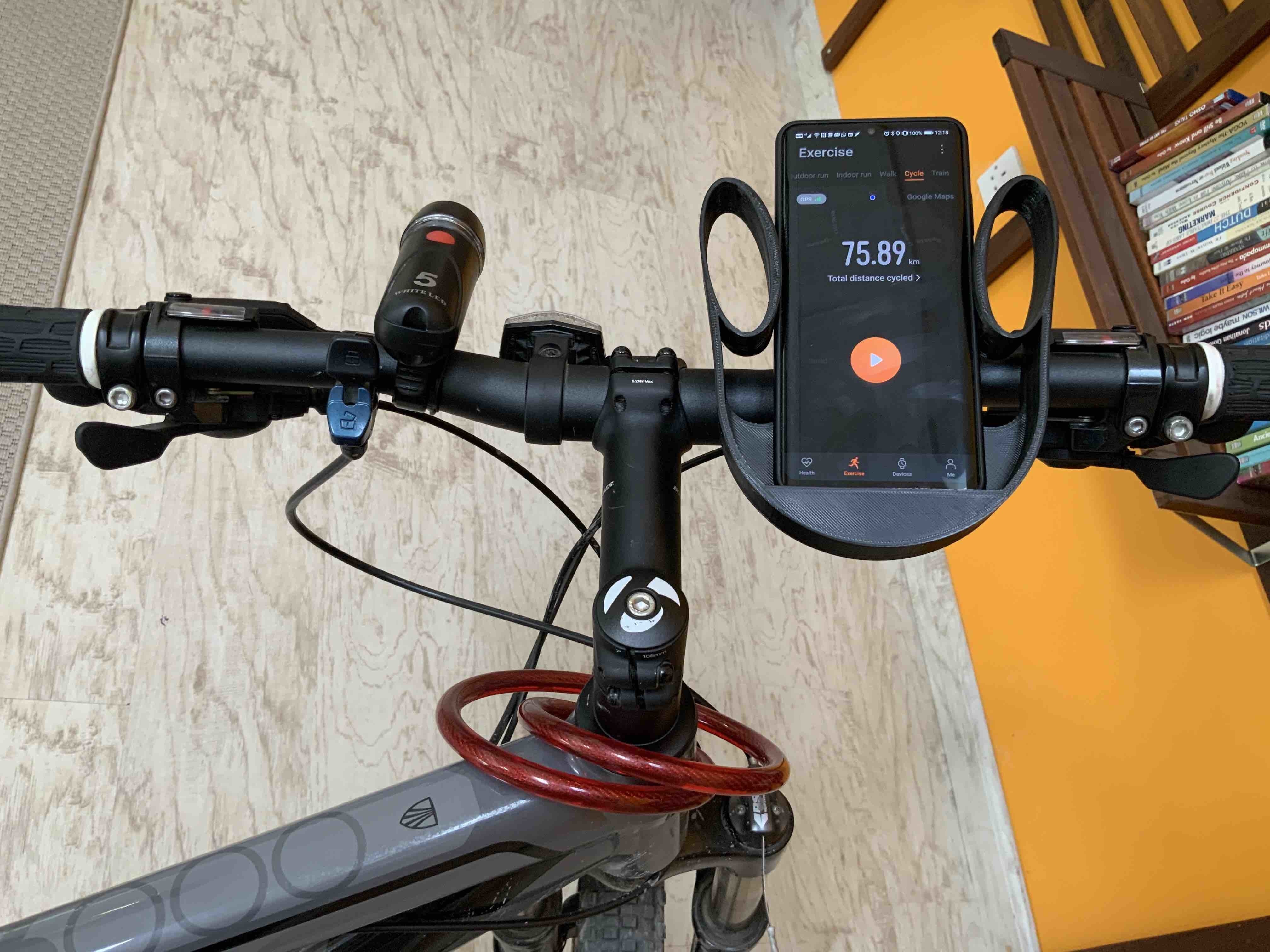

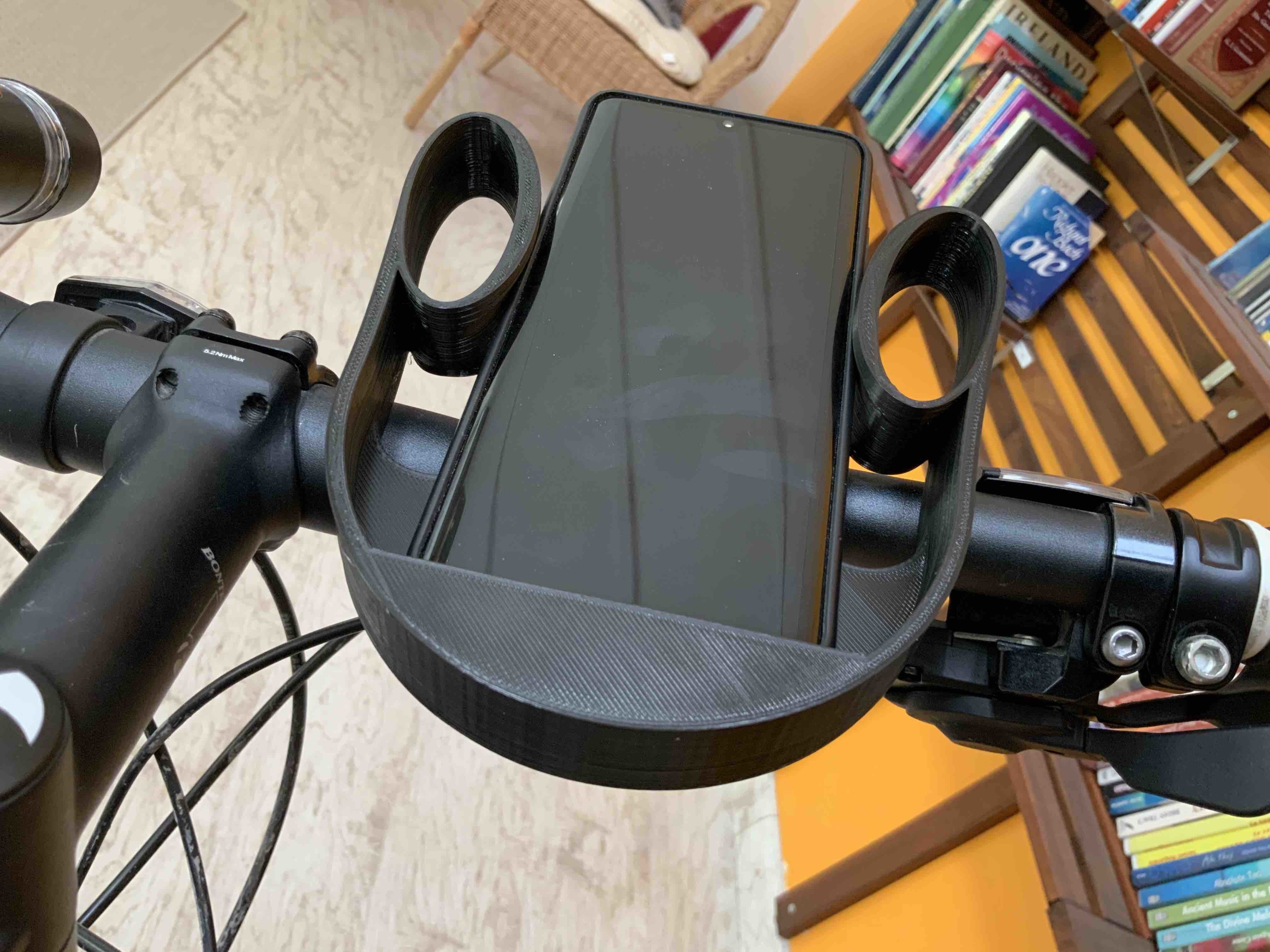

I've also provided a spacer to raise the holder above the starting handle if you find it necessary. For me, as you can see from the photos, I have it almost flat on the bar.

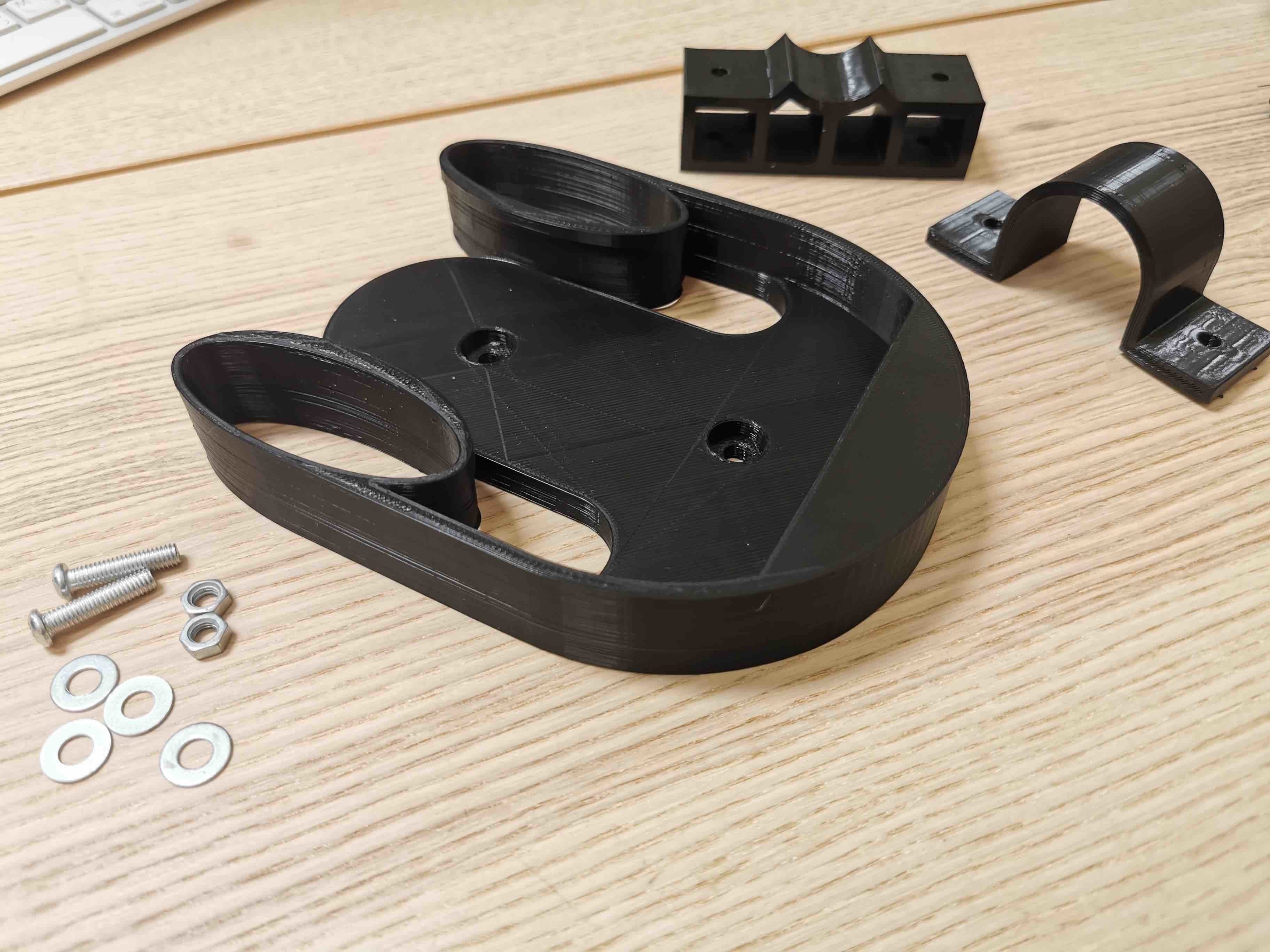

You'll need a set of nuts and bolts with four washers.
Size: M4X0.7X20mm (Nut and Bolt), washer's maximum outer diameter 11.98mm.

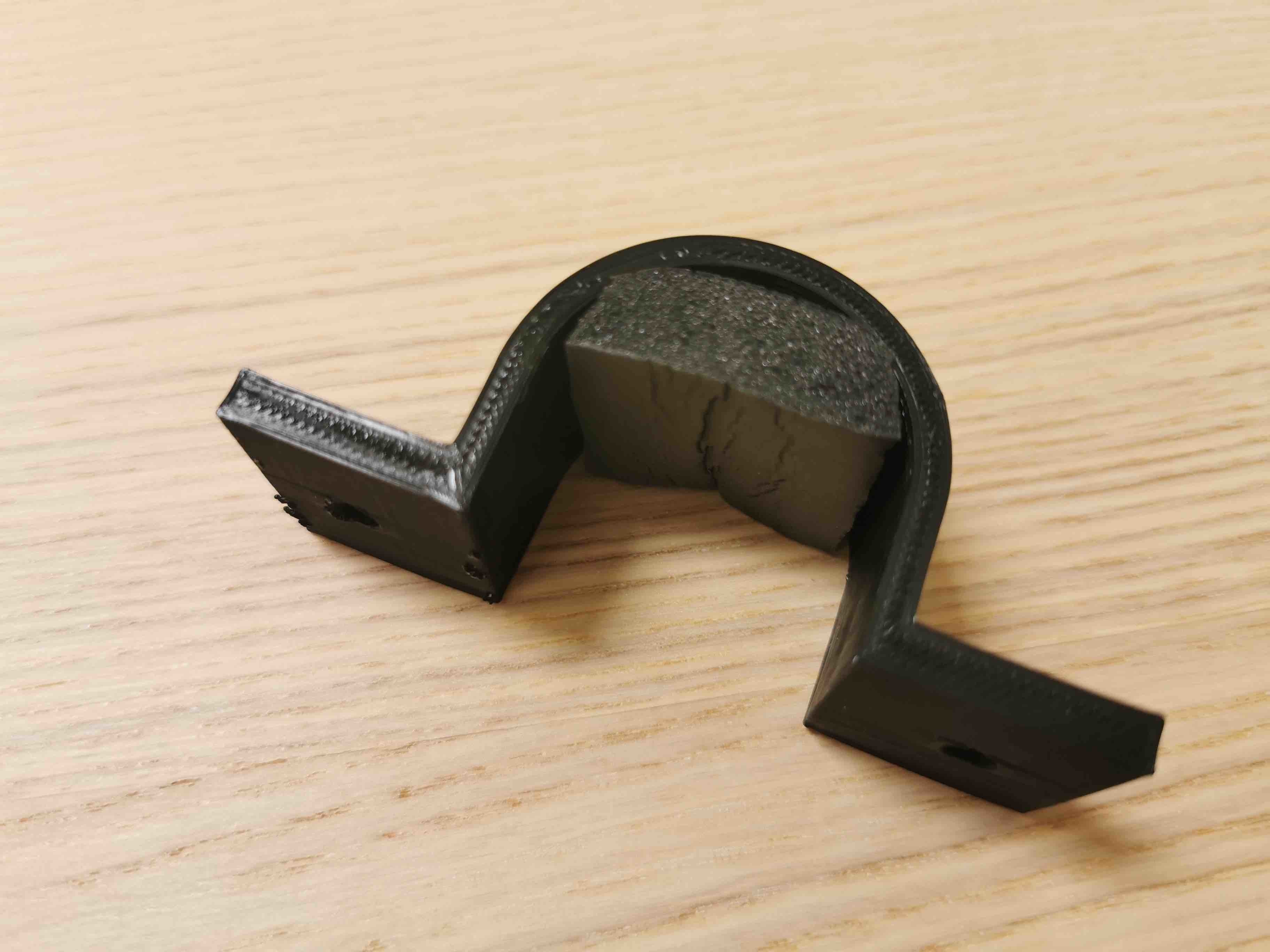

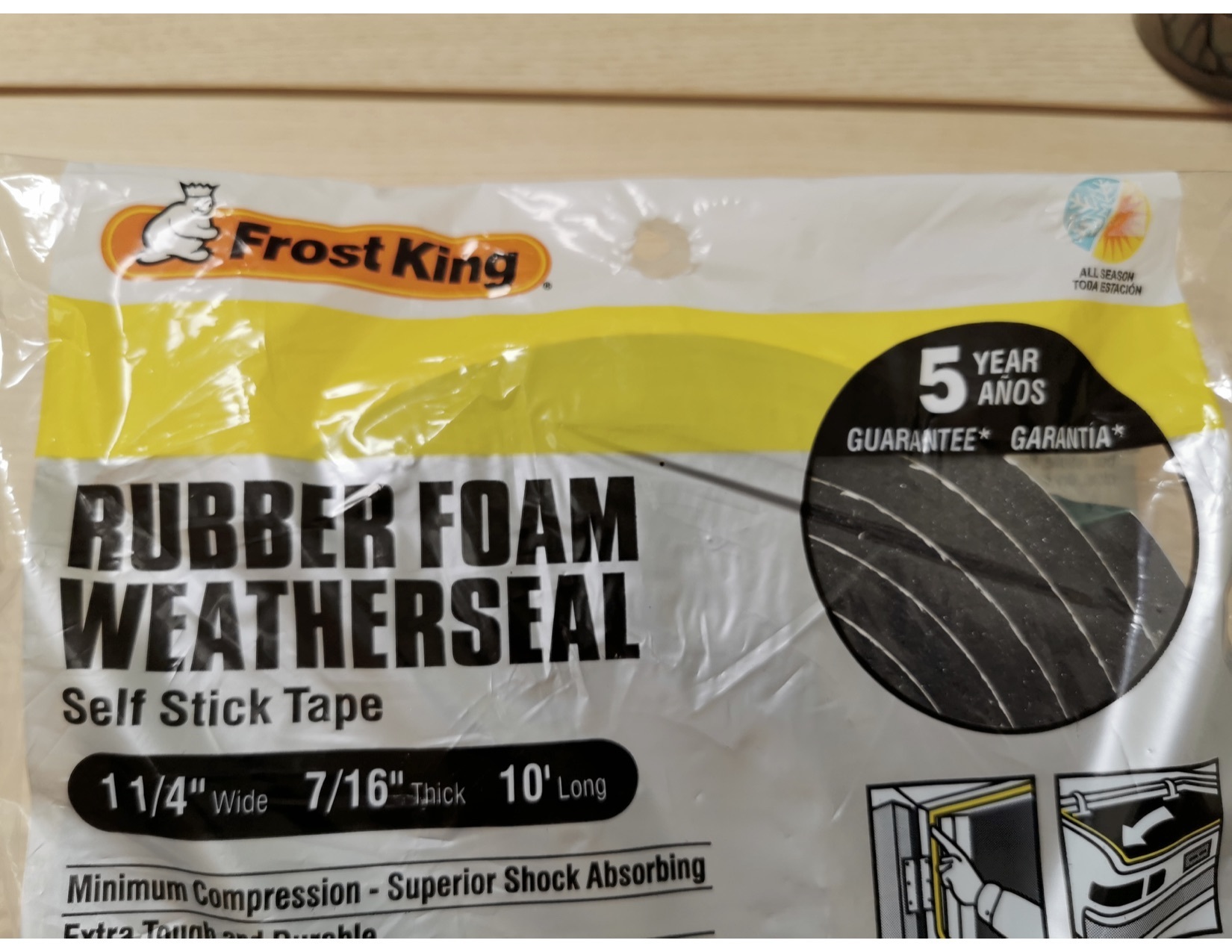

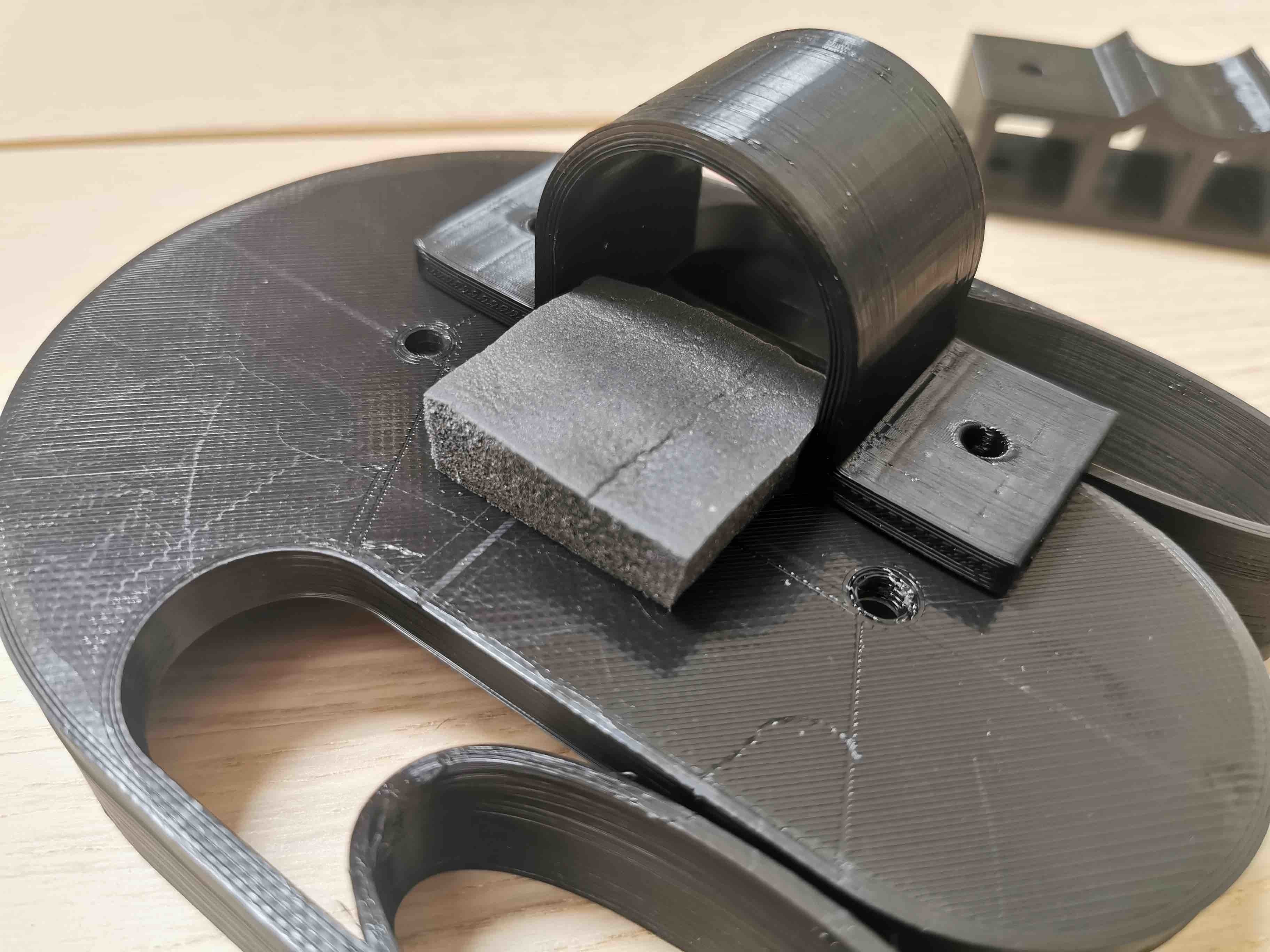

I've also used a foam weather seal to get a stronger grip on the bar.

3D printing settings

You'll find the printing settings in the last photo.

I've increased the end temp and the bed temps to reduce warping. the print still warped but much better than previous prints. I'm trying to play around with temperatures to see what works to reduce or eliminate warping! I'll try to supply glue on the bed to see if that solves my problem. Any suggestion?

  • 3D file format: STL
  • Last update: 2020/06/25 at 06:34
  • Publication date: 2020/06/11 at 12:18
