Tripod mono foot or spreader.

?
Creation's quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 👁 1.3k views
  • 2 likes
  • 3 downloads

3D model description

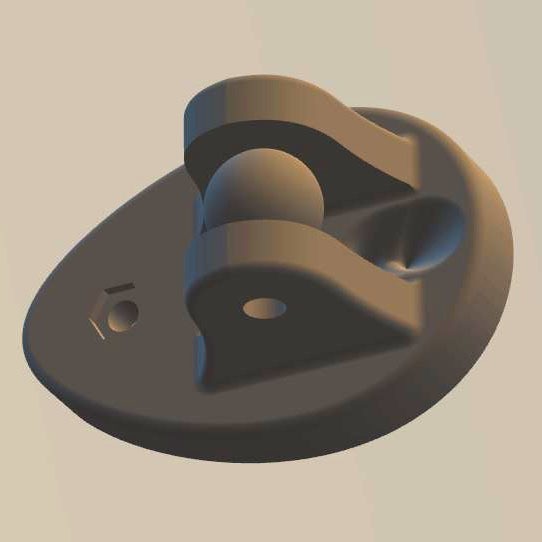

Tripod foot for Manfrotto, Vinten or Sachtler tripods with dual spiked feet.

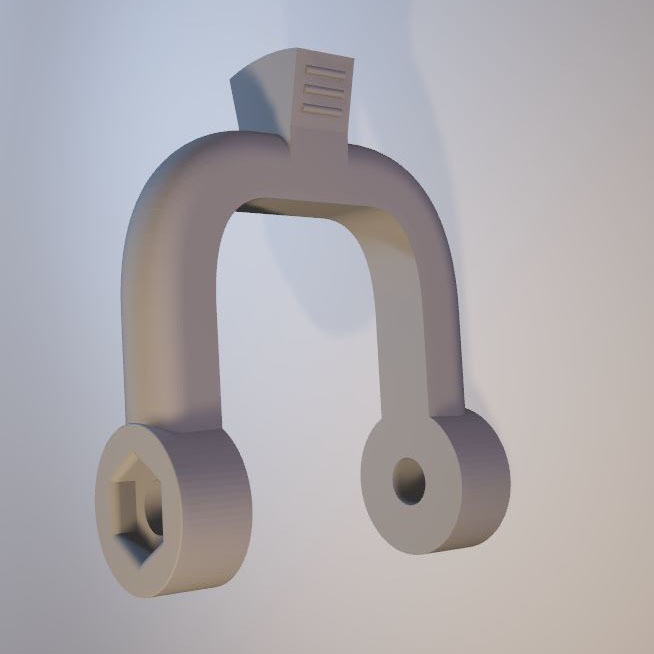

The part requires bungee cord* or flexible clip (included STL, printed in flexible plastic - eg TPU), though even a few strong elastic bands will do the trick..)
The foot is designed to support the tripod with a 50mm M6 bolt (which goes through either the ball or cylinder support).
In addition, prints include cut outs to enable fitting of bars to make a full 3 leg spreader.
* includes ferrules to glue to the ends of 5 or 6mm cord, but in practice I found simply making a loop using the proper crimp clips for cord was best -search eBay/google: "(bungee, shock) (sleeve, ferrule, crimp)".

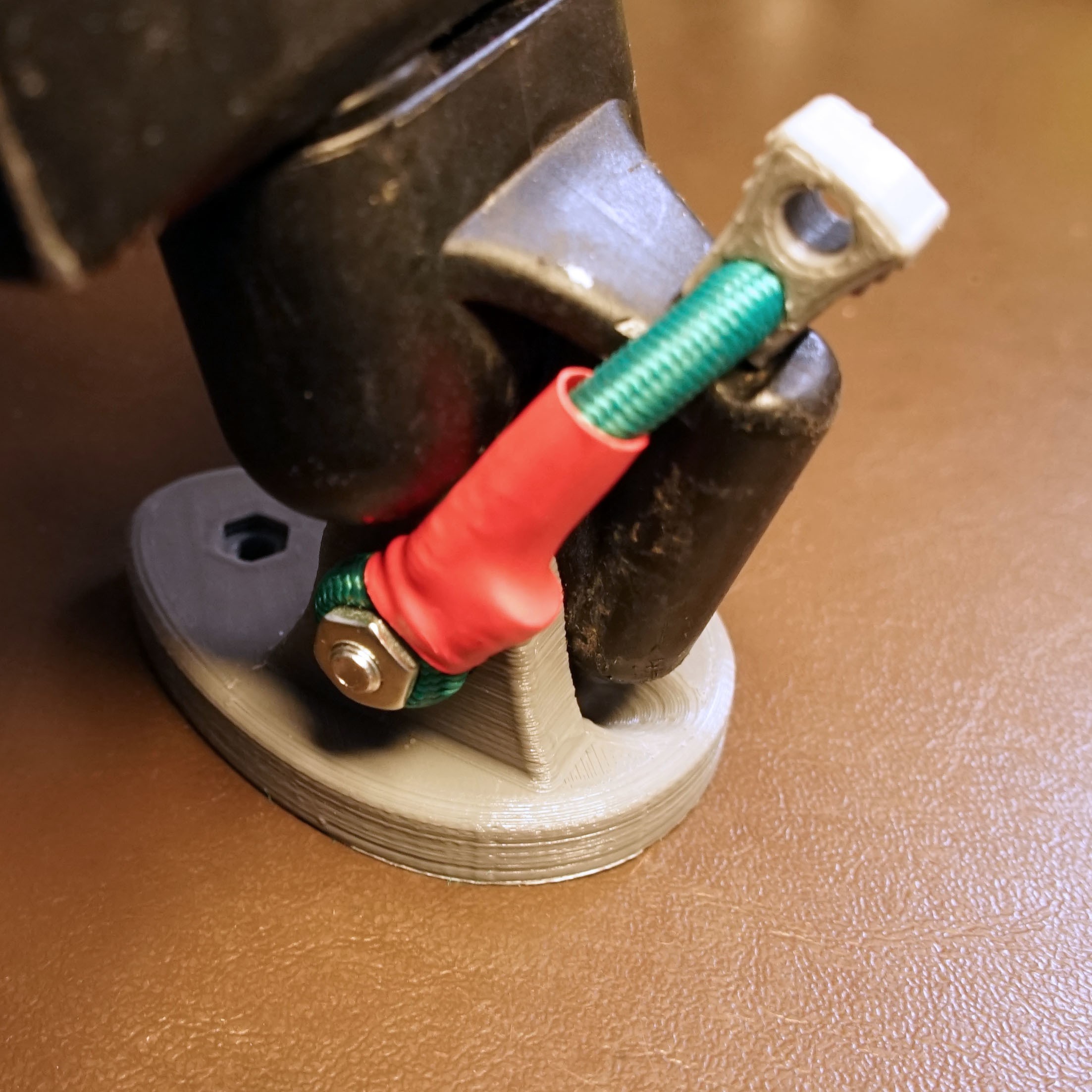

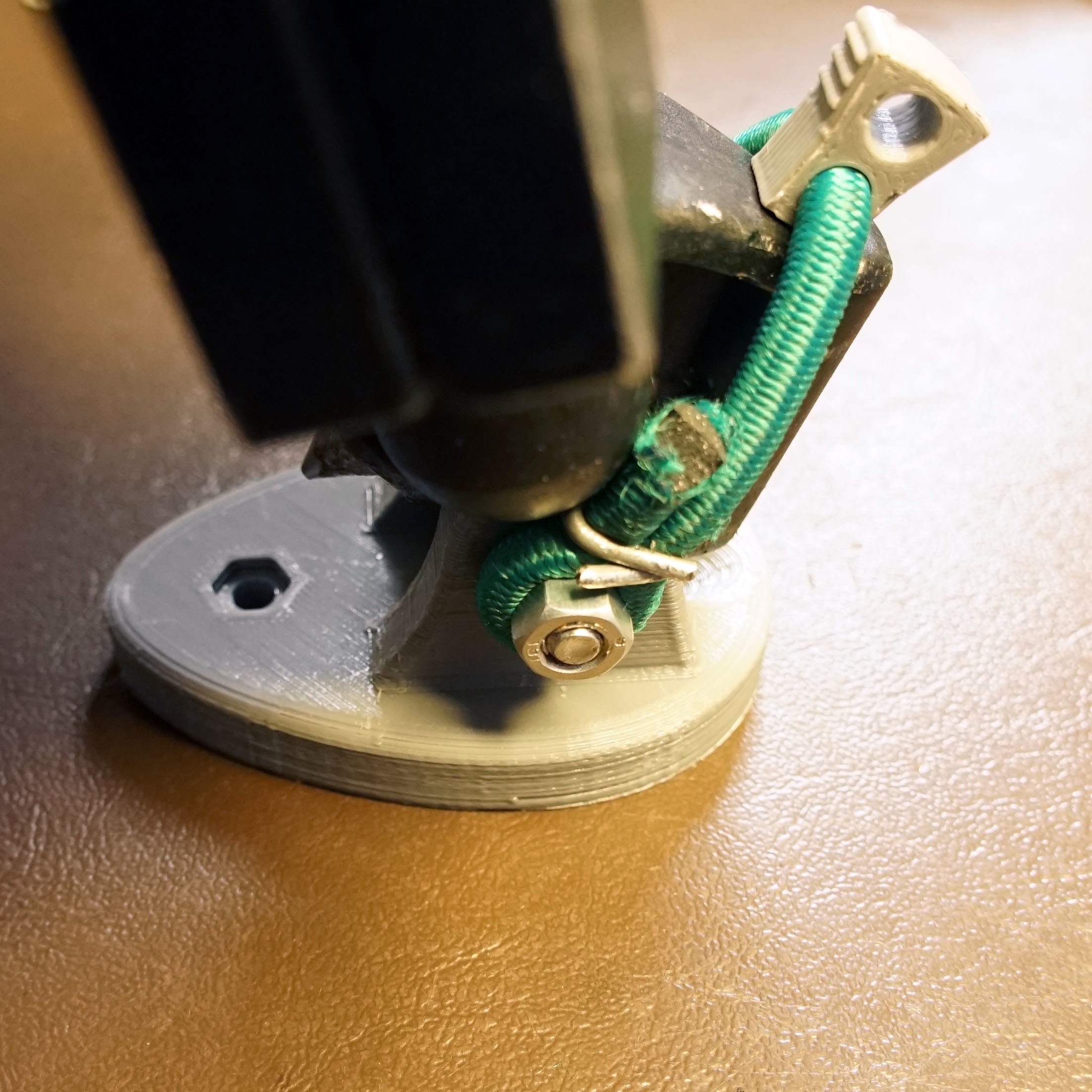

In the photo, I used 6mm bungee cord cut to 150mm (6"), mark with a pen and bend @ 115mm (4½"), plus 25 to 30mm of 0.2 wire for the crimp, and then covered the ends with shrink wrap to tidy them up!
If you make a spreader: the holes/nut cage in the print are for 10 or 12mm M5 countersunk bolts (spaced 25mm apart). Use 2x12mm aluminium bar for the spreader arms.


3D printing settings

FDM: print the foot with the base on the print bed, with support. Print the ball (with support) or cylinder (without support) with the hole vertical.
