Tiny Whoop X mode 68 mm Polycarbonate

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 1.5k views
  • 7 likes
  • 80 downloads

3D model description

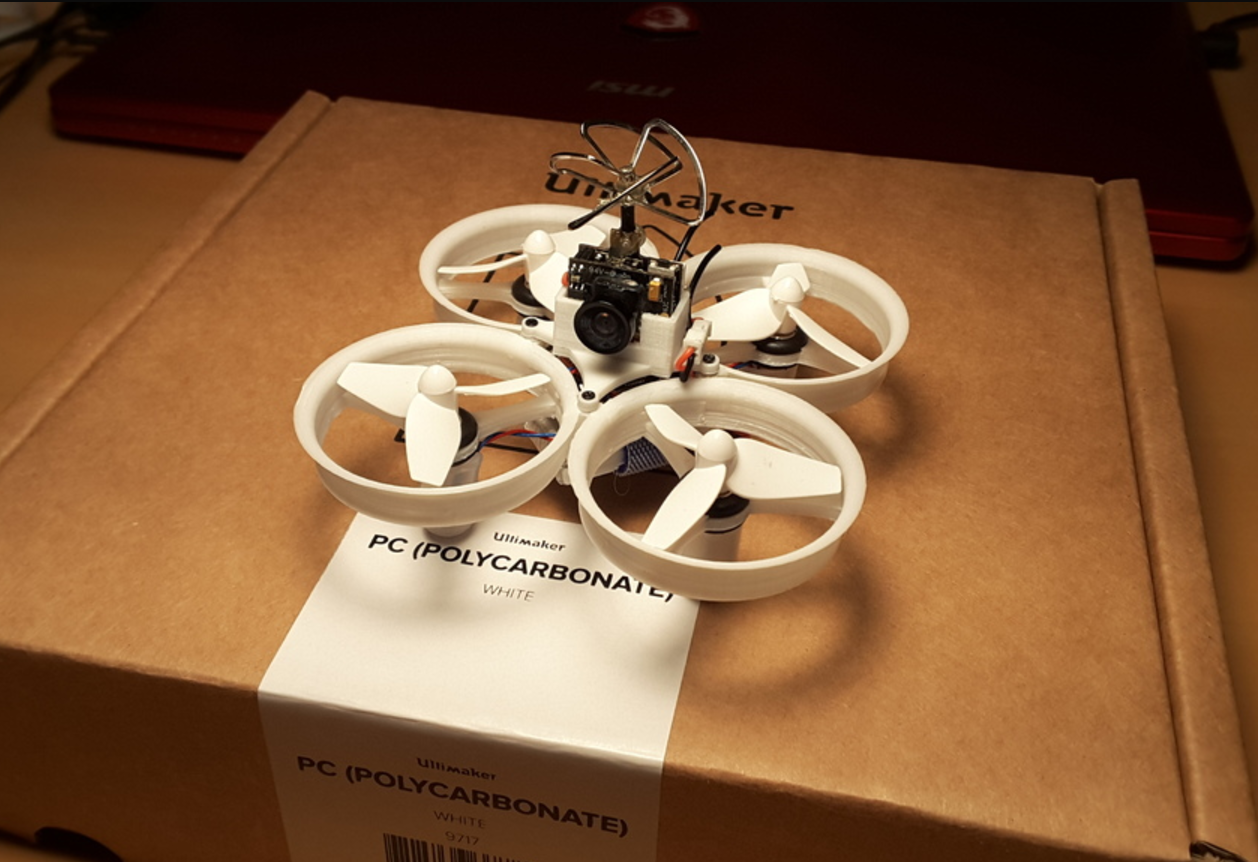

After requests, here is the version of the classic tiny whoop x 68mm.
The light and airy architecture of the 68mm frame has been possible due to the soliditer and stiffness of the polycarbonate.
Be very careful in flight with other filaments ;)

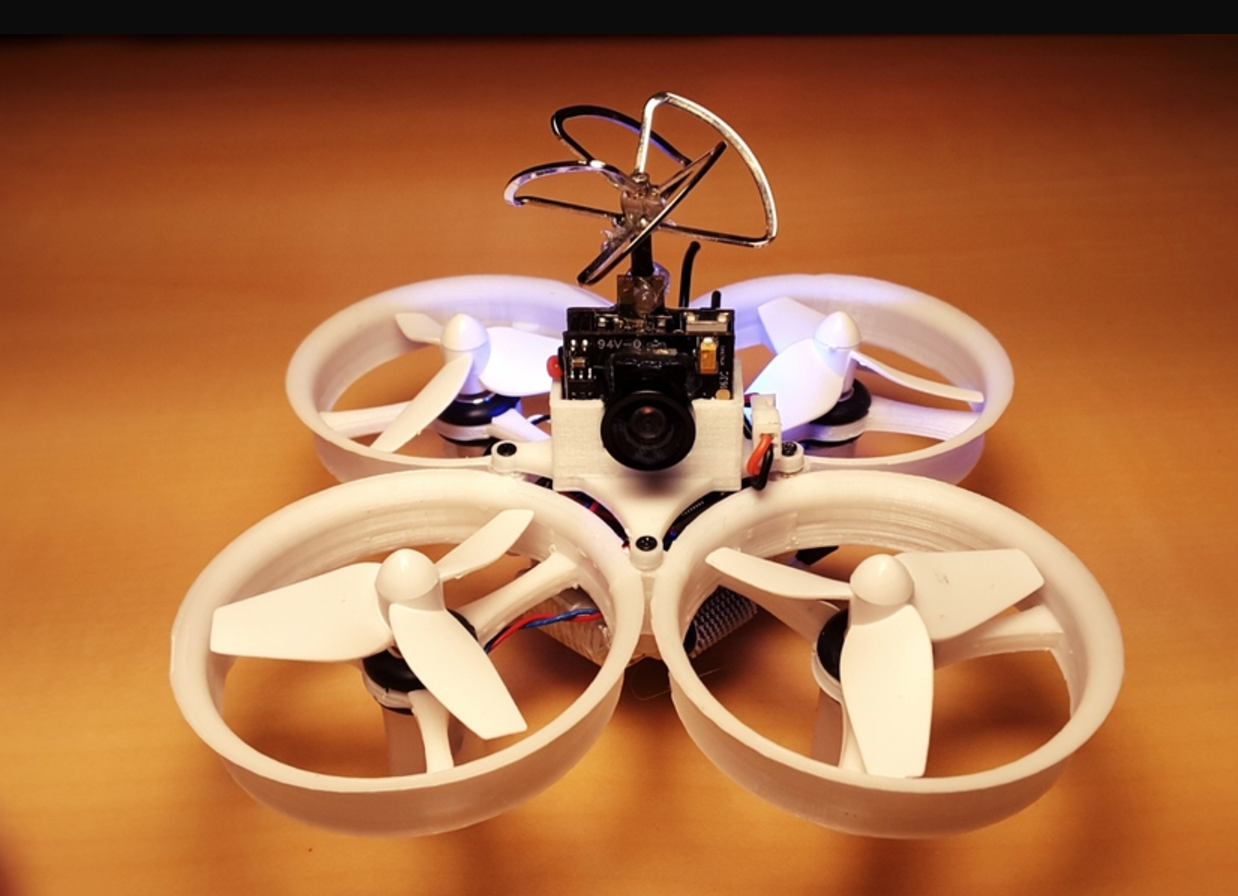

Frame in polycarbonate 68 mm center distance with a mini flight controller racing evo sp. It is fully configurable and cleanflight on all flights modes

FC:
http://www.banggood.com/Eachine-Tiny-32bits-F3-Brushed-Flight-Control-Board-Based-On-SP-RACING-F3-EVO-For-Micro-FPV-Frame-p-1087648.html?rmmds=search?p=LD020411878172015024

Coreless:
http://www.banggood.com/4X-Chaoli-CL-720-7x20mm-Coreless-Motor-for-90mm-150mm-DIY-Micro-FPV-RC-Quadcopter-Frame-p-1070123.html?rmmds=search?p=LD020411878172015024

coreless fixing 6mm:
http://www.banggood.com/fr/20-PCS-3MM-5MM-6MM-8MM-10MM-Short-Circuit-Protection-Insulated-Rubber-Ring-for-FPV-Racer-p-1075031.html?p=LD020411878172015024

Recepteur: lemonRx dsmx

Props EDF:
http://www.banggood.com/Eachine-Fatbee-FB90-Turbine-QX70-Micro-FPV-Racing-Quadcopter-Spare-Parts-40mm-4-Blade-Propeller-Set-p-1108674.html?rmmds=search?p=LD020411878172015024

Camera 25mW:
http://www.banggood.com/Eachine-TX01-Super-Mini-AIO-5_8G-40CH-25MW-VTX-600TVL-14-Cmos-FPV-Transmitter-p-1088374.html?p=LD020411878172015024

Camera 200mW:
http://www.banggood.com/Eachine-TX02-Super-Mini-AIO-5_8G-40CH-200mW-VTX-600TVL-14-Cmos-FPV-Camera-p-1088368.html?rmmds=myorder?p=LD020411878172015024

Lipo 1s nanotech 260mha = 3min flight

8 x M1.6 x 5mm

https://www.facebook.com/Microdure/


3D printing settings

Printer Brand:
Ultimaker

Printer:
Ultimaker Original

Rafts:
No

Brackets:
No

Resolution:
0.06

Infill:
2.75mm polycarbonate

3D printer file information

  • 3D design format: STL Folder details Close
    • Tiny_whoop_68mm_polycarbonate.stl
    • Tiny_whoop__X_68mm_capot_10_camera.stl
    • Tiny_whoop__X_68mm_capot_camera.stl
    • Tiny_whoop_croix_68mm_fixation_lipo_260mha.stl
  • Last update: 2017/03/13 at 13:29
  • Publication date: 2017/02/20 at 11:53

License

CC BY NC SA
